ACD Cable Ladder

Outward-C rail cable ladder in five rail heights, ACD65 to ACD150, hot-dip galvanized. Load ratings published to IEC 61537.

Request this file

Leave your details and the file downloads straight away — this also unlocks catalogue PDFs and GA drawings for 30 days, so you won’t need to fill this in again. Same inbox as Contact — we use them to follow up.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Goes straight to arrayinfo@arraymetal.com.

Rail heights
65 / 75 / 100 / 125 / 150 mm
Widths
100, 125, 150, 200, 300, 400, 450, 500… mm
Thickness
1.5 / 2 mm
Lengths
3000 mm
Finish
G
Published codes
1,525

Products

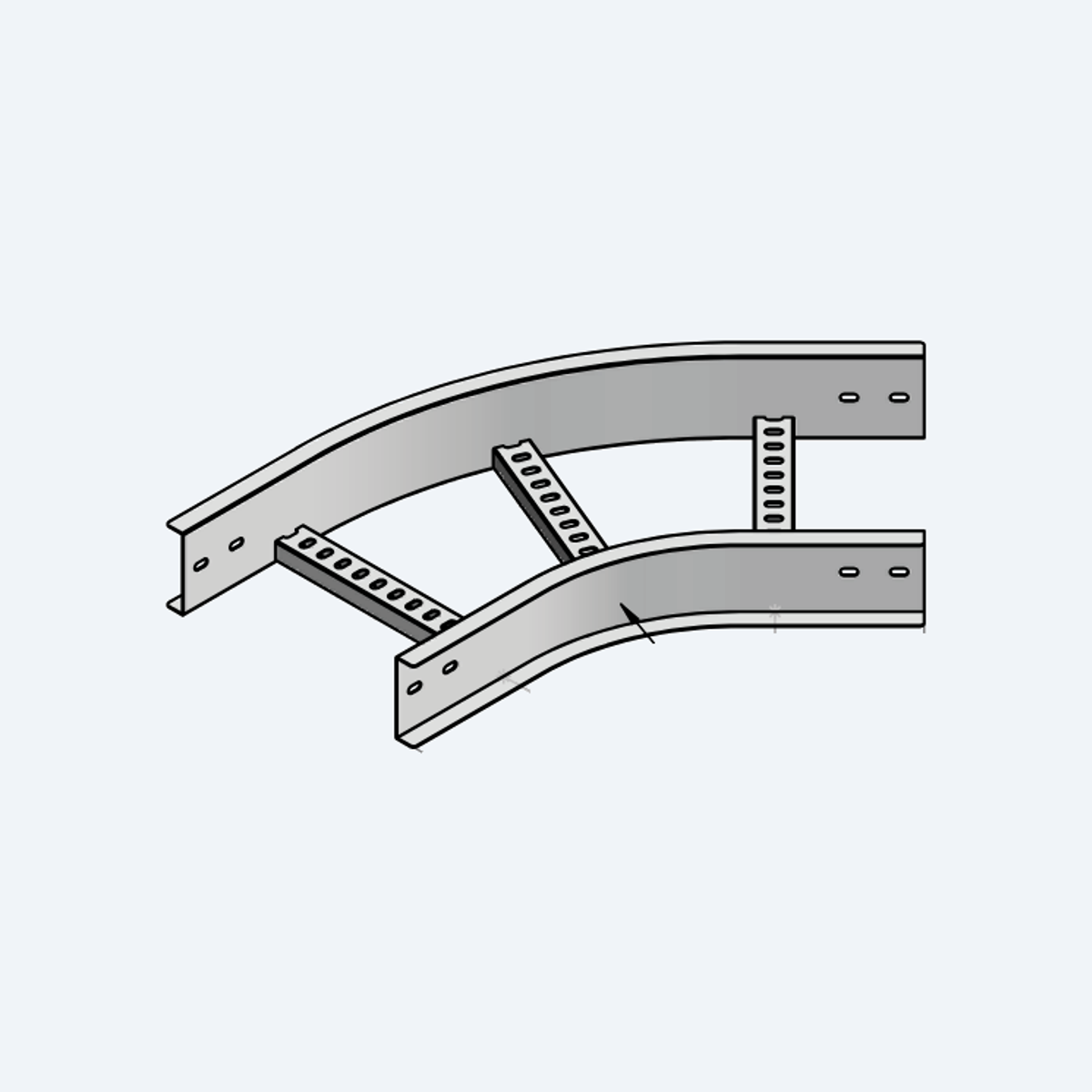

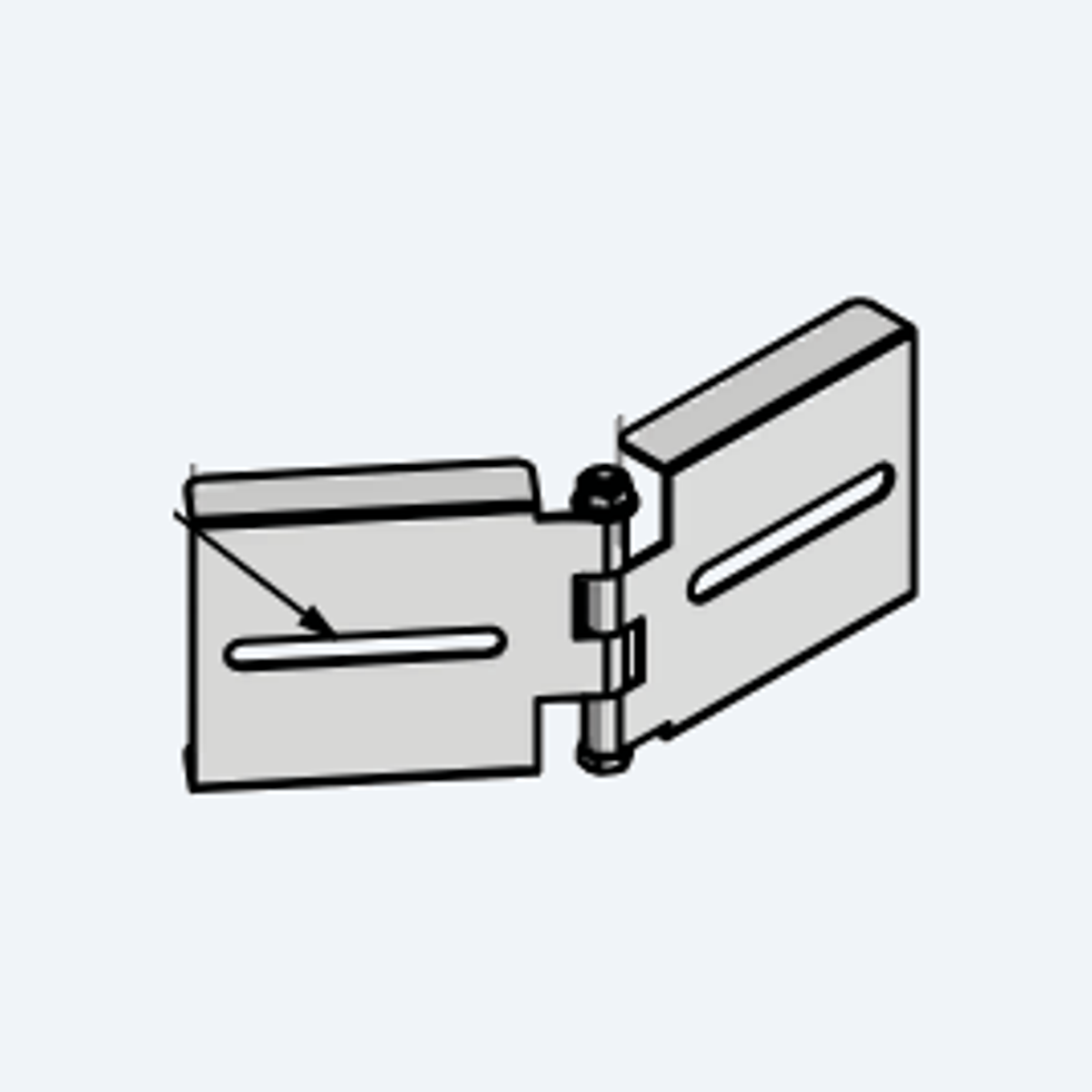

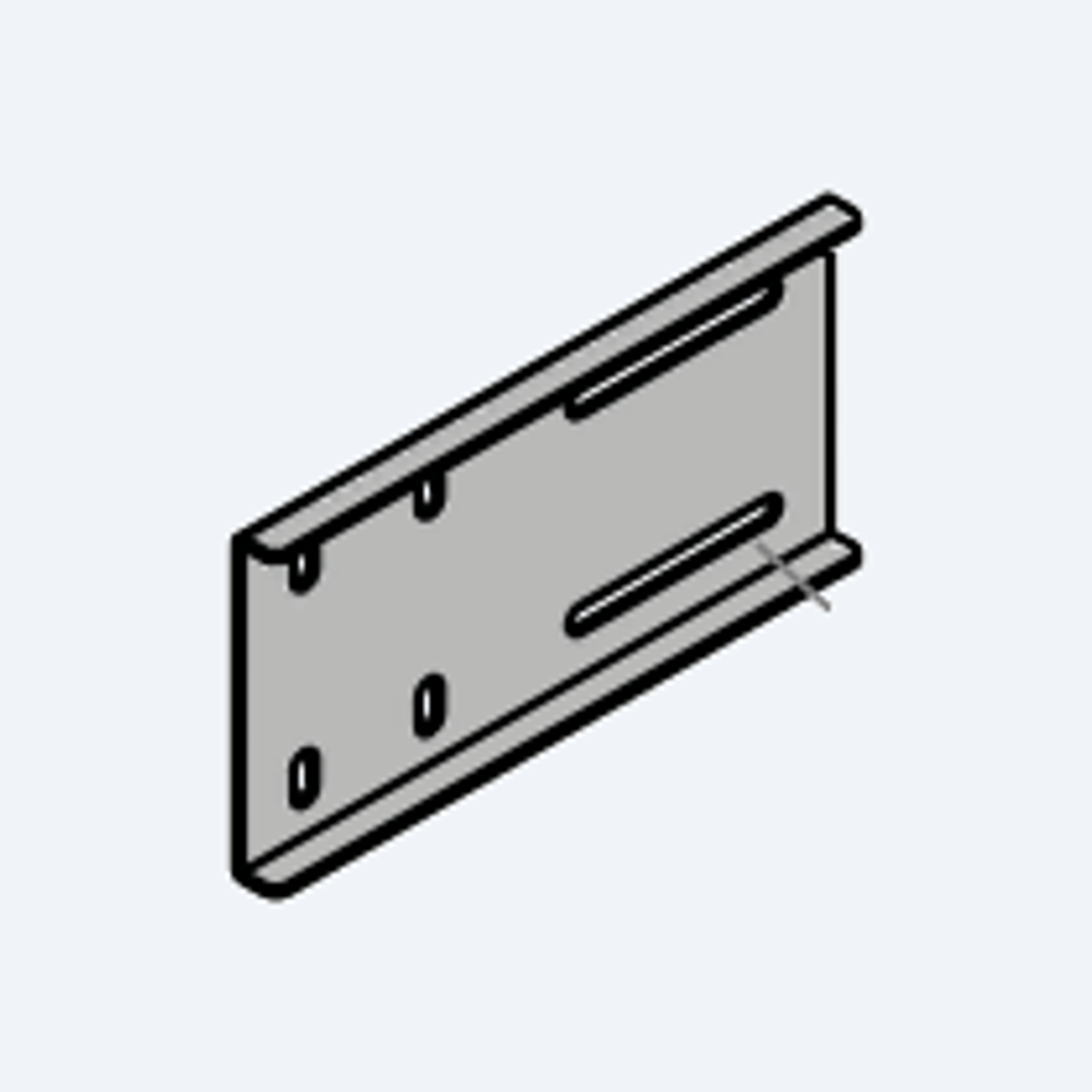

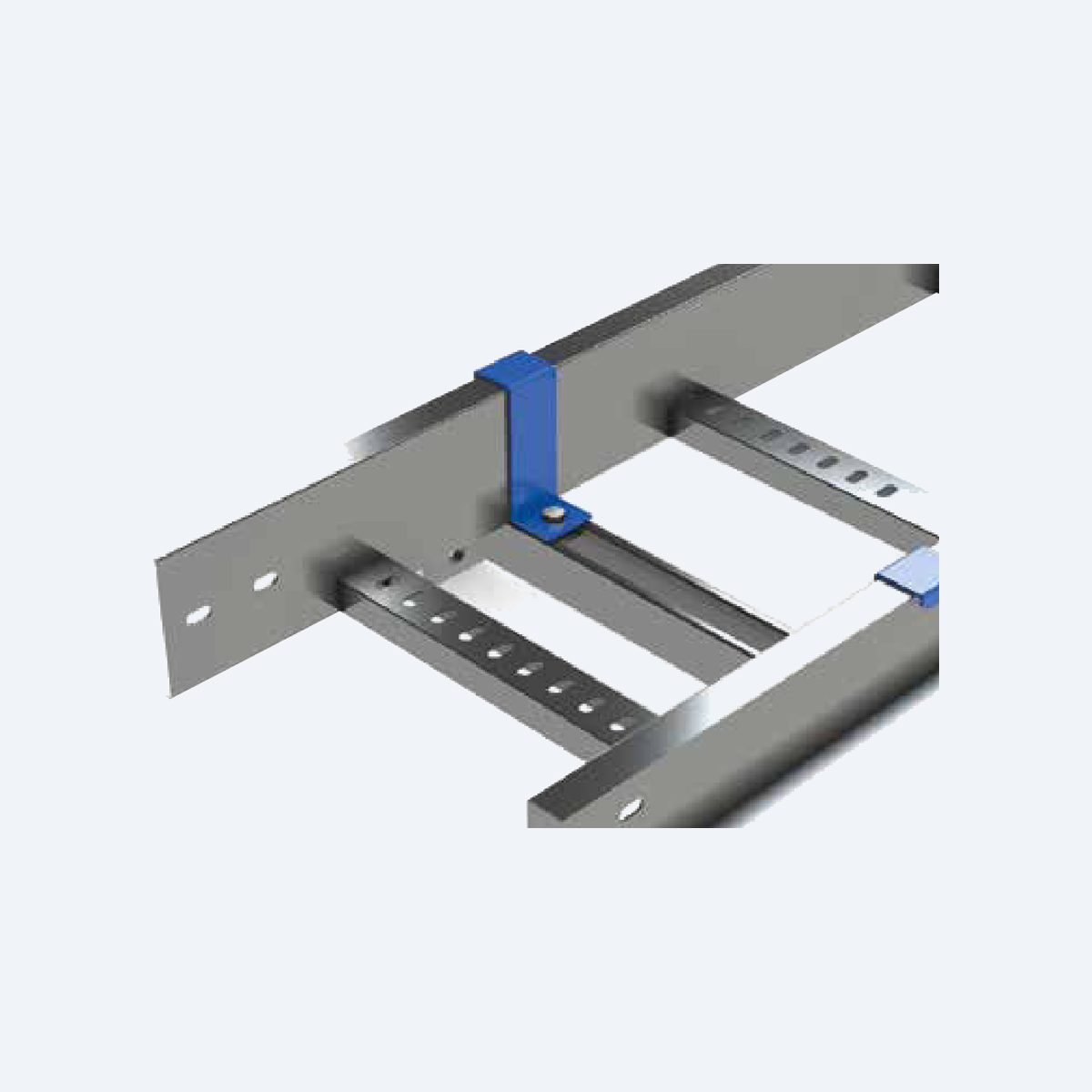

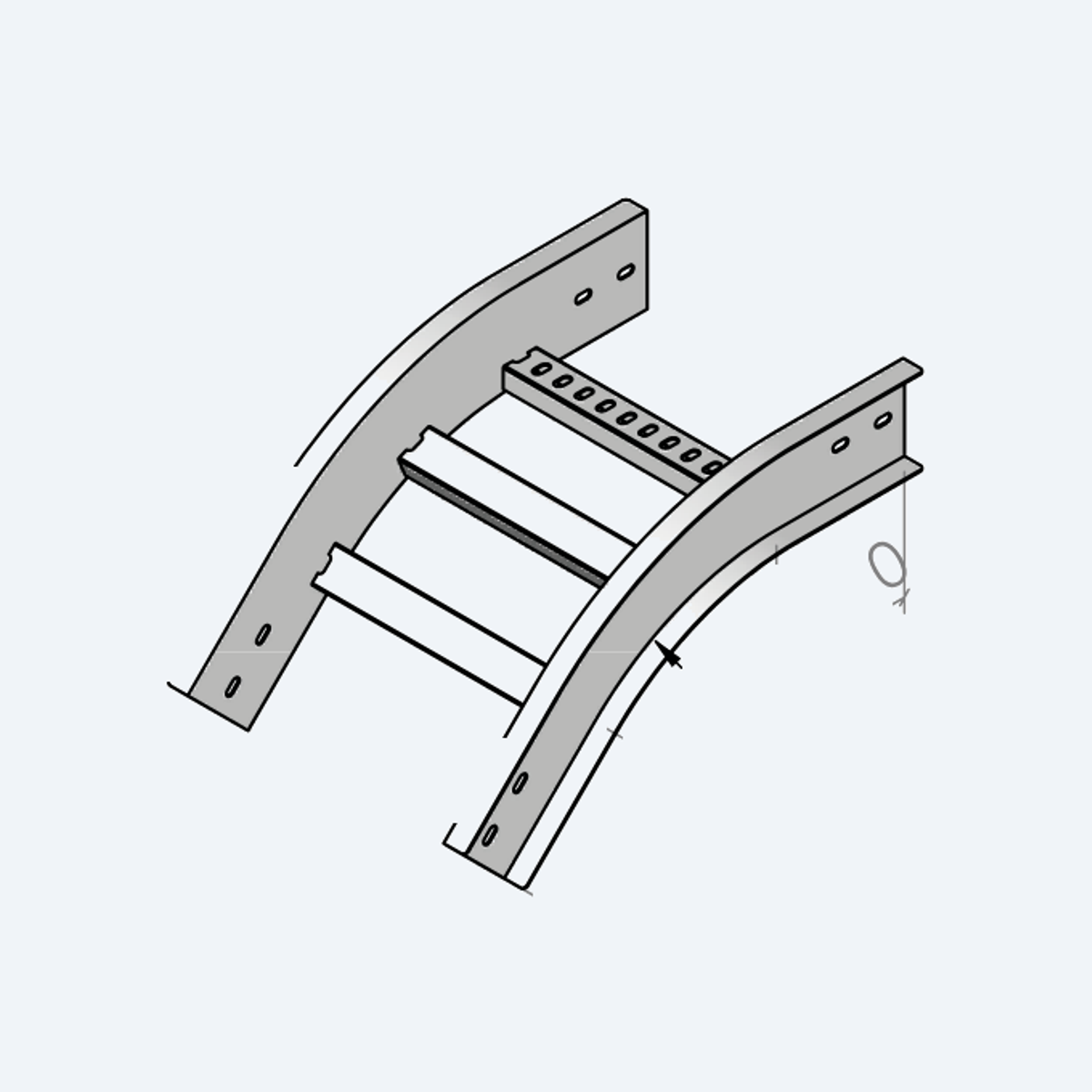

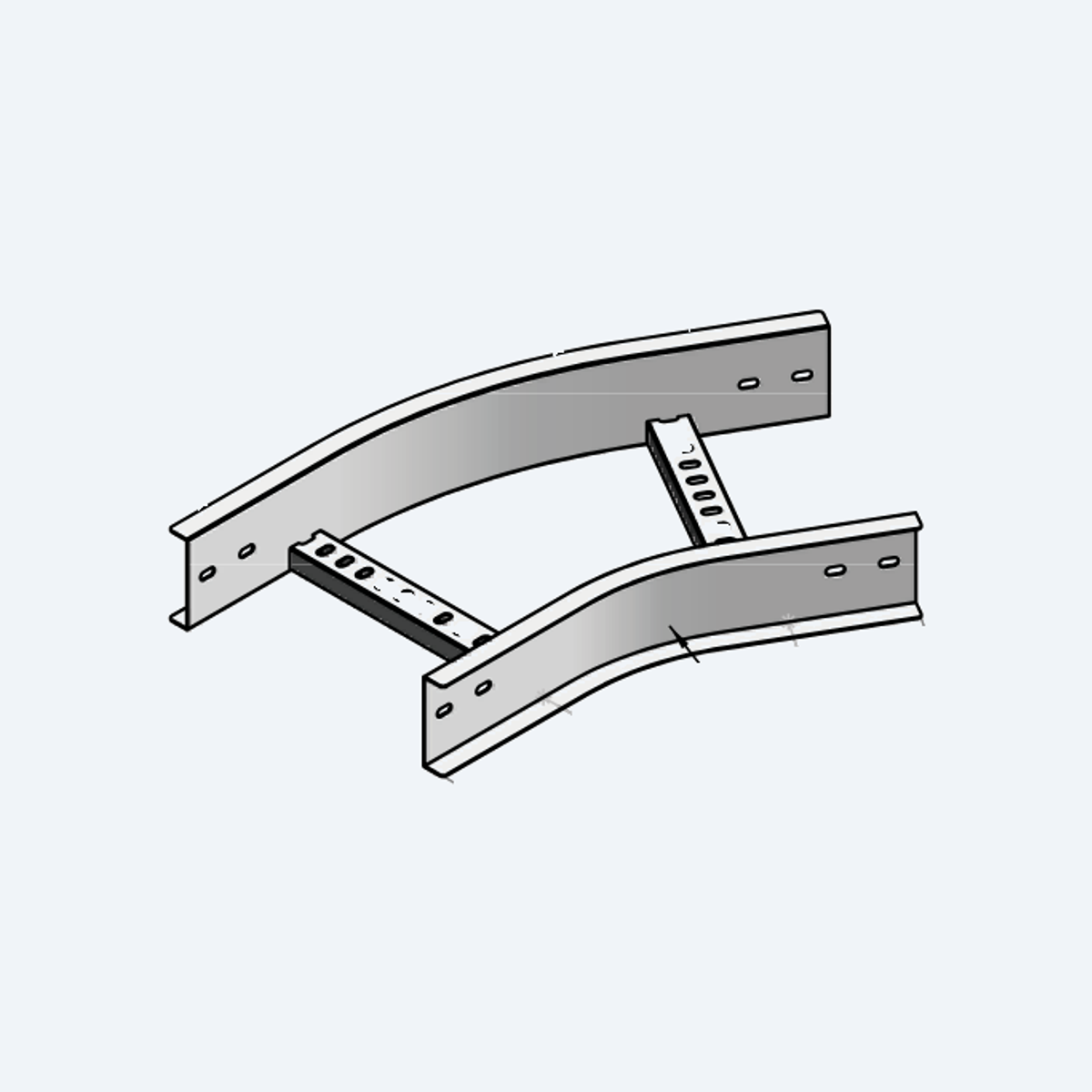

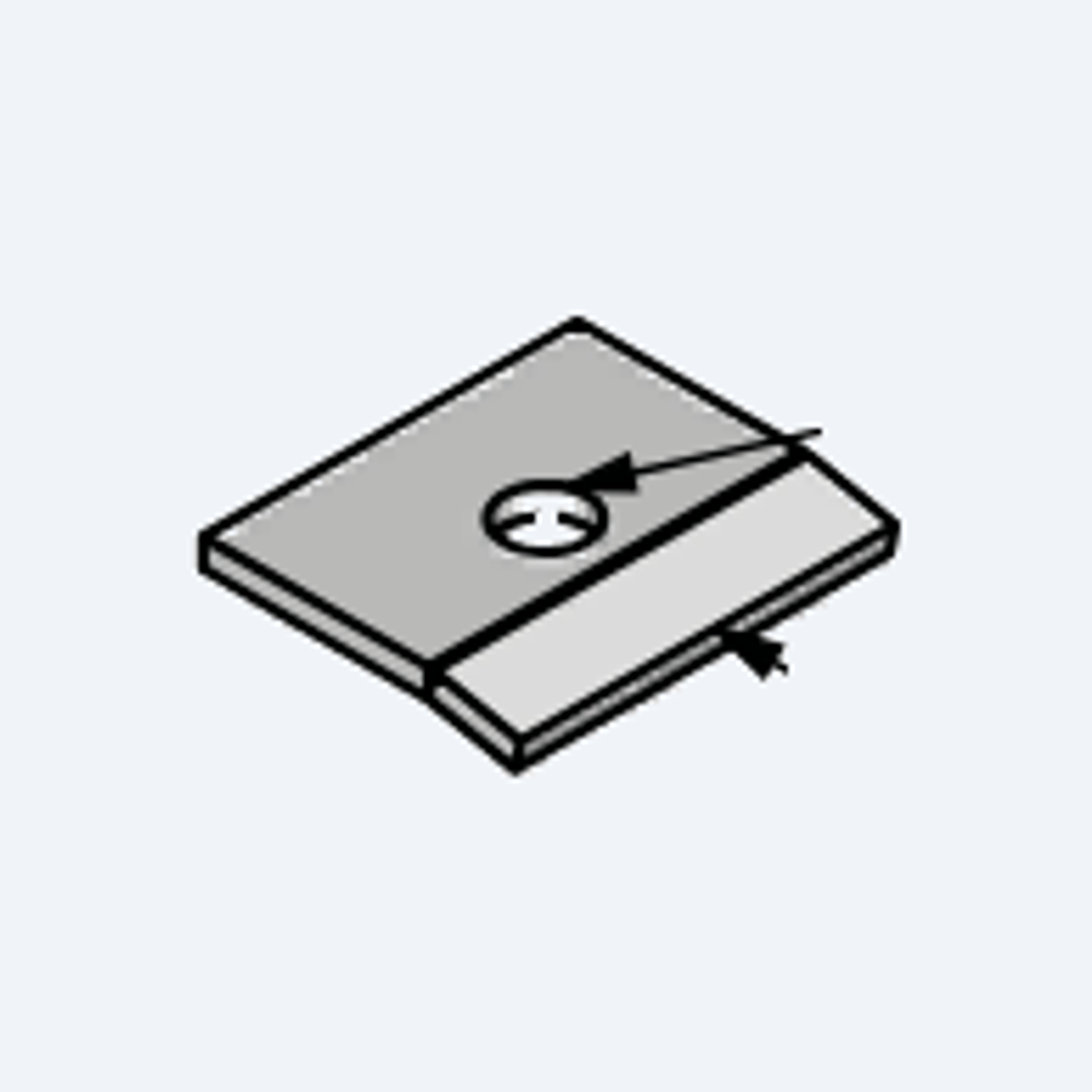

Displaying 1–16 of 18 products · All ACD part number options →

System overview

1×
Isometric cable ladder run (AML shown) — straights, elbows, tee, cross, reducers, risers, splice plates and end plate, with the covers that fit them.

Tray or fittingIts cover

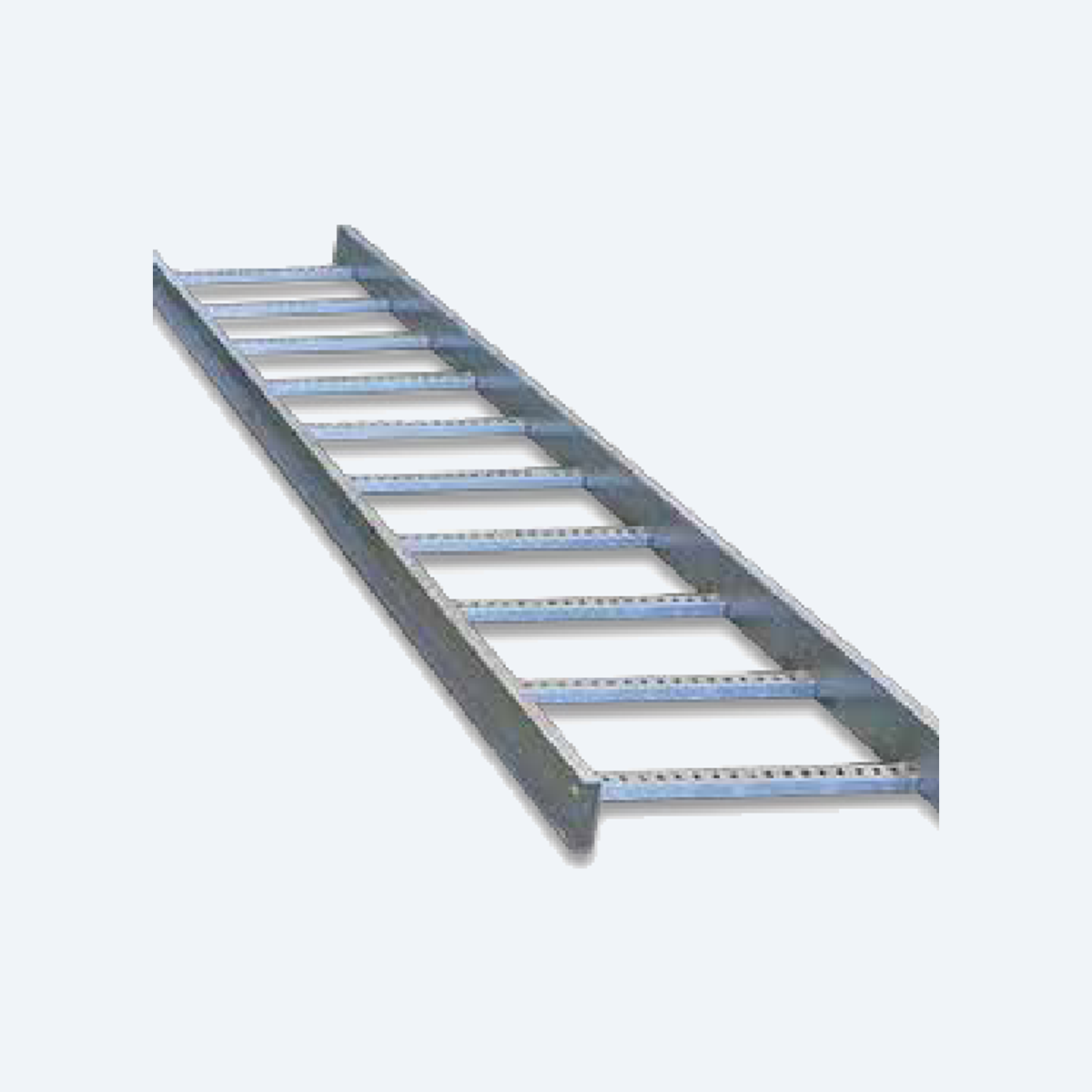

  1. StraightStraight cover

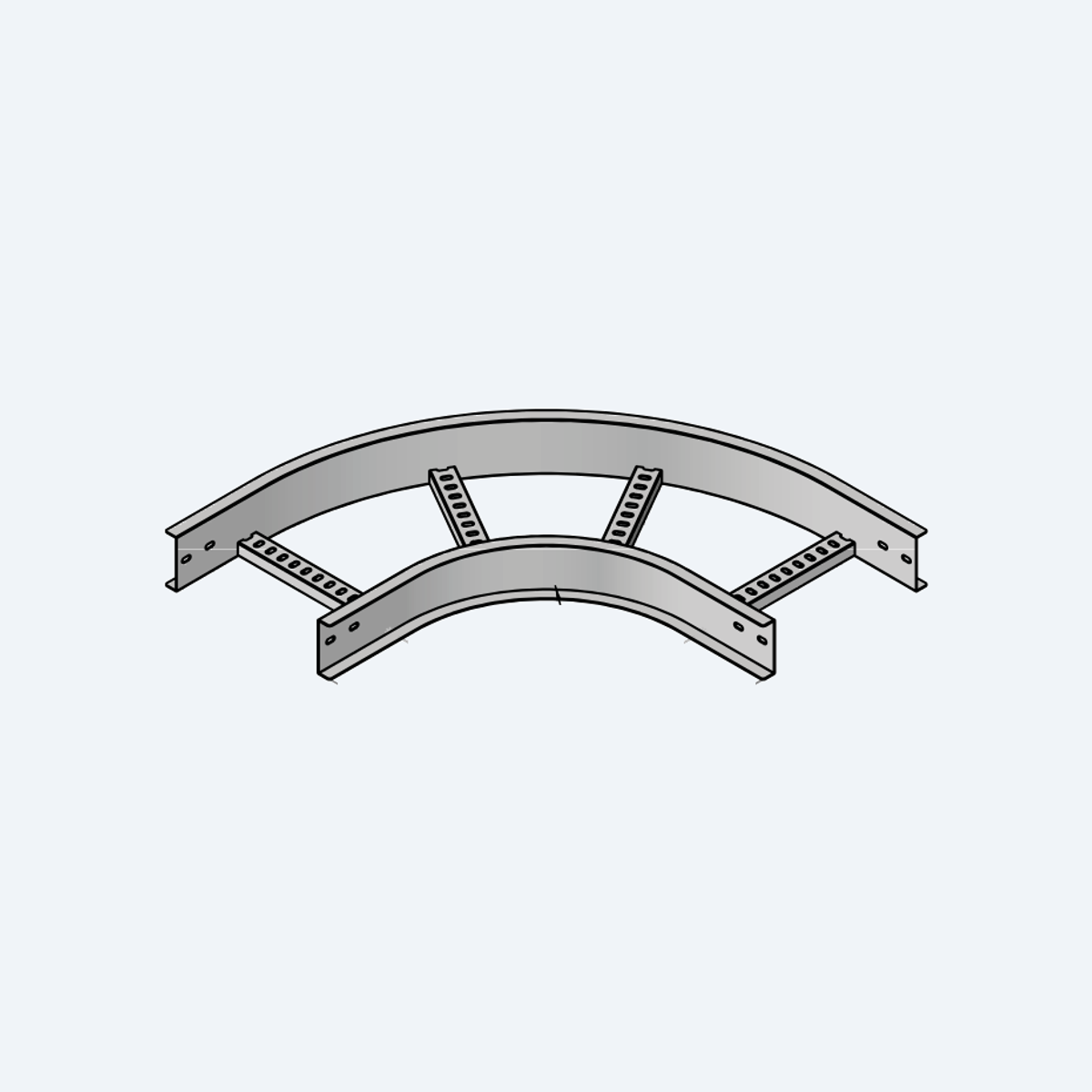

  2. 90° Elbow90° elbow cover
  3. TeeTee cover
  4. CrossCross cover

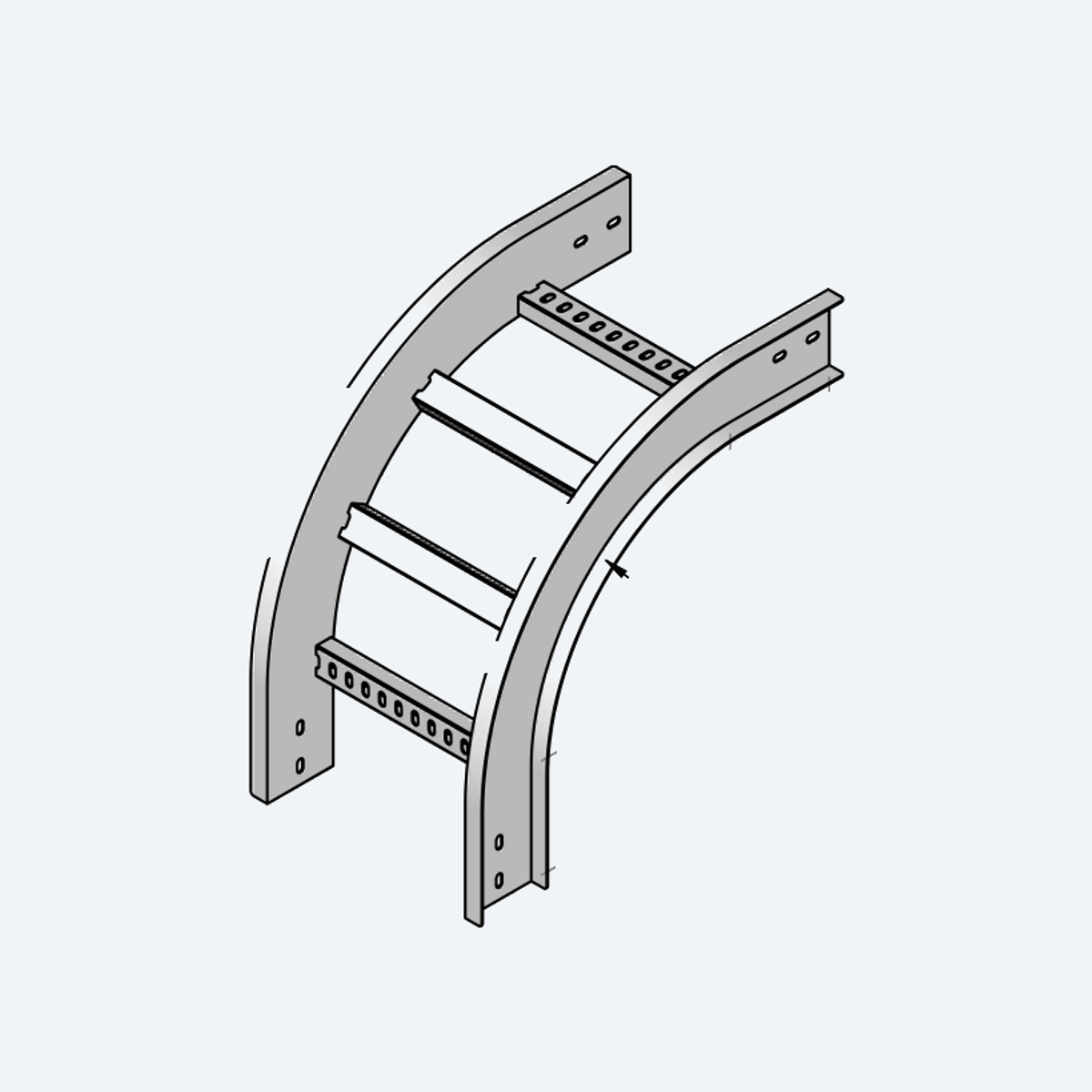

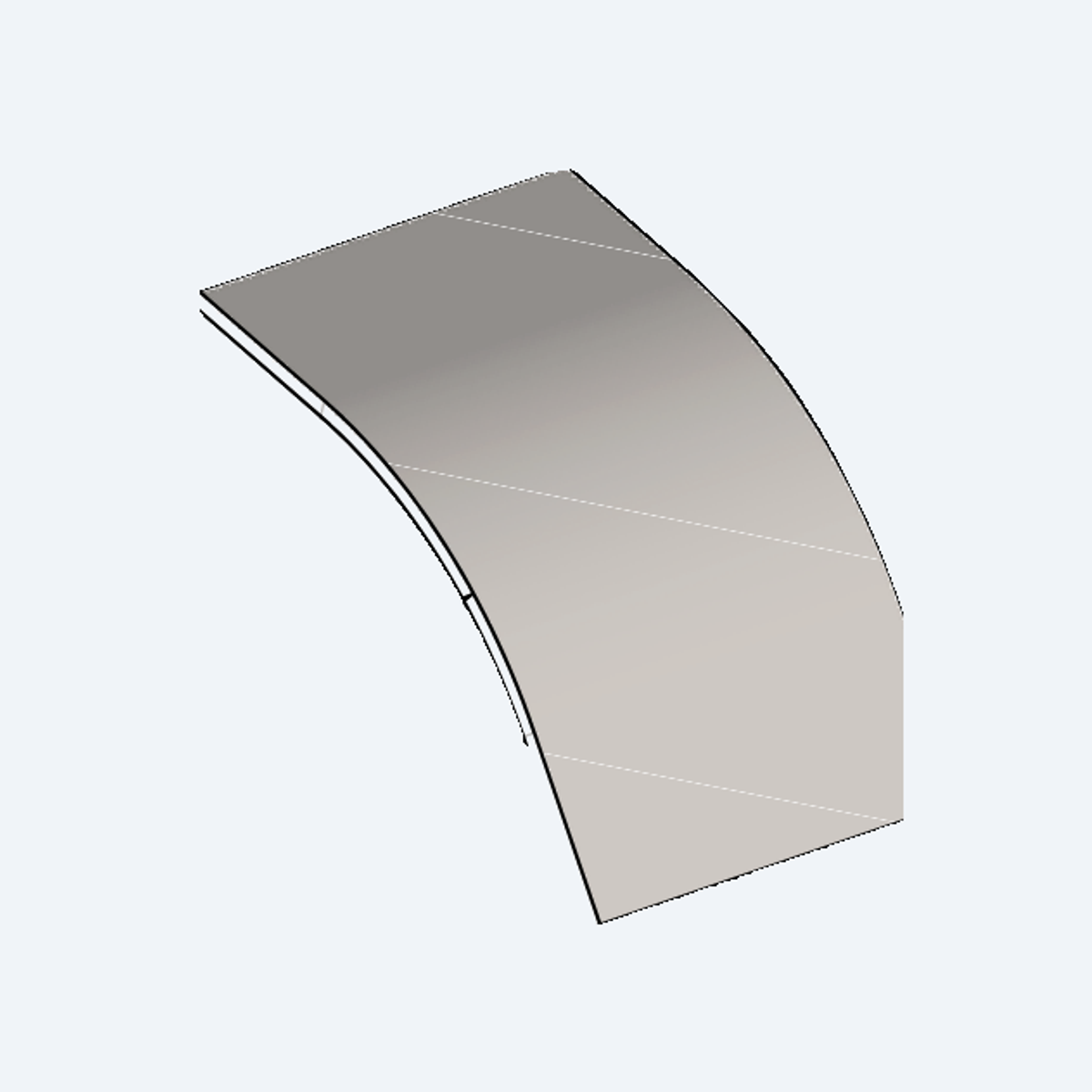

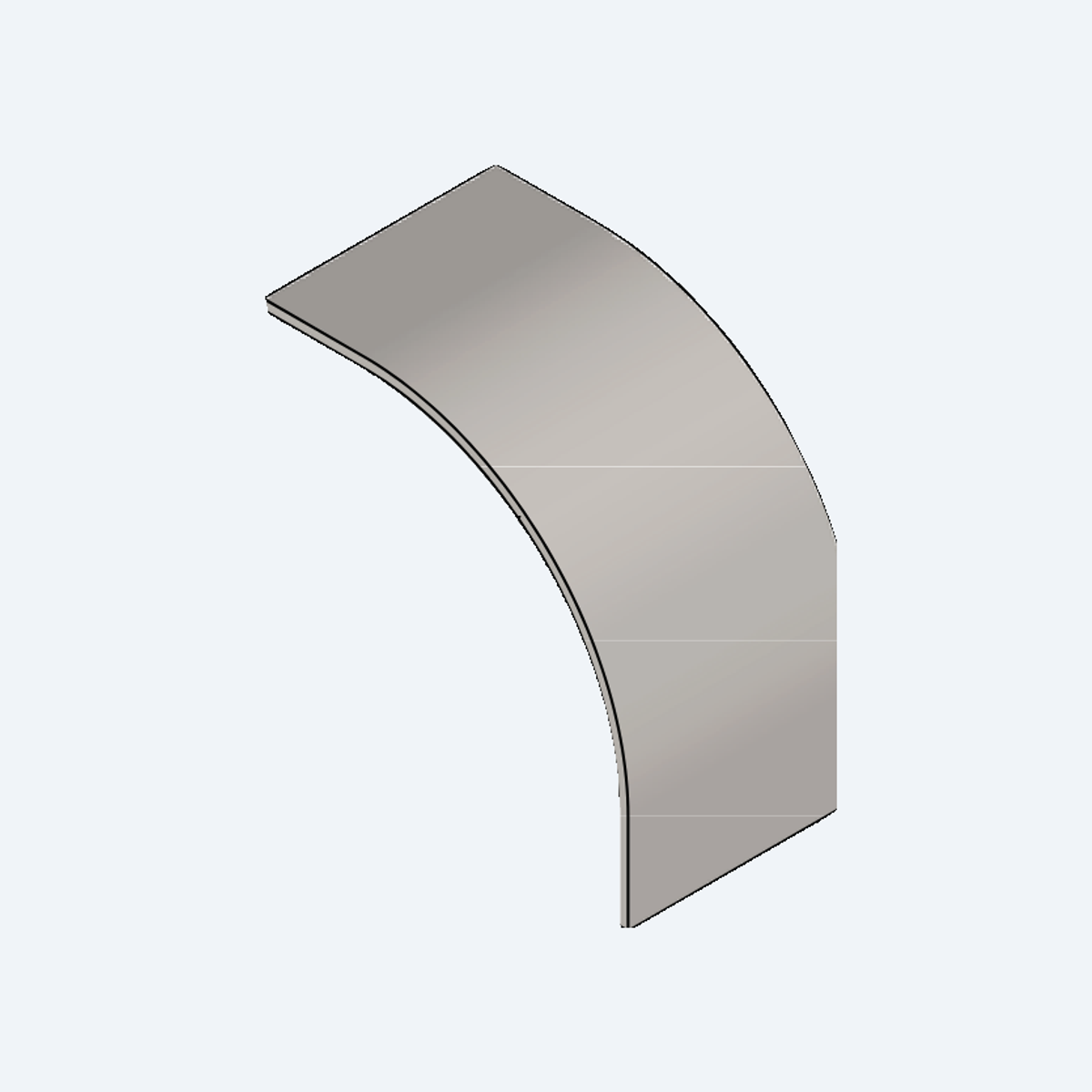

  5. 90° Outside Riser90° Outside Riser Lipped Cover

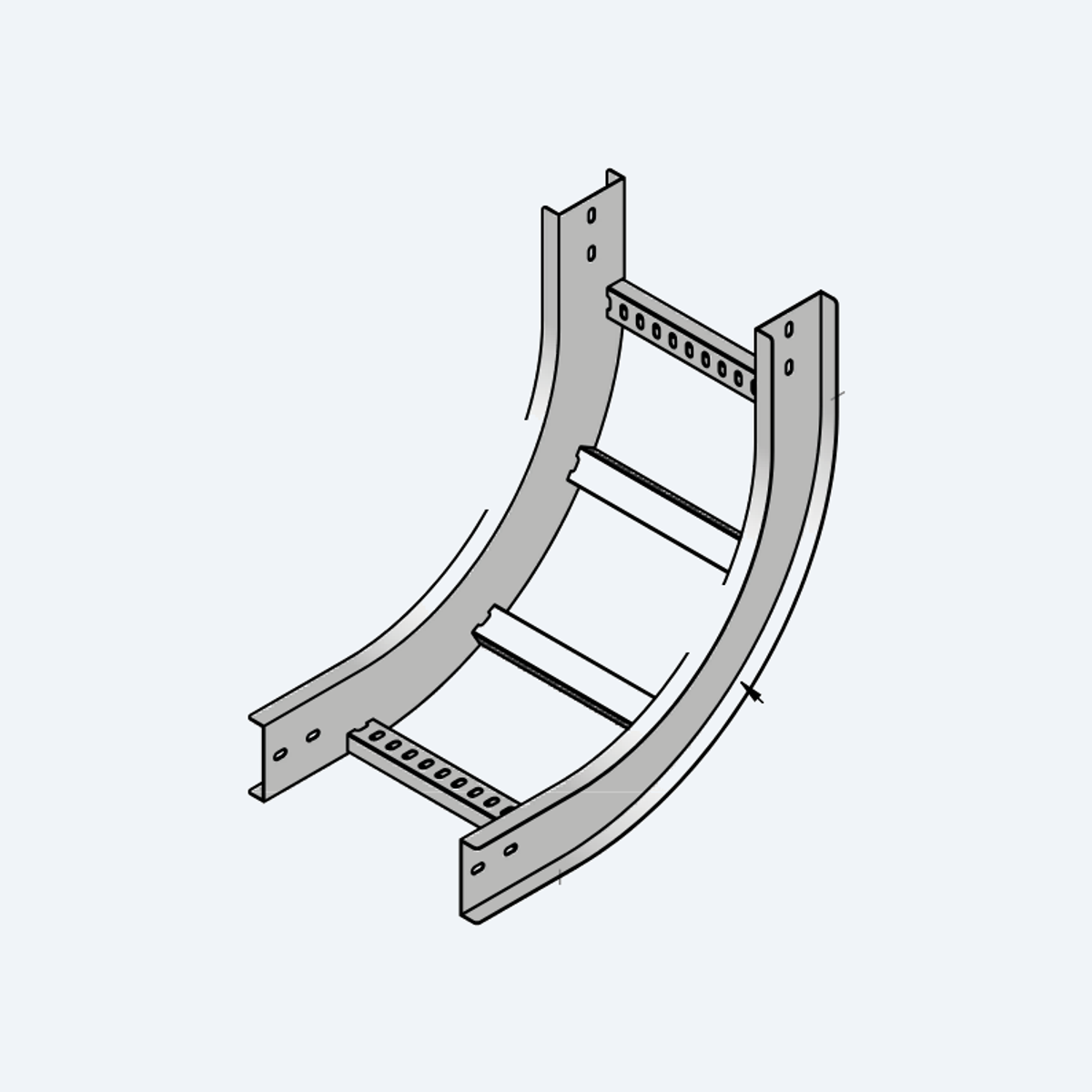

  6. 90° Inside RiserInside riser cover

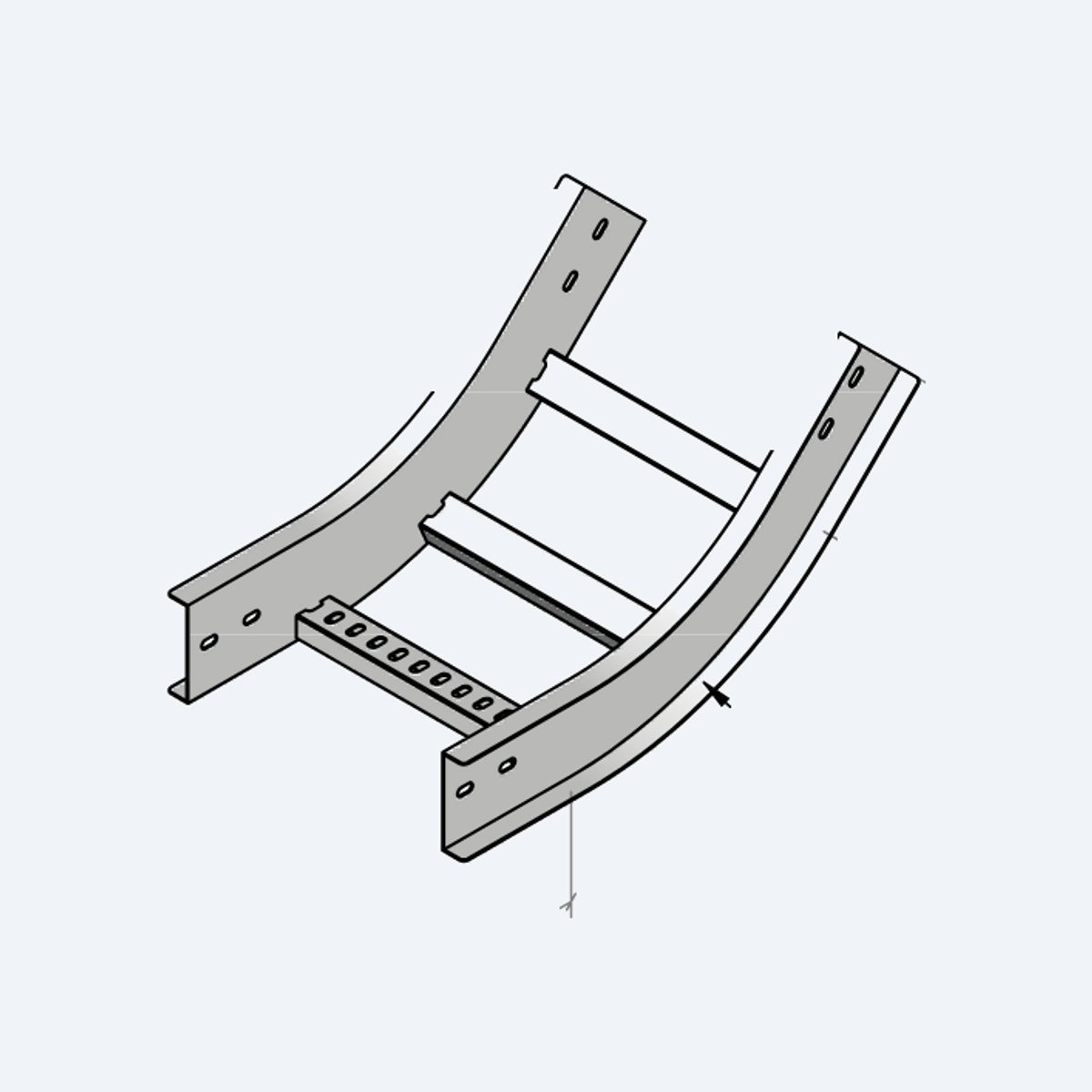

  7. Right reducerOn requestRight reducer coverOn request
  8. Left reducerOn requestLeft reducer coverOn request
  9. Centre reducerOn requestCentre reducer coverOn request

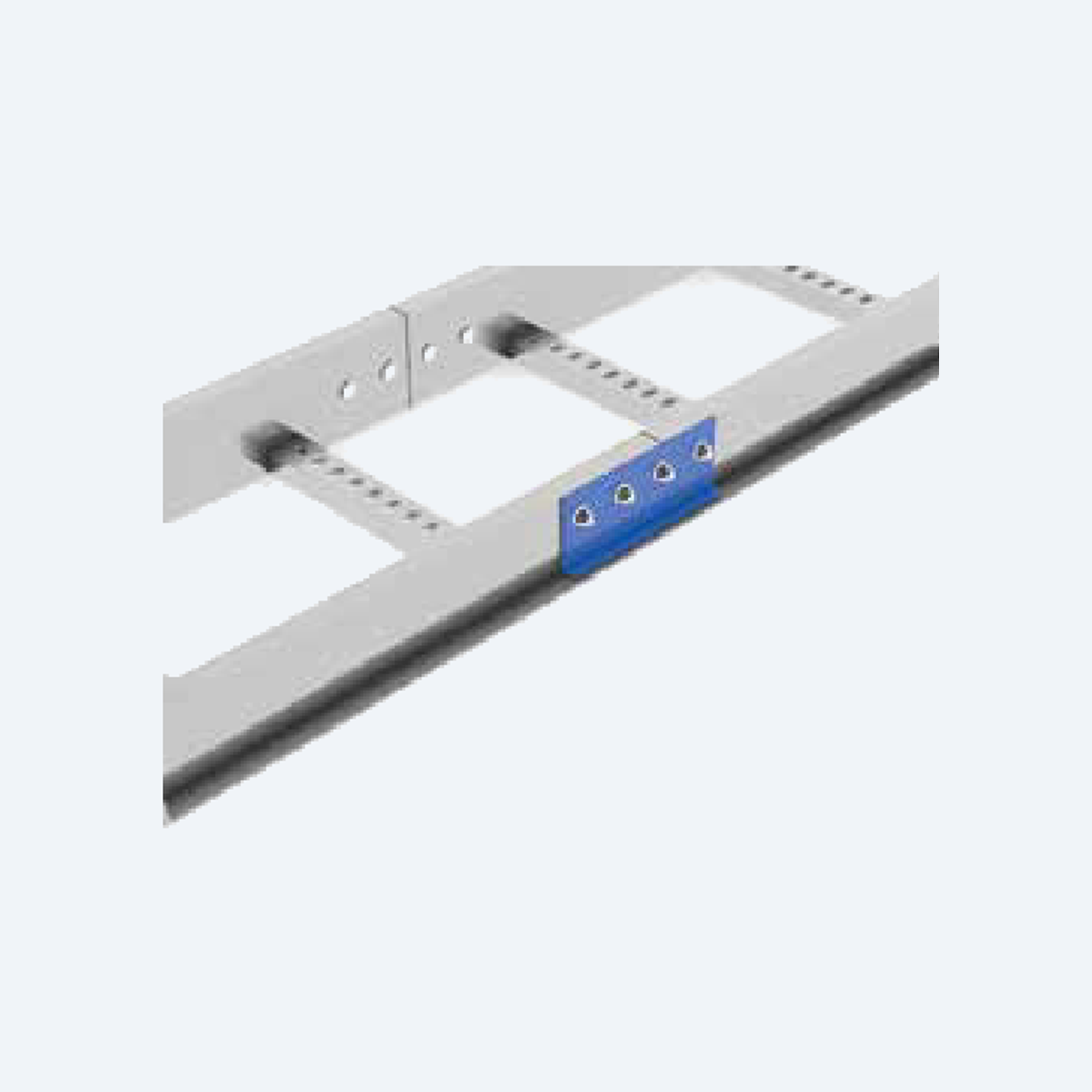

  10. Straight Splice Plate
  11. Vertical Adjustable Splice Plate
  12. End plate
Standard components of the system. A filled number is the tray or fitting; the same number outlined is the cover that fits it. Hover a number or a name to pick it out. Zoom in and drag to look closer.

Data

Check a load case

Test method: IEC 61537:2006, Test Type 2 · Material: Hot-Dip Galvanized (HDG) · Standard: IEC 61537:2006 · Safety factor: ×1.7

ModelLoading depthThicknessSWL @ 3 m (kg/m)SWL @ 4.5 m (kg/m)SWL @ 6 m (kg/m)
ACD10075 mm1.5 mm (tested)23910660
ACD125100 mm1.5 / 2 mm560249140
ACD150125 mm1.5 / 2 mm579257145

SWL = Breaking load ÷ 1.7 (IEC 61537:2006). Breaking load confirmed ≥ 1.7 × SWL by test. Certificate ref: 2018MA0594-ACD-IEC61537. Available lengths: 3 m and 6 m. Full test certificate available on request. 3 m and 4.5 m figures are interpolated from the 6 m test.

Downloads

NameClassificationFormatSize
ACD Cable Ladder Product CatalogueCataloguePDF5.9 MB

Test reports & certification

  • Test report
    2018MA0594-ACD-IEC61537 cover

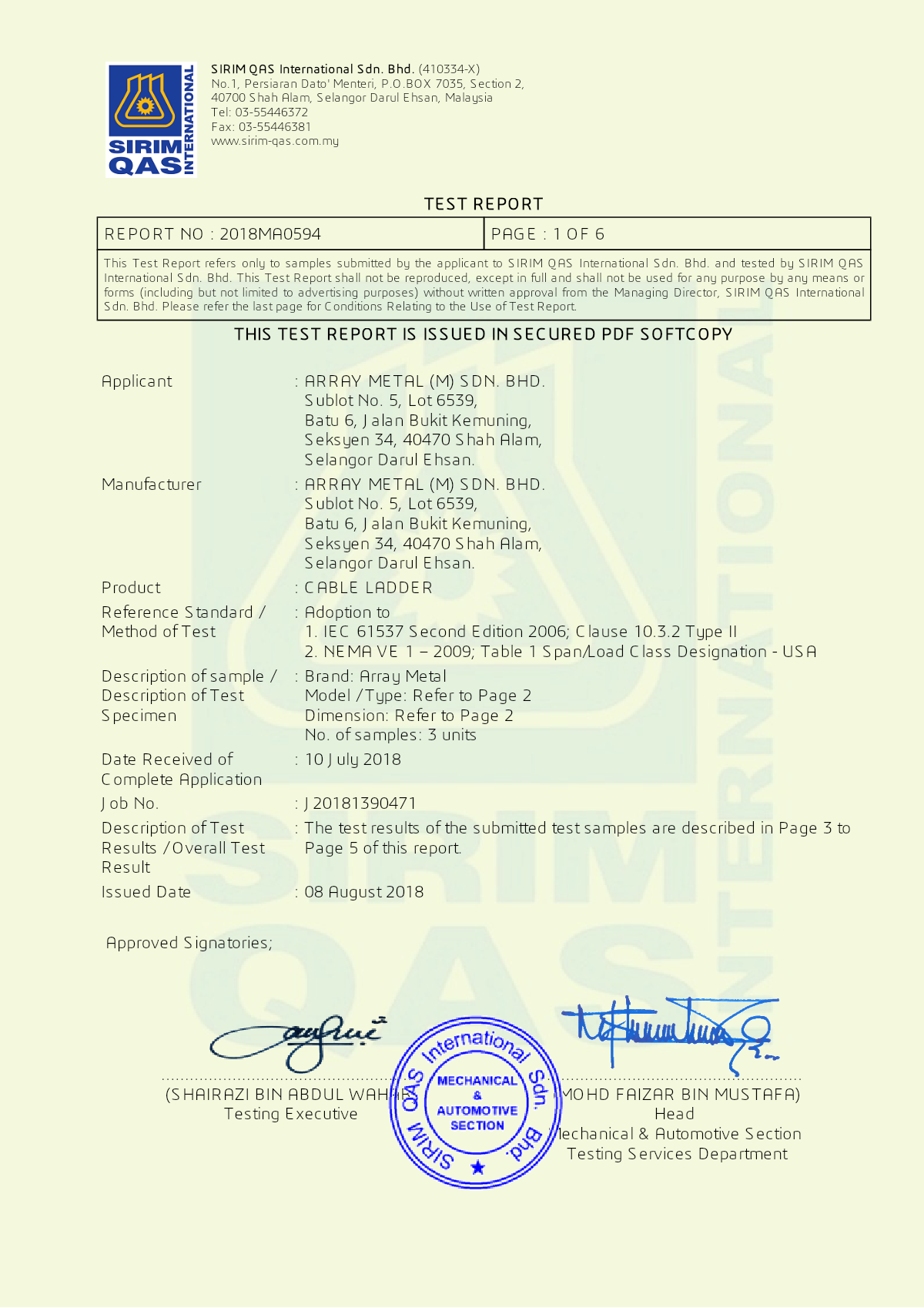

    2018MA0594-ACD-IEC61537

    2018-08

  • Test report
    Cable Ladder MS IEC61537:2007 cover

    Cable Ladder MS IEC61537:2007

    2026-05

  • Test report
    DNV Verification - Cable Ladder & Tray cover

    DNV Verification - Cable Ladder & Tray

    2017-08

  • Test report
    SIRIM NEMA VE1 cover

    SIRIM NEMA VE1

    2017-08

Product test reports and certificates for this system. Company certifications are listed under Certifications & standards.
