90° Elbow

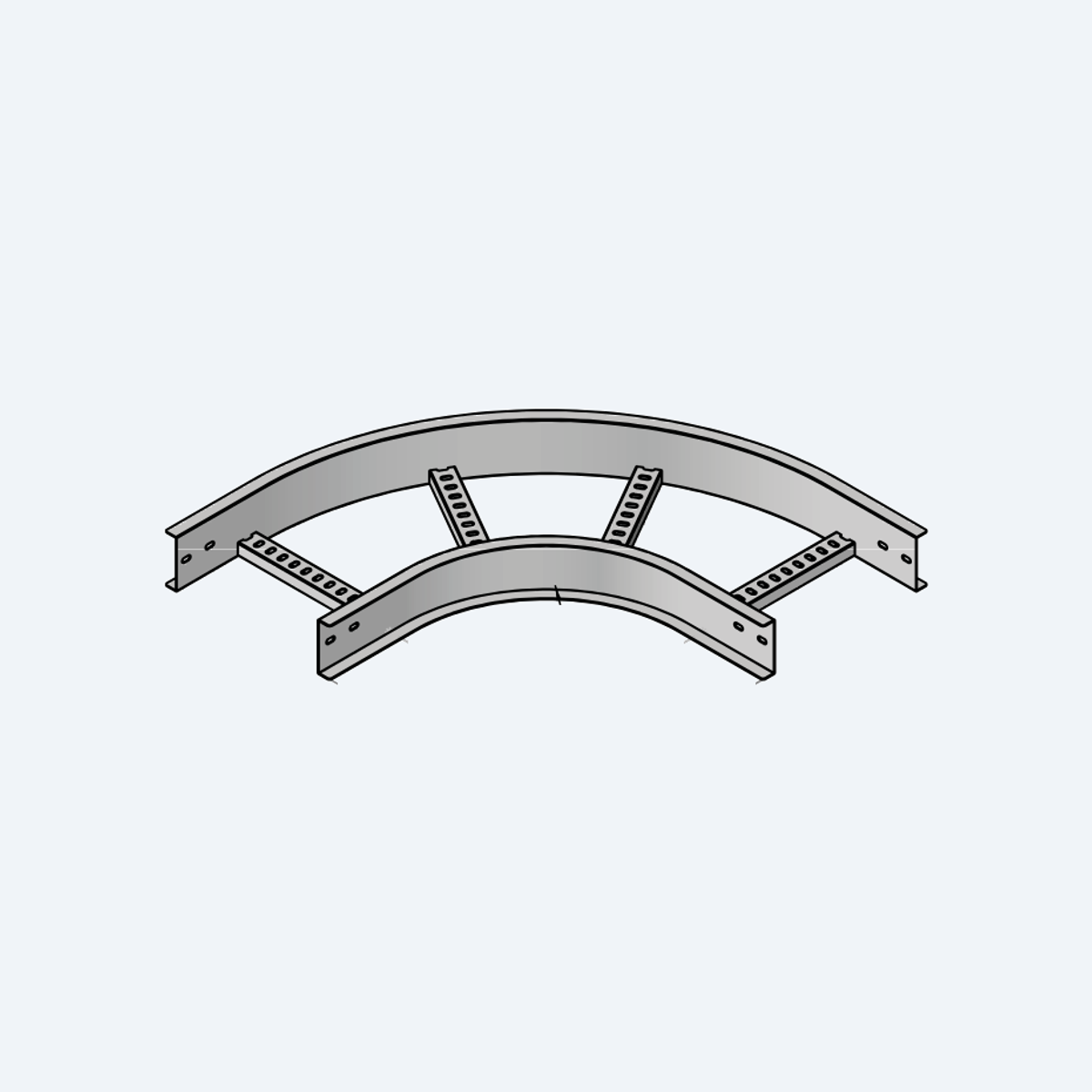

Horizontal elbow for a 90 degree change of direction in an ACD run.
Photos & drawings
Published item codes
| Part number | Height (mm) | Width (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|---|
| ACD100-E90-100-1.5-R30-G | 100 | 100 | 1.5 | Hot-Dip Galvanized | 3.92 | |
| ACD100-E90-100-2-R30-G | 100 | 100 | 2 | Hot-Dip Galvanized | 5.22 | |
| ACD100-E90-125-1.5-R30-G | 100 | 125 | 1.5 | Hot-Dip Galvanized | 4.10 | |
| ACD100-E90-125-2-R30-G | 100 | 125 | 2 | Hot-Dip Galvanized | 5.46 | |
| ACD100-E90-150-1.5-R30-G | 100 | 150 | 1.5 | Hot-Dip Galvanized | 4.28 | |
| ACD100-E90-150-2-R30-G | 100 | 150 | 2 | Hot-Dip Galvanized | 5.70 | |
| ACD100-E90-200-1.5-R30-G | 100 | 200 | 1.5 | Hot-Dip Galvanized | 4.65 | |
| ACD100-E90-200-2-R30-G | 100 | 200 | 2 | Hot-Dip Galvanized | 6.20 | |
| ACD100-E90-300-1.5-R30-G | 100 | 300 | 1.5 | Hot-Dip Galvanized | 5.44 | |
| ACD100-E90-300-2-R30-G | 100 | 300 | 2 | Hot-Dip Galvanized | 7.25 |
Not in the list?
Characteristics
| Model | ACD65, ACD75, ACD100, ACD125, ACD150 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Radius | 300 mm |
| Material | G |
| Finish | G |
