90° Inside Riser

Name: ACD 90° Inside Riser
Brand: Array Metal
SKU: ACD100-IR90-100-1.5-R30-G

Vertical riser for a 90 degree inside change of elevation.

Photos & drawings

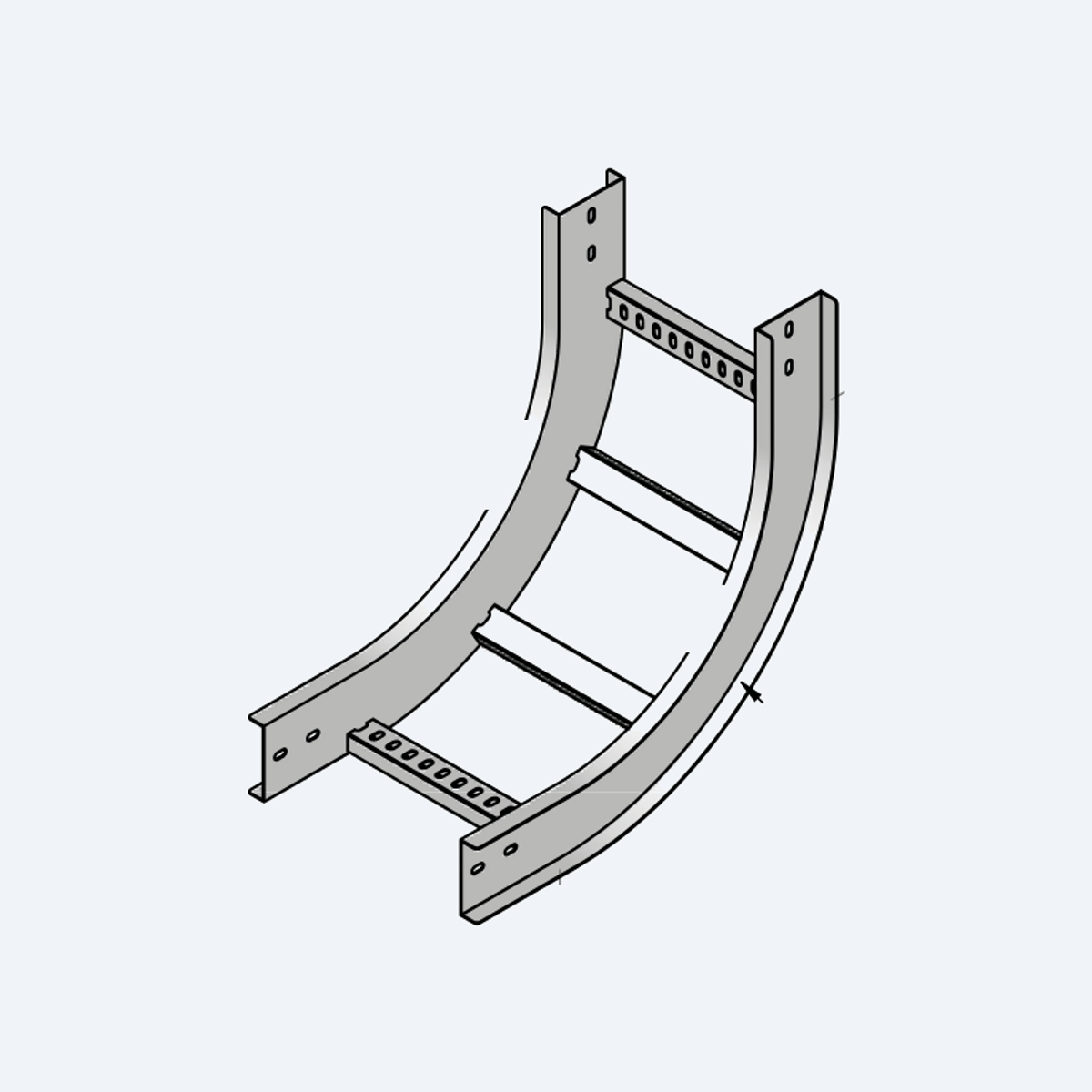

Inside riser: bends an ACD ladder run 90° in the vertical plane, with the cable side on the inside of the bend.

Rail height and width match the ACD straights, and it joins them with standard splice plates.

ExampleACD100-IR90-100-1.5-R30-GLook up this code →

ACD100System and height: ACD system, 100 mm height

System letters, then the height in millimetres.

Published in 5 options. Select one to change the code.

120 shown

Displaying 1–10 of 120 item codes

Per page

Part number	Height (mm)	Width (mm)	Thickness (mm)	Finish	Weight (kg)
ACD100-IR90-100-1.5-R30-G	100	100	1.5	Hot-Dip Galvanized	3.65
ACD100-IR90-100-2-R30-G	100	100	2	Hot-Dip Galvanized	4.86
ACD100-IR90-125-1.5-R30-G	100	125	1.5	Hot-Dip Galvanized	3.74
ACD100-IR90-125-2-R30-G	100	125	2	Hot-Dip Galvanized	4.98
ACD100-IR90-150-1.5-R30-G	100	150	1.5	Hot-Dip Galvanized	3.83
ACD100-IR90-150-2-R30-G	100	150	2	Hot-Dip Galvanized	5.11
ACD100-IR90-200-1.5-R30-G	100	200	1.5	Hot-Dip Galvanized	4.01
ACD100-IR90-200-2-R30-G	100	200	2	Hot-Dip Galvanized	5.35
ACD100-IR90-300-1.5-R30-G	100	300	1.5	Hot-Dip Galvanized	4.38
ACD100-IR90-300-2-R30-G	100	300	2	Hot-Dip Galvanized	5.84
