ACD · T
Tee

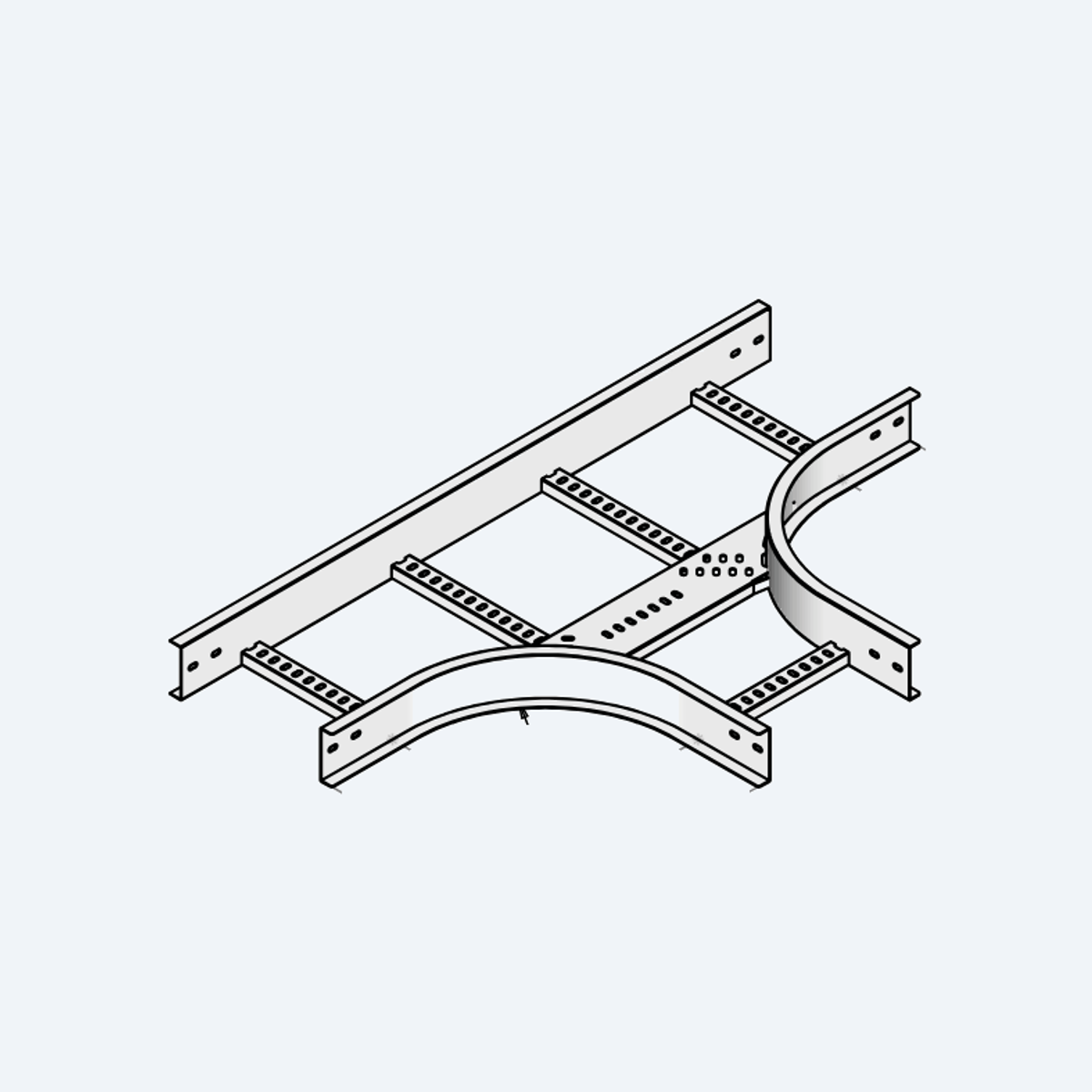

Three-way branch fitting joining ACD runs of equal width.
Photos & drawings
Published item codes
| Part number | Height (mm) | Width (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|---|
| ACD100-T-100-1.5-R30-G | 100 | 100 | 1.5 | Hot-Dip Galvanized | 6.45 | |
| ACD100-T-100-2-R30-G | 100 | 100 | 2 | Hot-Dip Galvanized | 8.59 | |
| ACD100-T-125-1.5-R30-G | 100 | 125 | 1.5 | Hot-Dip Galvanized | 6.65 | |
| ACD100-T-125-2-R30-G | 100 | 125 | 2 | Hot-Dip Galvanized | 8.87 | |
| ACD100-T-150-1.5-R30-G | 100 | 150 | 1.5 | Hot-Dip Galvanized | 6.86 | |
| ACD100-T-150-2-R30-G | 100 | 150 | 2 | Hot-Dip Galvanized | 9.15 | |
| ACD100-T-200-1.5-R30-G | 100 | 200 | 1.5 | Hot-Dip Galvanized | 7.30 | |
| ACD100-T-200-2-R30-G | 100 | 200 | 2 | Hot-Dip Galvanized | 9.73 | |
| ACD100-T-300-1.5-R30-G | 100 | 300 | 1.5 | Hot-Dip Galvanized | 8.22 | |
| ACD100-T-300-2-R30-G | 100 | 300 | 2 | Hot-Dip Galvanized | 10.95 |
Not in the list?
Characteristics
| Model | ACD65, ACD75, ACD100, ACD125, ACD150 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Radius | 300 mm |
| Material | G |
| Finish | G |
