ACD · HDCA

Hold-Down Clip (Type A)

Name: ACD Hold-Down Clip (Type A)
Brand: Array Metal
SKU: ACD100-HDCA-1.5-G

Hold-down clamp type A, fixing an ACD ladder to the support.

Photos & drawings

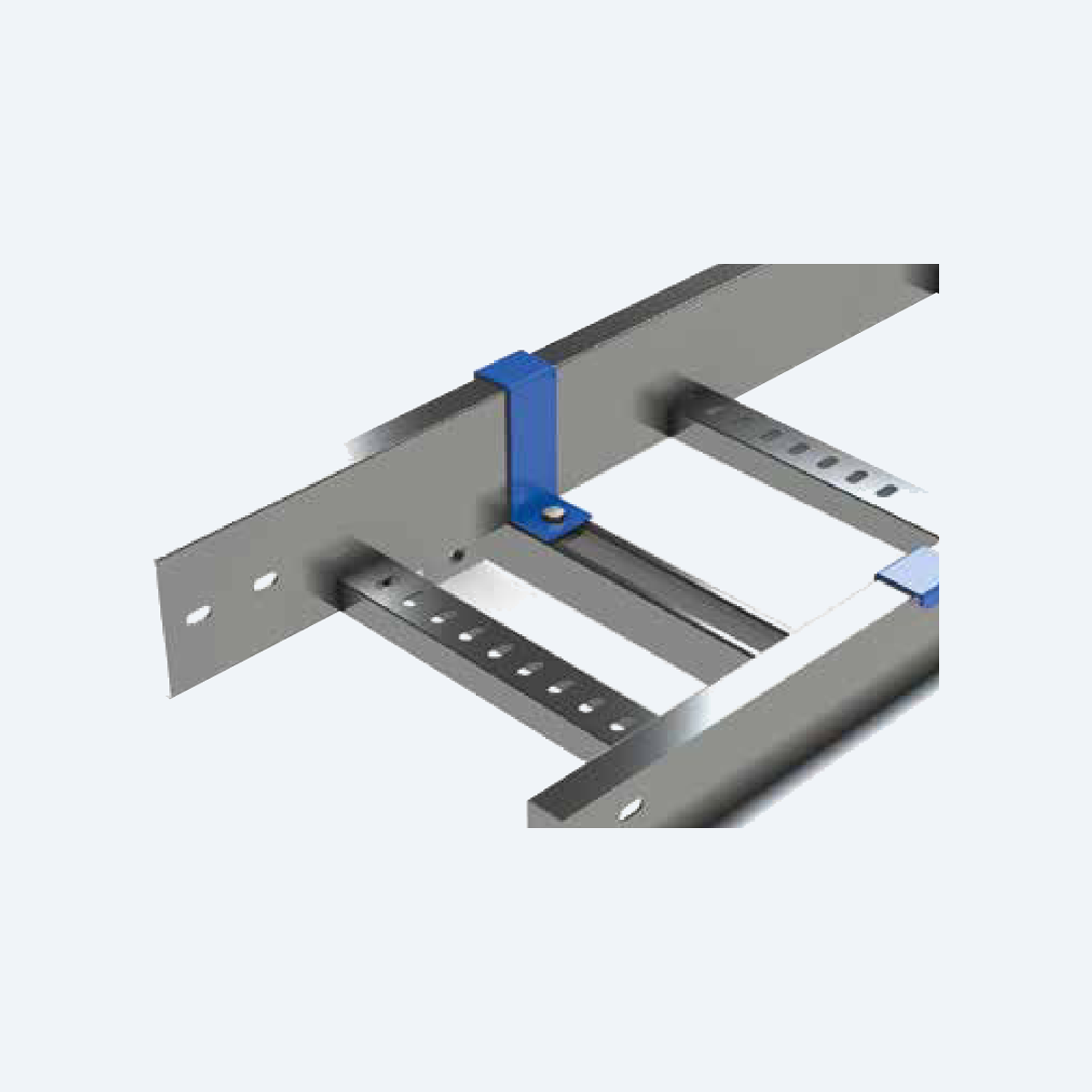

Hold-down clip, type A, that fixes an ACD ladder to its support steel.

ExampleACD100-HDCA-1.5-GLook up this code →

ACD100System and height: ACD system, 100 mm height

System letters, then the height in millimetres.

Published in 5 options. Select one to change the code.

10 shown

Displaying 1–10 of 10 item codes

Per page

Part number	Height (mm)	Thickness (mm)	Finish	Weight (kg)
ACD100-HDCA-1.5-G	100	1.5	Hot-Dip Galvanized	0.09
ACD100-HDCA-2-G	100	2	Hot-Dip Galvanized	0.11
ACD125-HDCA-1.5-G	125	1.5	Hot-Dip Galvanized	0.10
ACD125-HDCA-2-G	125	2	Hot-Dip Galvanized	0.13
ACD150-HDCA-1.5-G	150	1.5	Hot-Dip Galvanized	0.11
ACD150-HDCA-2-G	150	2	Hot-Dip Galvanized	0.15
ACD65-HDCA-1.5-G	65	1.5	Hot-Dip Galvanized	0.07
ACD65-HDCA-2-G	65	2	Hot-Dip Galvanized	0.09
ACD75-HDCA-1.5-G	75	1.5	Hot-Dip Galvanized	0.07
ACD75-HDCA-2-G	75	2	Hot-Dip Galvanized	0.10
