ACD · OR90-LC

90° Outside Riser Lipped Cover

Name: ACD 90° Outside Riser Lipped Cover
Brand: Array Metal
SKU: ACD100-OR90-LC-100-1.5-R30-G

Lipped cover for an ACD 90 degree outside riser.

Photos & drawings

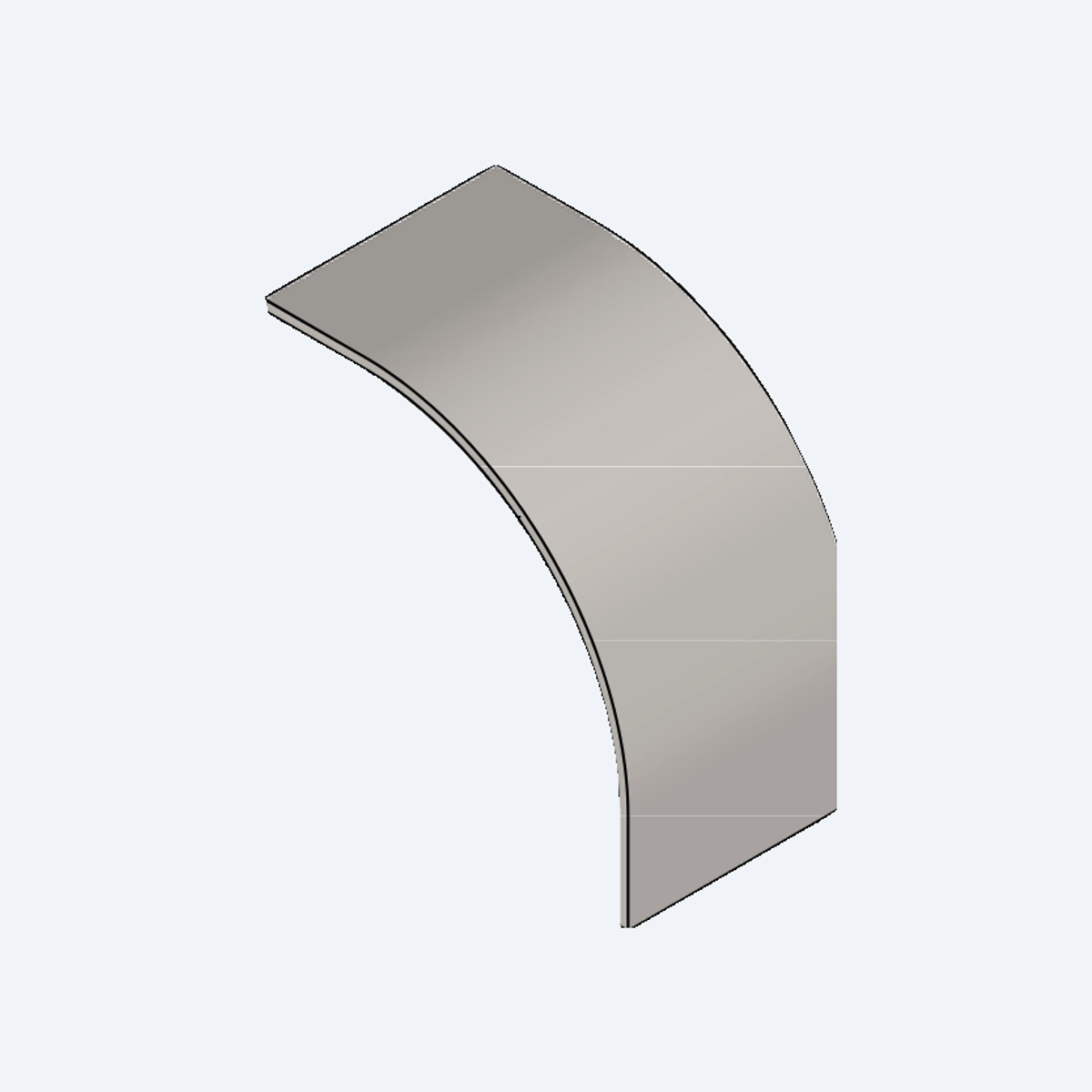

Lipped cover for the ACD 90° outside riser. One cover per riser, same model and width.

ExampleACD100-OR90-LC-100-1.5-R30-GLook up this code →

ACD100System and height: ACD system, 100 mm height

System letters, then the height in millimetres.

Published in 5 options. Select one to change the code.

120 shown

Displaying 1–10 of 120 item codes

Per page

Part number	Height (mm)	Width (mm)	Thickness (mm)	Finish	Weight (kg)
ACD100-OR90-LC-100-1.5-R30-G	100	100	1.5	Hot-Dip Galvanized	1.65
ACD100-OR90-LC-100-2-R30-G	100	100	2	Hot-Dip Galvanized	2.19
ACD100-OR90-LC-125-1.5-R30-G	100	125	1.5	Hot-Dip Galvanized	1.87
ACD100-OR90-LC-125-2-R30-G	100	125	2	Hot-Dip Galvanized	2.50
ACD100-OR90-LC-150-1.5-R30-G	100	150	1.5	Hot-Dip Galvanized	2.10
ACD100-OR90-LC-150-2-R30-G	100	150	2	Hot-Dip Galvanized	2.80
ACD100-OR90-LC-200-1.5-R30-G	100	200	1.5	Hot-Dip Galvanized	2.56
ACD100-OR90-LC-200-2-R30-G	100	200	2	Hot-Dip Galvanized	3.41
ACD100-OR90-LC-300-1.5-R30-G	100	300	1.5	Hot-Dip Galvanized	3.47
ACD100-OR90-LC-300-2-R30-G	100	300	2	Hot-Dip Galvanized	4.63

Not in the list?
