Product family

Cable Ladder

Cable ladder for medium to heavy-duty industrial and infrastructure runs, in hot-dip galvanized and stainless steel.

Choose a series

4 series

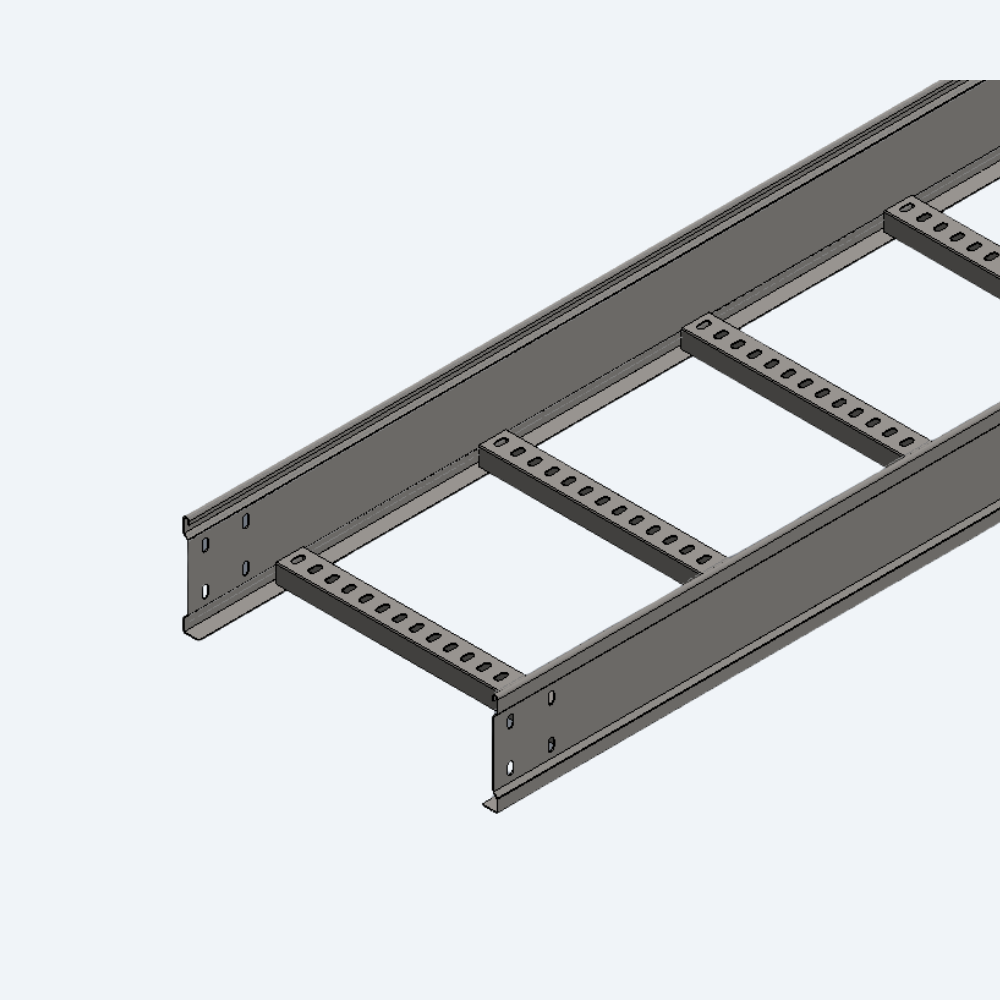

AML

Roll-formed cable ladder for medium to heavy-duty runs, with a full fitting range.

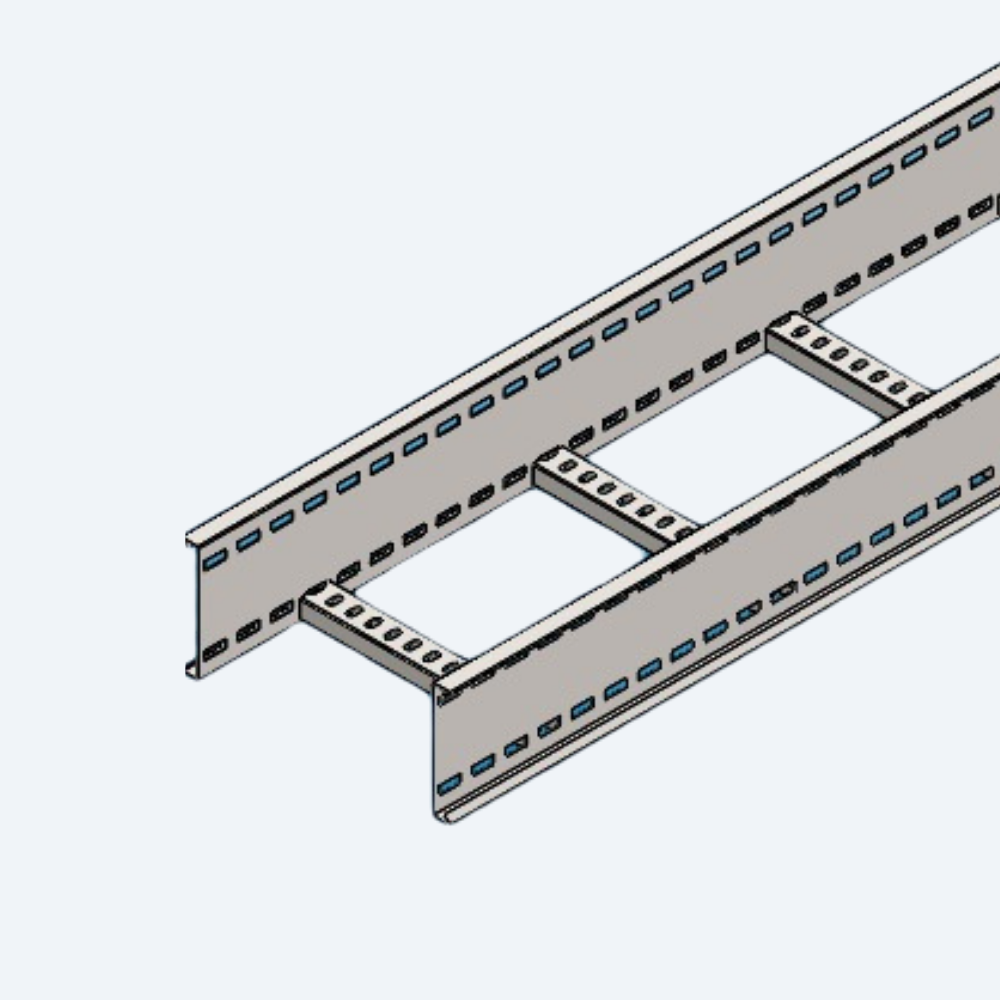

APO

Perforated rail — HDG and stainless 316L — where drainage and weight matter.

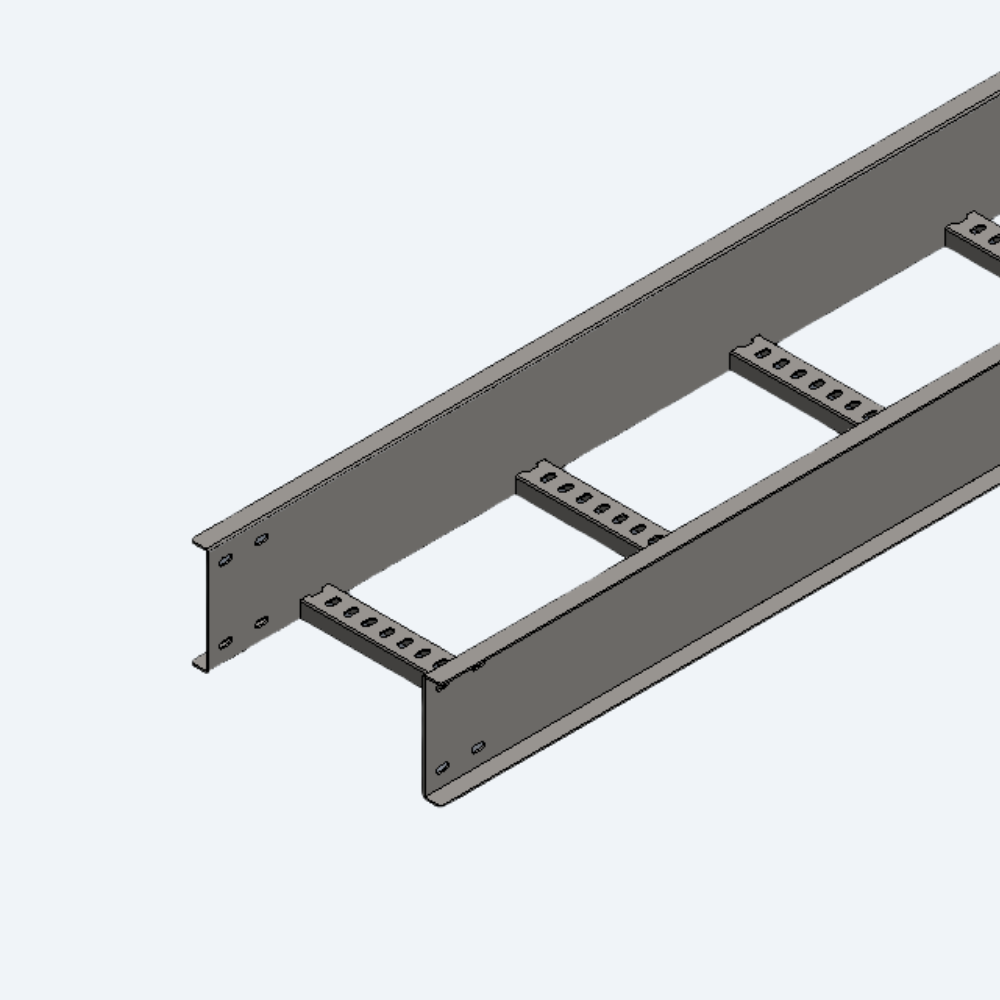

ACD

Outward-C rail cable ladder in five rail heights, hot-dip galvanized.

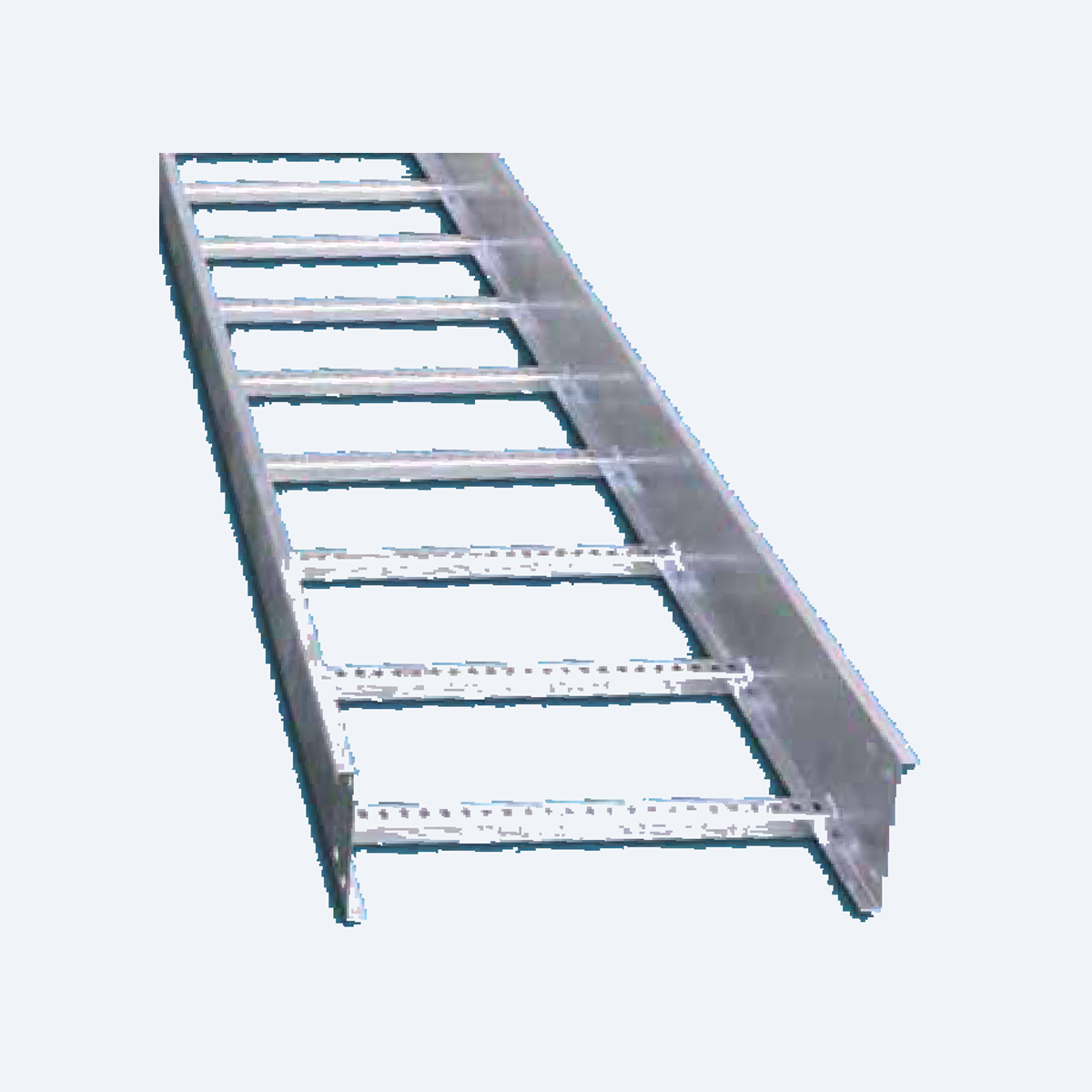

AZL

Z-type rail cable ladder in three rail heights, hot-dip galvanized.

System	Models	Heights (mm)	Widths (mm)	Thickness (mm)	Lengths (mm)	Finishes	Best for	Published SKUs
AMLAML Cable Ladder	AML100, AML125, AML150	100, 125, 150	100, 125, 150, 200, 300, 400, 450, 500 +7	1.5, 2	3000	G	Long spans, heavy fill and offshore or infrastructure routes	1,557
APOAPO Cable Ladder	APO100, APO125, APO150	100, 125, 150	100, 125, 150, 200, 300, 400, 450, 500 +6	1.5, 2	170, 3000, 6000	A4, G	Corrosive and ventilated routes	1,946
ACDACD Cable Ladder	ACD65, ACD75, ACD100, ACD125, ACD150	65, 75, 100, 125, 150	100, 125, 150, 200, 300, 400, 450, 500 +7	1.5, 2	3000	G	Widest height range in the ladder programme	1,525
AZLAZL Cable Ladder	AZL100, AZL125, AZL150	100, 125, 150	100, 125, 150, 200, 300, 400, 450, 500 +4	1.5, 2	3000	G	General industrial runs	900
