CB

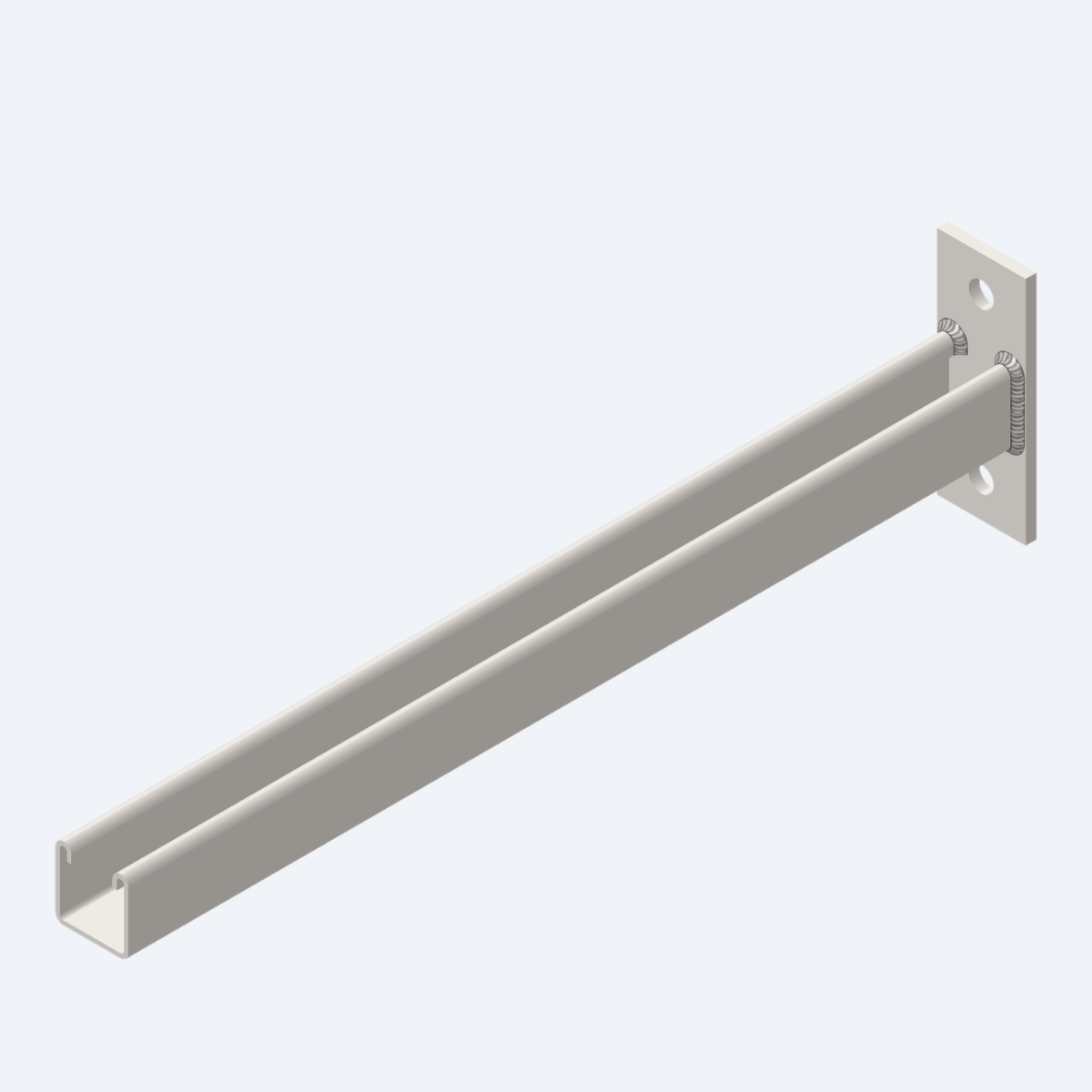

Cantilever Arm - CB
CB-…-…
VP
VP Posts & Arms
Vertical posts and cantilever arms that pick up the channel.
- Rail heights
- 41 / 82 mm
- Widths
- 41 mm
- Thickness
- 2.5 mm
- Lengths
- 100 / 150 / 200 / 250 / 300 / 350 / 400 / 500 / 600 / 750 / 1000 / 1200 / 1500 / 2000 / 2500 / 3000 / 4000 / 5000 / 6000 mm
- Finish
- A2, E, G
- Published codes
- 306
Products
CHB

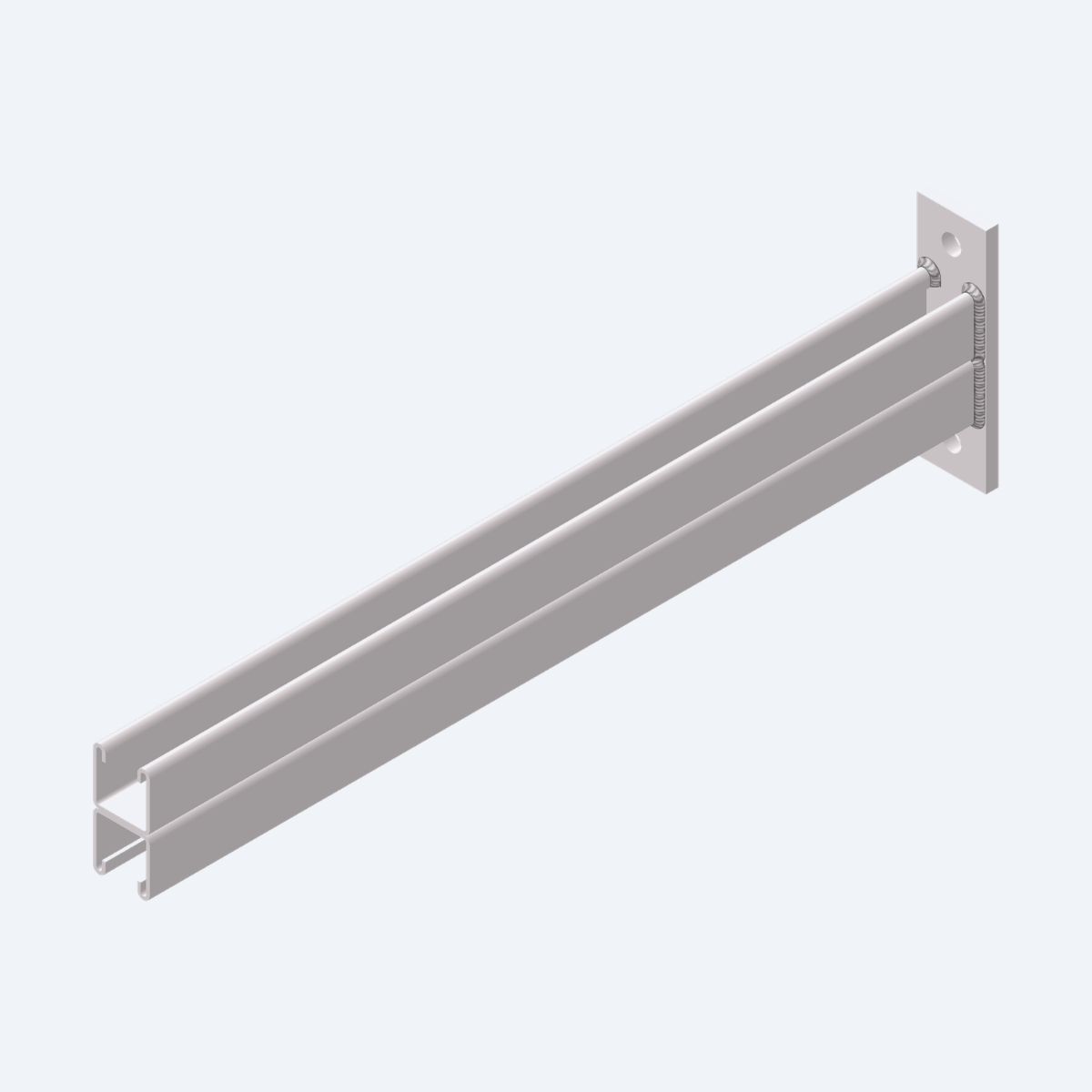

Cantilever Arm - CHB
CHB-…-…
CJ

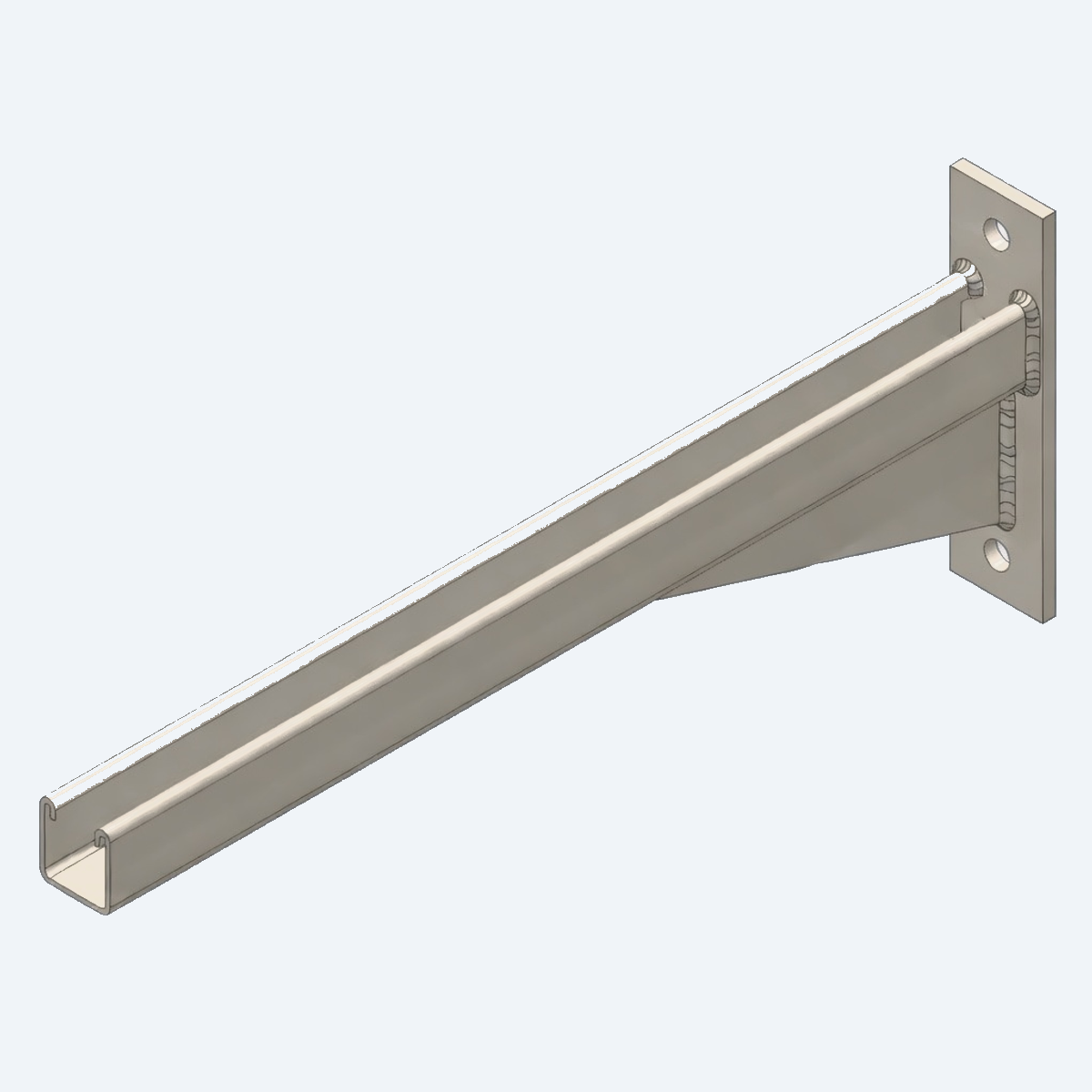

Cantilever Arm Heavy Duty - CJ
CJ-…-…
CF

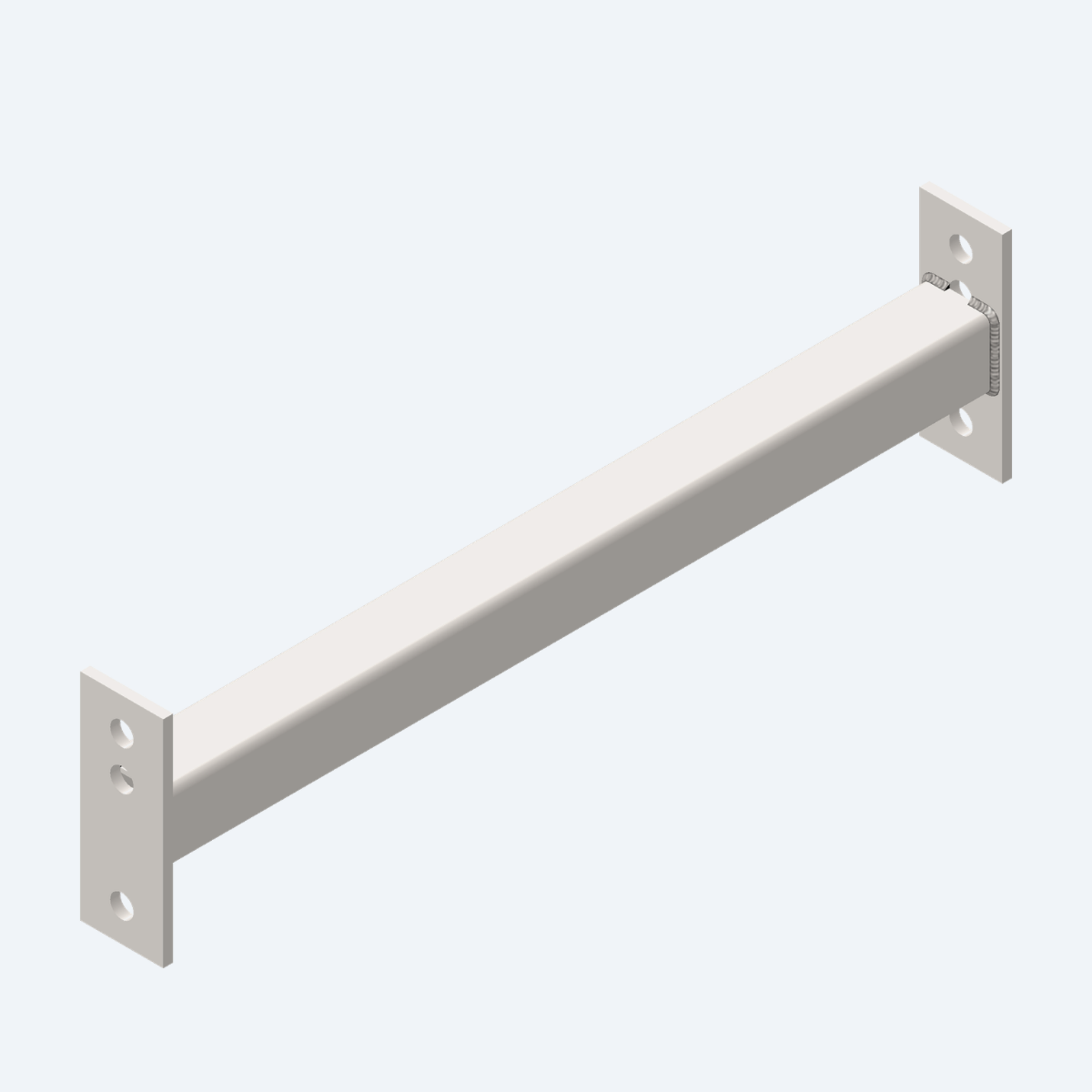

Cantilever Double End Arm - CF
CF-…-…
VPA
Vertical Piece - VPA
VPA-…-…
VPB
Vertical Piece - VPB
VPB-…-…
VPC
Vertical Piece - VPC
VPC-…-…
System overview
VP is Array Metal's post and cantilever-arm range — vertical pieces (VPA/VPB/VPC) and cantilever arms (CHB/CB/CF/CJ) that pick up AS channel. The v1 publish programme covers those 7 profiles in hot-dip galvanized finish, 2.5 mm gauge. Posts cut to typical stock lengths from 100 mm to 6000 mm; cantilever arms stop at 1200 mm (the printed catalogue max).
Data
Load ratings for VP are not published yet. Contact our engineering team for interim figures.
Downloads
| Name | Classification | Format | Size |
|---|---|---|---|
| VP Cantilever Arm - CA — GA Drawing | General arrangement (GA) | 889 KB | |
| VP Cantilever Arm - CD — GA Drawing | General arrangement (GA) | 811 KB | |
| VP Cantilever Arm - CDB — GA Drawing | General arrangement (GA) | 706 KB | |
| VP Cantilever Arm - CDBL — GA Drawing | General arrangement (GA) | 679 KB | |
| VP Cantilever Arm - CDBR — GA Drawing | General arrangement (GA) | 610 KB | |
| VP Cantilever Arm - CE — GA Drawing | General arrangement (GA) | 827 KB | |
| VP Heavy Duty Cantilever Arm - CG — GA Drawing | General arrangement (GA) | 650 KB | |
| VP Cantilever Arm - CH — GA Drawing | General arrangement (GA) | 761 KB | |
| VP Swivel Cantilever Arm - CK — GA Drawing | General arrangement (GA) | 648 KB |
