Cantilever Arm - CHB

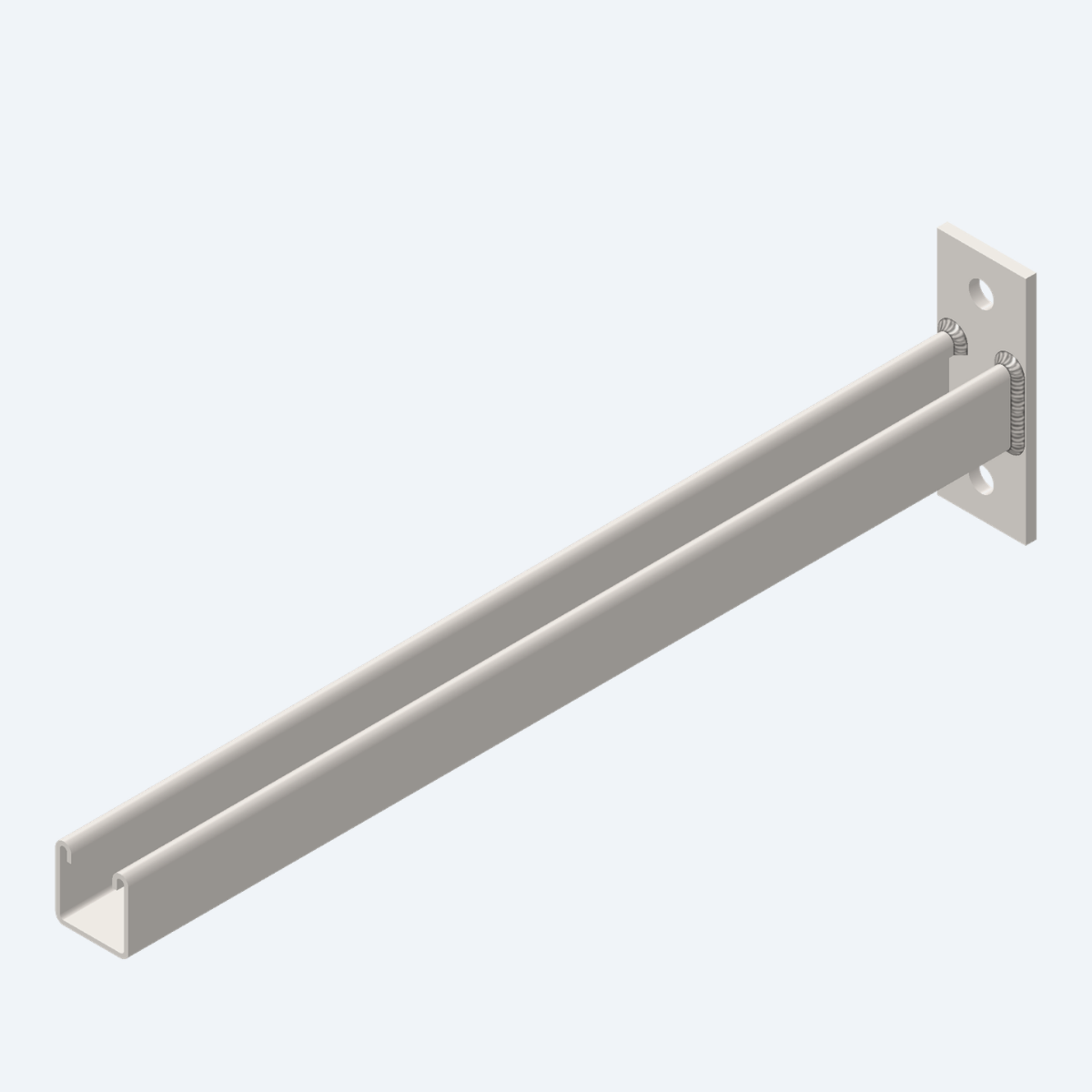

Cantilever arm CHB, 41×41 mm profile, 2.5 mm gauge.
Photos & drawings
Description
Cantilever arm, an alternative profile to the standard CB within the same single-tier post-and-arm range.
Confirm the correct arm profile for the specified load and span against the system's parts diagram.
Published item codes
| Part number | Thickness (mm) | Length (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|
| CHB-100-A2 | 2.5 | 100 | SS304 | 0.59 | |
| CHB-100-E | 2.5 | 100 | Epoxy on Mild Steel | 0.59 | |
| CHB-100-G | 2.5 | 100 | Hot-Dip Galvanized | 0.59 | |
| CHB-150-A2 | 2.5 | 150 | SS304 | 0.73 | |
| CHB-150-E | 2.5 | 150 | Epoxy on Mild Steel | 0.73 | |
| CHB-150-G | 2.5 | 150 | Hot-Dip Galvanized | 0.73 | |
| CHB-200-A2 | 2.5 | 200 | SS304 | 0.86 | |
| CHB-200-E | 2.5 | 200 | Epoxy on Mild Steel | 0.87 | |
| CHB-200-G | 2.5 | 200 | Hot-Dip Galvanized | 0.87 | |
| CHB-250-A2 | 2.5 | 250 | SS304 | 1.00 |
Not in the list?
Characteristics
| Model | CHB |
|---|---|
| Height | 41 mm |
| Width | 41 mm |
| Thickness | 2.5 mm |
| Material | A2, E, G |
| Finish | A2, E, G |
GA drawings & documents
| Document | Type | Applies to | Revision | Download |
|---|---|---|---|---|
| VP Cantilever Arm - CHB — GA Drawing | General arrangement (GA) | VP/CHB | — |
GA drawings and spec sheets are published per component and cover every width and length in the range. Project-specific GA sheets for a particular item code are issued against an enquiry reference.
