Cantilever Arm Heavy Duty - CJ

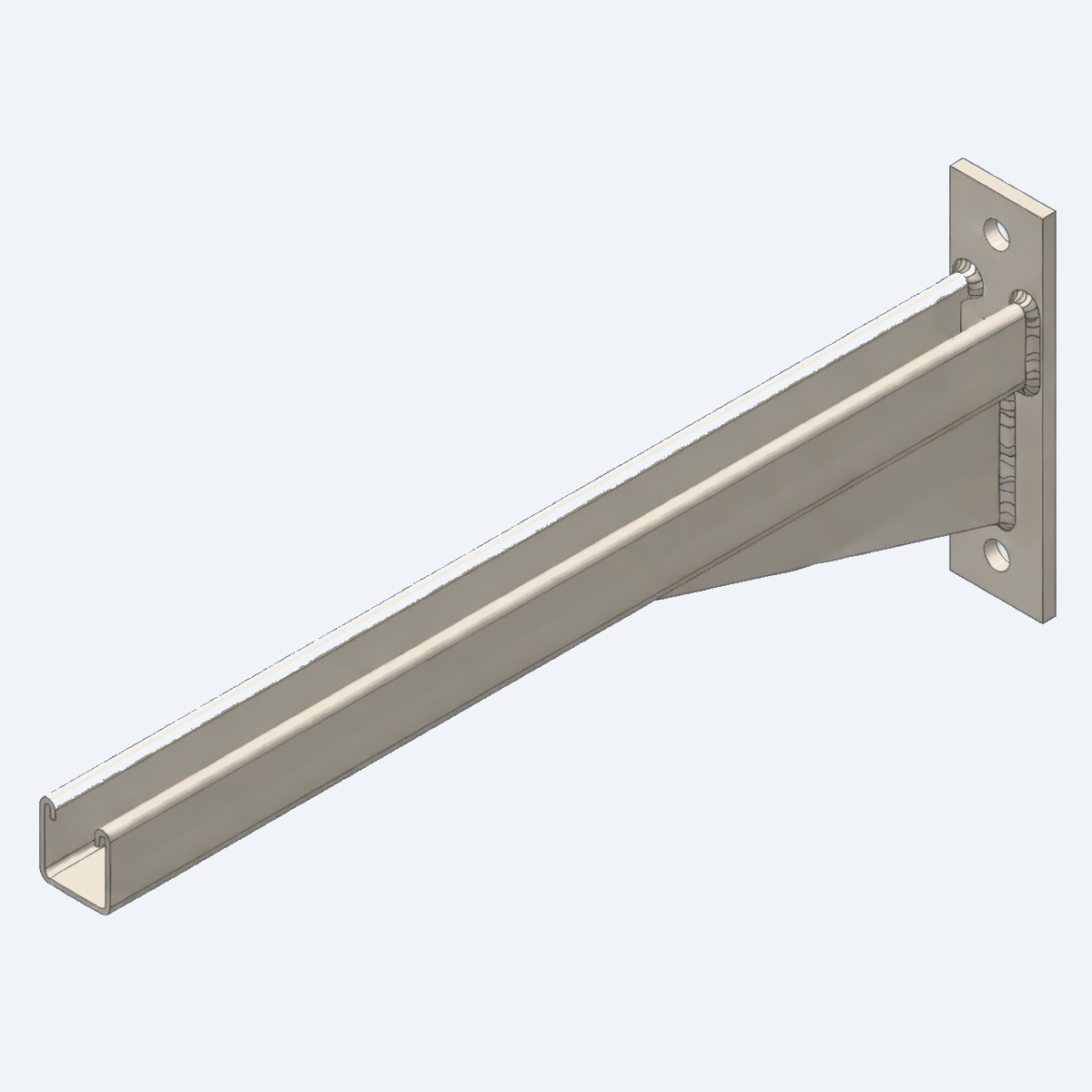

Heavy-duty cantilever arm CJ, 41×41 mm profile, 2.5 mm gauge.
Photos & drawings
Description
Heavy-duty cantilever arm specified for cable runs exceeding the rated capacity of the standard CB arm.
Used at the base of heavier post-and-arm supports within the same range.
Published item codes
| Part number | Thickness (mm) | Length (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|
| CJ-100-A2 | 2.5 | 100 | SS304 | 1.19 | |
| CJ-100-E | 2.5 | 100 | Epoxy on Mild Steel | 1.18 | |
| CJ-100-G | 2.5 | 100 | Hot-Dip Galvanized | 1.18 | |
| CJ-150-A2 | 2.5 | 150 | SS304 | 1.42 | |
| CJ-150-E | 2.5 | 150 | Epoxy on Mild Steel | 1.41 | |
| CJ-150-G | 2.5 | 150 | Hot-Dip Galvanized | 1.41 | |
| CJ-200-A2 | 2.5 | 200 | SS304 | 1.66 | |
| CJ-200-E | 2.5 | 200 | Epoxy on Mild Steel | 1.65 | |
| CJ-200-G | 2.5 | 200 | Hot-Dip Galvanized | 1.65 | |
| CJ-250-A2 | 2.5 | 250 | SS304 | 1.89 |
Not in the list?
Characteristics
| Model | CJ |
|---|---|
| Height | 41 mm |
| Width | 41 mm |
| Thickness | 2.5 mm |
| Material | A2, E, G |
| Finish | A2, E, G |
