Cantilever Double End Arm - CF

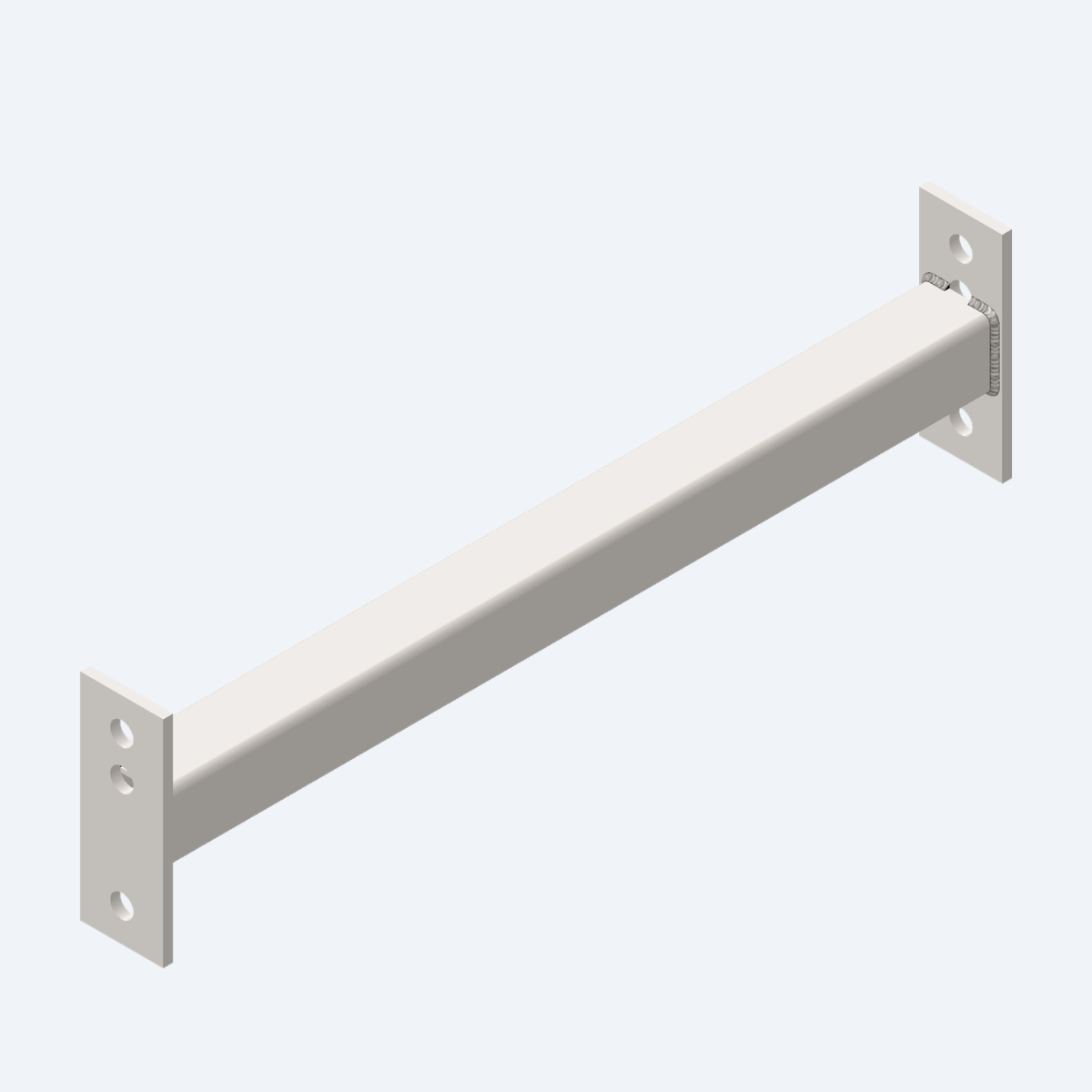

Double-end cantilever arm CF, 41×41 mm profile, 2.5 mm gauge.
Photos & drawings
Description
Cantilever arm fixed at both ends, supporting a cable run between two posts or from a post back to a wall rather than projecting from a single fixed point.
Specified where the installation requires the arm to be supported at both ends rather than as a single cantilever.
Published item codes
| Part number | Thickness (mm) | Length (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|
| CF-100-A2 | 2.5 | 100 | SS304 | 0.90 | |
| CF-100-E | 2.5 | 100 | Epoxy on Mild Steel | 0.89 | |
| CF-100-G | 2.5 | 100 | Hot-Dip Galvanized | 0.89 | |
| CF-150-A2 | 2.5 | 150 | SS304 | 1.04 | |
| CF-150-E | 2.5 | 150 | Epoxy on Mild Steel | 1.03 | |
| CF-150-G | 2.5 | 150 | Hot-Dip Galvanized | 1.03 | |
| CF-200-A2 | 2.5 | 200 | SS304 | 1.18 | |
| CF-200-E | 2.5 | 200 | Epoxy on Mild Steel | 1.17 | |
| CF-200-G | 2.5 | 200 | Hot-Dip Galvanized | 1.17 | |
| CF-250-A2 | 2.5 | 250 | SS304 | 1.31 |
Not in the list?
Characteristics
| Model | CF |
|---|---|
| Height | 41 mm |
| Width | 41 mm |
| Thickness | 2.5 mm |
| Material | A2, E, G |
| Finish | A2, E, G |
GA drawings & documents
| Document | Type | Applies to | Revision | Download |
|---|---|---|---|---|
| VP Cantilever Double End Arm - CF — GA Drawing | General arrangement (GA) | VP/CF | — |
GA drawings and spec sheets are published per component and cover every width and length in the range. Project-specific GA sheets for a particular item code are issued against an enquiry reference.
