Cantilever Arm - CB

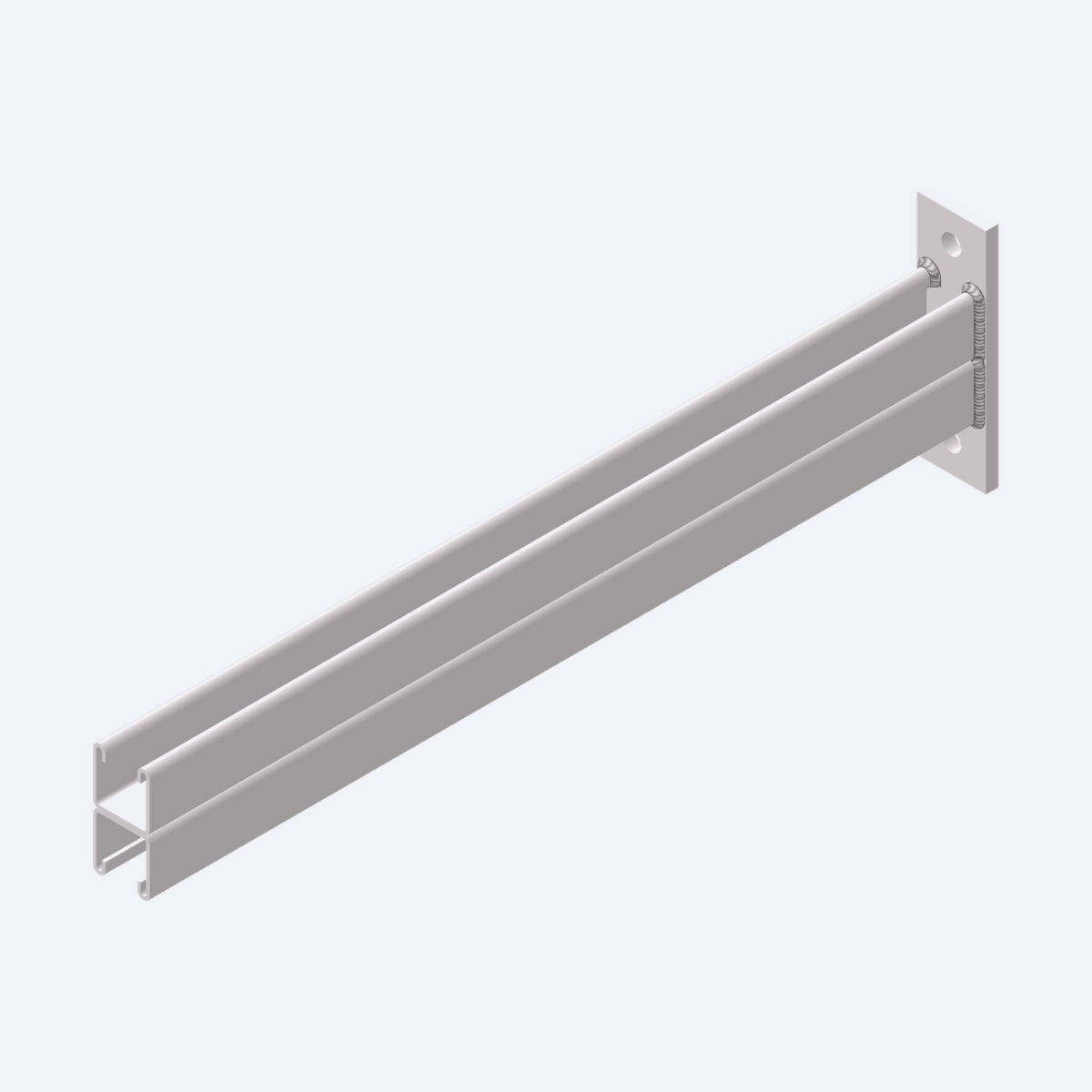

Cantilever arm CB, 82×41 mm profile, 2.5 mm gauge.
Photos & drawings
Description
Cantilever arm projecting from a VP post to support a single cable ladder, tray or basket run clear of the mounting wall or post.
The standard single-tier cantilever arm within the VP range.
Published item codes
| Part number | Thickness (mm) | Length (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|
| CB-100-A2 | 2.5 | 100 | SS304 | 1.15 | |
| CB-100-E | 2.5 | 100 | Epoxy on Mild Steel | 1.15 | |
| CB-100-G | 2.5 | 100 | Hot-Dip Galvanized | 1.15 | |
| CB-150-A2 | 2.5 | 150 | SS304 | 1.43 | |
| CB-150-E | 2.5 | 150 | Epoxy on Mild Steel | 1.43 | |
| CB-150-G | 2.5 | 150 | Hot-Dip Galvanized | 1.43 | |
| CB-200-A2 | 2.5 | 200 | SS304 | 1.70 | |
| CB-200-E | 2.5 | 200 | Epoxy on Mild Steel | 1.70 | |
| CB-200-G | 2.5 | 200 | Hot-Dip Galvanized | 1.70 | |
| CB-250-A2 | 2.5 | 250 | SS304 | 1.98 |
Not in the list?
Characteristics
| Model | CB |
|---|---|
| Height | 82 mm |
| Width | 41 mm |
| Thickness | 2.5 mm |
| Material | A2, E, G |
| Finish | A2, E, G |
GA drawings & documents
| Document | Type | Applies to | Revision | Download |
|---|---|---|---|---|
| VP Cantilever Arm - CB — GA Drawing | General arrangement (GA) | VP/CB | — |
GA drawings and spec sheets are published per component and cover every width and length in the range. Project-specific GA sheets for a particular item code are issued against an enquiry reference.
