VP · VPC

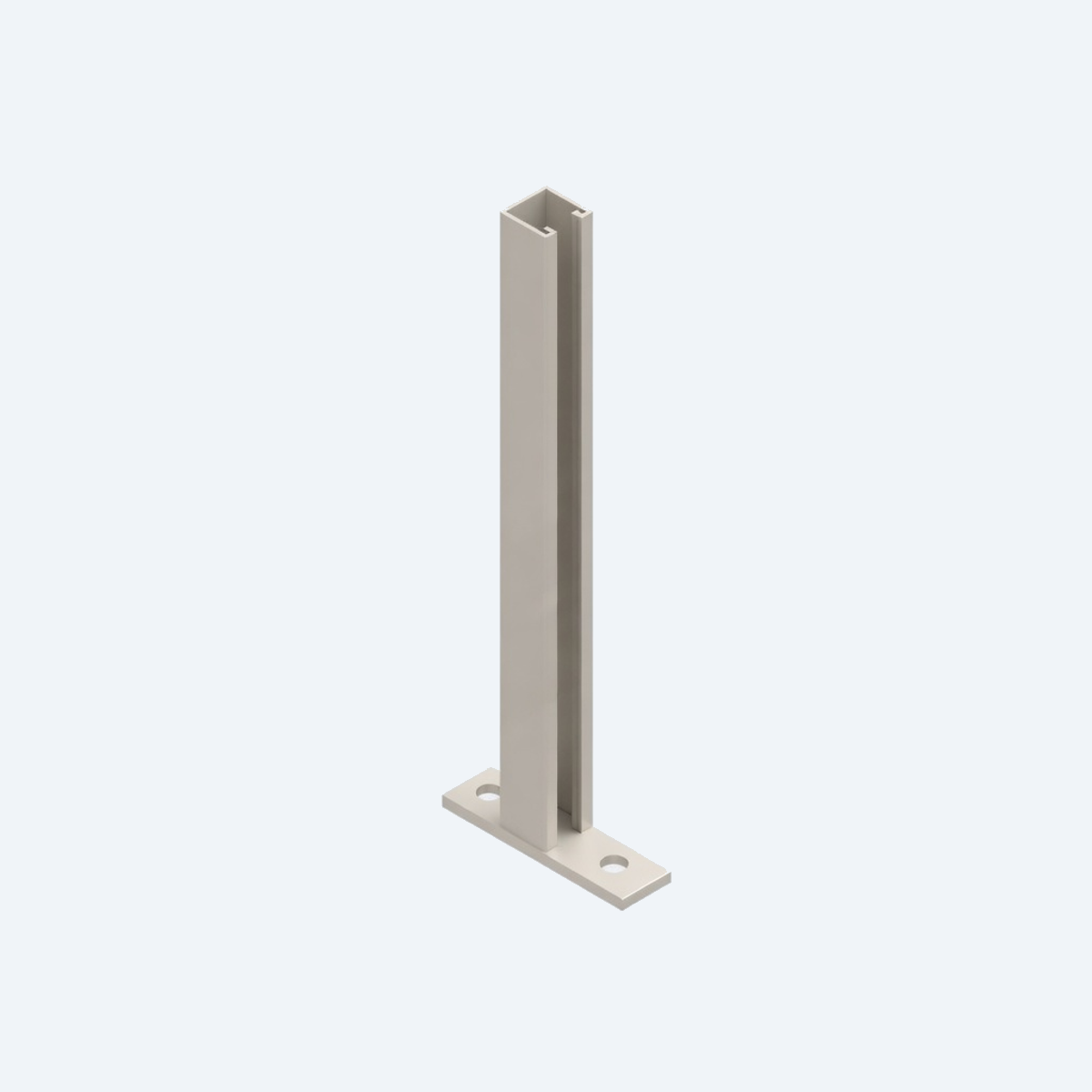

Vertical Piece - VPC
Vertical post, 41×41 mm profile, 2.5 mm gauge — VPC variant.
Photos & drawings
Description
Vertical Flexistrut post, an alternative profile to the standard VPA upright within the same post-and-arm range.
Confirm the correct upright profile for the specified arm and load combination against the system's parts diagram.
Published item codes
| Part number | Thickness (mm) | Length (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|
| VPC-100-A2 | 2.5 | 100 | SS304 | 0.59 | |
| VPC-100-E | 2.5 | 100 | Epoxy on Mild Steel | 0.59 | |
| VPC-100-G | 2.5 | 100 | Hot-Dip Galvanized | 0.59 | |
| VPC-150-A2 | 2.5 | 150 | SS304 | 0.73 | |
| VPC-150-E | 2.5 | 150 | Epoxy on Mild Steel | 0.73 | |
| VPC-150-G | 2.5 | 150 | Hot-Dip Galvanized | 0.73 | |
| VPC-200-A2 | 2.5 | 200 | SS304 | 0.86 | |
| VPC-200-E | 2.5 | 200 | Epoxy on Mild Steel | 0.87 | |
| VPC-200-G | 2.5 | 200 | Hot-Dip Galvanized | 0.87 | |
| VPC-250-A2 | 2.5 | 250 | SS304 | 1.00 |
Not in the list?
Characteristics
| Model | VPC |
|---|---|
| Height | 41 mm |
| Width | 41 mm |
| Thickness | 2.5 mm |
| Material | A2, E, G |
| Finish | A2, E, G |
