VP · VPA
Vertical Piece - VPA

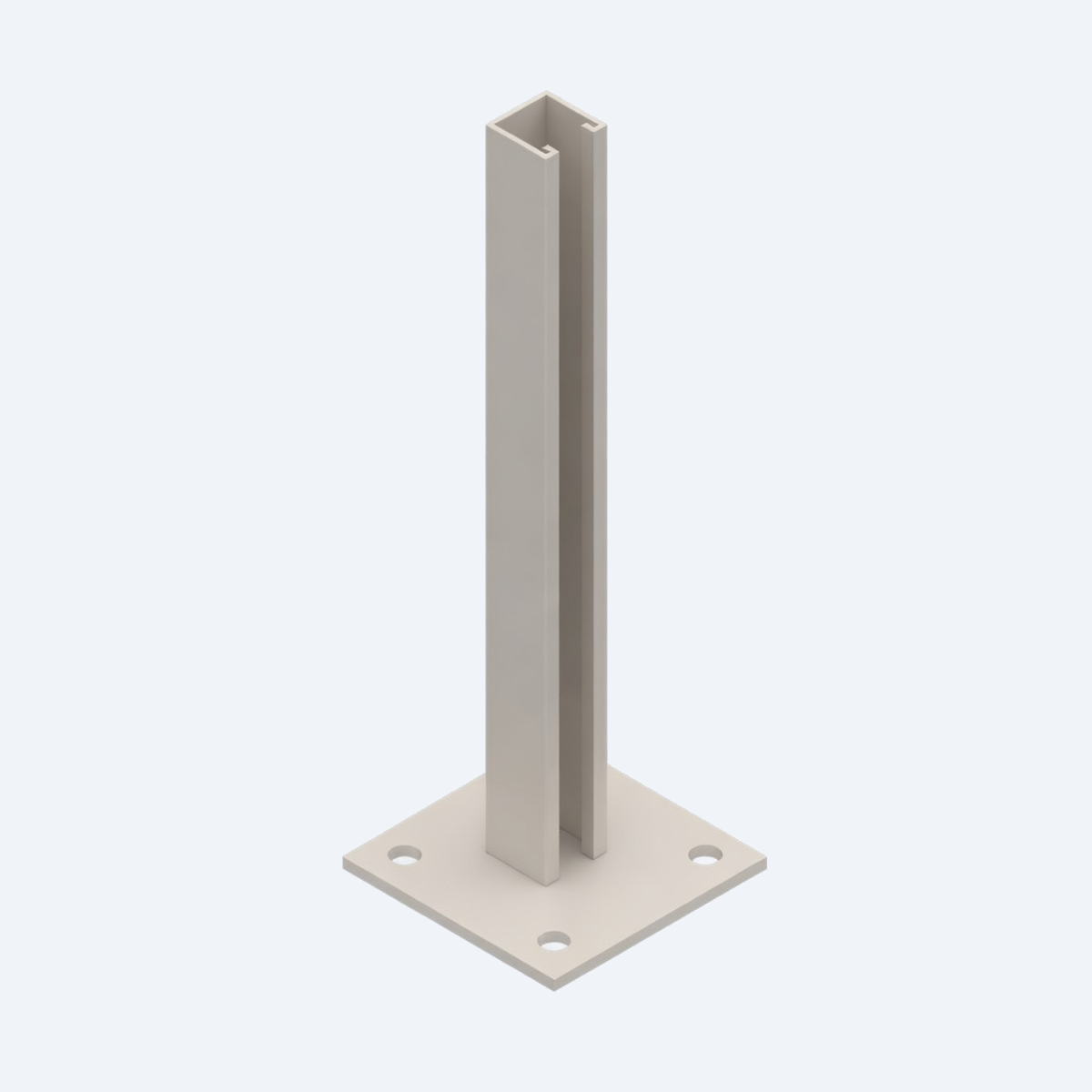

Vertical post — the standard VP upright.
Photos & drawings
Description
Vertical Flexistrut post carrying cantilever arms or trapeze brackets from a floor or wall fixing to the working height of the cable run.
The standard upright within the VP range, specified together with the CB, CHB, CF or CJ cantilever arms for a wall- or post-mounted support.
VPAFitting: Vertical Piece - VPA
Which item it is.
Published item codes
| Part number | Thickness (mm) | Length (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|
| VPA-100-A2 | 2.5 | 100 | SS304 | 1.36 | |
| VPA-100-E | 2.5 | 100 | Epoxy on Mild Steel | 1.34 | |
| VPA-100-G | 2.5 | 100 | Hot-Dip Galvanized | 1.34 | |
| VPA-150-A2 | 2.5 | 150 | SS304 | 1.49 | |
| VPA-150-E | 2.5 | 150 | Epoxy on Mild Steel | 1.48 | |
| VPA-150-G | 2.5 | 150 | Hot-Dip Galvanized | 1.48 | |
| VPA-200-A2 | 2.5 | 200 | SS304 | 1.63 | |
| VPA-200-E | 2.5 | 200 | Epoxy on Mild Steel | 1.62 | |
| VPA-200-G | 2.5 | 200 | Hot-Dip Galvanized | 1.62 | |
| VPA-250-A2 | 2.5 | 250 | SS304 | 1.77 |
Not in the list?
Characteristics
| Model | VPA |
|---|---|
| Height | 41 mm |
| Width | 41 mm |
| Thickness | 2.5 mm |
| Material | Stainless Steel 304, Epoxy on Mild Steel, Hot-Dip Galvanized |
| Finish | A2, E, G |
