AML Cable Ladder

Roll-formed cable ladder for medium to heavy duty cable runs — straight, level and inclined routes across industrial and infrastructure projects, with a full fitting range under one system.

Request this file

Leave your details and the file downloads straight away — this also unlocks catalogue PDFs and GA drawings for 30 days, so you won’t need to fill this in again. Same inbox as Contact — we use them to follow up.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Goes straight to arrayinfo@arraymetal.com.

Rail heights
100 / 125 / 150 mm
Widths
100, 125, 150, 200, 300, 400, 450, 500… mm
Thickness
1.5 / 2 mm
Lengths
3000 mm
Finish
G
Published codes
1,557

Products

Displaying 1–16 of 28 products · All AML part number options →

System overview

AML is Array Metal's roll-formed cable ladder for medium to heavy-duty runs on industrial and infrastructure projects. It comes in three rail heights, AML100, AML125 and AML150, with a full fitting range: elbows, risers, tees, crosses, covers and splice plates. Load ratings are published to both NEMA VE1 and IEC 61537.

Materials

Hot-Dip Galvanized

Certification

NEMA VE1BS EN ISO 1461IEC 61537
1×
Isometric cable ladder run (AML shown) — straights, elbows, tee, cross, reducers, risers, splice plates and end plate, with the covers that fit them.

Tray or fittingIts cover

  1. StraightStraight Lipped Cover

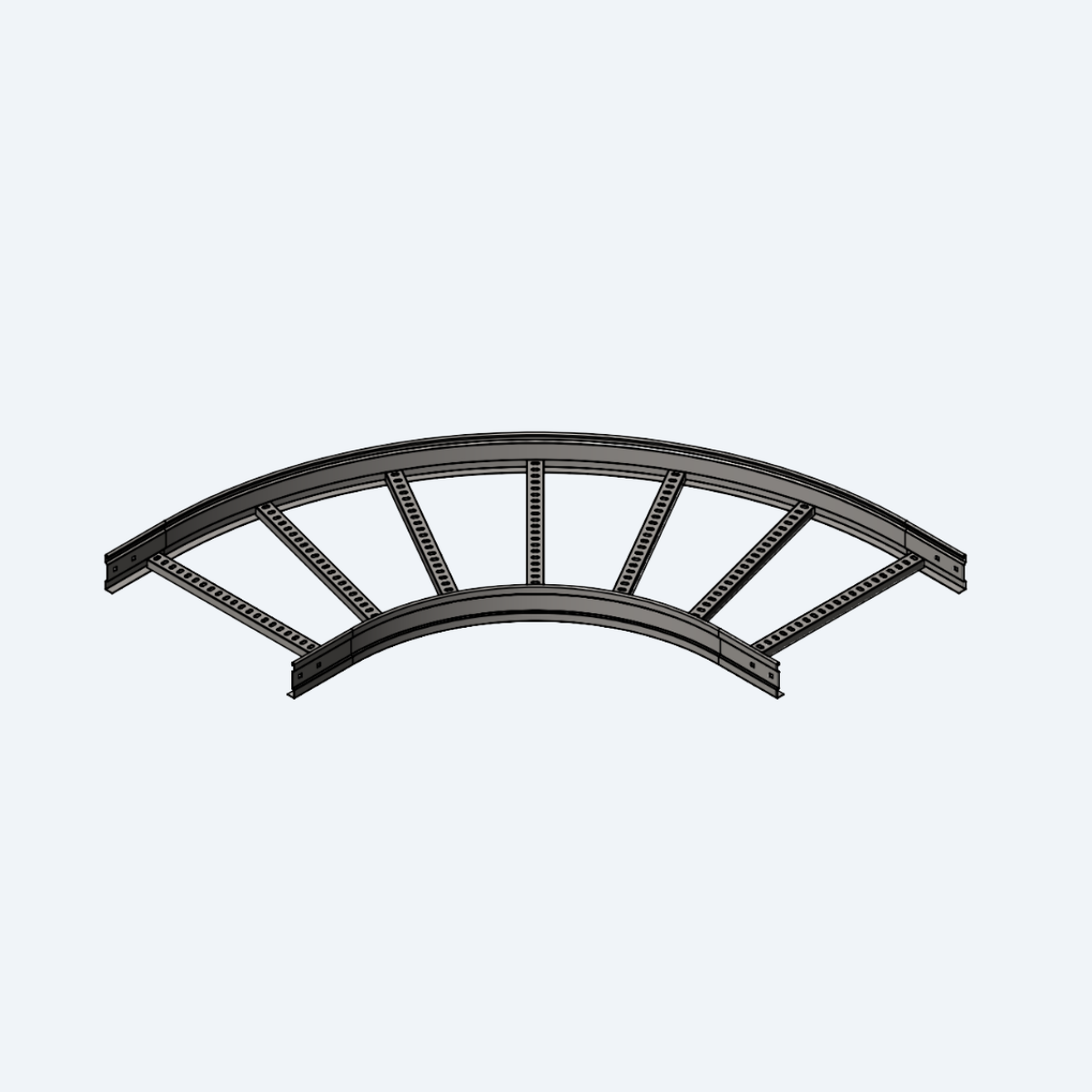

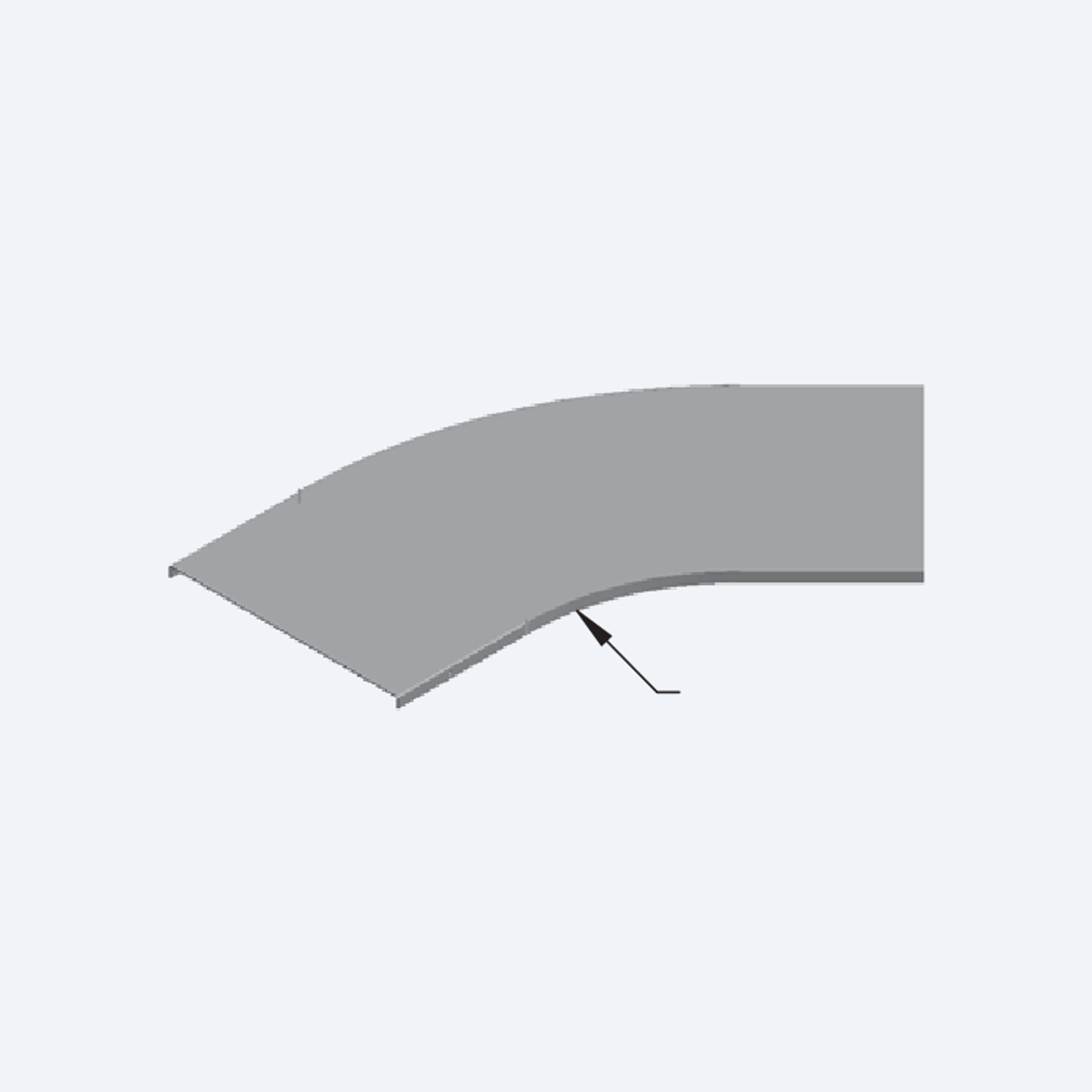

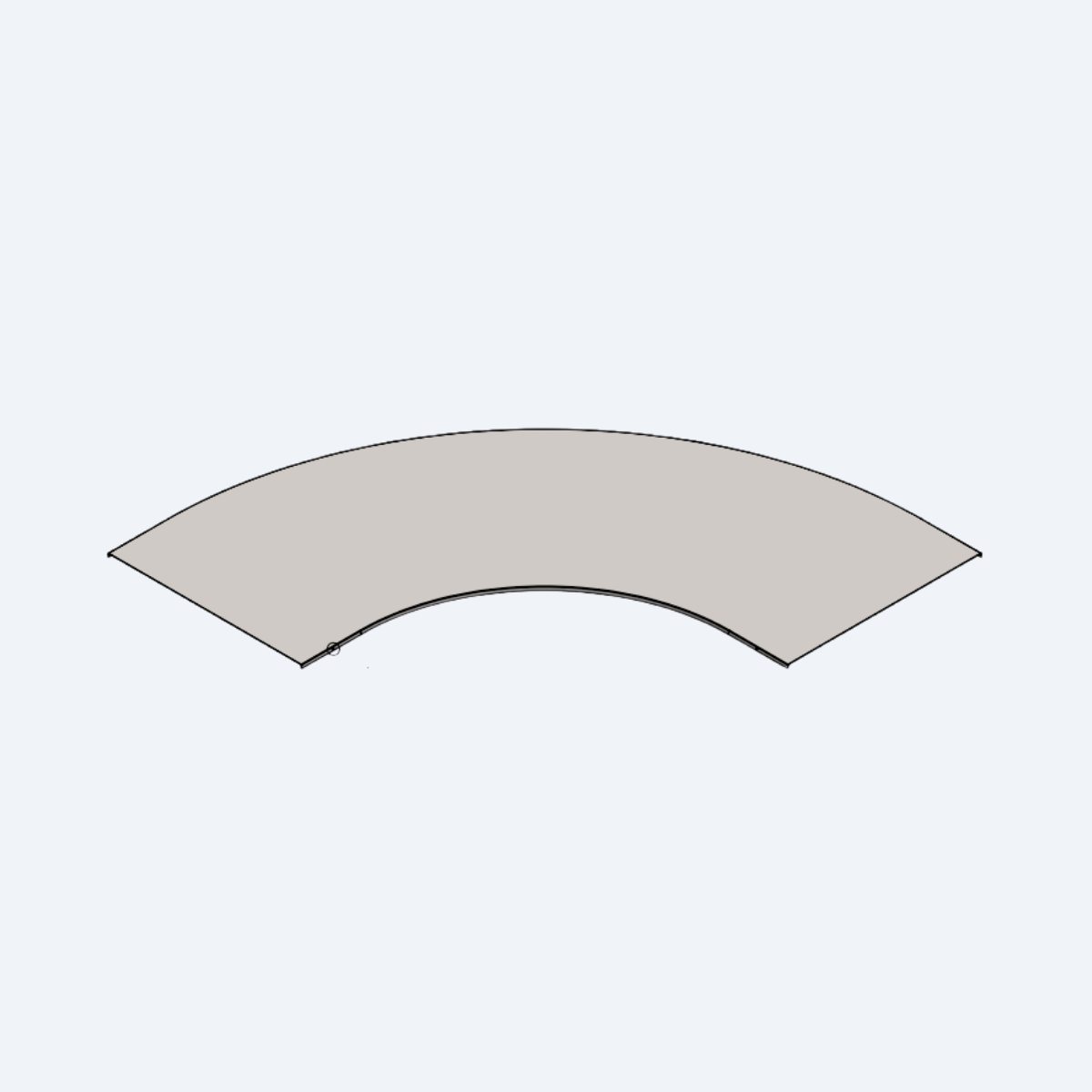

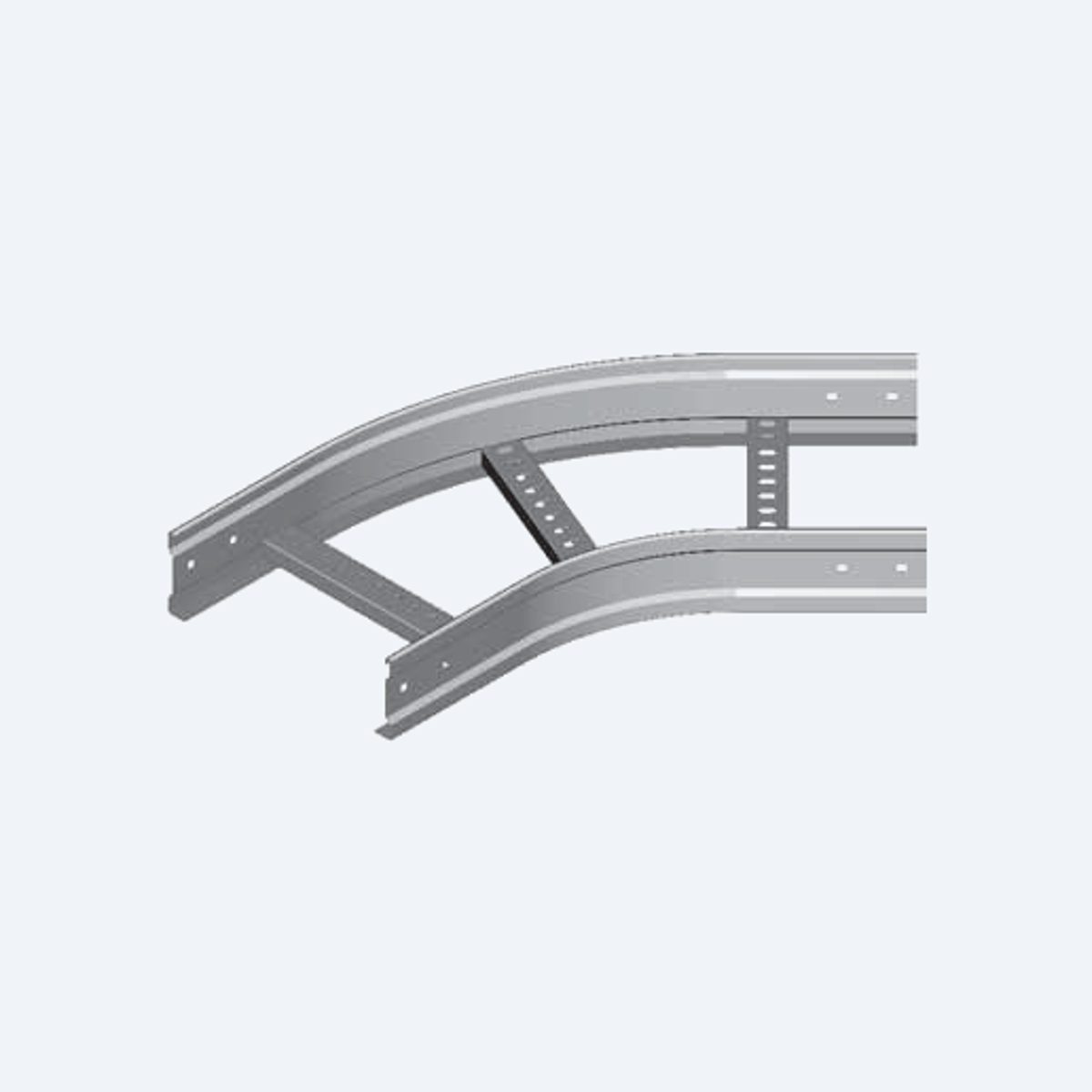

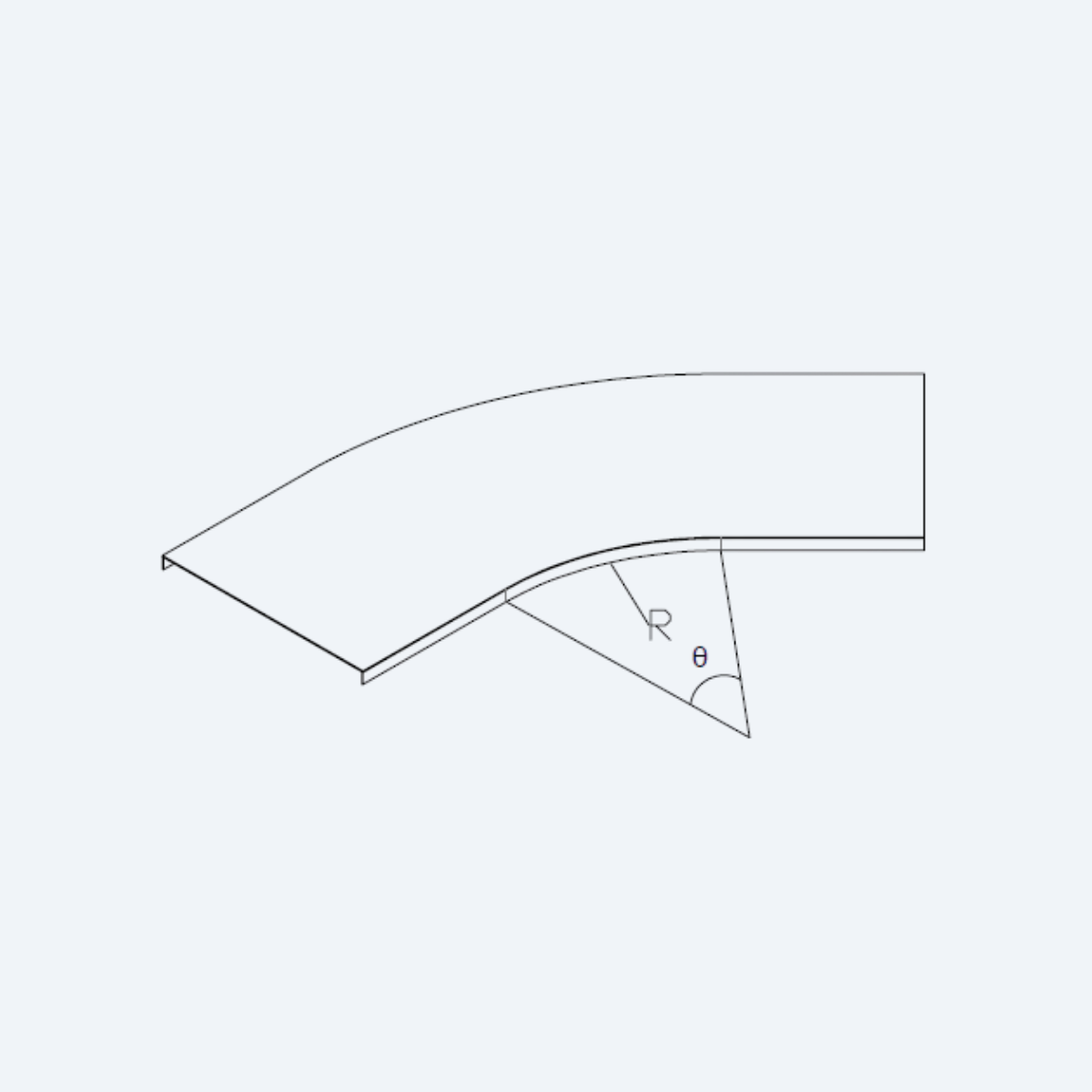

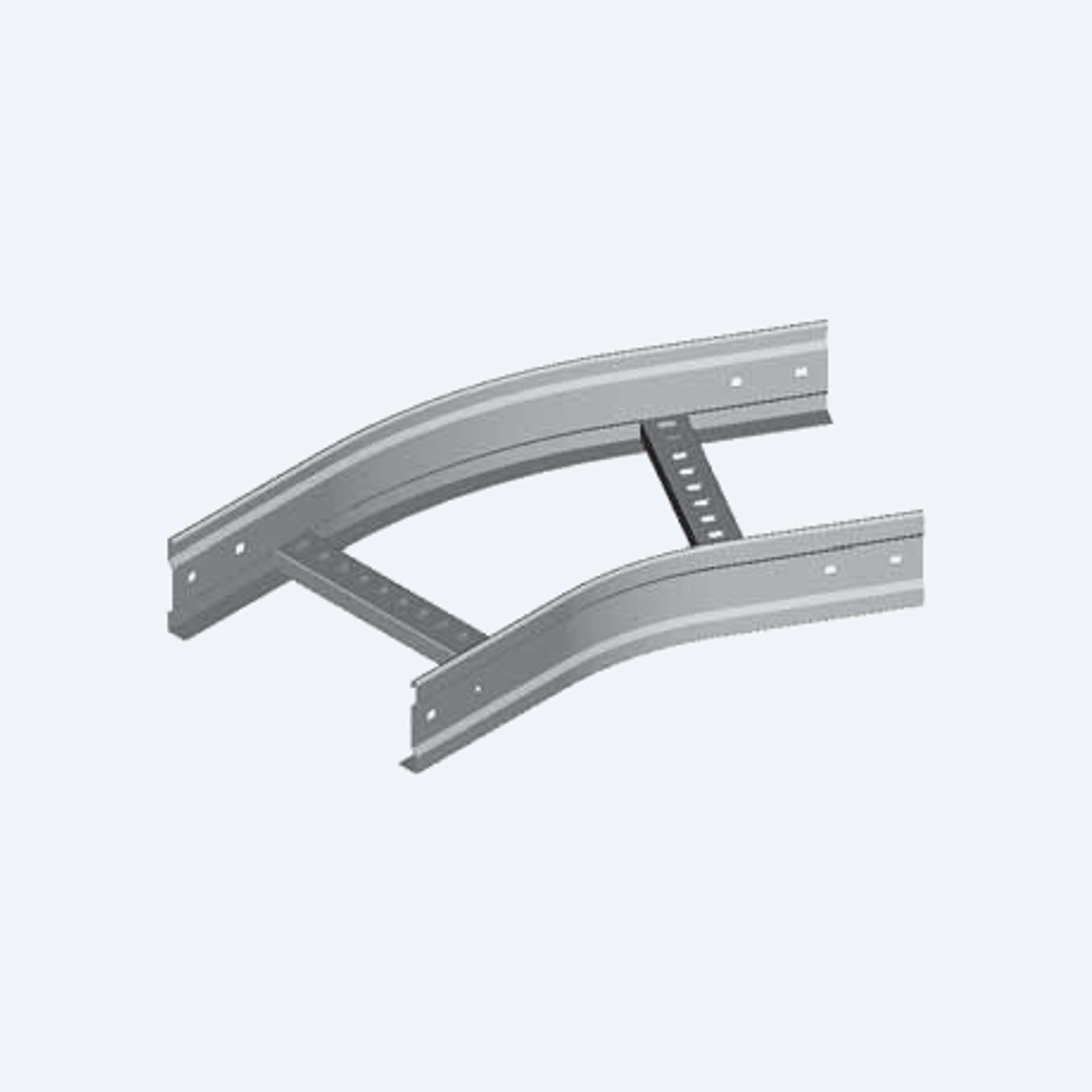

  2. 90° Elbow90° Elbow Lipped Cover
  3. TeeTee Lipped Cover
  4. CrossCross Lipped Cover

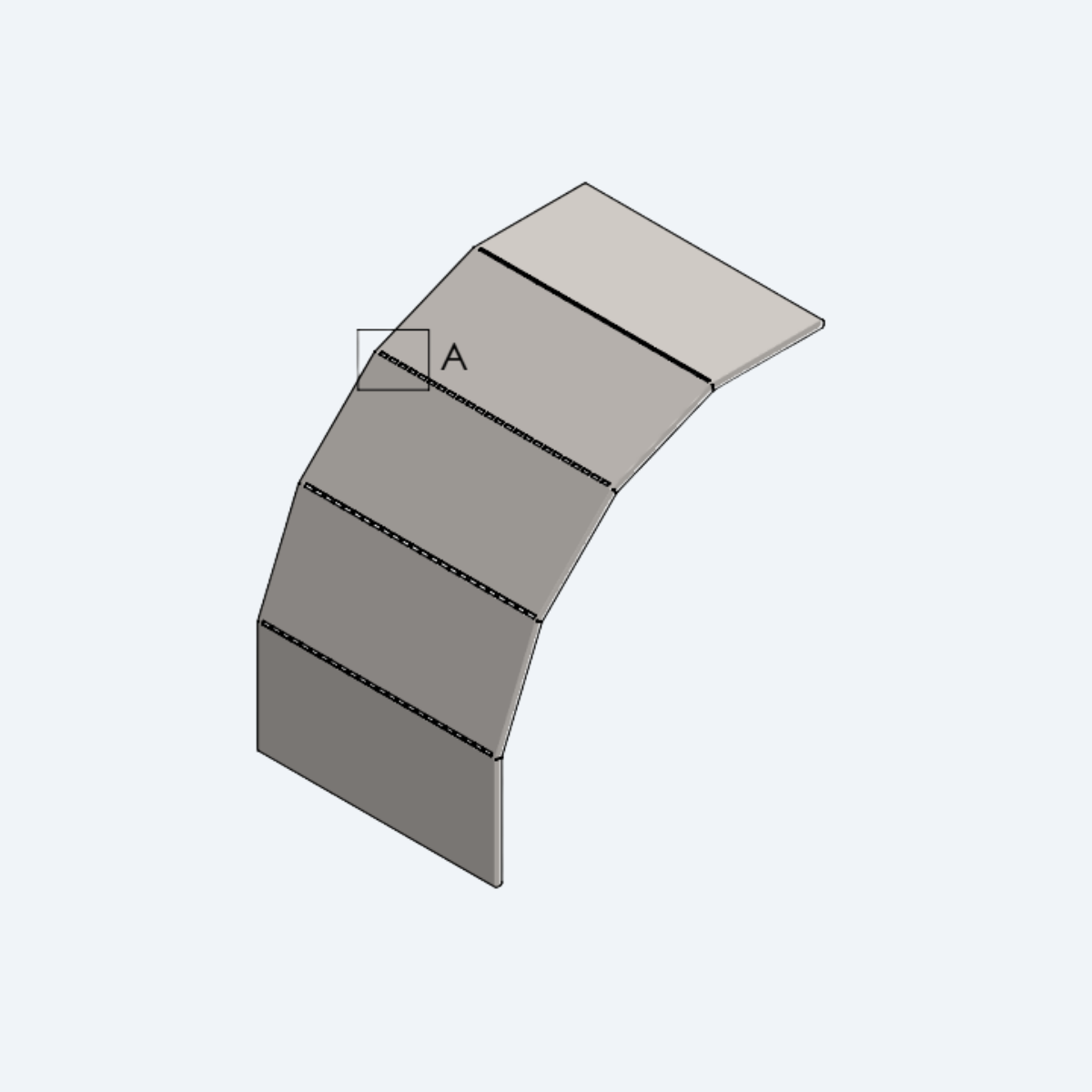

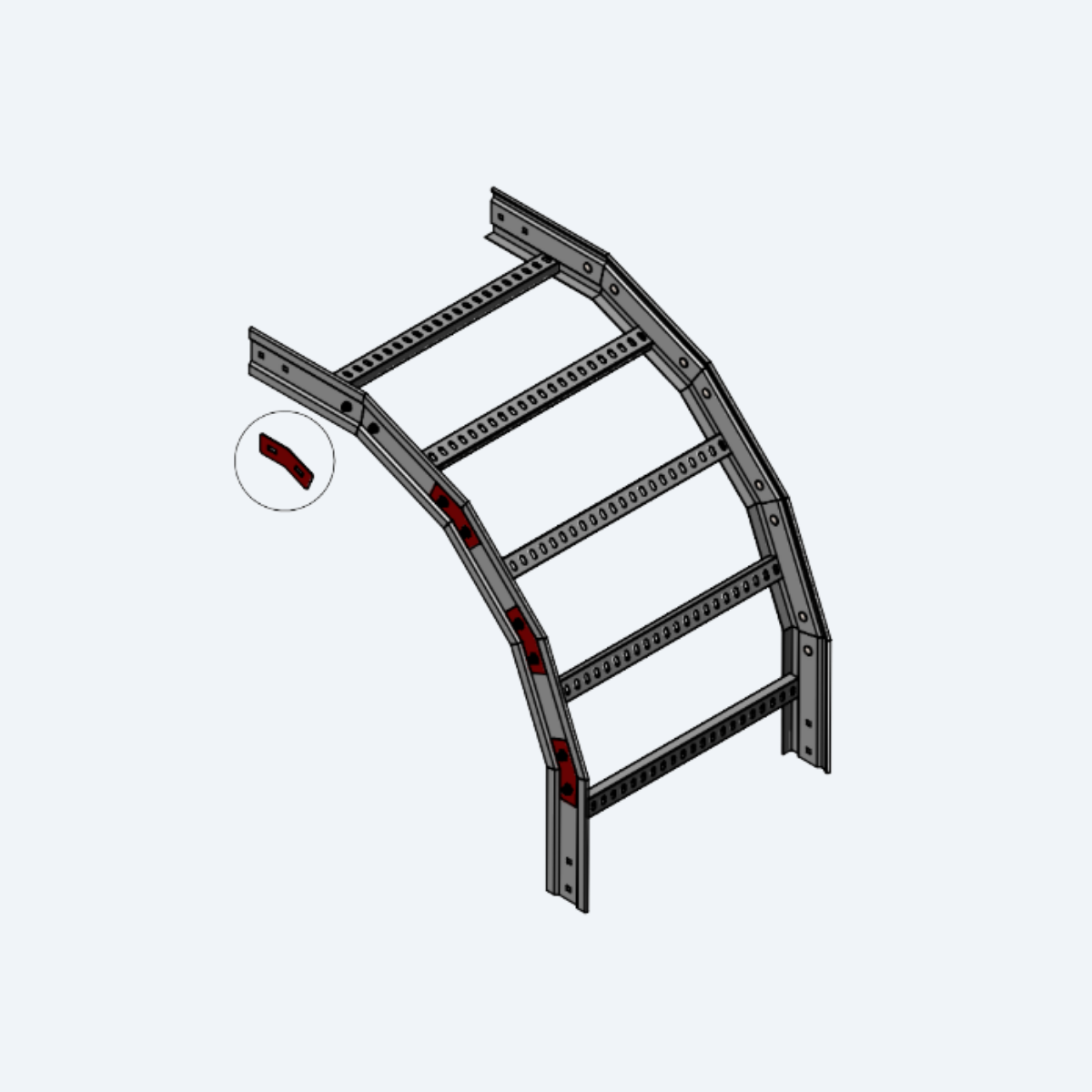

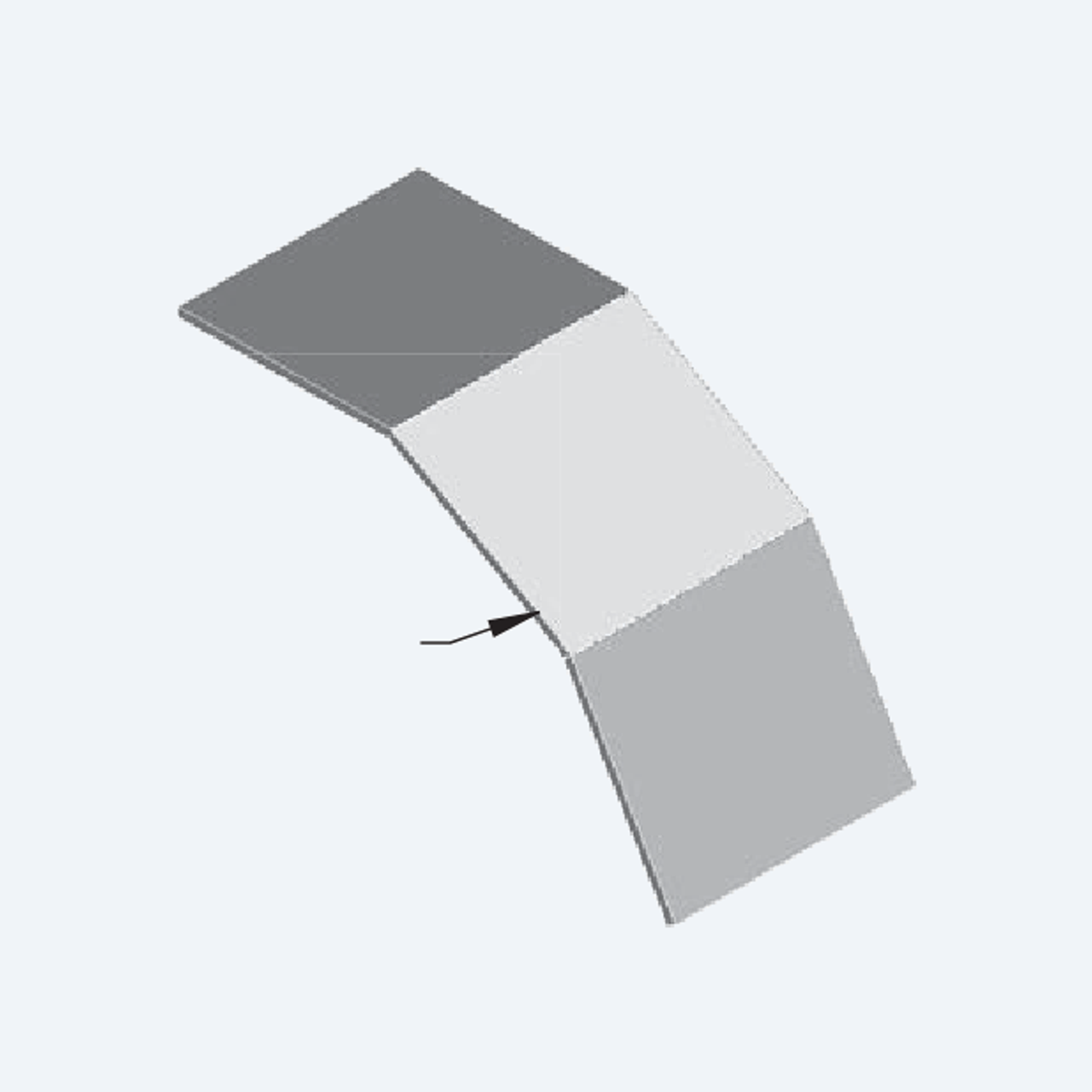

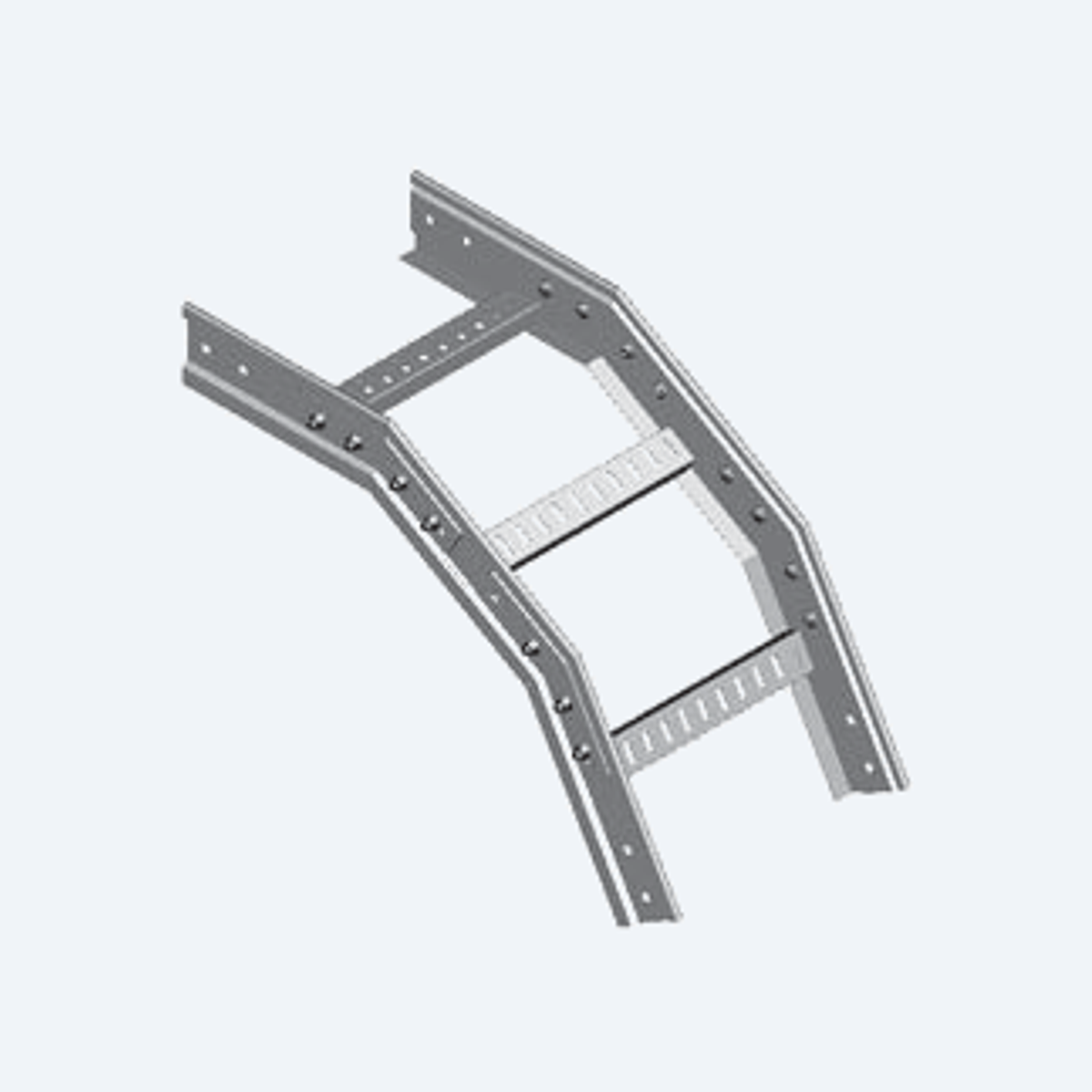

  5. 90° Outside Riser90° Outside Riser Lipped Cover

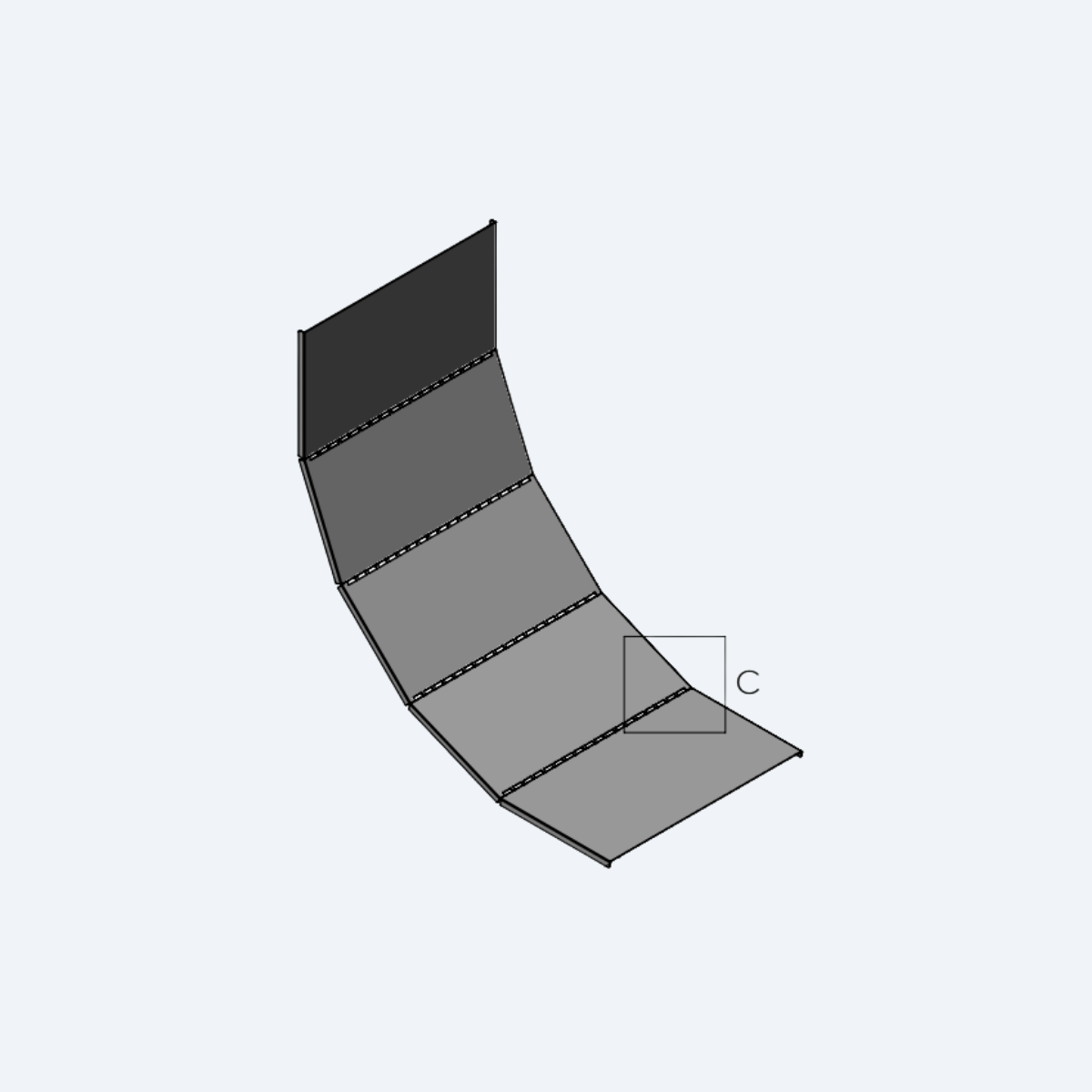

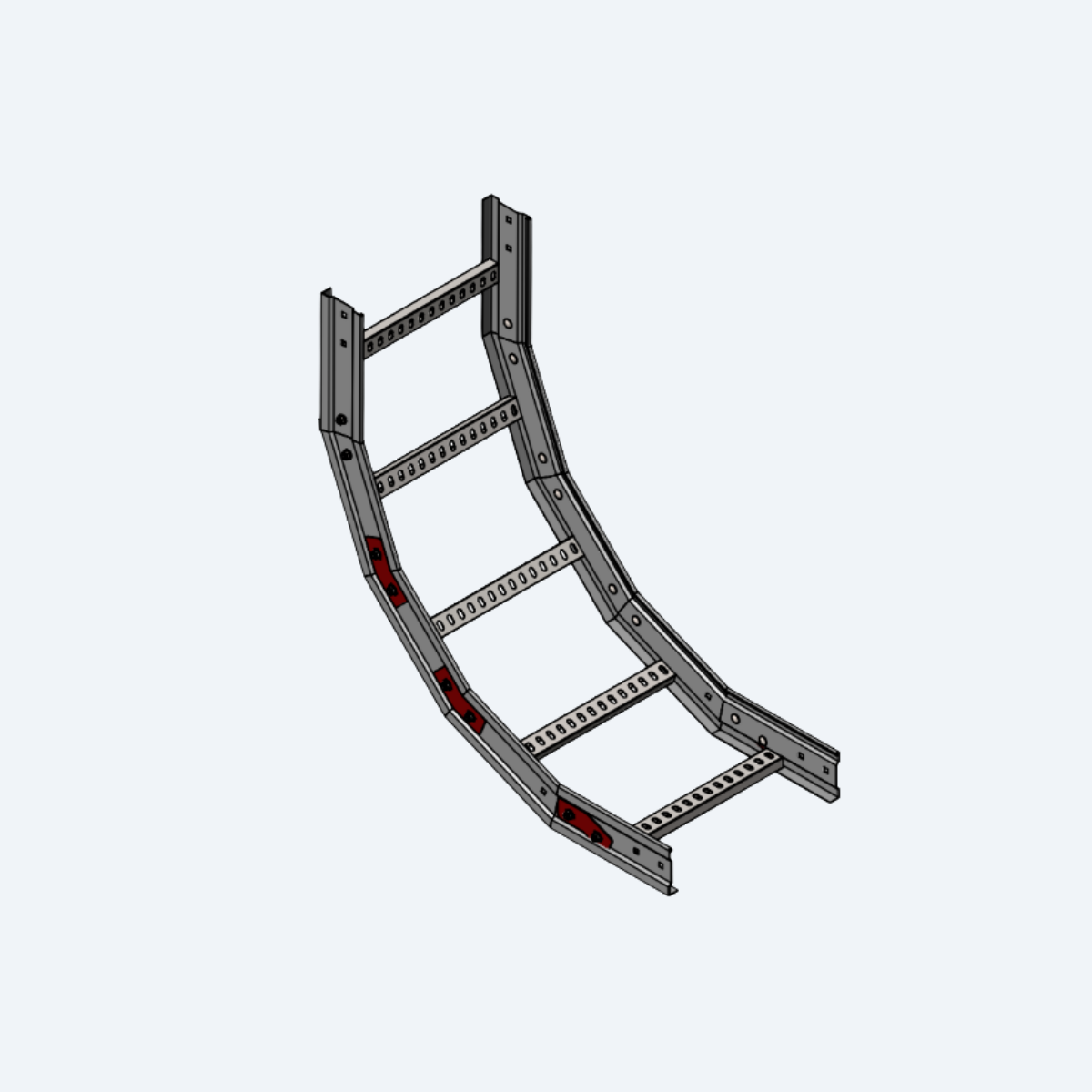

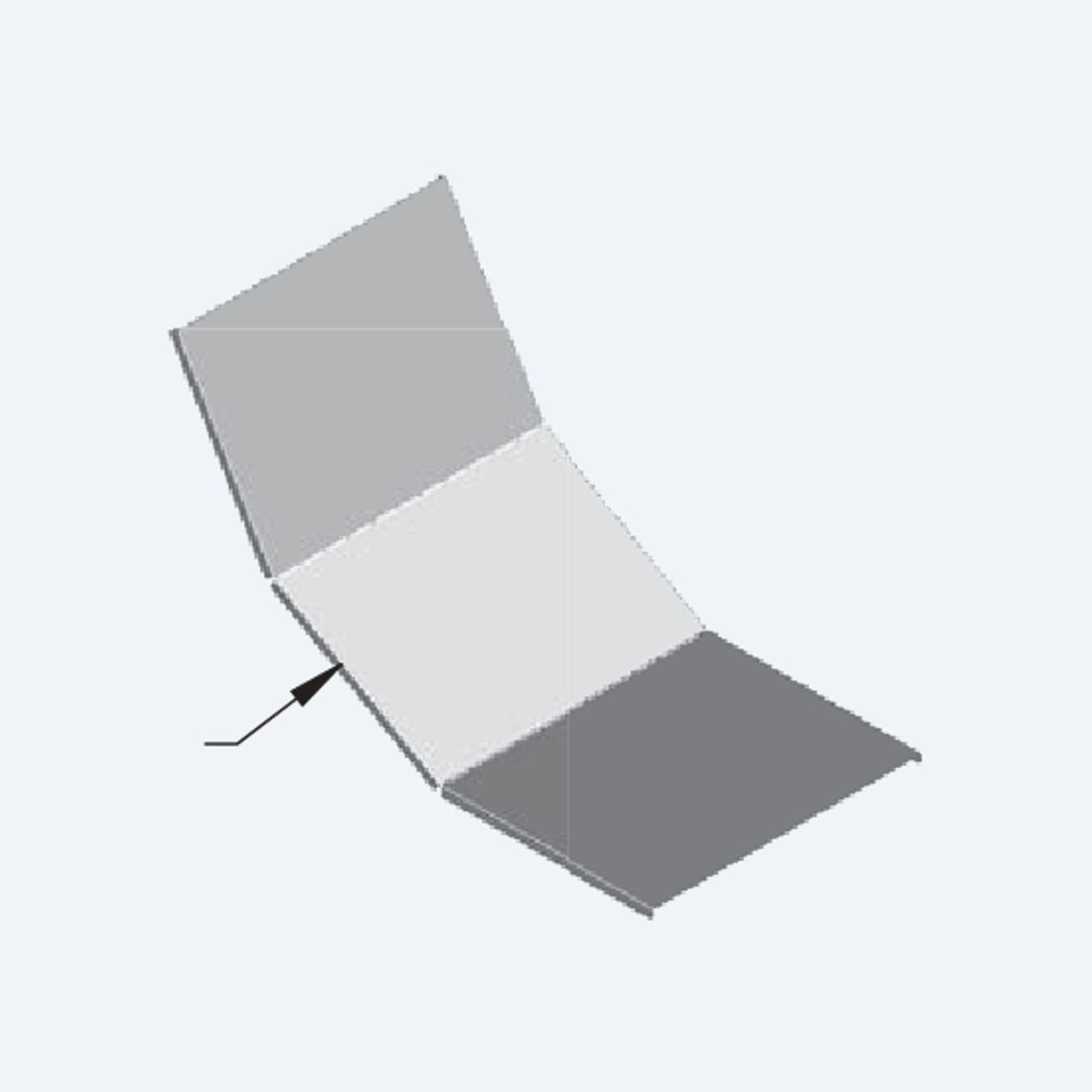

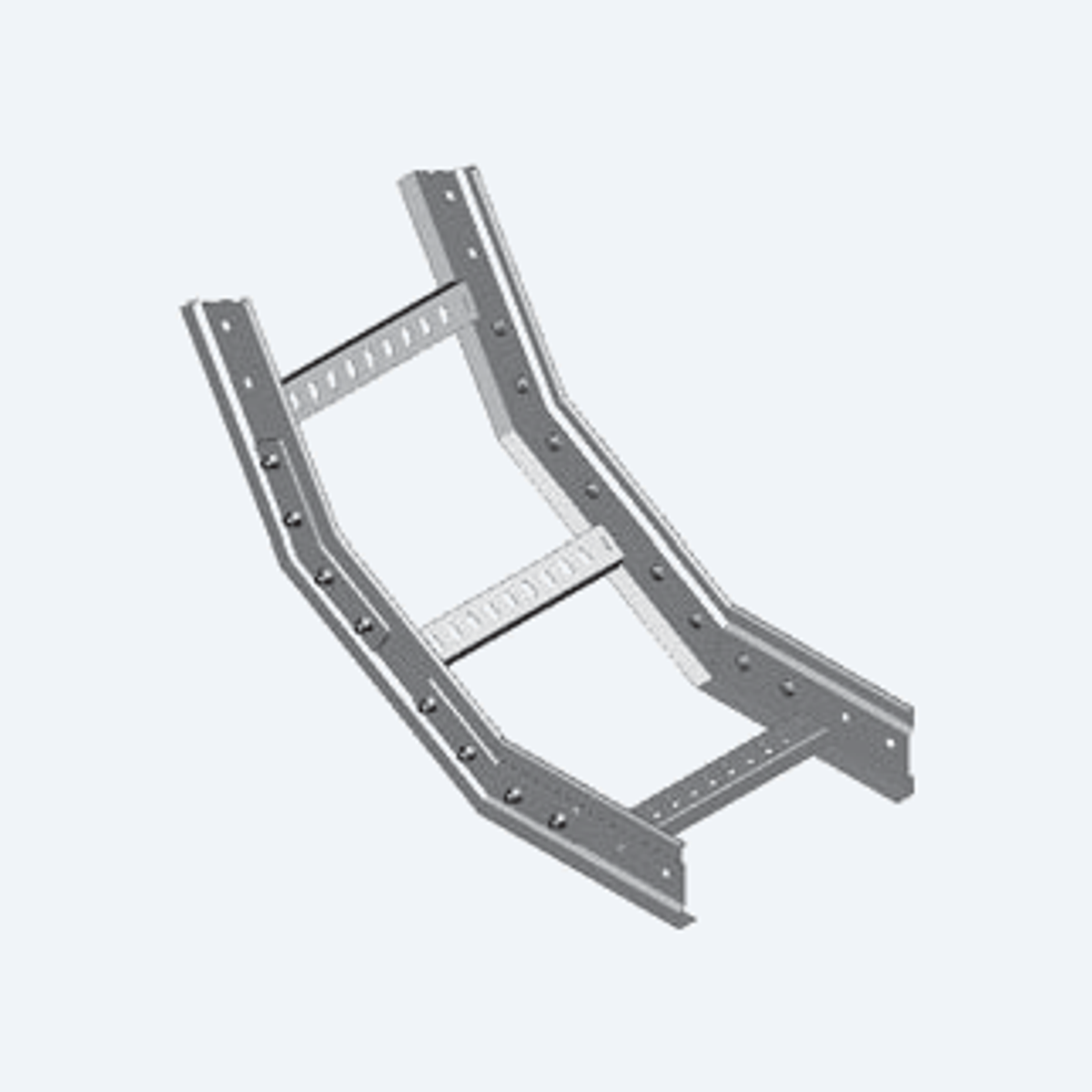

  6. 90° Inside Riser90° Inside Riser Lipped Cover
  7. Right reducerOn requestRight reducer coverOn request
  8. Left reducerOn requestLeft reducer coverOn request
  9. Centre reducerOn requestCentre reducer coverOn request
  10. Straight Splice Plate
  11. Vertical Adjustable Splice Plate
  12. End plate
Standard components of the system. A filled number is the tray or fitting; the same number outlined is the cover that fits it. Hover a number or a name to pick it out. Zoom in and drag to look closer.

Data

Check a load case

Test method: NEMA VE1 · Material: Hot-Dip Galvanized (HDG) · Standard: NEMA VE1-2009 · Safety factor: ×1.5

ModelLoading depthThicknessSWL @ 3 m (kg/m)SWL @ 4.5 m (kg/m)SWL @ 6 m (kg/m)NEMA class
AML10075 mm1.5 / 2 mm1928548NEMA 20AA
AML125100 mm1.5 / 2 mm480213120NEMA 20B
AML150125 mm1.5 / 2 mm468208117NEMA 20B

SWL = Destructive load ÷ 1.5 (NEMA VE1-2009). Available lengths: 3 m and 6 m. Deflection limit: L/100 at SWL. 3 m and 4.5 m figures are interpolated from the 6 m test.

Test method: IEC 61537:2006, Test Type 2 · Material: Hot-Dip Galvanized (HDG) · Standard: IEC 61537:2006 · Safety factor: ×1.7

ModelLoading depthThicknessSWL @ 3 m (kg/m)SWL @ 4.5 m (kg/m)SWL @ 6 m (kg/m)
AML10075 mm1.5 / 2 mm1566939
AML125100 mm1.5 / 2 mm456203114
AML150125 mm1.5 / 2 mm504224126

SWL = Breaking load ÷ 1.7 (IEC 61537:2006, Test Type 2). Available lengths: 3 m and 6 m. 3 m and 4.5 m figures are interpolated from the 6 m test.

Downloads

NameClassificationFormatSize
AML Cable Ladder Product CatalogueCataloguePDF3.0 MB

Test reports & certification

  • Test report
    Cable Ladder MS IEC61537:2007 cover

    Cable Ladder MS IEC61537:2007

    2026-05

  • Test report
    DNV Verification - Cable Ladder & Tray cover

    DNV Verification - Cable Ladder & Tray

    2017-08

  • Test report
    SIRIM NEMA VE1 cover

    SIRIM NEMA VE1

    2017-08

Product test reports and certificates for this system. Company certifications are listed under Certifications & standards.
