AML · SP

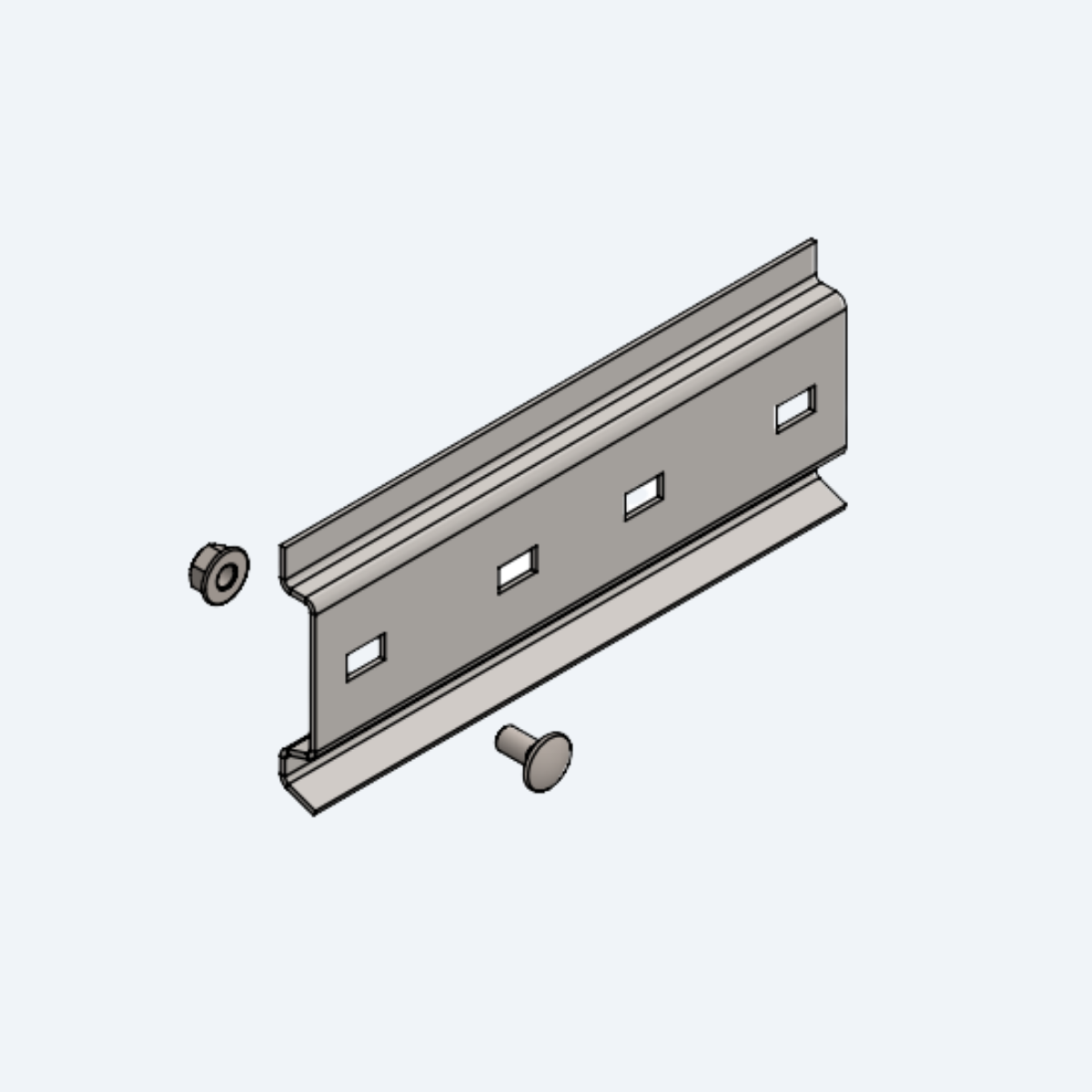

Splice Plate
Connecting plate for joining adjoining ladder sections.
Photos & drawings
Description
Connecting plate joining two adjoining cable ladder sections at a straight joint, maintaining alignment without the adjustment provided by the HSP or VSP variants.
Specified at straight-to-straight or straight-to-fitting joints that do not require horizontal or vertical adjustment.
Published item codes
| Part number | Height (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|
| AML100-SP-1.5-G | 100 | 1.5 | Hot-Dip Galvanized | 0.35 | |
| AML100-SP-2-G | 100 | 2 | Hot-Dip Galvanized | 0.46 | |
| AML125-SP-1.5-G | 125 | 1.5 | Hot-Dip Galvanized | 0.41 | |
| AML125-SP-2-G | 125 | 2 | Hot-Dip Galvanized | 0.55 | |
| AML150-SP-1.5-G | 150 | 1.5 | Hot-Dip Galvanized | 0.47 | |
| AML150-SP-2-G | 150 | 2 | Hot-Dip Galvanized | 0.63 |
Not in the list?
Characteristics
| Model | AML100, AML125, AML150 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Material | Hot-Dip Galvanized |
| Finish | G |
