AML · T-LC

Equal Tee Cover

Name: AML Equal Tee Cover
Brand: Array Metal
SKU: AML100-T-LC-100-1.5-R30-G

Lipped cover for the equal tee fitting.

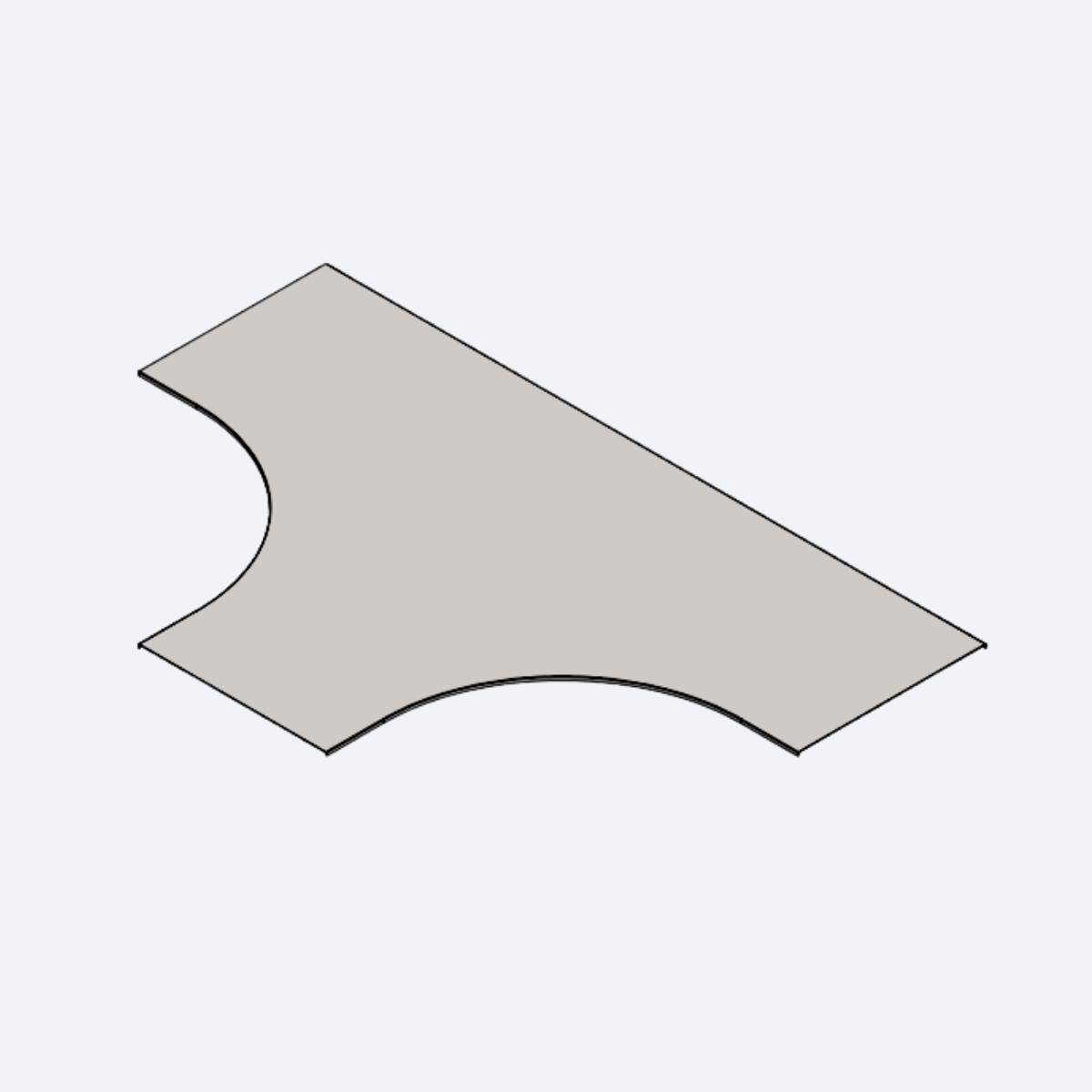

Photos & drawings

Lipped cover for the equal tee, providing continuous enclosure over the branch junction.

Installed directly over the corresponding tee fitting; specify one cover per tee within the same system and model.

72 shown

Displaying 1–10 of 72 item codes

Per page

Part number	Height (mm)	Width (mm)	Thickness (mm)	Finish	Weight (kg)
AML100-T-LC-100-1.5-R30-G	100	100	1.5	Hot-Dip Galvanized	8.50
AML100-T-LC-100-2-R30-G	100	100	2	Hot-Dip Galvanized	11.34
AML100-T-LC-125-1.5-R30-G	100	125	1.5	Hot-Dip Galvanized	9.03
AML100-T-LC-125-2-R30-G	100	125	2	Hot-Dip Galvanized	12.04
AML100-T-LC-150-1.5-R30-G	100	150	1.5	Hot-Dip Galvanized	9.58
AML100-T-LC-150-2-R30-G	100	150	2	Hot-Dip Galvanized	12.77
AML100-T-LC-200-1.5-R30-G	100	200	1.5	Hot-Dip Galvanized	10.71
AML100-T-LC-200-2-R30-G	100	200	2	Hot-Dip Galvanized	14.28
AML100-T-LC-300-1.5-R30-G	100	300	1.5	Hot-Dip Galvanized	13.15
AML100-T-LC-300-2-R30-G	100	300	2	Hot-Dip Galvanized	17.54

Not in the list?
