AML · OR90-LC
90° Outside Riser Cover
Lipped cover for the 90 degree outside riser.

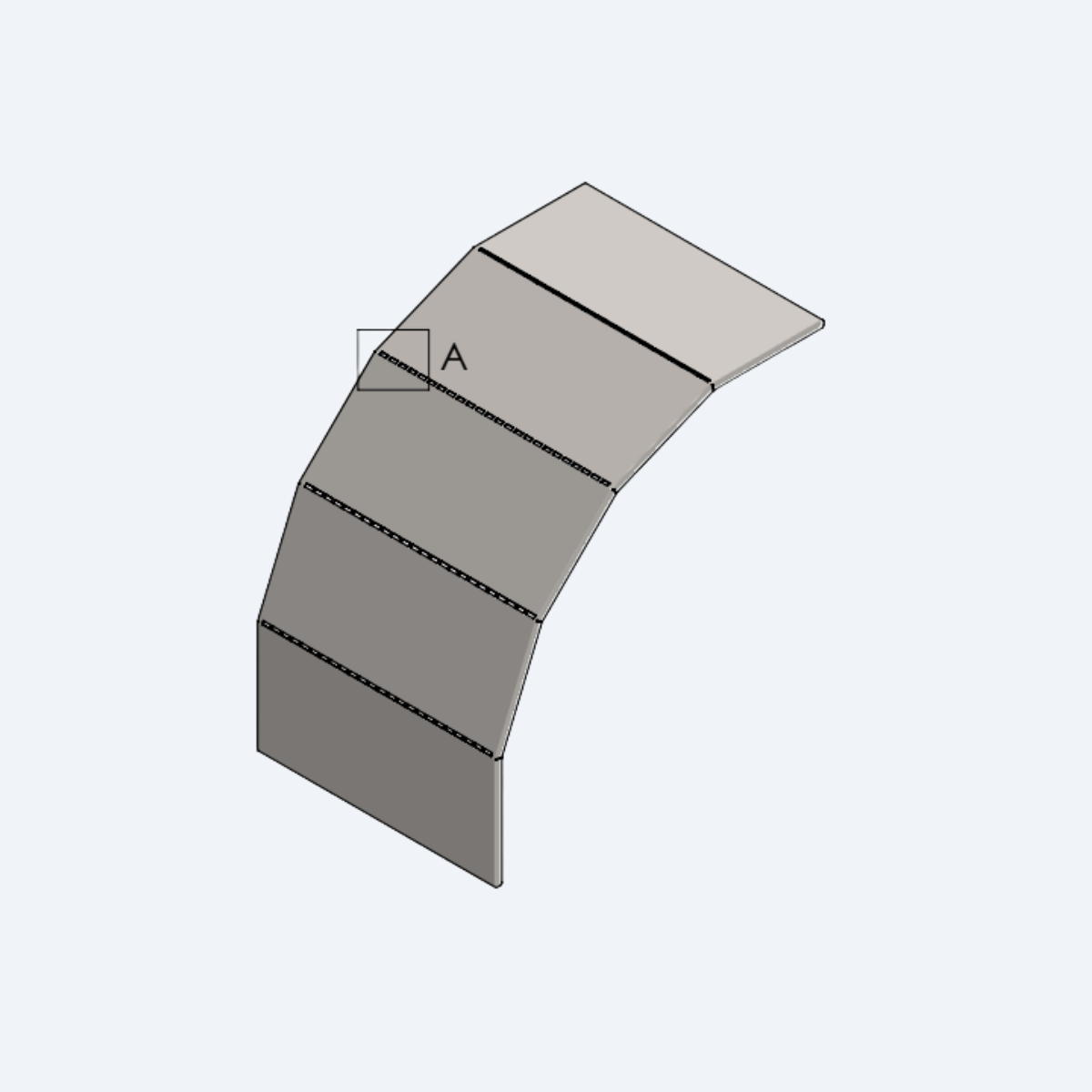

Photos & drawings
Description
Lipped cover for the outside 90° riser, providing continuous enclosure over the change of elevation.
Installed directly over the corresponding riser fitting; specify one cover per riser within the same system and model.
Published item codes
| Part number | Height (mm) | Width (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|---|
| AML100-OR90-LC-100-1.5-R30-G | 100 | 100 | 1.5 | Hot-Dip Galvanized | 1.42 | |
| AML100-OR90-LC-100-2-R30-G | 100 | 100 | 2 | Hot-Dip Galvanized | 1.89 | |
| AML100-OR90-LC-125-1.5-R30-G | 100 | 125 | 1.5 | Hot-Dip Galvanized | 1.65 | |
| AML100-OR90-LC-125-2-R30-G | 100 | 125 | 2 | Hot-Dip Galvanized | 2.19 | |
| AML100-OR90-LC-150-1.5-R30-G | 100 | 150 | 1.5 | Hot-Dip Galvanized | 1.87 | |
| AML100-OR90-LC-150-2-R30-G | 100 | 150 | 2 | Hot-Dip Galvanized | 2.50 | |
| AML100-OR90-LC-200-1.5-R30-G | 100 | 200 | 1.5 | Hot-Dip Galvanized | 2.33 | |
| AML100-OR90-LC-200-2-R30-G | 100 | 200 | 2 | Hot-Dip Galvanized | 3.11 | |
| AML100-OR90-LC-300-1.5-R30-G | 100 | 300 | 1.5 | Hot-Dip Galvanized | 3.25 | |
| AML100-OR90-LC-300-2-R30-G | 100 | 300 | 2 | Hot-Dip Galvanized | 4.33 |
Not in the list?
Characteristics
| Model | AML100, AML125, AML150 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Radius | 300 mm |
| Material | Hot-Dip Galvanized |
| Finish | G |
