AML · CP-LC

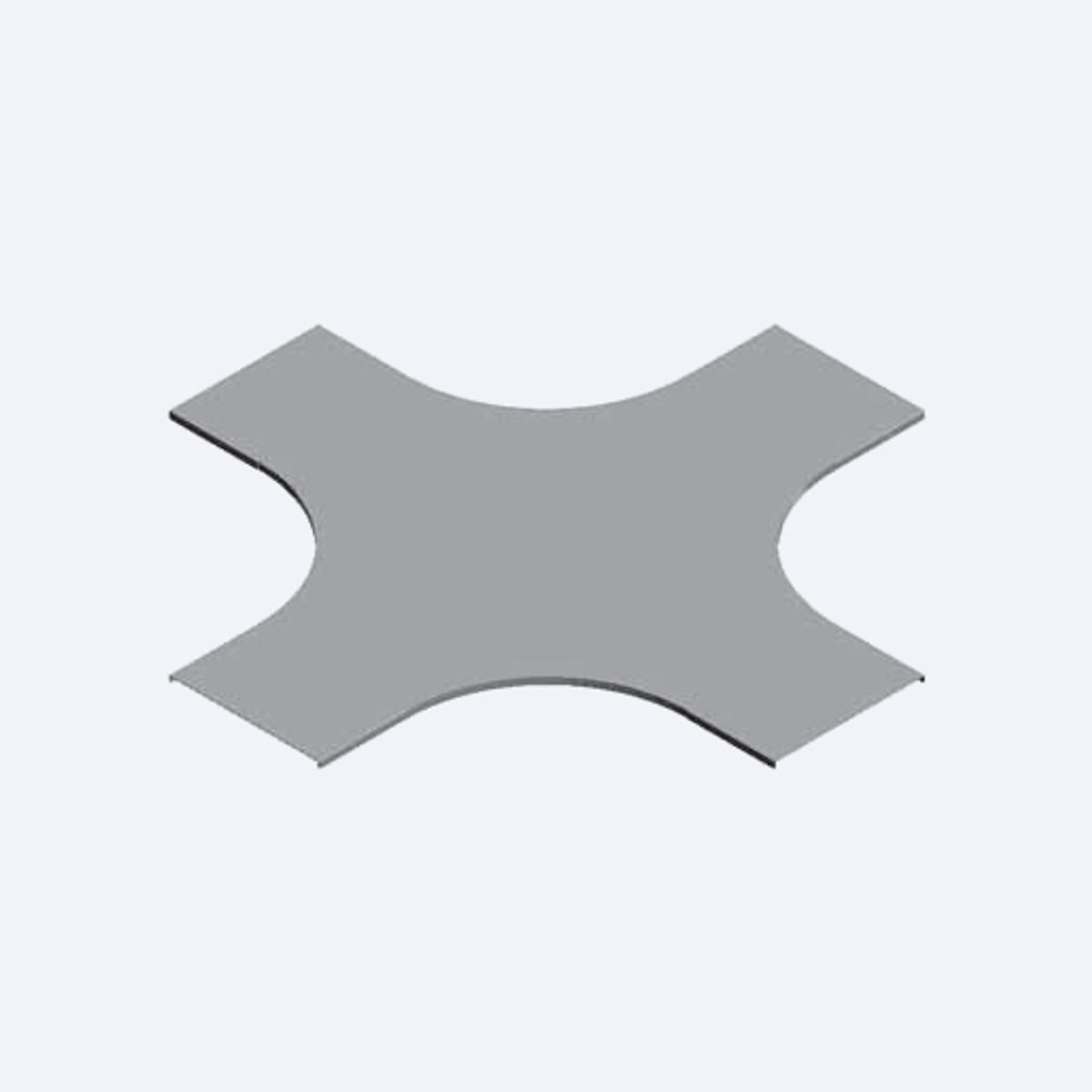

Equal Cross Cover
Lipped cover for the equal cross fitting.
Photos & drawings
Description
Lipped cover for the equal cross, providing continuous enclosure across all four branches of the junction.
Installed directly over the corresponding cross fitting; specify one cover per cross within the same system and model.
Published item codes
| Part number | Height (mm) | Width (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|---|
| AML100-CP-LC-100-1.5-R30-G | 100 | 100 | 1.5 | Hot-Dip Galvanized | 9.13 | |
| AML100-CP-LC-100-2-R30-G | 100 | 100 | 2 | Hot-Dip Galvanized | 12.18 | |
| AML100-CP-LC-125-1.5-R30-G | 100 | 125 | 1.5 | Hot-Dip Galvanized | 9.66 | |
| AML100-CP-LC-125-2-R30-G | 100 | 125 | 2 | Hot-Dip Galvanized | 12.88 | |
| AML100-CP-LC-150-1.5-R30-G | 100 | 150 | 1.5 | Hot-Dip Galvanized | 10.21 | |
| AML100-CP-LC-150-2-R30-G | 100 | 150 | 2 | Hot-Dip Galvanized | 13.61 | |
| AML100-CP-LC-200-1.5-R30-G | 100 | 200 | 1.5 | Hot-Dip Galvanized | 11.33 | |
| AML100-CP-LC-200-2-R30-G | 100 | 200 | 2 | Hot-Dip Galvanized | 15.11 | |
| AML100-CP-LC-300-1.5-R30-G | 100 | 300 | 1.5 | Hot-Dip Galvanized | 13.77 | |
| AML100-CP-LC-300-2-R30-G | 100 | 300 | 2 | Hot-Dip Galvanized | 18.36 |
Not in the list?
Characteristics
| Model | AML100, AML125, AML150 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Radius | 300 mm |
| Material | Hot-Dip Galvanized |
| Finish | G |
