AML · IR30
30° Inside Riser

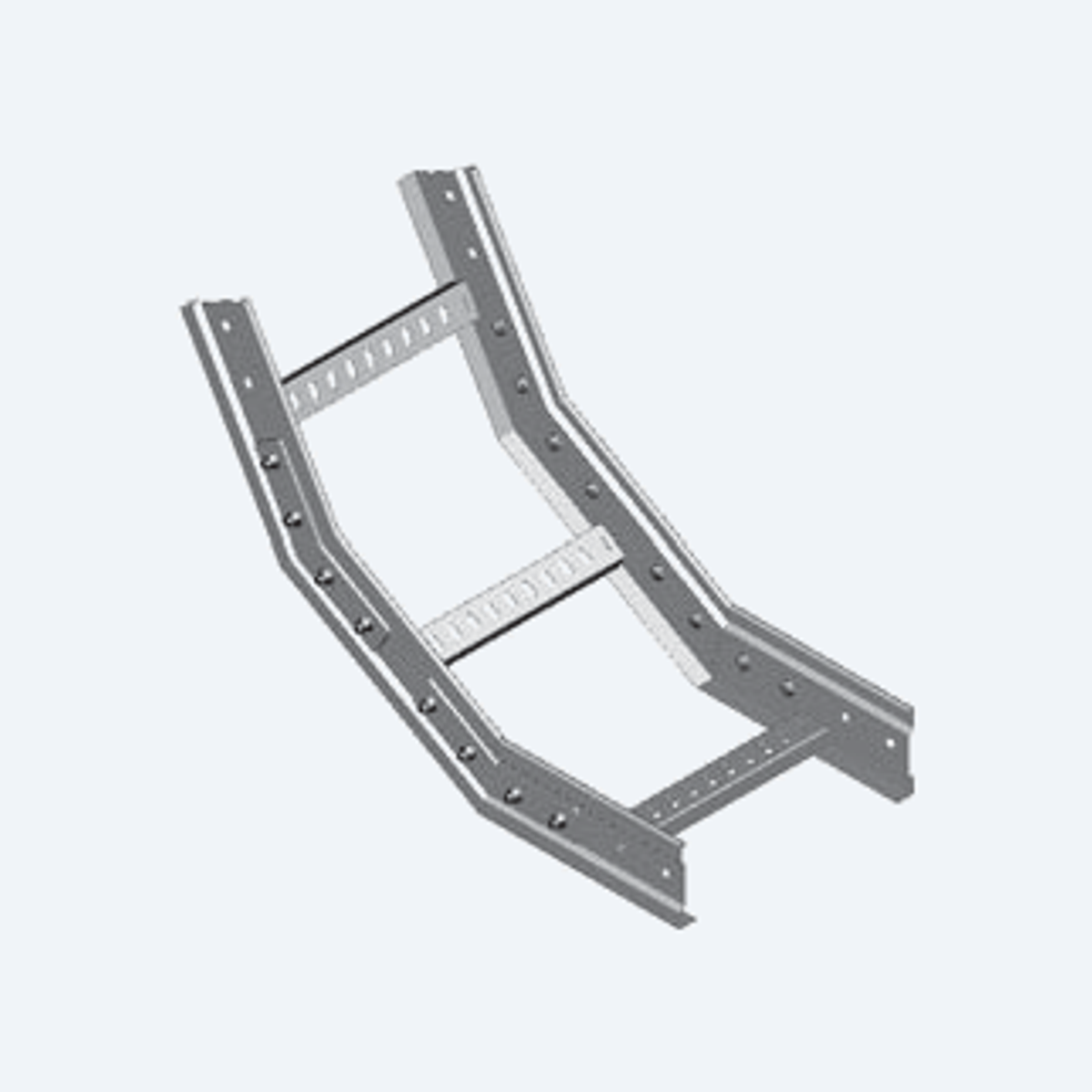

Vertical riser fitting for a 30 degree inside change of elevation.
Photos & drawings
Description
Vertical riser fitting accommodating an inside 30° change of elevation in a cable ladder run, for installations where the route rises or falls while turning toward the inside of the bend.
Maintains the support width and fixing pattern of the adjoining straight sections, preserving continuity of support through the change in elevation.
Published item codes
| Part number | Height (mm) | Width (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|---|
| AML100-IR30-100-1.5-R45-G | 100 | 100 | 1.5 | Hot-Dip Galvanized | 1.60 | |
| AML100-IR30-125-1.5-R45-G | 100 | 125 | 1.5 | Hot-Dip Galvanized | 1.65 | |
| AML100-IR30-150-1.5-R45-G | 100 | 150 | 1.5 | Hot-Dip Galvanized | 1.71 | |
| AML100-IR30-200-1.5-R45-G | 100 | 200 | 1.5 | Hot-Dip Galvanized | 1.81 | |
| AML100-IR30-300-1.5-R45-G | 100 | 300 | 1.5 | Hot-Dip Galvanized | 2.02 | |
| AML100-IR30-400-1.5-R45-G | 100 | 400 | 1.5 | Hot-Dip Galvanized | 2.23 | |
| AML100-IR30-450-1.5-R45-G | 100 | 450 | 1.5 | Hot-Dip Galvanized | 2.34 | |
| AML100-IR30-500-1.5-R45-G | 100 | 500 | 1.5 | Hot-Dip Galvanized | 2.44 | |
| AML100-IR30-600-1.5-R45-G | 100 | 600 | 1.5 | Hot-Dip Galvanized | 2.66 | |
| AML100-IR30-750-1.5-R45-G | 100 | 750 | 1.5 | Hot-Dip Galvanized | 2.97 |
Not in the list?
Characteristics
| Model | AML100, AML125, AML150 |
|---|---|
| Thickness | 1.5 mm |
| Radius | 450 mm |
| Material | Hot-Dip Galvanized |
| Finish | G |
