AML · LC
Straight Cover
Lipped cover for straight ladder sections.

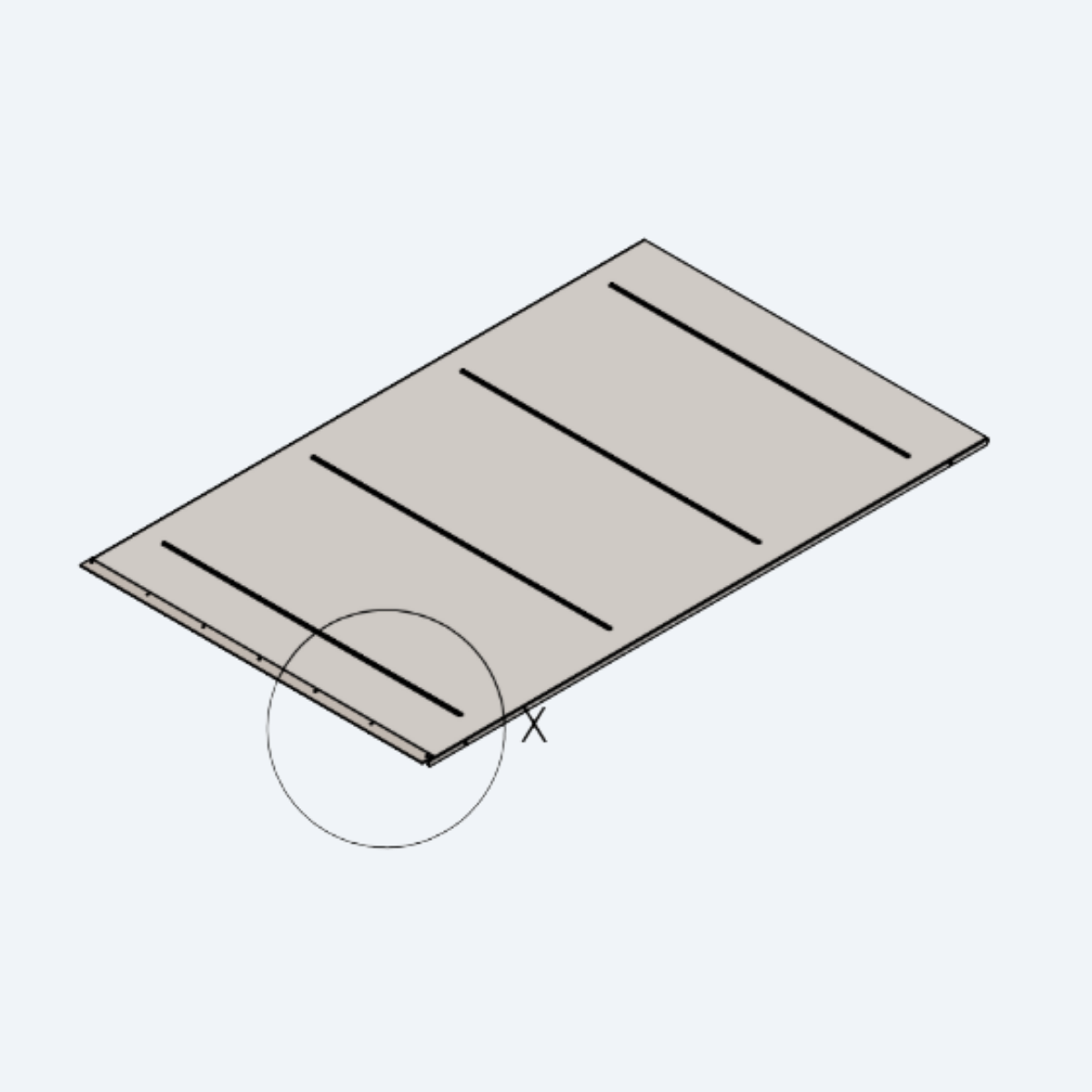

Photos & drawings
Description
Lipped cover for straight cable ladder sections, providing continuous enclosure along the length of the run.
Installed directly over the corresponding straight section; specify length for length with the run it encloses.
Published item codes
| Part number | Height (mm) | Width (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|---|
| AML100-LC-100-1.5-3-G | 100 | 100 | 1.5 | Hot-Dip Galvanized | 5.51 | |
| AML100-LC-100-2-3-G | 100 | 100 | 2 | Hot-Dip Galvanized | 7.35 | |
| AML100-LC-125-1.5-3-G | 100 | 125 | 1.5 | Hot-Dip Galvanized | 6.40 | |
| AML100-LC-125-2-3-G | 100 | 125 | 2 | Hot-Dip Galvanized | 8.53 | |
| AML100-LC-150-1.5-3-G | 100 | 150 | 1.5 | Hot-Dip Galvanized | 7.29 | |
| AML100-LC-150-2-3-G | 100 | 150 | 2 | Hot-Dip Galvanized | 9.72 | |
| AML100-LC-200-1.5-3-G | 100 | 200 | 1.5 | Hot-Dip Galvanized | 9.07 | |
| AML100-LC-200-2-3-G | 100 | 200 | 2 | Hot-Dip Galvanized | 12.09 | |
| AML100-LC-300-1.5-3-G | 100 | 300 | 1.5 | Hot-Dip Galvanized | 12.62 | |
| AML100-LC-300-2-3-G | 100 | 300 | 2 | Hot-Dip Galvanized | 16.83 |
Not in the list?
Characteristics
| Model | AML100, AML125, AML150 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Material | Hot-Dip Galvanized |
| Finish | G |
