AML · E30-LC
30° Horizontal Elbow Cover
Lipped cover for the 30 degree horizontal elbow.

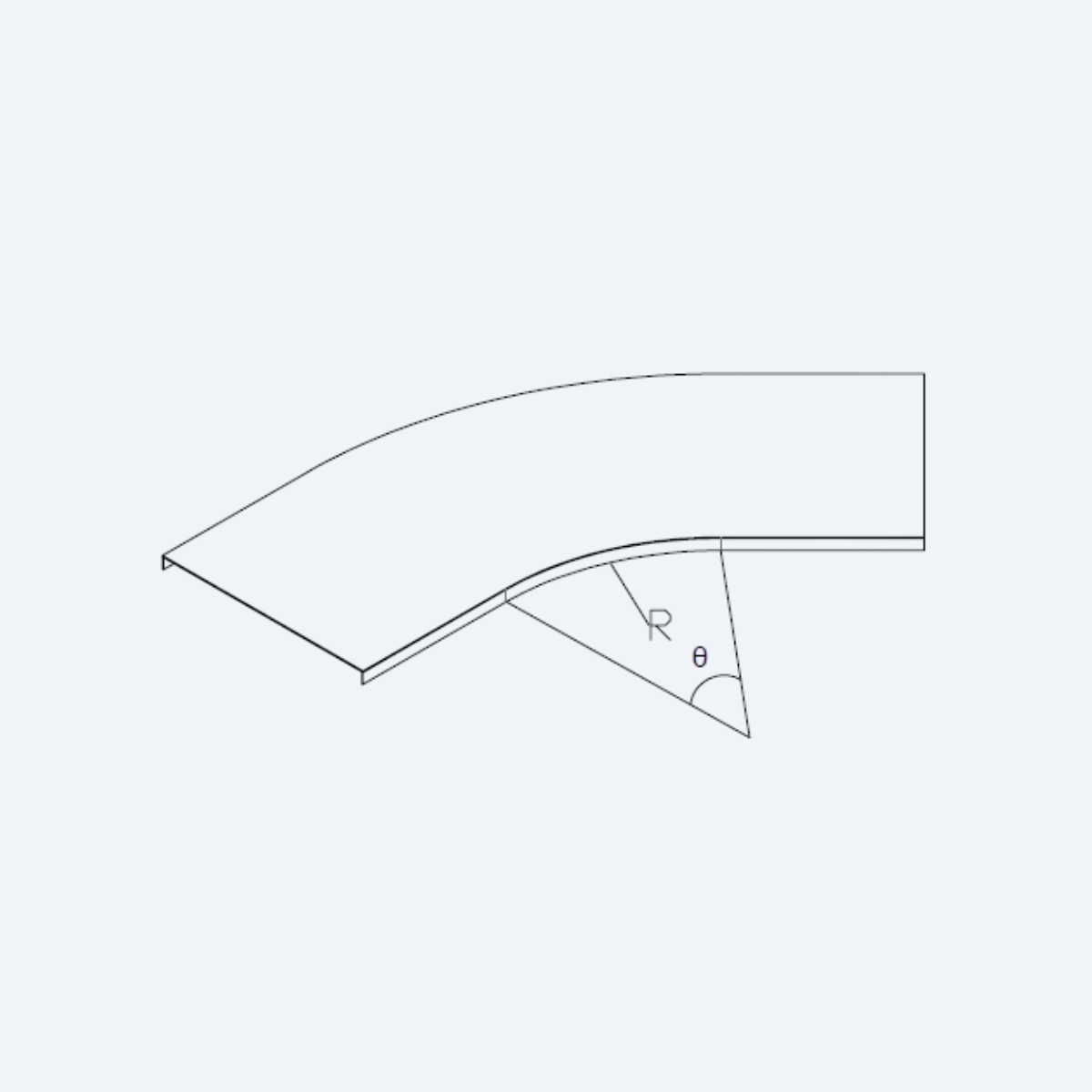

Photos & drawings
Description
Lipped cover for the 30° horizontal elbow, providing continuous enclosure over the bend and protecting cables from environmental exposure through the change of direction.
Installed directly over the corresponding elbow fitting; specify one cover per elbow within the same system and model.
Published item codes
| Part number | Height (mm) | Width (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|---|
| AML100-E30-LC-100-1.5-R30-G | 100 | 100 | 1.5 | Hot-Dip Galvanized | 3.04 | |
| AML100-E30-LC-100-2-R30-G | 100 | 100 | 2 | Hot-Dip Galvanized | 4.05 | |
| AML100-E30-LC-125-1.5-R30-G | 100 | 125 | 1.5 | Hot-Dip Galvanized | 3.29 | |
| AML100-E30-LC-125-2-R30-G | 100 | 125 | 2 | Hot-Dip Galvanized | 4.39 | |
| AML100-E30-LC-150-1.5-R30-G | 100 | 150 | 1.5 | Hot-Dip Galvanized | 3.56 | |
| AML100-E30-LC-150-2-R30-G | 100 | 150 | 2 | Hot-Dip Galvanized | 4.75 | |
| AML100-E30-LC-200-1.5-R30-G | 100 | 200 | 1.5 | Hot-Dip Galvanized | 4.12 | |
| AML100-E30-LC-200-2-R30-G | 100 | 200 | 2 | Hot-Dip Galvanized | 5.50 | |
| AML100-E30-LC-300-1.5-R30-G | 100 | 300 | 1.5 | Hot-Dip Galvanized | 5.38 | |
| AML100-E30-LC-300-2-R30-G | 100 | 300 | 2 | Hot-Dip Galvanized | 7.17 |
Not in the list?
Characteristics
| Model | AML100, AML125, AML150 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Radius | 300 mm |
| Material | Hot-Dip Galvanized |
| Finish | G |
