ART Cable Tray

Light-duty cable tray for lighter cable loads, in ART50 and ART75, hot-dip galvanized or stainless 316L.

Rail heights: 50 / 75 mm
Widths: 50, 75, 100, 125, 150, 200, 250, 300… mm
Thickness: 1.5 / 2 mm
Lengths: 3000 mm
Finish: A4, G
Published codes: 1,841

Products

Displaying 1–16 of 26 products · All ART part number options →

E30

Cover Clamp Type C

ART-CCC-…-…

Thickness 2 mm

View item

CP-LC

System overview

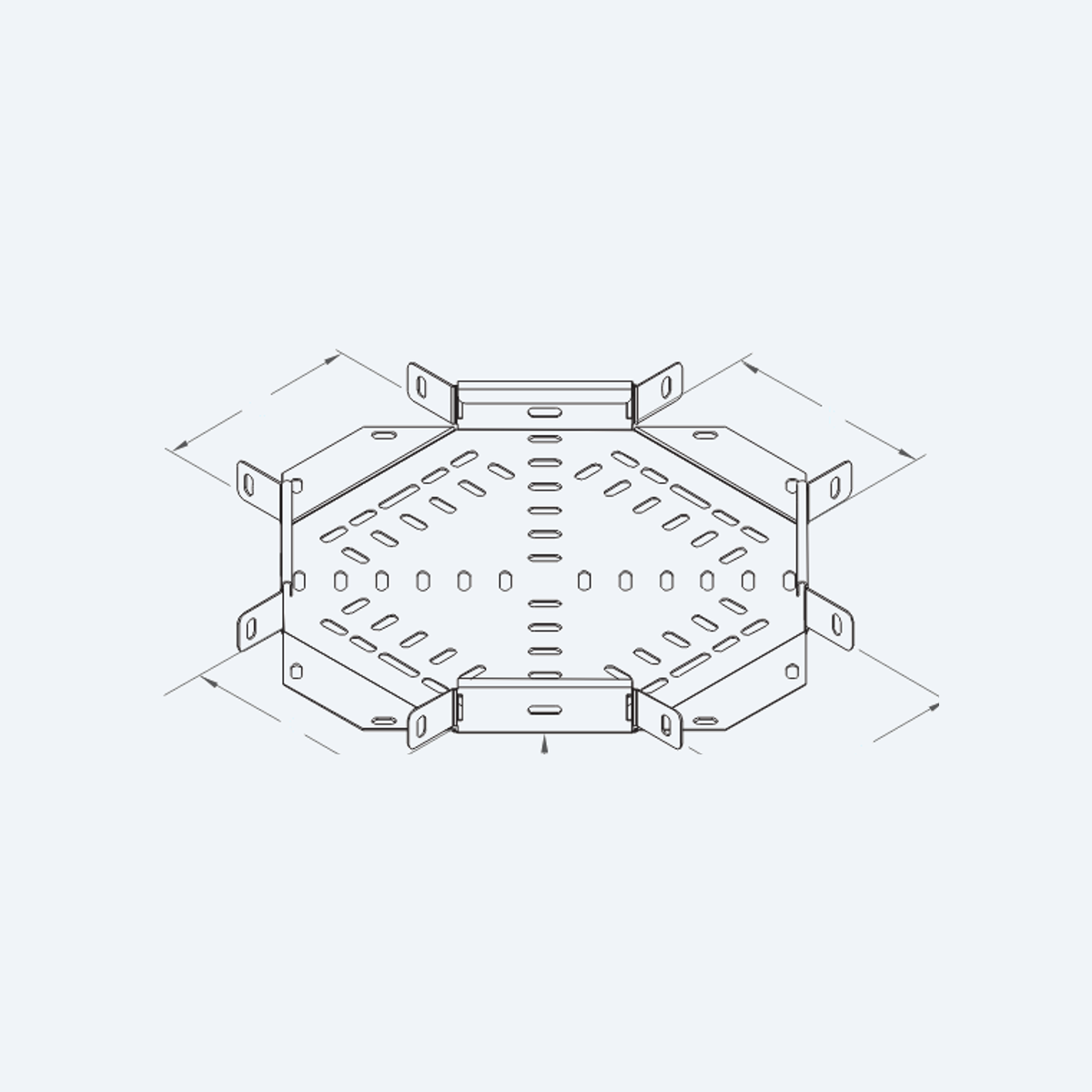

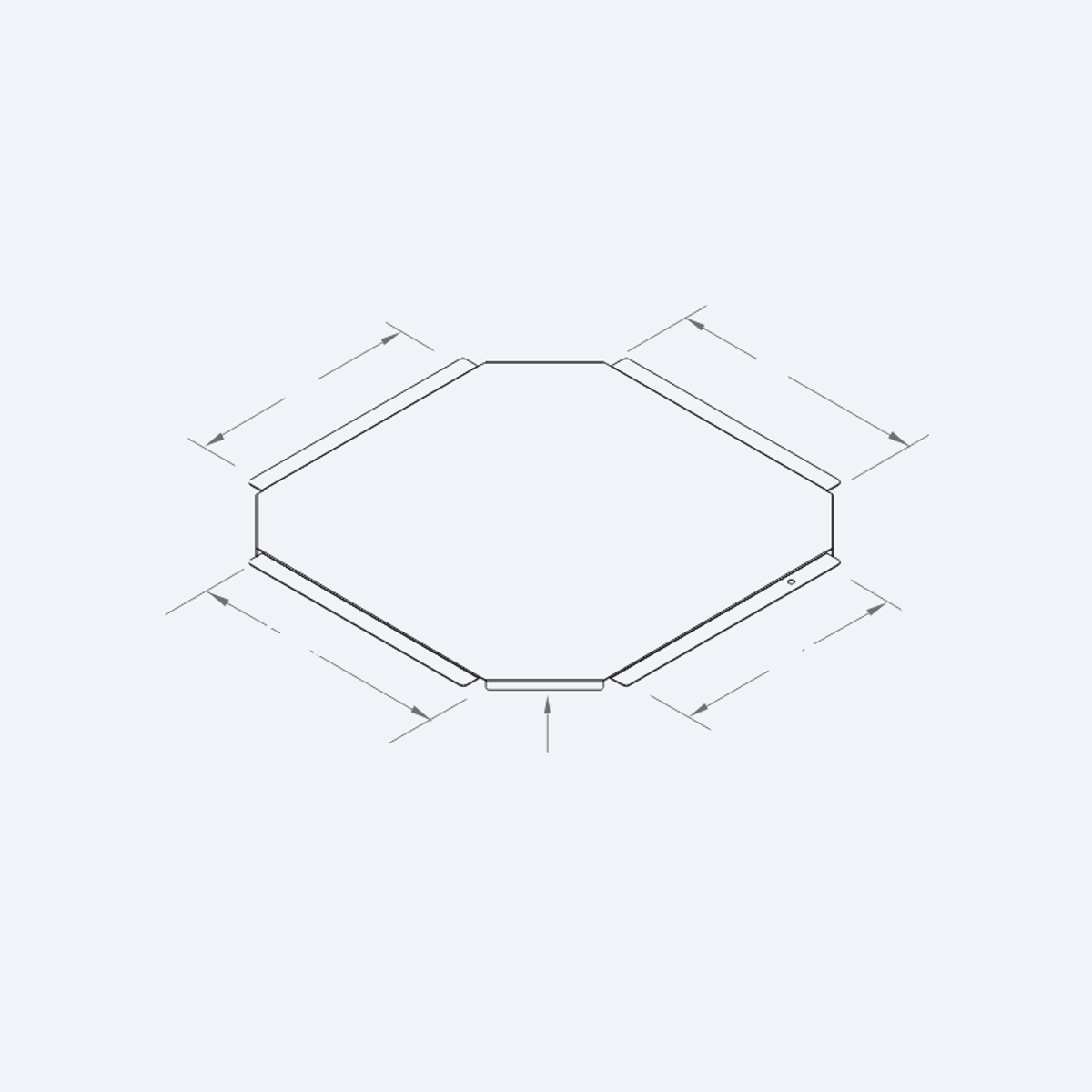

ART is Array Metal's light-duty cable tray, in two heights, ART50 and ART75, for lighter cable loads where a tray base suits better than ladder. It is published in hot-dip galvanized and stainless 316L, with elbows, risers, tees, crosses, covers, dividers, end plates and splice plates.

Materials

Hot-Dip GalvanizedStainless Steel 316L

Certification

NEMA VE1BS EN ISO 1461

AssembledExploded

Isometric cable tray run — straights, elbows, tees, crosses, reducers, risers and splice plates, with the covers that fit them. — Standard components of the system. A filled number is the tray or fitting; the same number outlined is the cover that fits it. Hover a number or a name to pick it out. Zoom in and drag to look closer.

Data

Check a load case

Test method: NEMA VE1 · Material: Hot-Dip Galvanized (HDG) · Standard: NEMA VE1-2009 · Safety factor: ×1.5

Model	Loading depth	Thickness	SWL @ 1.5 m (kg/m)	SWL @ 2 m (kg/m)	SWL @ 3 m (kg/m)	NEMA class
ART50	50 mm	1.5 / 2 mm	484	272	121	NEMA 20AA
AMT100	100 mm	1.5 / 2 mm	716	403	179	NEMA 20B

SWL = Destructive load ÷ 1.5 (NEMA VE1-2009). Available lengths: 3 m and 6 m. Deflection limit: L/100 at SWL. 1.5 m and 2 m figures are interpolated from the 3 m test.

Test method: IEC 61537:2006, Test Type 2 · Material: Hot-Dip Galvanized (HDG) · Standard: IEC 61537:2006 · Safety factor: ×1.7

Model	Loading depth	Thickness	SWL @ 1.5 m (kg/m)	SWL @ 2 m (kg/m)	SWL @ 3 m (kg/m)
ART50	50 mm	1.5 / 2 mm	392	221	98
AMT100	100 mm	1.5 / 2 mm	1076	605	269

SWL = Breaking load ÷ 1.7 (IEC 61537:2006, Test Type 2). Available lengths: 3 m and 6 m. 1.5 m and 2 m figures are interpolated from the 3 m test.

Design details

Three tray profiles

ALT is a shallow flanged tray for light indoor runs. ART adds taller sides finished with a rolled top edge that stiffens the side and keeps cable sheaths off a cut edge. AMT is the deep return-flange profile for heavier fills.

In-built splice plates
Bends, tees and crosses carry their splice built into the side walls, so a fitting laps over the tray and bolts up with no separate splice plates. Straight lengths are joined with standard splice plates.

Test reports & certification

Test report
Cable Tray MS IEC61537:2007
2026-05
Test report
DNV Verification - Cable Ladder & Tray
2017-08
Test report
SIRIM NEMA VE1
2017-08

Product test reports and certificates for this system. Company certifications are listed under Certifications & standards.

ART Cable Tray

Products

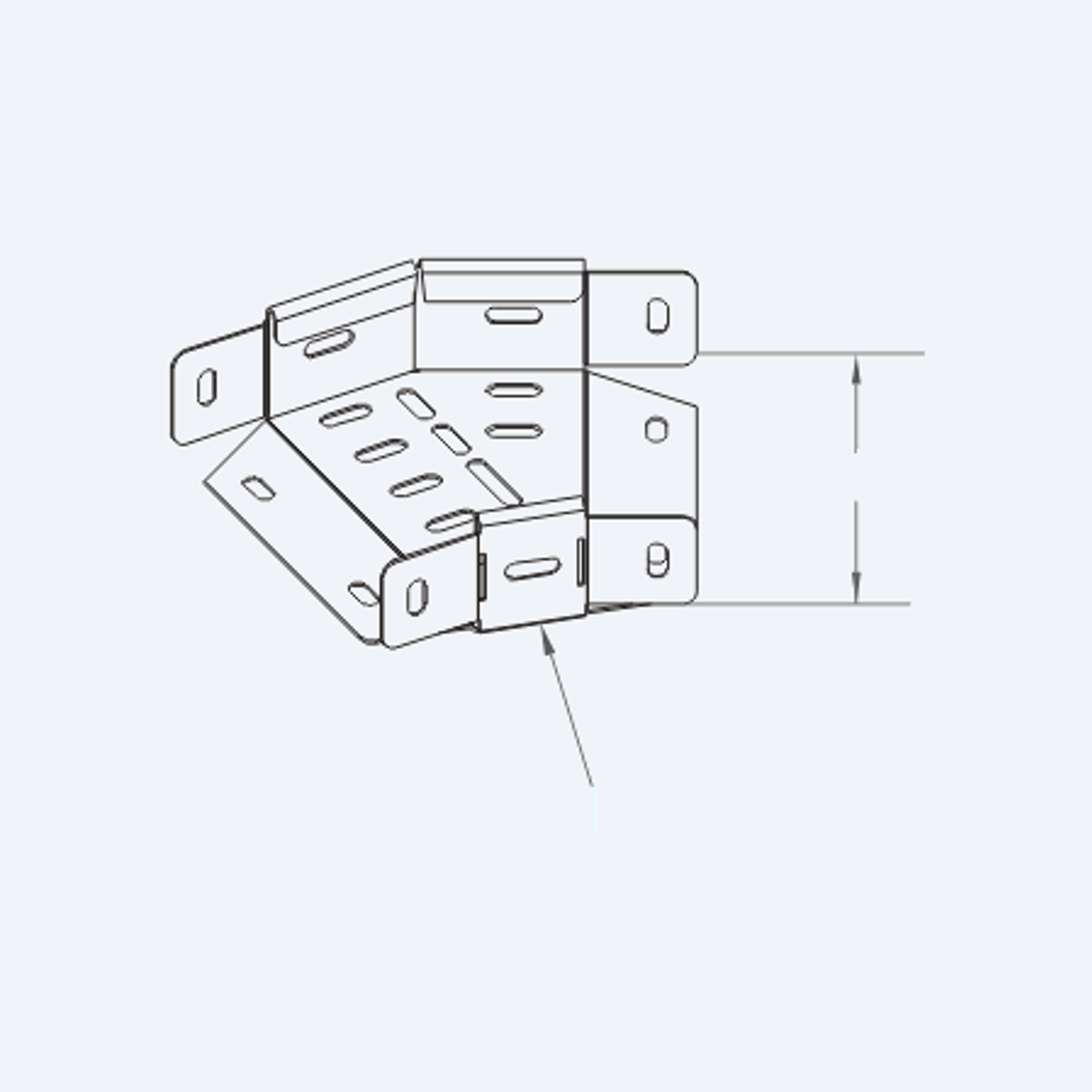

30 Elbow

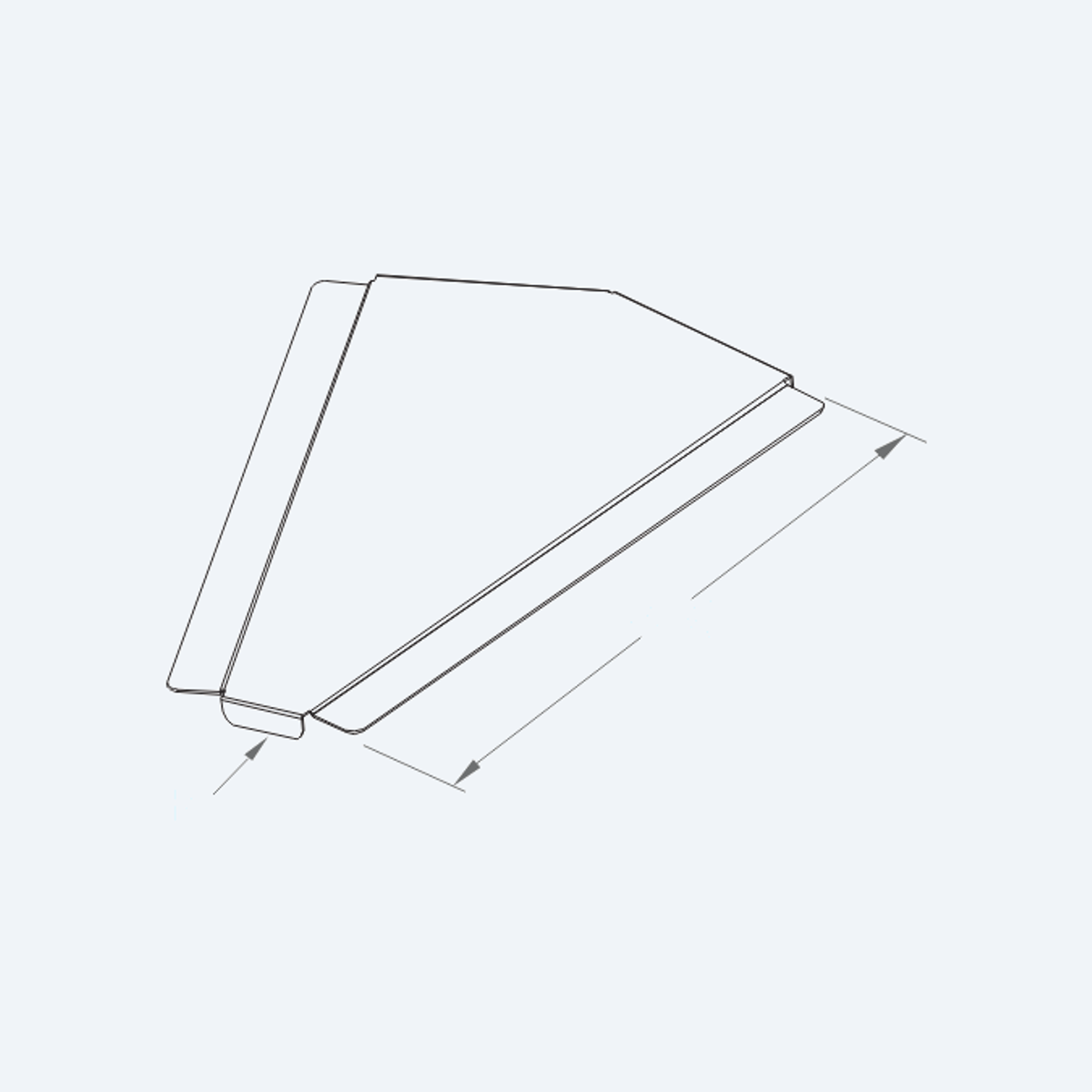

30 Elbow Lipped Cover

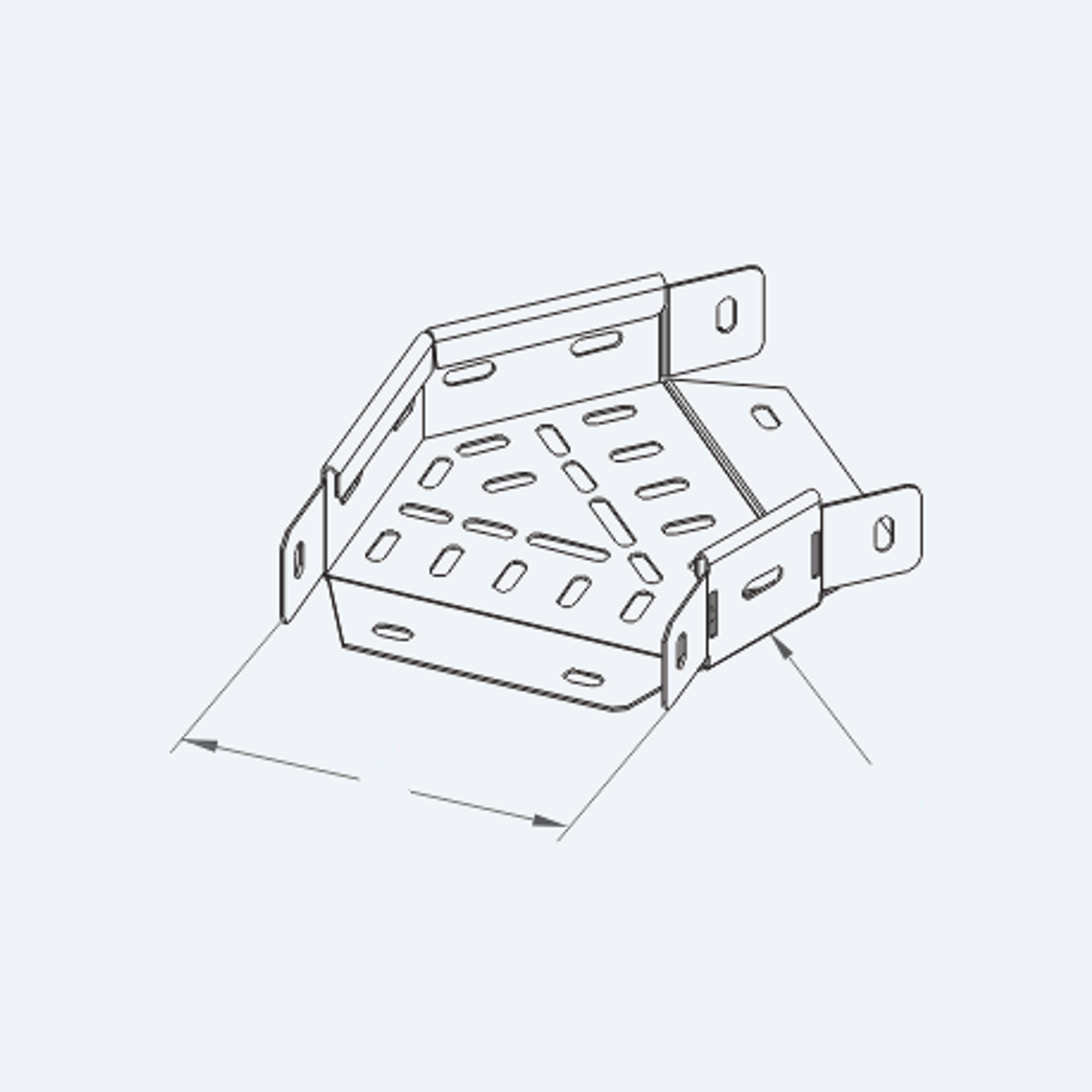

45 Elbow

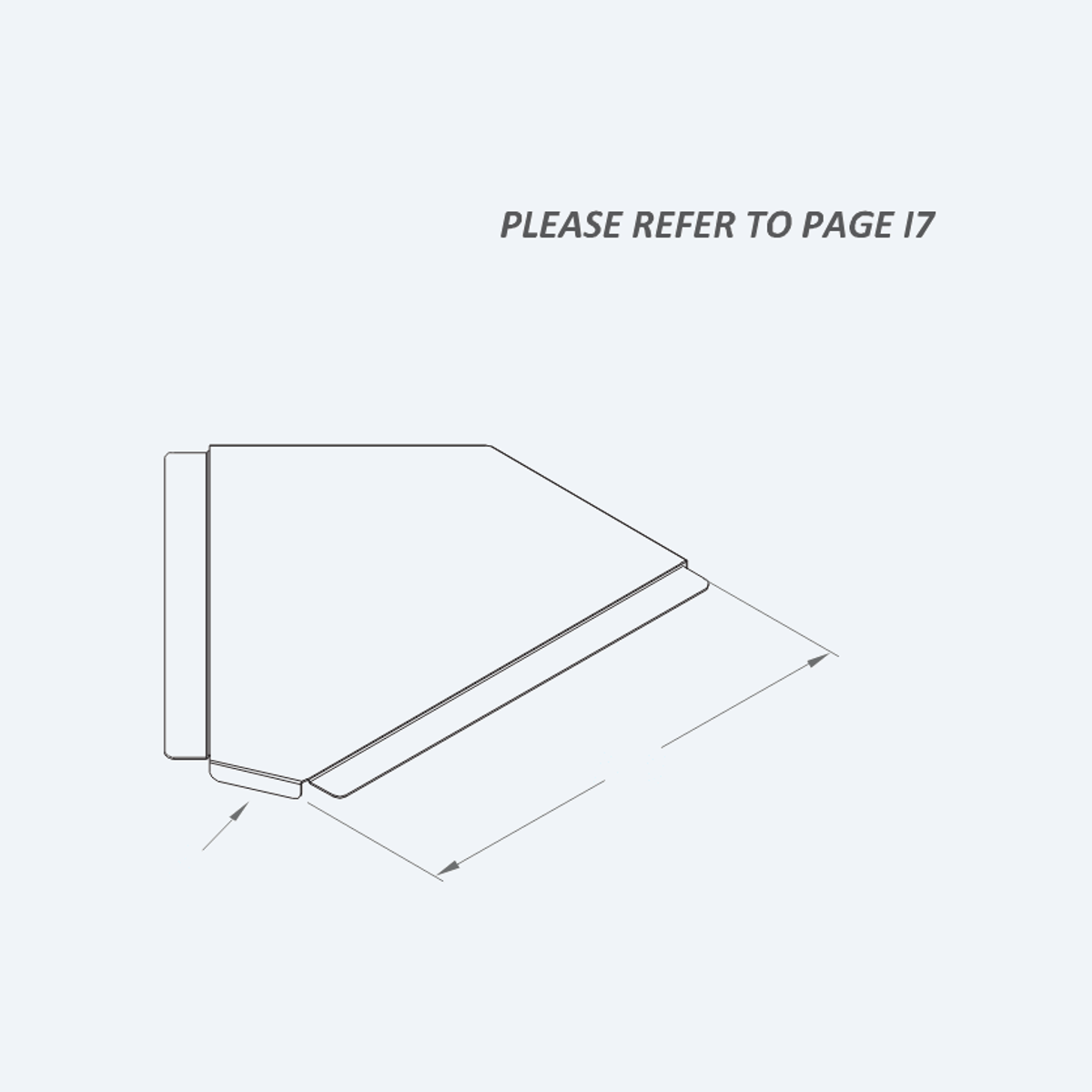

45 Elbow Lipped Cover

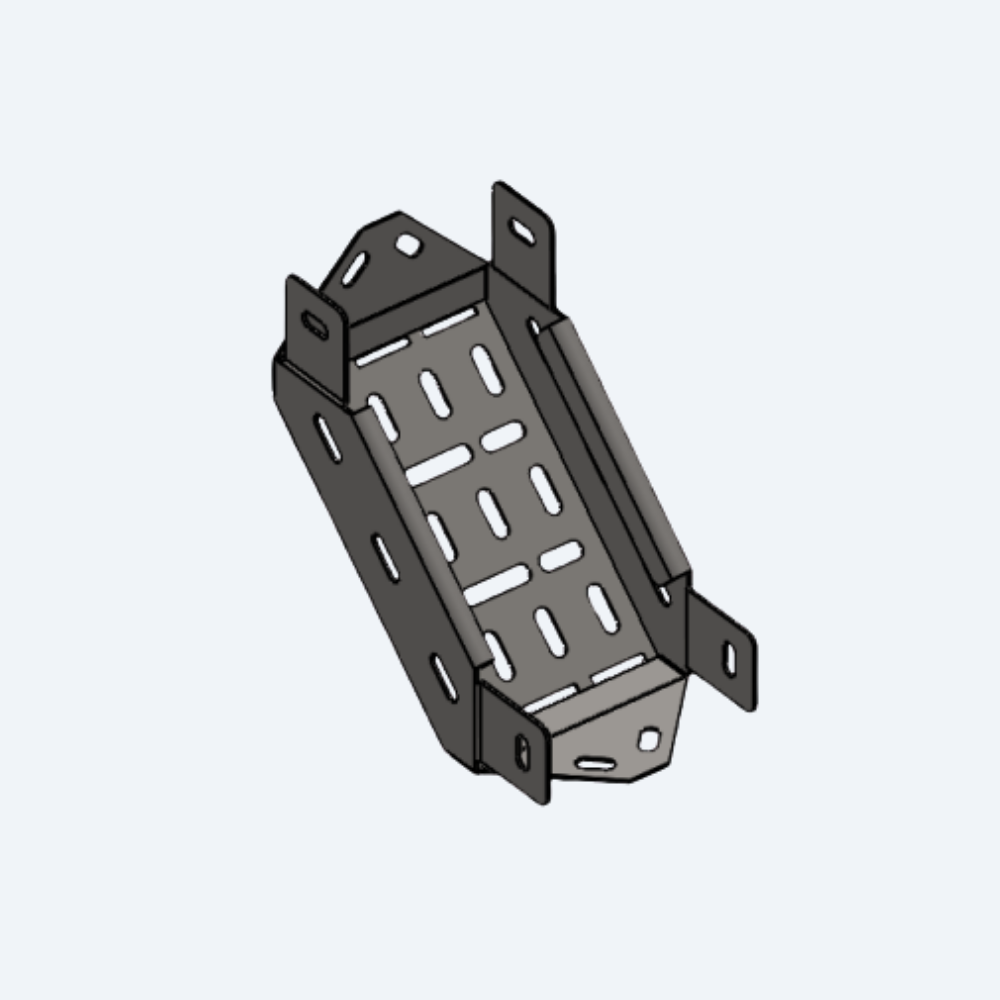

45 Inside Riser

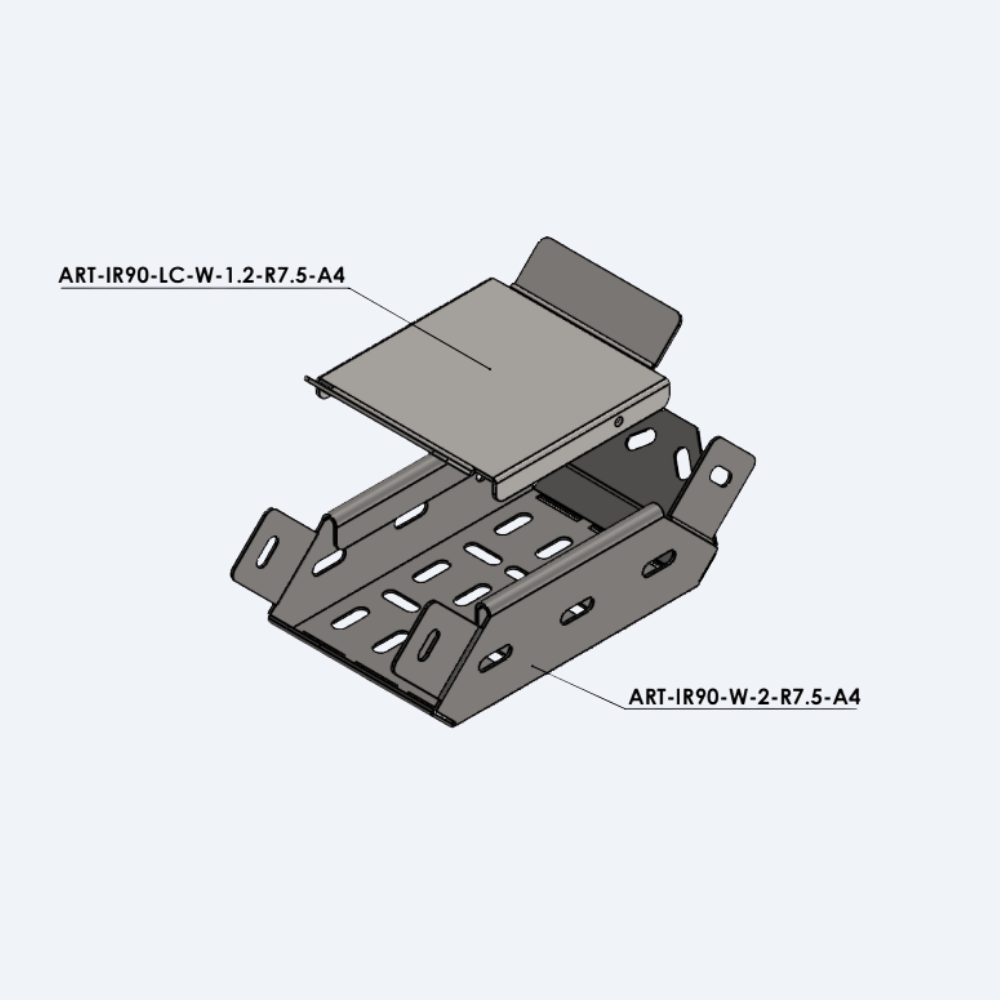

45 Inside Riser Lipped Cover

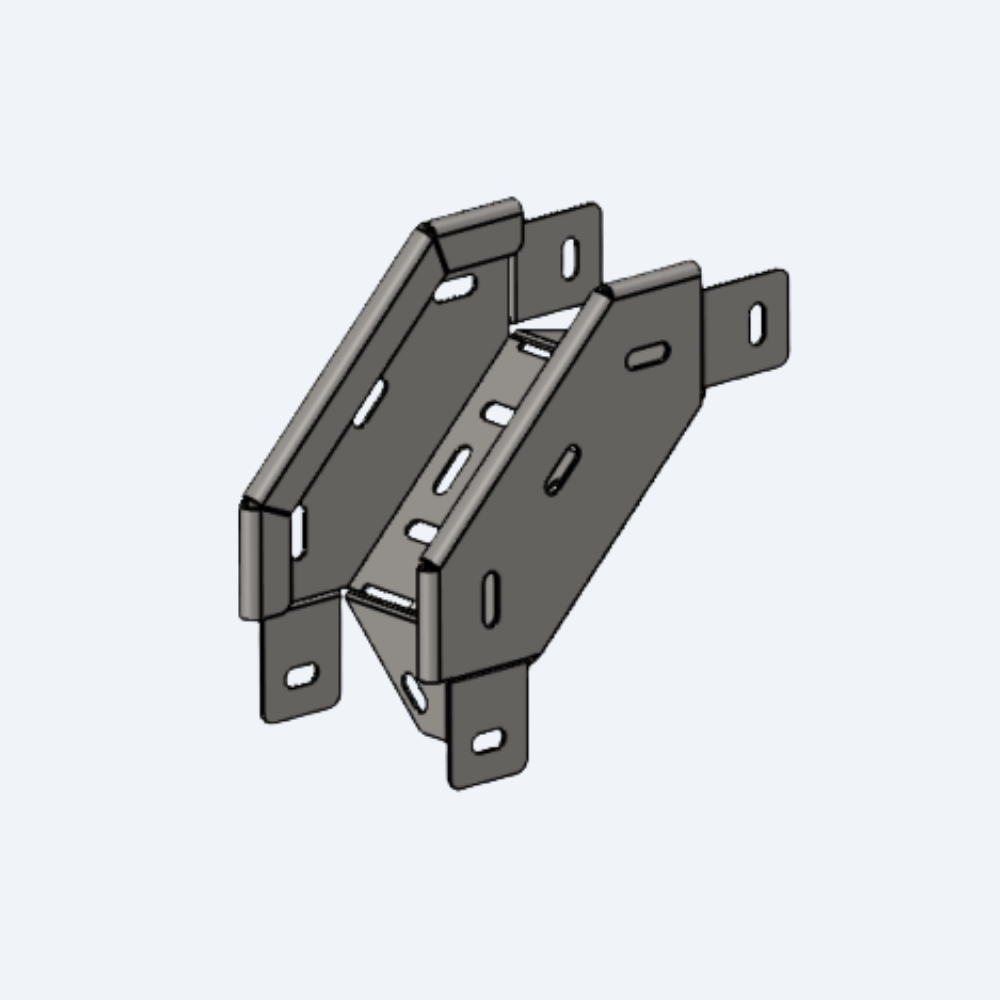

45 Outside Riser

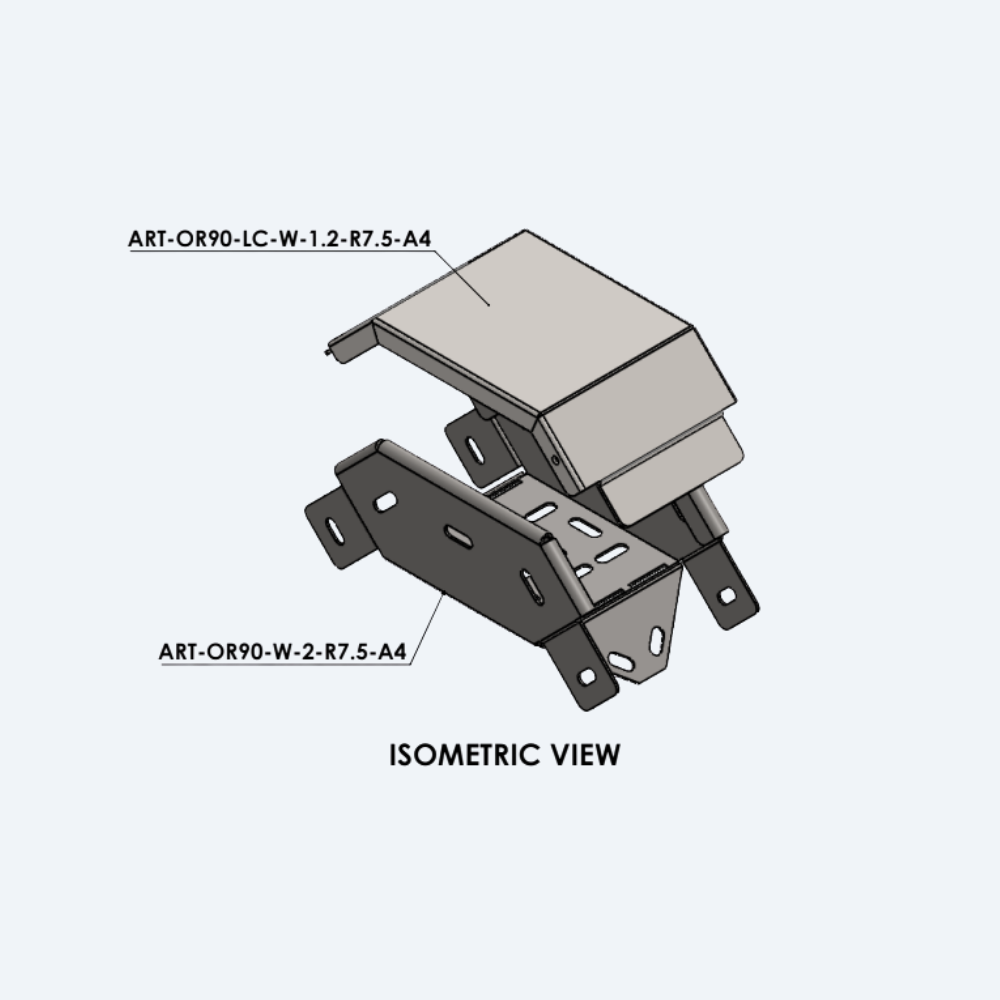

45 Outside Riser Lipped Cover

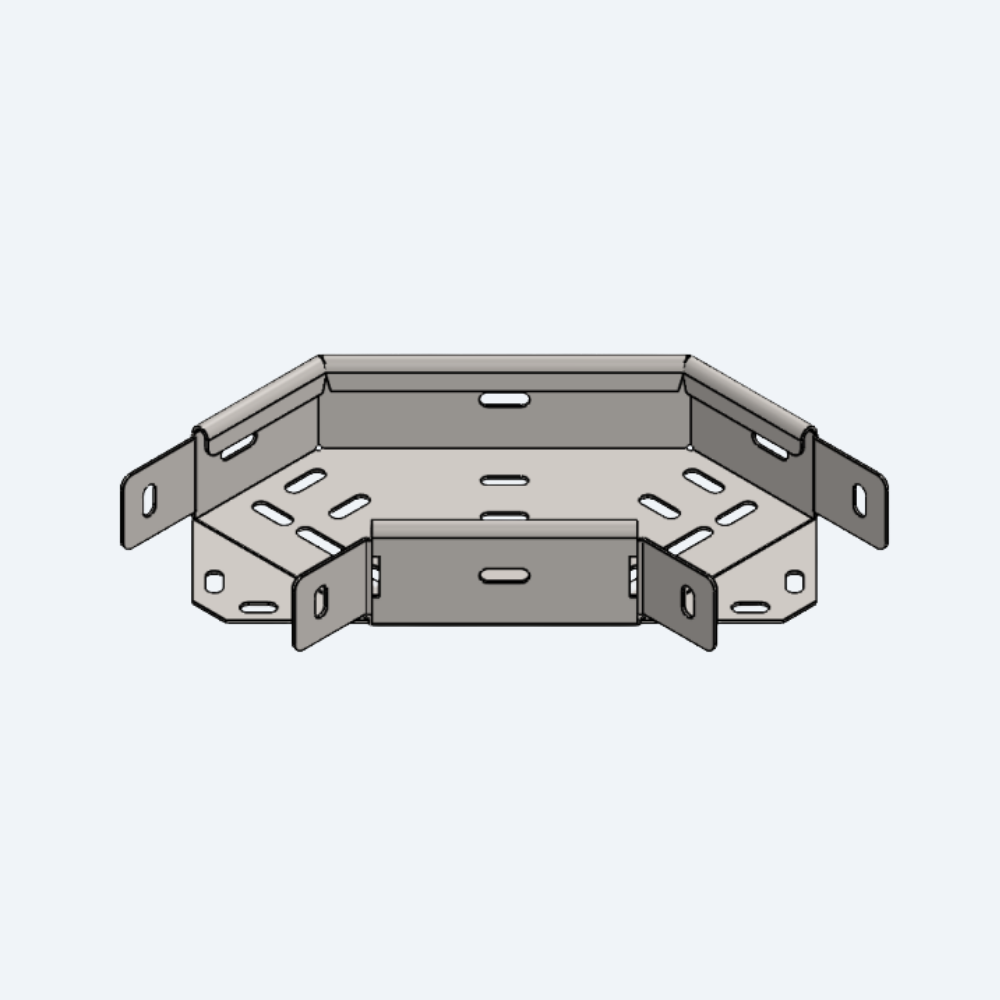

90 Elbow

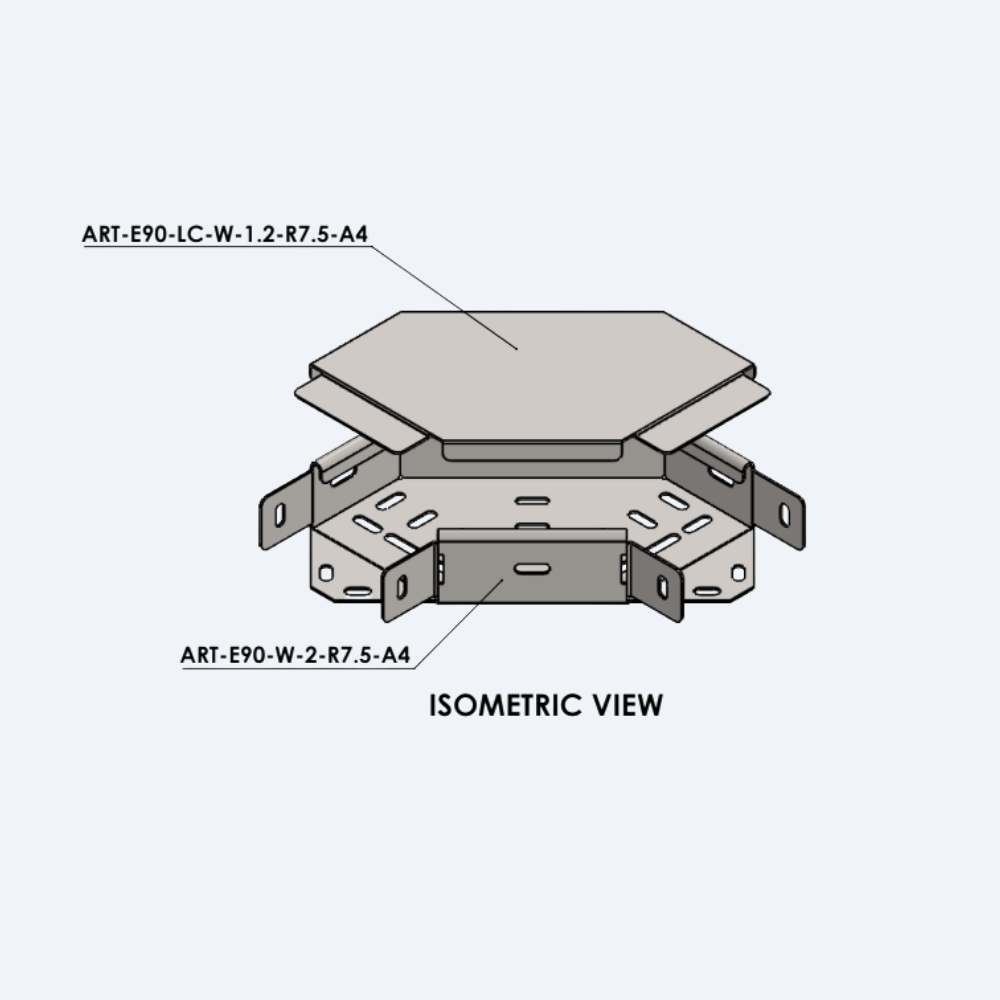

90 Elbow Lipped Cover
