ART · LC
Straight Cover
Lipped cover for straight tray sections.

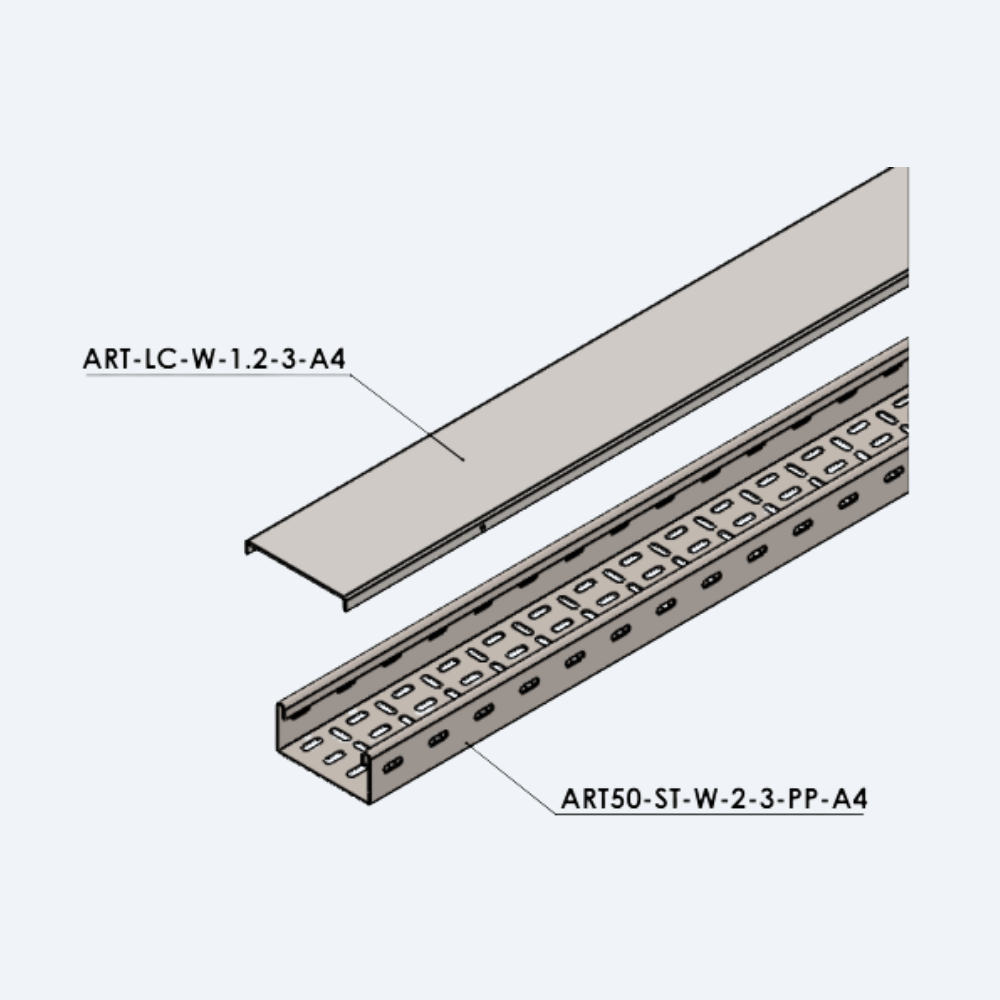

Photos & drawings
Description
Lipped cover for ART straight sections. Keeps falling debris, sunlight and rain off the cables. One cover per straight, same width.
ARTSystem: ART system (cover fits every height)
Covers that fit every height carry the system letters only.
Published item codes
| Part number | Height (mm) | Width (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|---|
| ART-LC-50-1.5-3-A4 | 50 | 50 | 1.5 | SS316L | 3.06 | |
| ART-LC-50-1.5-3-G | 50 | 50 | 1.5 | Hot-Dip Galvanized | 3.02 | |
| ART-LC-50-2-3-A4 | 50 | 50 | 2 | SS316L | 4.08 | |
| ART-LC-50-2-3-G | 50 | 50 | 2 | Hot-Dip Galvanized | 4.03 | |
| ART-LC-75-1.5-3-A4 | 50 | 75 | 1.5 | SS316L | 3.96 | |
| ART-LC-75-1.5-3-G | 50 | 75 | 1.5 | Hot-Dip Galvanized | 3.91 | |
| ART-LC-100-1.5-3-A4 | 50 | 100 | 1.5 | SS316L | 4.86 | |
| ART-LC-100-1.5-3-G | 50 | 100 | 1.5 | Hot-Dip Galvanized | 4.80 | |
| ART-LC-100-2-3-A4 | 50 | 100 | 2 | SS316L | 6.48 | |
| ART-LC-100-2-3-G | 50 | 100 | 2 | Hot-Dip Galvanized | 6.40 |
Not in the list?
Characteristics
| Model | ART50, ART75 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Material | Stainless Steel 316L, Hot-Dip Galvanized |
| Finish | A4, G |
GA drawings & documents
| Document | Type | Applies to | Revision | Download |
|---|---|---|---|---|
| ART Straight Cover — GA Drawing | General arrangement (GA) | ART/LC | — |
GA drawings and spec sheets are published per component and cover every width and length in the range. Project-specific GA sheets for a particular item code are issued against an enquiry reference.
