ART · ST
Straight

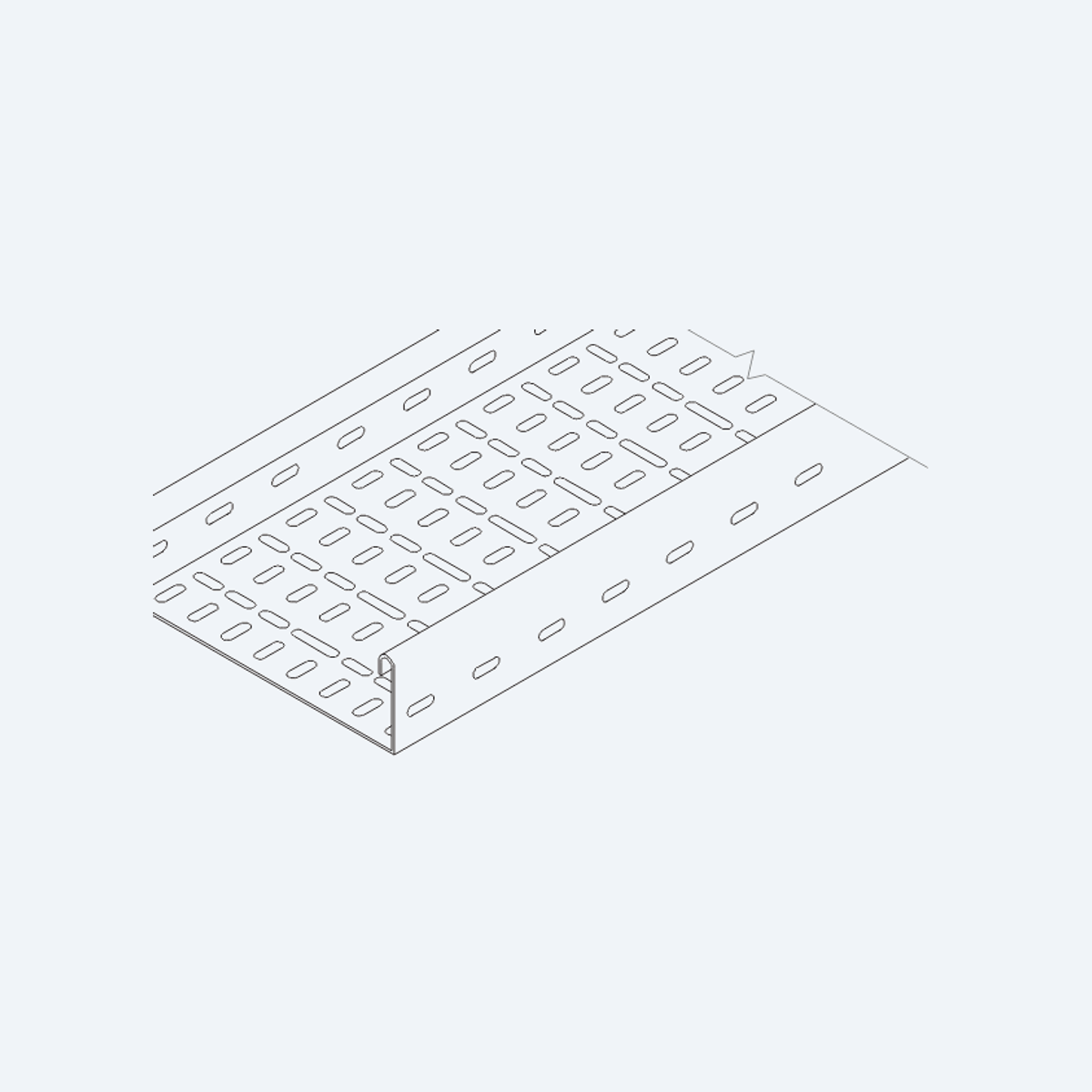

Straight tray section for level or inclined cable runs.
Photos & drawings
Description
Straight ART tray section for level or inclined runs. Every ART fitting and cover matches its height and width.
ART50System and height: ART system, 50 mm height
System letters, then the height in millimetres.
Published item codes
| Part number | Height (mm) | Width (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|---|
| ART50-ST-50-1.5-3-PP-A4 | 50 | 50 | 1.5 | SS316L | 6.55 | |
| ART50-ST-50-1.5-3-PP-G | 50 | 50 | 1.5 | Hot-Dip Galvanized | 6.47 | |
| ART50-ST-50-2-3-PP-A4 | 50 | 50 | 2 | SS316L | 8.74 | |
| ART50-ST-50-2-3-PP-G | 50 | 50 | 2 | Hot-Dip Galvanized | 8.63 | |
| ART50-ST-75-1.5-3-PP-A4 | 50 | 75 | 1.5 | SS316L | 7.45 | |
| ART50-ST-75-1.5-3-PP-G | 50 | 75 | 1.5 | Hot-Dip Galvanized | 7.36 | |
| ART50-ST-75-2-3-PP-A4 | 50 | 75 | 2 | SS316L | 9.94 | |
| ART50-ST-75-2-3-PP-G | 50 | 75 | 2 | Hot-Dip Galvanized | 9.81 | |
| ART50-ST-100-1.5-3-PP-A4 | 50 | 100 | 1.5 | SS316L | 8.35 | |
| ART50-ST-100-1.5-3-PP-G | 50 | 100 | 1.5 | Hot-Dip Galvanized | 8.25 |
Not in the list?
Characteristics
| Model | ART50, ART75 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Material | Stainless Steel 316L, Hot-Dip Galvanized |
| Finish | A4, G |
GA drawings & documents
| Document | Type | Applies to | Revision | Download |
|---|---|---|---|---|
| ART Straight — GA Drawing | General arrangement (GA) | ART/ST | — |
GA drawings and spec sheets are published per component and cover every width and length in the range. Project-specific GA sheets for a particular item code are issued against an enquiry reference.
