E45

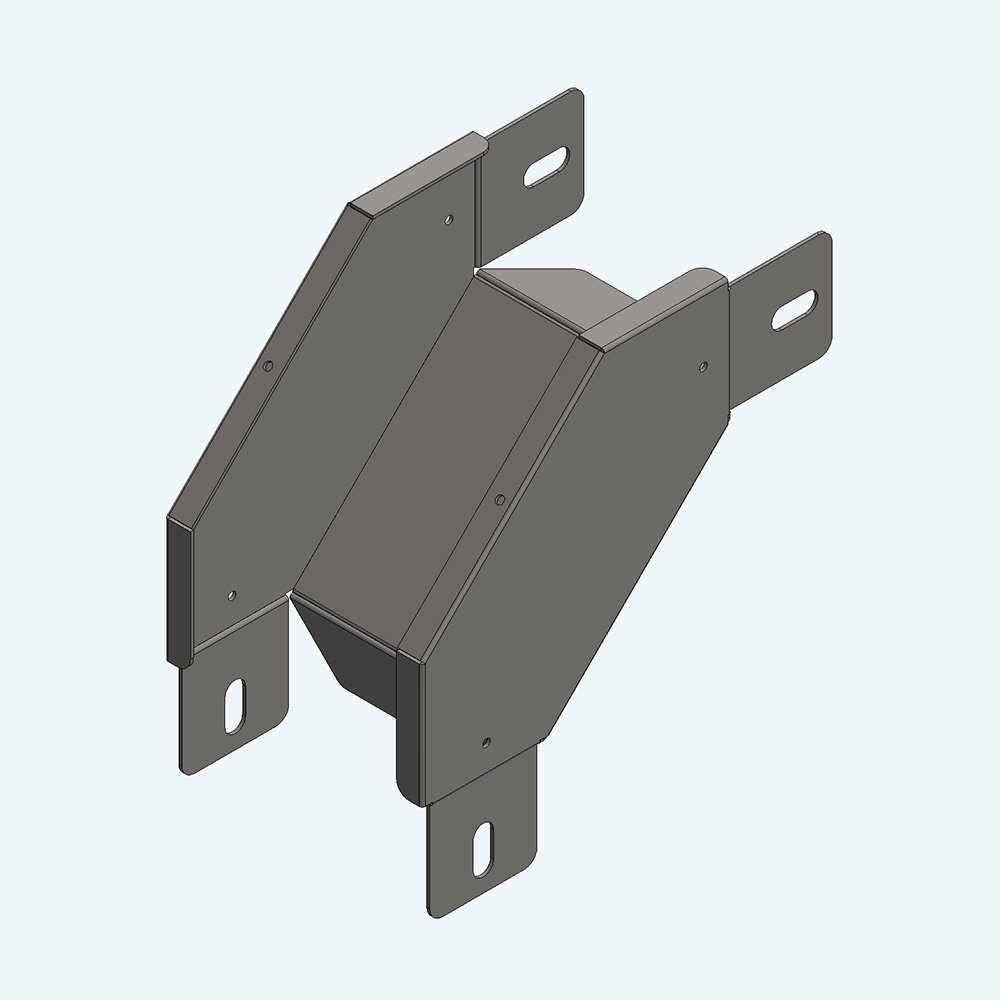

45° Elbow
SCT-E45-…-G
SCT
SCT Cable Trunking
Enclosed rectangular trunking with lids and equal-width fittings for indoor building and switchroom routes.
- Rail heights
- 25 / 50 / 75 / 100 / 150 / 300 mm
- Widths
- 50, 75, 100, 125, 150, 175, 200, 225… mm
- Thickness
- 1 / 1.2 mm
- Lengths
- 3000 mm
- Finish
- G
- Published codes
- 226
System overview

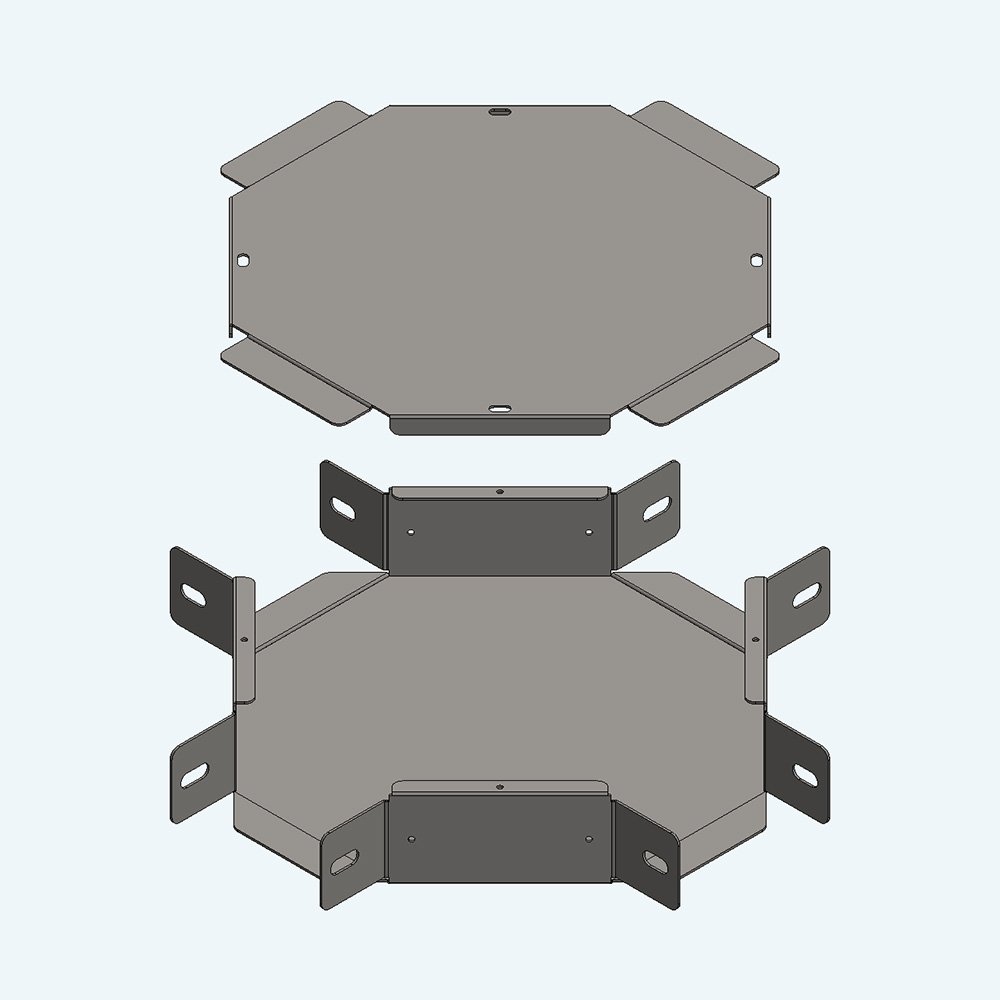

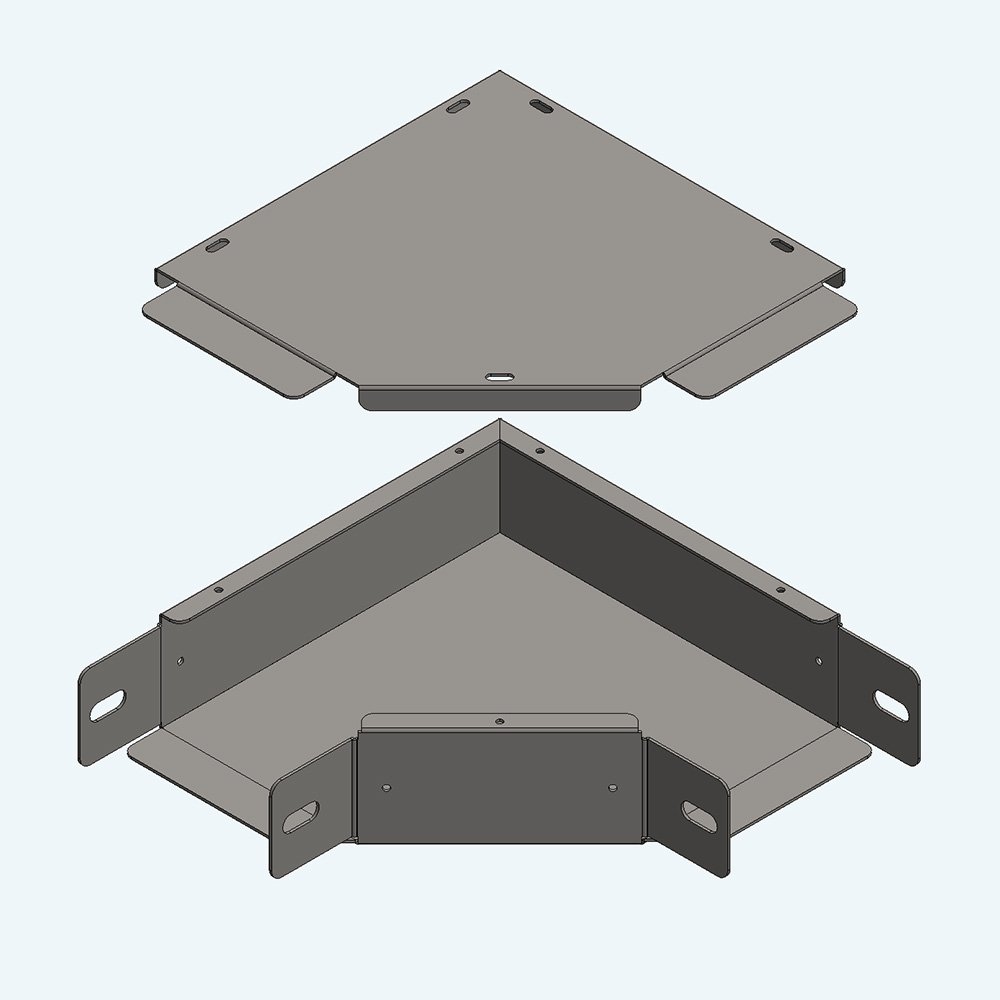

SCT is Array Metal's sheet-steel cable trunking — an enclosed rectangular body with a lid, used on building and switchroom routes where cables should be concealed. Heights SCT25, SCT50, SCT75, SCT100, SCT150 and SCT300 in hot-dip galvanized finish. The published programme covers straights and the equal-width elbows, risers, tees and crosses; dual-width tees and crosses are configure-to-order.
Data
Load ratings for SCT are not published yet. Contact our engineering team for interim figures.
