SCT · T
Tee

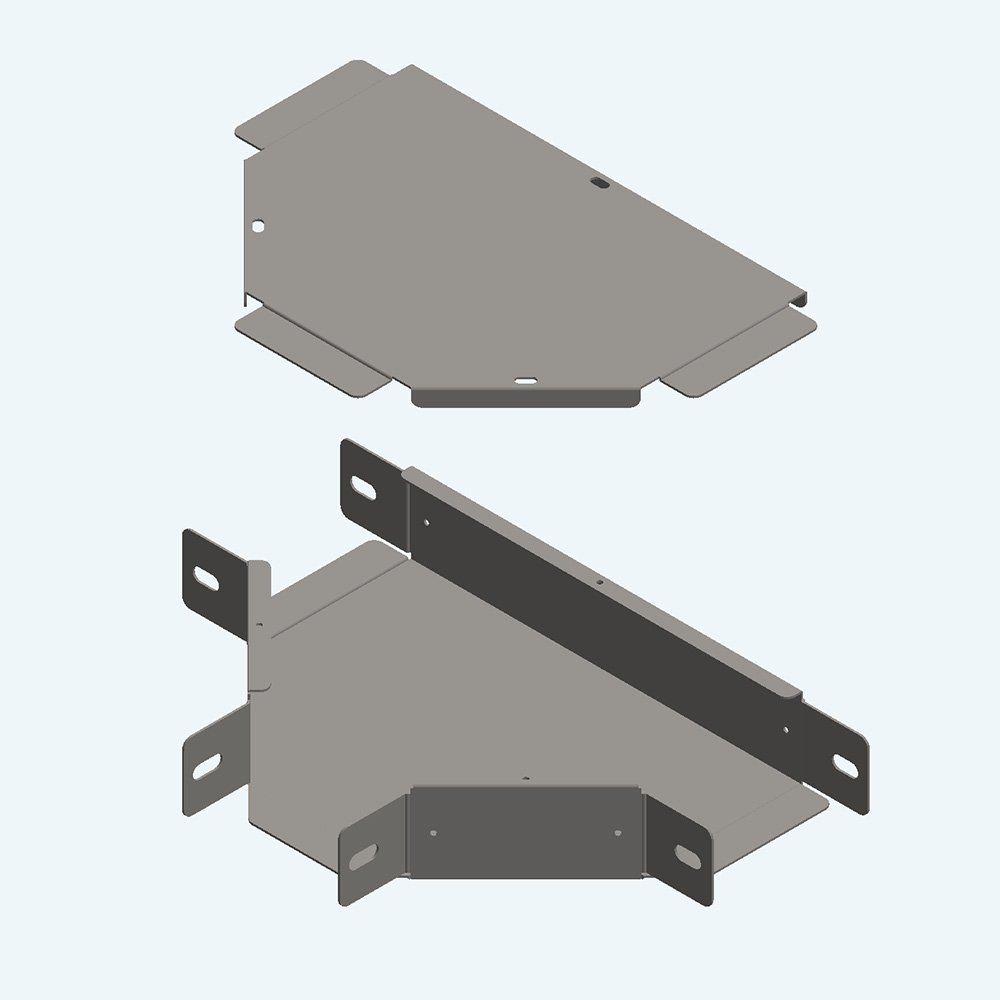

Three-way branch fitting joining trunking runs of equal width.
Photos & drawings
Description
Three-way branch fitting for an SCT run of equal width, specified where a side branch is taken off the main run.
Specified with matching straight sections so the enclosed section continues at the junction.
Published item codes
| Part number | Height (mm) | Width (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|---|
| SCT100-T-100-1.2-R7-G | 100 | 100 | 1.2 | Hot-Dip Galvanized | 3.33 | |
| SCT100-T-150-1.2-R7-G | 100 | 150 | 1.2 | Hot-Dip Galvanized | 3.92 | |
| SCT100-T-200-1.2-R7-G | 100 | 200 | 1.2 | Hot-Dip Galvanized | 4.56 | |
| SCT100-T-300-1.2-R7-G | 100 | 300 | 1.2 | Hot-Dip Galvanized | 5.98 | |
| SCT150-T-150-1.2-R7-G | 150 | 150 | 1.2 | Hot-Dip Galvanized | 5.25 | |
| SCT150-T-200-1.2-R7-G | 150 | 200 | 1.2 | Hot-Dip Galvanized | 5.98 | |
| SCT150-T-300-1.2-R7-G | 150 | 300 | 1.2 | Hot-Dip Galvanized | 7.59 | |
| SCT25-T-50-1-R7-G | 25 | 50 | 1 | Hot-Dip Galvanized | 1.20 | |
| SCT300-T-300-1.2-R7-G | 300 | 300 | 1.2 | Hot-Dip Galvanized | 13.56 | |
| SCT50-T-50-1.2-R7-G | 50 | 50 | 1.2 | Hot-Dip Galvanized | 1.84 |
Not in the list?
Characteristics
| Model | SCT25, SCT50, SCT75, SCT100, SCT150, SCT300 |
|---|---|
| Thickness | 1 / 1.2 mm |
| Radius | 70 mm |
| Material | G |
| Finish | G |
