SCT · IR90

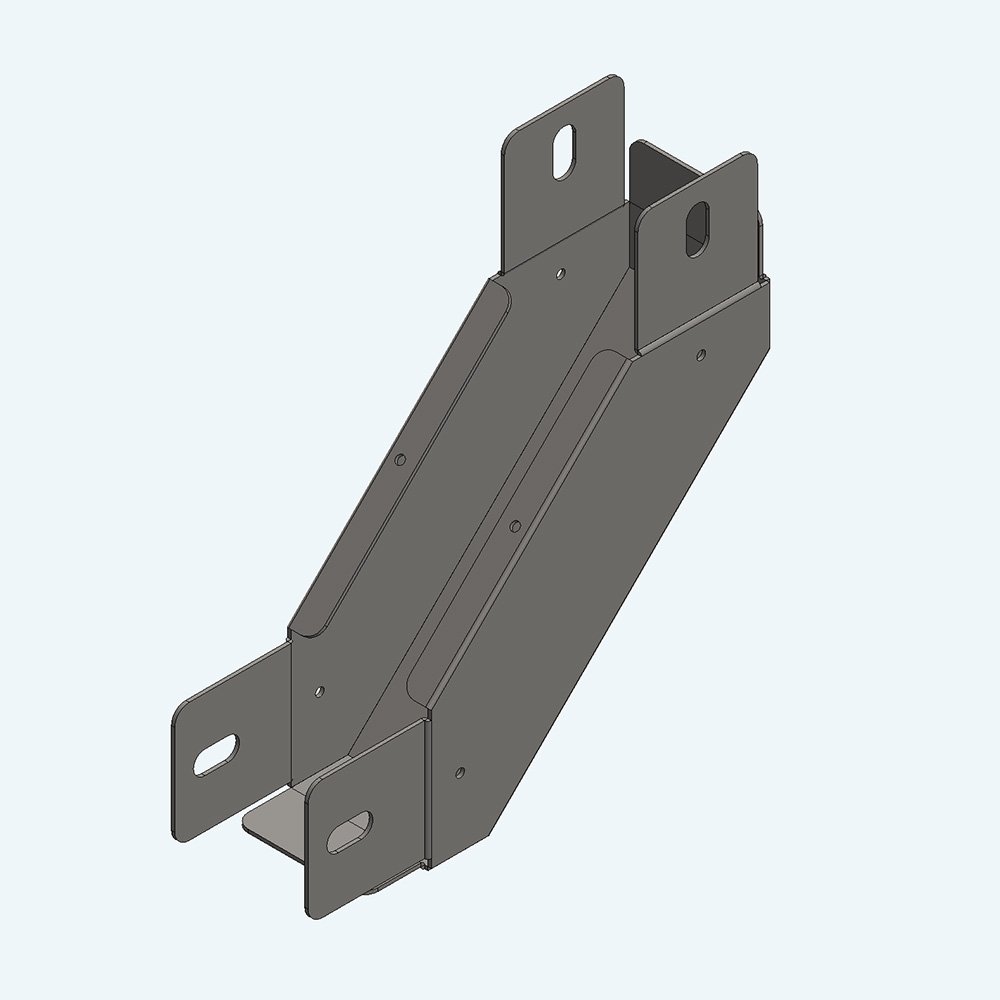

90° Inside Riser

Name: SCT 90° Inside Riser
Brand: Array Metal
SKU: SCT100-IR90-100-1.2-R7-G

Vertical riser for a 90 degree inside change of elevation in a trunking run.

Photos & drawings

Vertical riser fitting for an inside 90° change of elevation, used where the enclosed route rises or falls toward the inside of the bend.

Keeps the enclosed section of the adjoining straights through the change in elevation.

27 shown

Displaying 1–10 of 27 item codes

Per page

Part number	Height (mm)	Width (mm)	Thickness (mm)	Finish	Weight (kg)
SCT100-IR90-100-1.2-R7-G	100	100	1.2	Hot-Dip Galvanized	1.98
SCT100-IR90-150-1.2-R7-G	100	150	1.2	Hot-Dip Galvanized	2.24
SCT100-IR90-200-1.2-R7-G	100	200	1.2	Hot-Dip Galvanized	2.50
SCT100-IR90-300-1.2-R7-G	100	300	1.2	Hot-Dip Galvanized	3.02
SCT150-IR90-150-1.2-R7-G	150	150	1.2	Hot-Dip Galvanized	2.95
SCT150-IR90-200-1.2-R7-G	150	200	1.2	Hot-Dip Galvanized	3.26
SCT150-IR90-300-1.2-R7-G	150	300	1.2	Hot-Dip Galvanized	3.88
SCT25-IR90-50-1-R7-G	25	50	1	Hot-Dip Galvanized	0.80
SCT300-IR90-300-1.2-R7-G	300	300	1.2	Hot-Dip Galvanized	7.02
SCT50-IR90-50-1.2-R7-G	50	50	1.2	Hot-Dip Galvanized	1.19

Not in the list?
