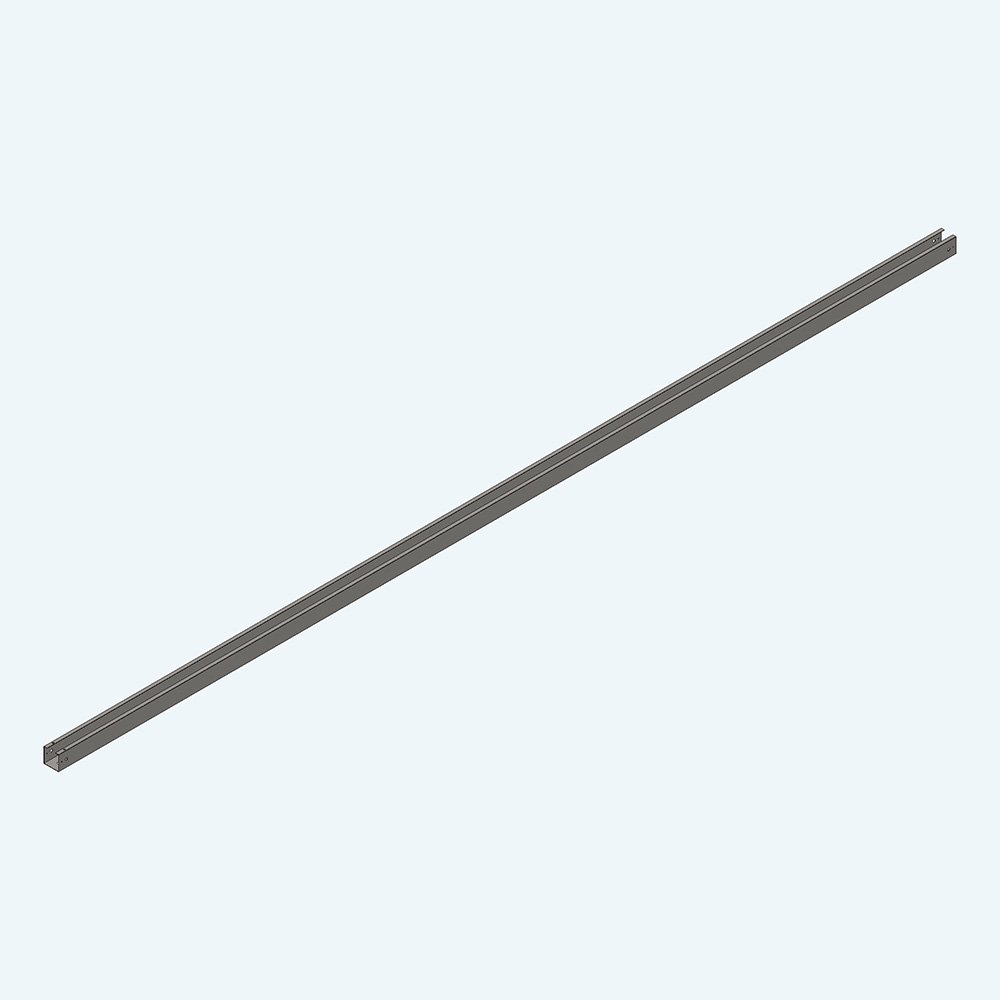

SCT · ST
Straight
Straight trunking section for level or inclined enclosed cable runs.
Photos & drawings
Description
The base straight section of SCT cable trunking, specified for level or inclined runs between fittings.
Establishes the enclosed width and lid line to which every equal-width fitting in the system is matched.
Published item codes
| Part number | Height (mm) | Width (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|---|
| SCT100-ST-100-1.2-3-G | 100 | 100 | 1.2 | Hot-Dip Galvanized | 9.39 | |
| SCT100-ST-125-1.2-3-G | 100 | 125 | 1.2 | Hot-Dip Galvanized | 10.10 | |
| SCT100-ST-150-1.2-3-G | 100 | 150 | 1.2 | Hot-Dip Galvanized | 10.81 | |
| SCT100-ST-175-1.2-3-G | 100 | 175 | 1.2 | Hot-Dip Galvanized | 11.52 | |
| SCT100-ST-200-1.2-3-G | 100 | 200 | 1.2 | Hot-Dip Galvanized | 12.23 | |
| SCT100-ST-225-1.2-3-G | 100 | 225 | 1.2 | Hot-Dip Galvanized | 12.94 | |
| SCT100-ST-250-1.2-3-G | 100 | 250 | 1.2 | Hot-Dip Galvanized | 13.65 | |
| SCT100-ST-275-1.2-3-G | 100 | 275 | 1.2 | Hot-Dip Galvanized | 14.36 | |
| SCT100-ST-300-1.2-3-G | 100 | 300 | 1.2 | Hot-Dip Galvanized | 15.07 | |
| SCT100-ST-350-1.2-3-G | 100 | 350 | 1.2 | Hot-Dip Galvanized | 16.50 |
Not in the list?
Characteristics
| Model | SCT25, SCT50, SCT75, SCT100, SCT150, SCT300 |
|---|---|
| Thickness | 1 / 1.2 mm |
| Material | G |
| Finish | G |
