SCT · CP
Cross

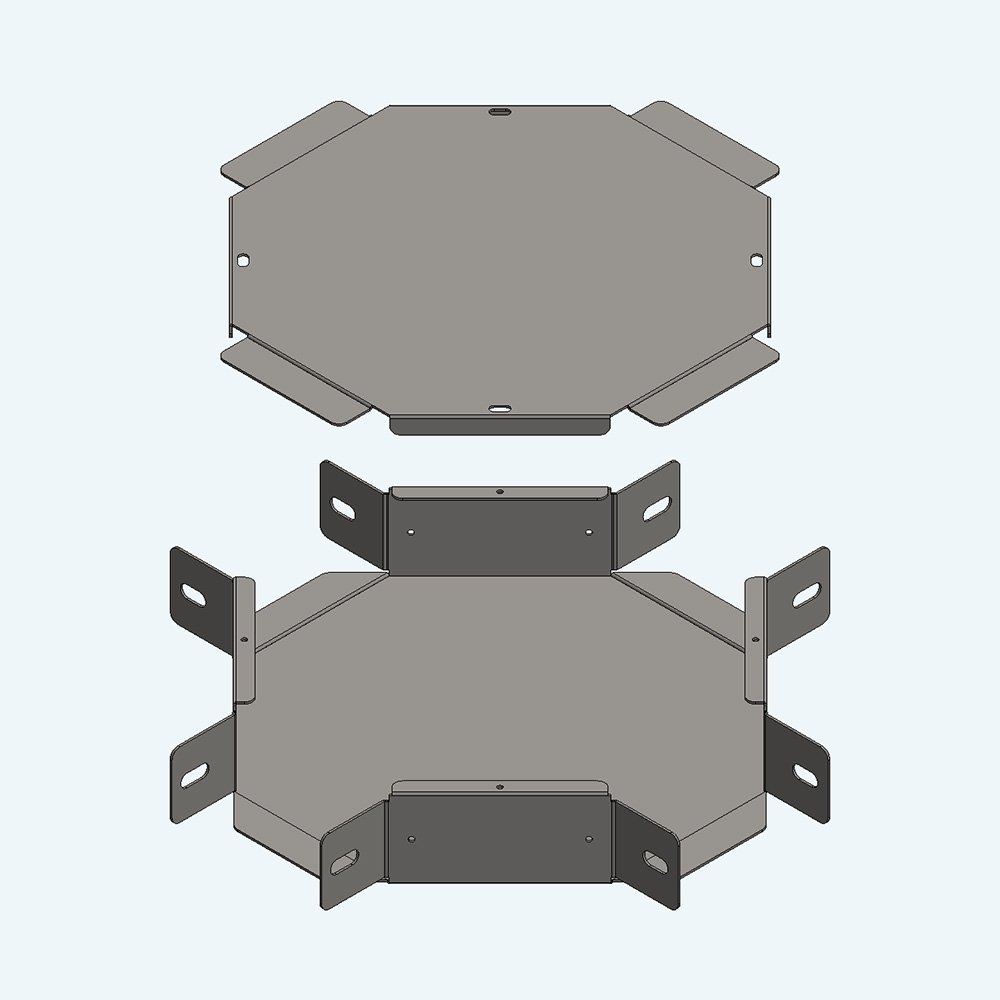

Four-way branch fitting joining trunking runs of equal width.
Photos & drawings
Description
Four-way branch fitting joining SCT runs of equal width at a single junction, specified where a route branches in two directions from one point.
Specified with matching straight sections so the enclosed section continues at the junction.
Published item codes
| Part number | Height (mm) | Width (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|---|
| SCT100-CP-100-1.2-R7-G | 100 | 100 | 1.2 | Hot-Dip Galvanized | 4.44 | |
| SCT100-CP-150-1.2-R7-G | 100 | 150 | 1.2 | Hot-Dip Galvanized | 5.11 | |
| SCT100-CP-200-1.2-R7-G | 100 | 200 | 1.2 | Hot-Dip Galvanized | 5.83 | |
| SCT100-CP-300-1.2-R7-G | 100 | 300 | 1.2 | Hot-Dip Galvanized | 7.41 | |
| SCT150-CP-150-1.2-R7-G | 150 | 150 | 1.2 | Hot-Dip Galvanized | 6.59 | |
| SCT150-CP-200-1.2-R7-G | 150 | 200 | 1.2 | Hot-Dip Galvanized | 7.41 | |
| SCT150-CP-300-1.2-R7-G | 150 | 300 | 1.2 | Hot-Dip Galvanized | 9.18 | |
| SCT25-CP-50-1-R7-G | 25 | 50 | 1 | Hot-Dip Galvanized | 1.85 | |
| SCT300-CP-300-1.2-R7-G | 300 | 300 | 1.2 | Hot-Dip Galvanized | 15.63 | |
| SCT50-CP-50-1.2-R7-G | 50 | 50 | 1.2 | Hot-Dip Galvanized | 2.70 |
Not in the list?
Characteristics
| Model | SCT25, SCT50, SCT75, SCT100, SCT150, SCT300 |
|---|---|
| Thickness | 1 / 1.2 mm |
| Radius | 70 mm |
| Material | G |
| Finish | G |
