APO Cable Ladder

Perforated rail — HDG and stainless 316L — where drainage and weight matter.

Rail heights
100 / 125 / 150 mm
Widths
100, 125, 150, 200, 300, 400, 450, 500… mm
Thickness
1.5 / 2 mm
Lengths
3000 / 6000 mm
Finish
A4, G
Published codes
1,946

Products

Displaying 1–13 of 13 products · All APO part number options →

System overview

Perforated rail — HDG and stainless 316L — where drainage and weight matter.

Materials

Stainless Steel 316LHot-Dip Galvanized
1×

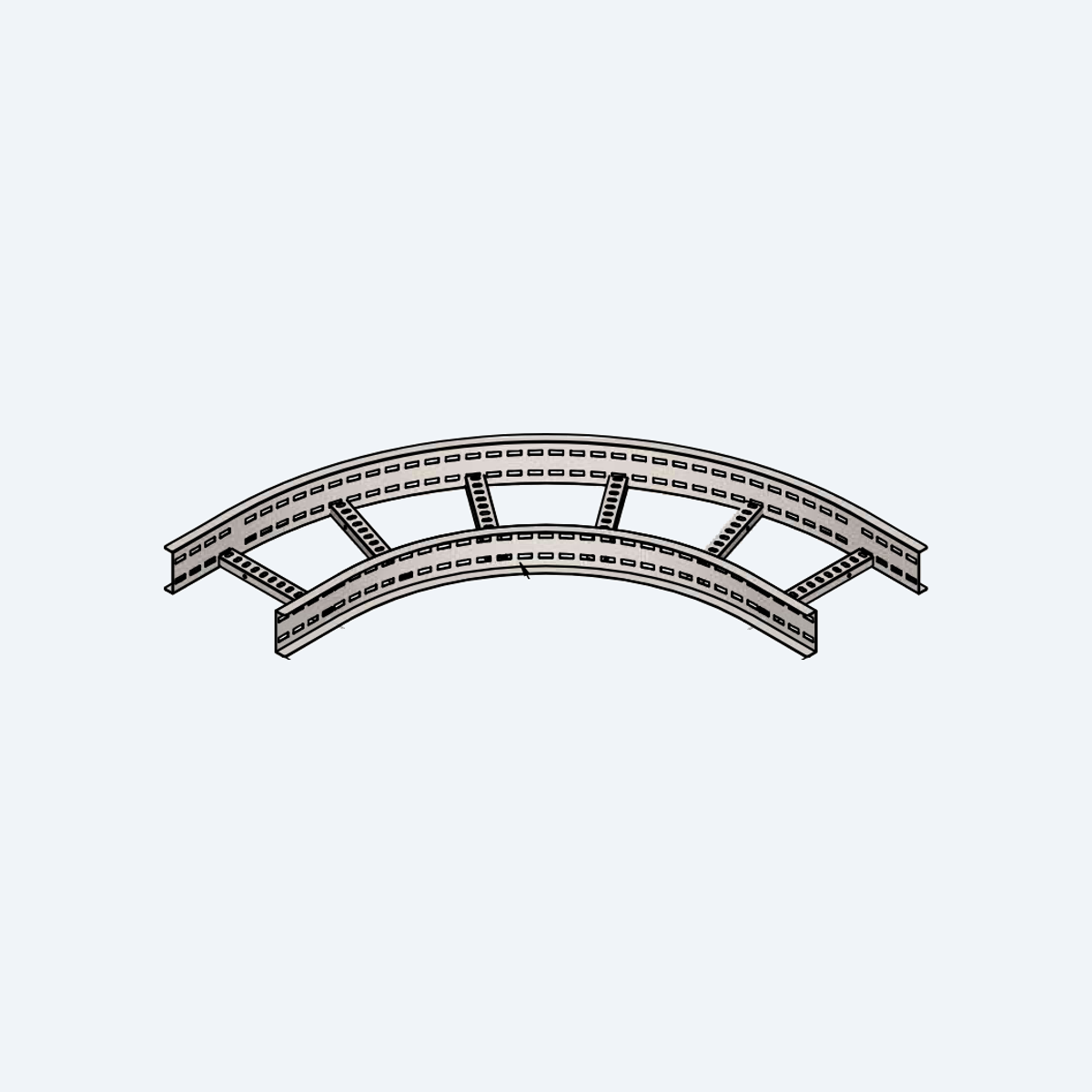

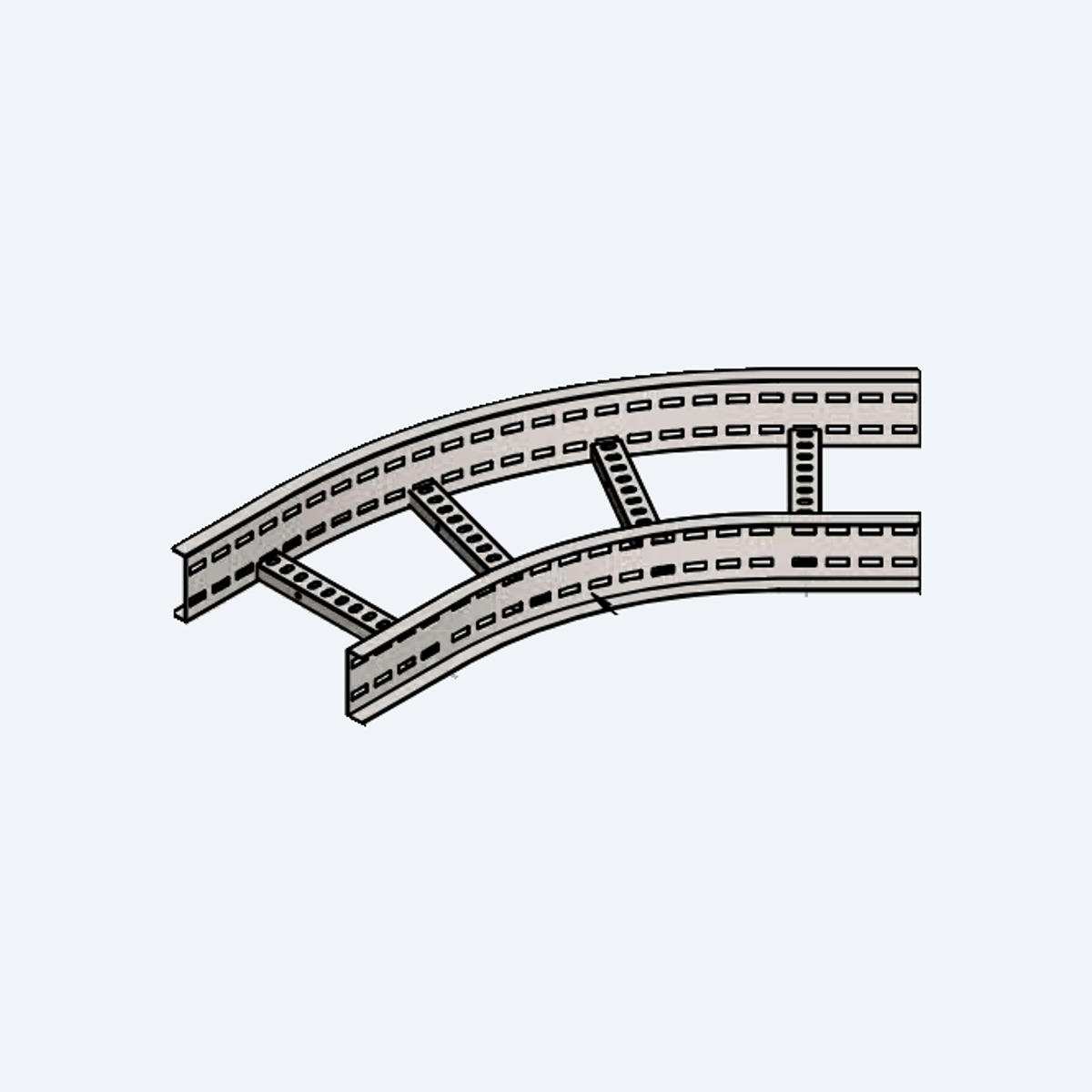

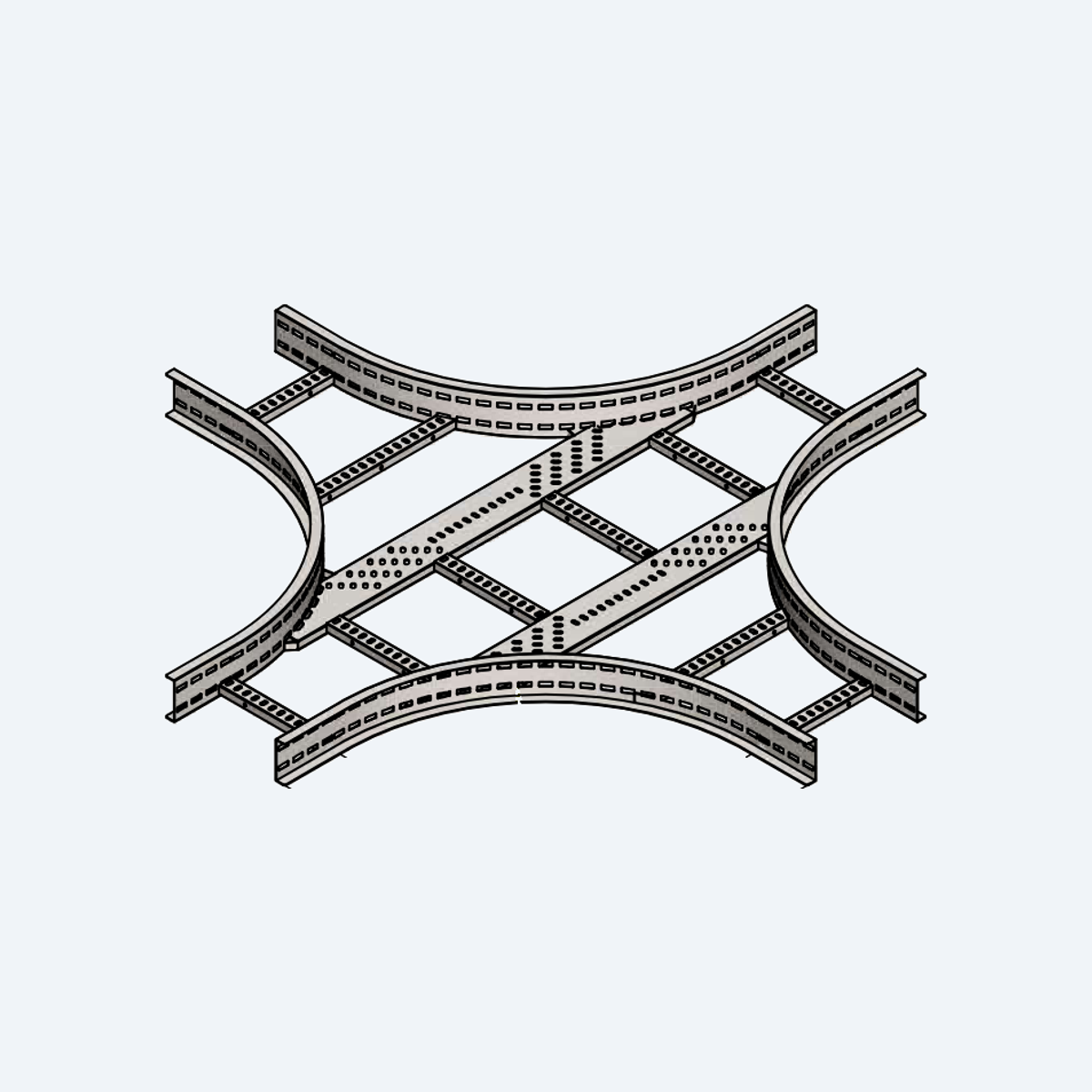

Isometric cable ladder run (AML shown) — straights, elbows, tee, cross, reducers, risers, splice plates and end plate, with the covers that fit them.

Tray or fittingIts cover

  1. StraightStraight cover

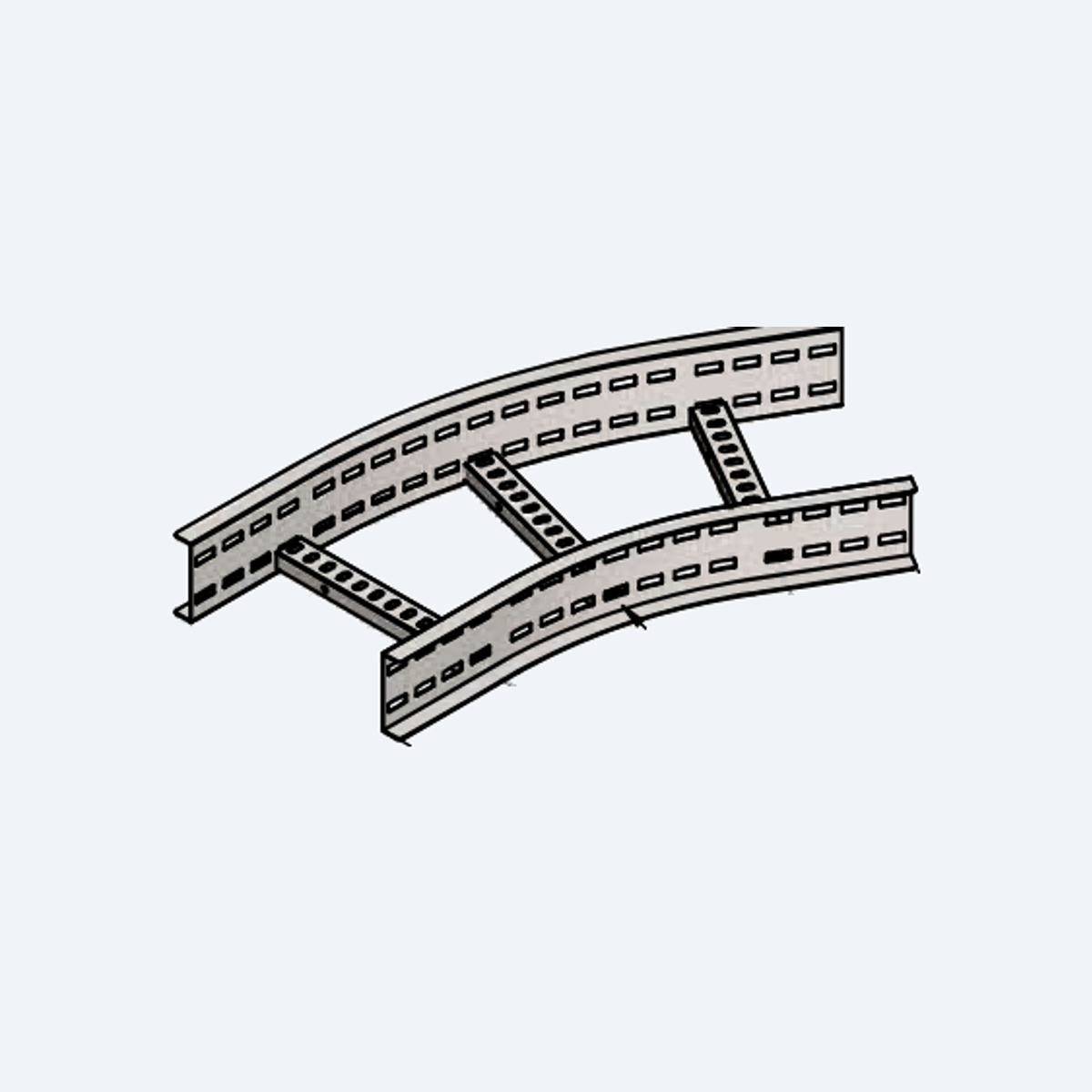

  2. 90° Elbow90° elbow cover

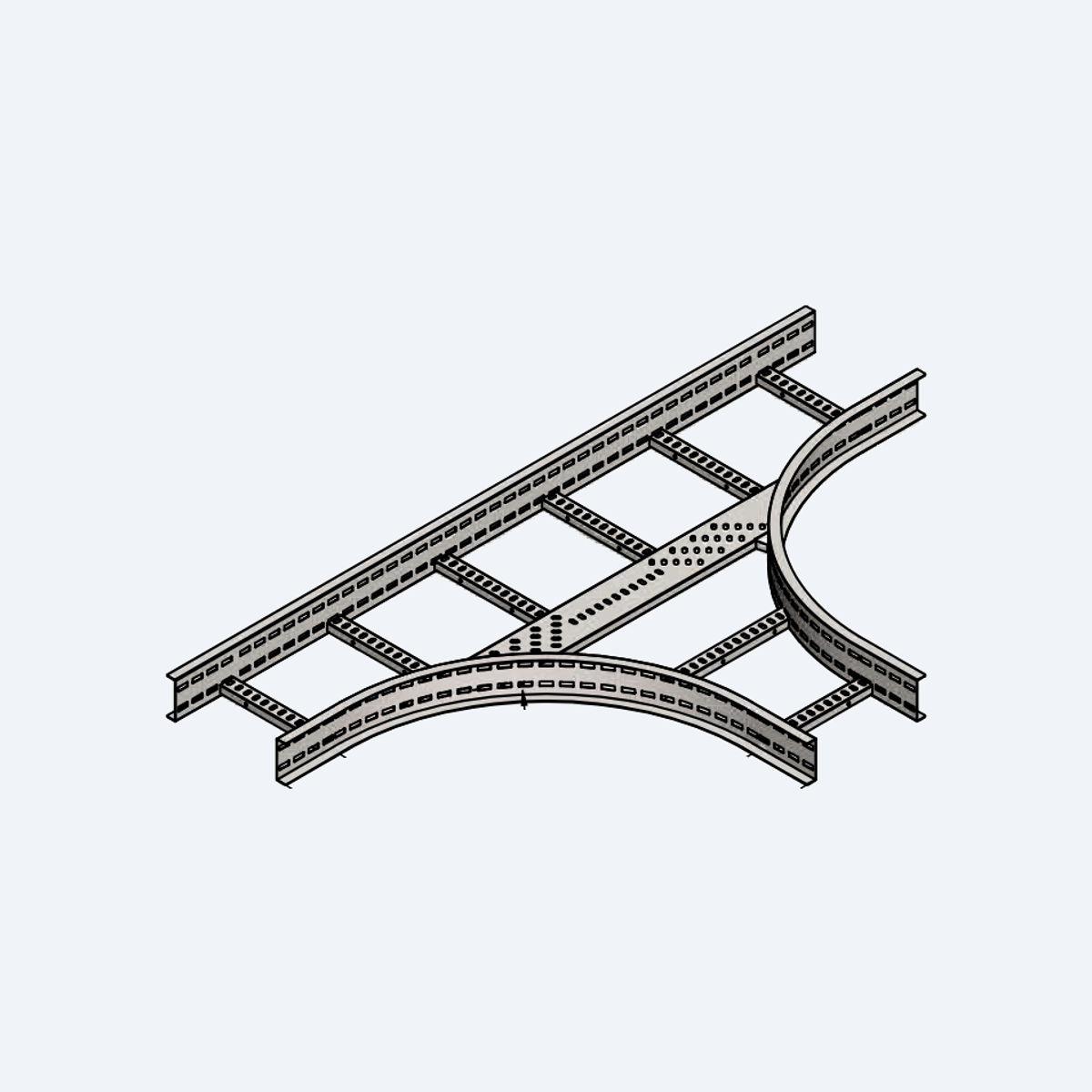

  3. TeeTee cover
  4. CrossCross cover

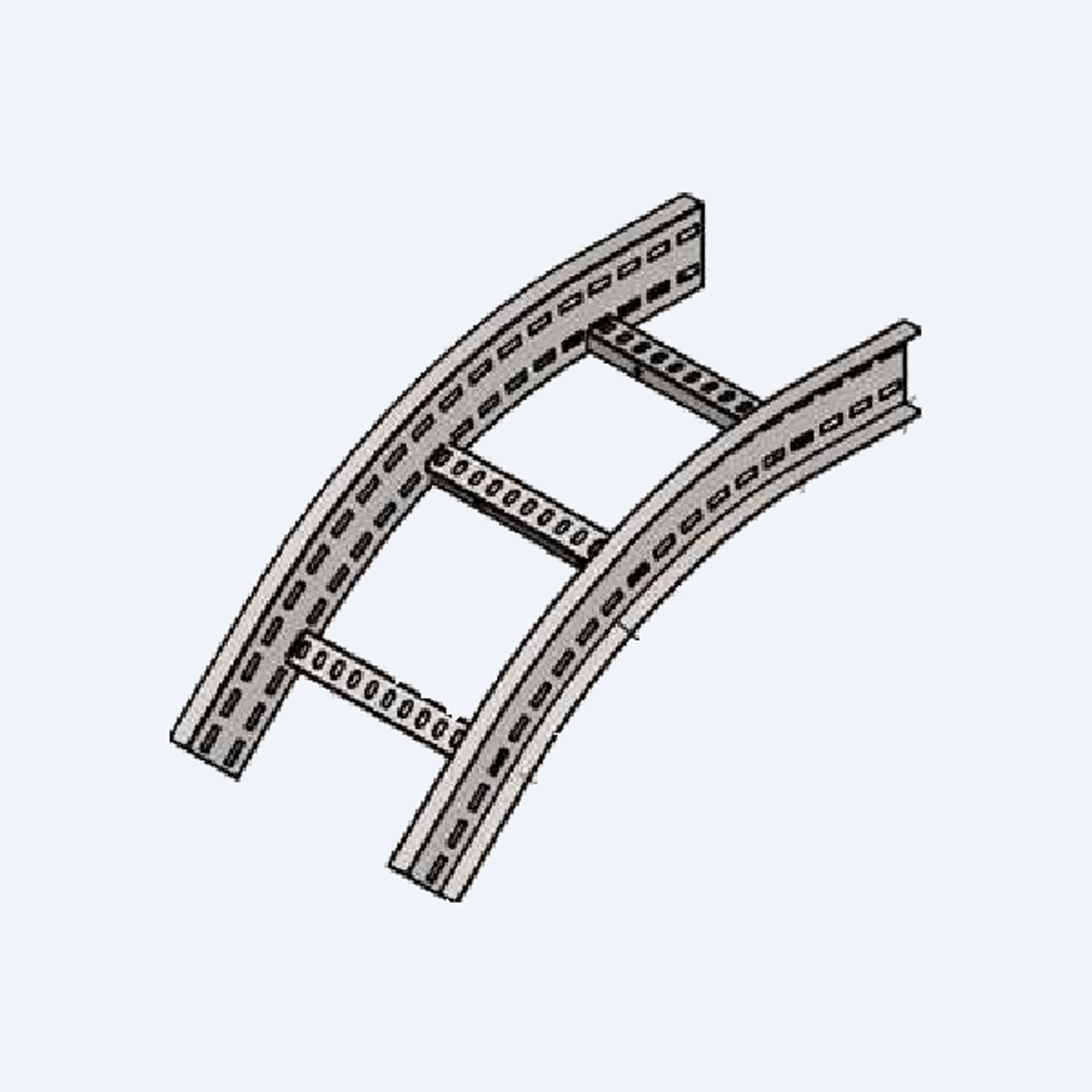

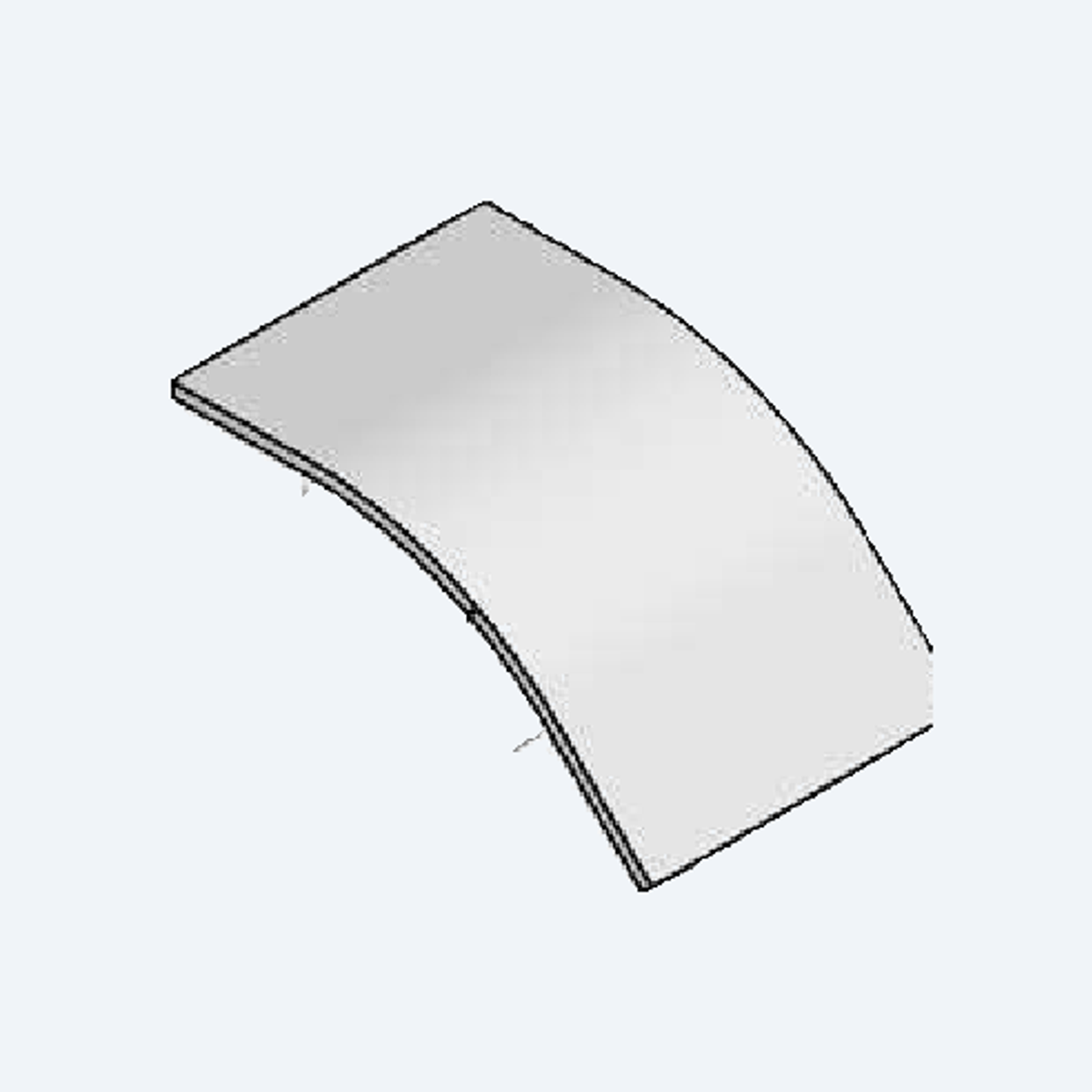

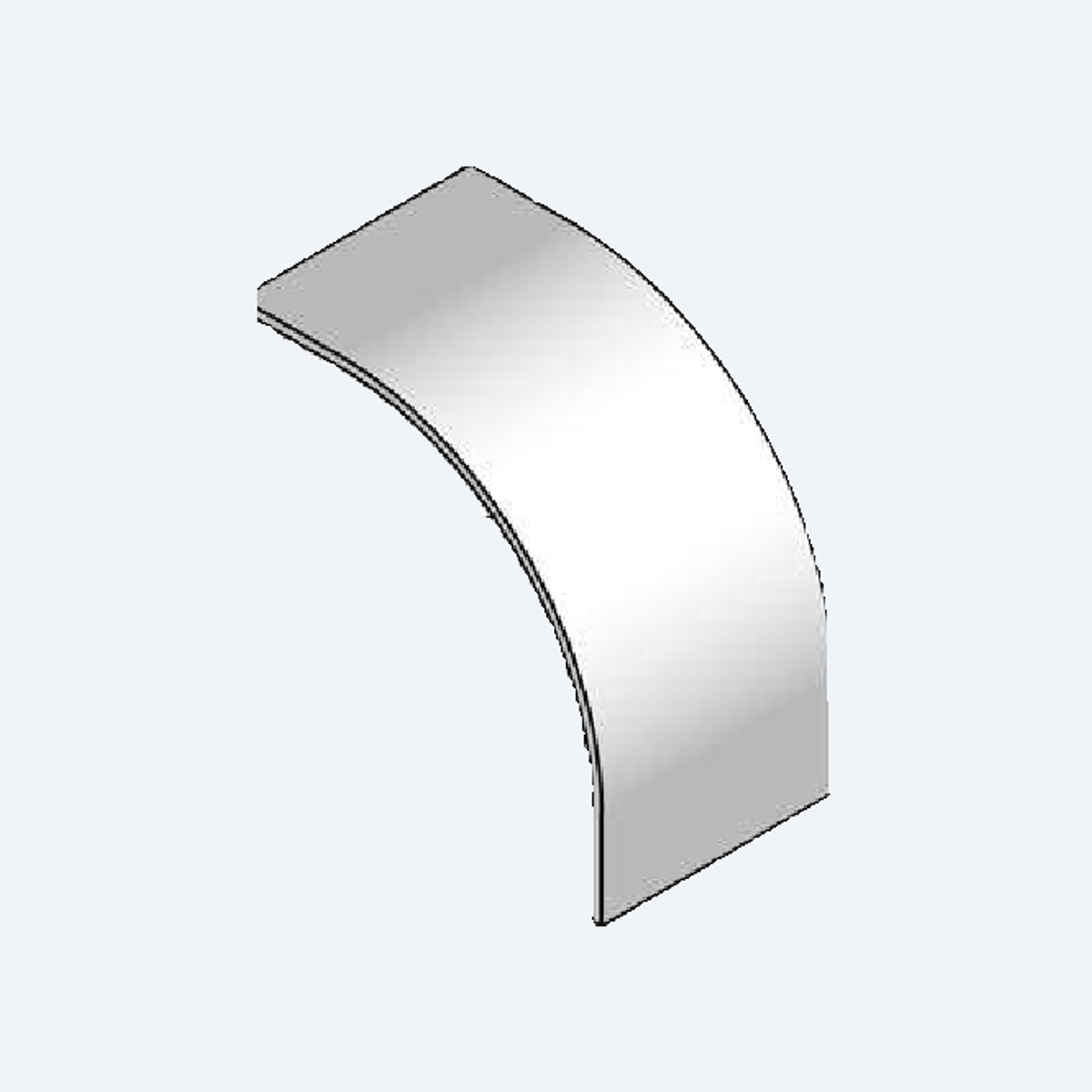

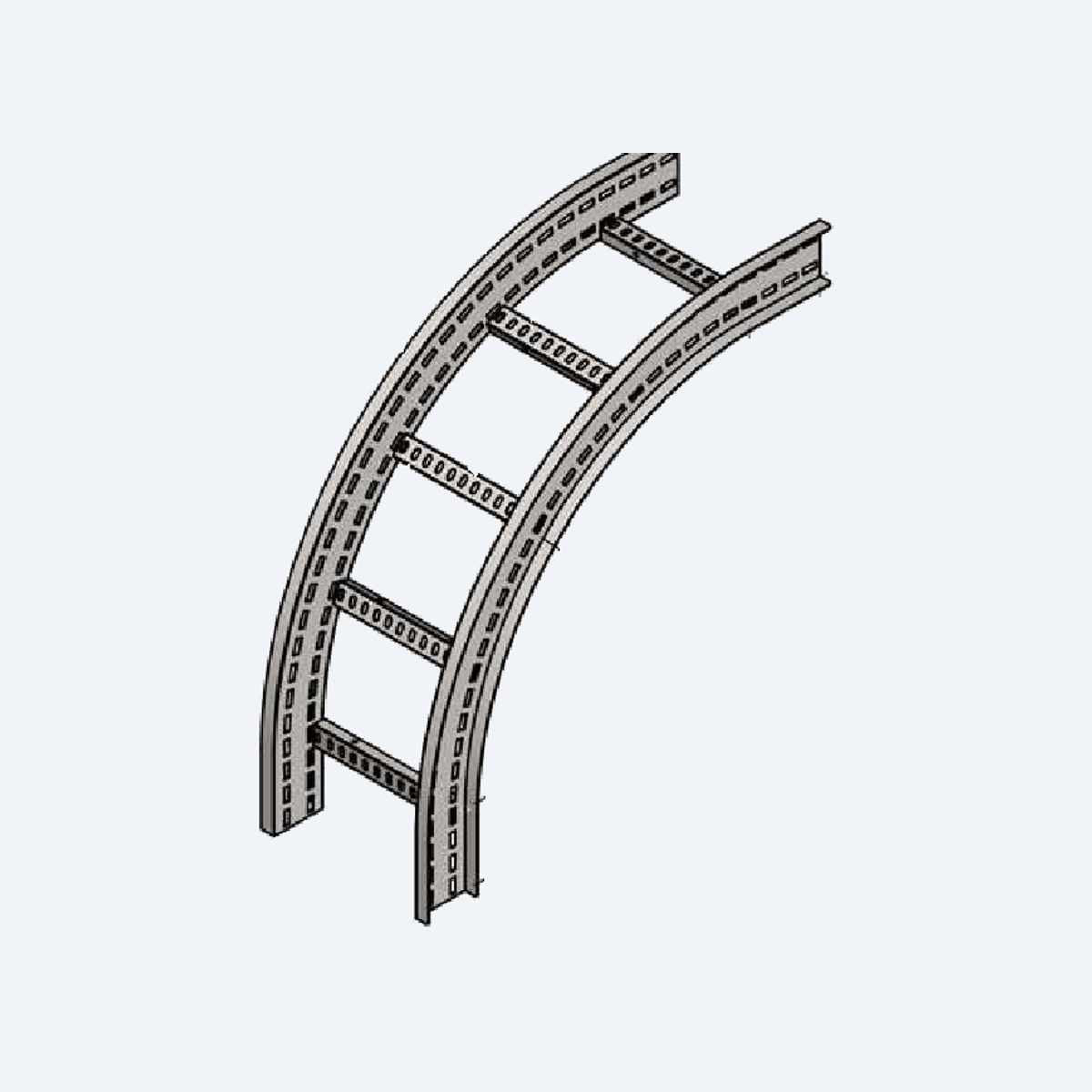

  5. 90° Outside Riser90° Outside Riser Lipped Cover

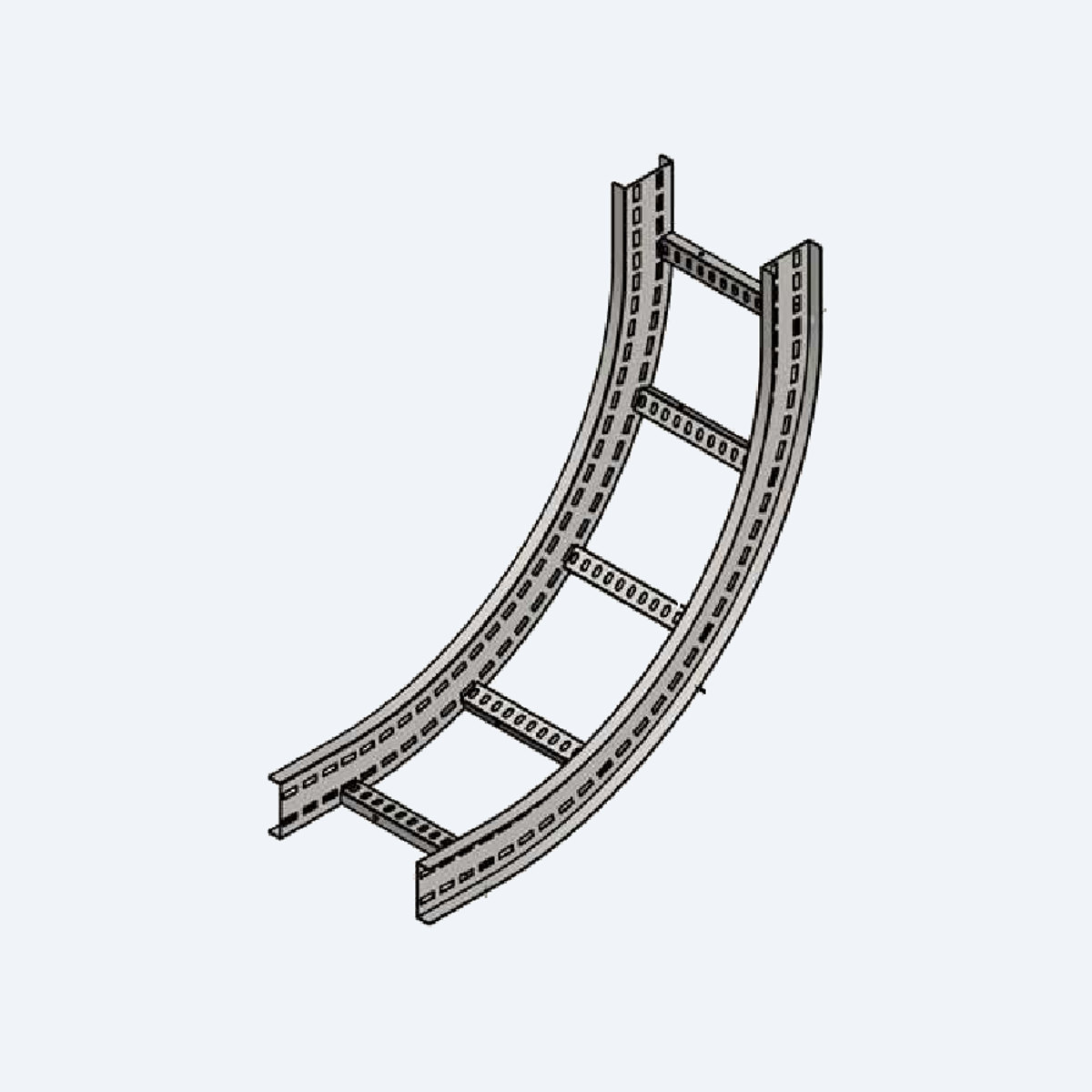

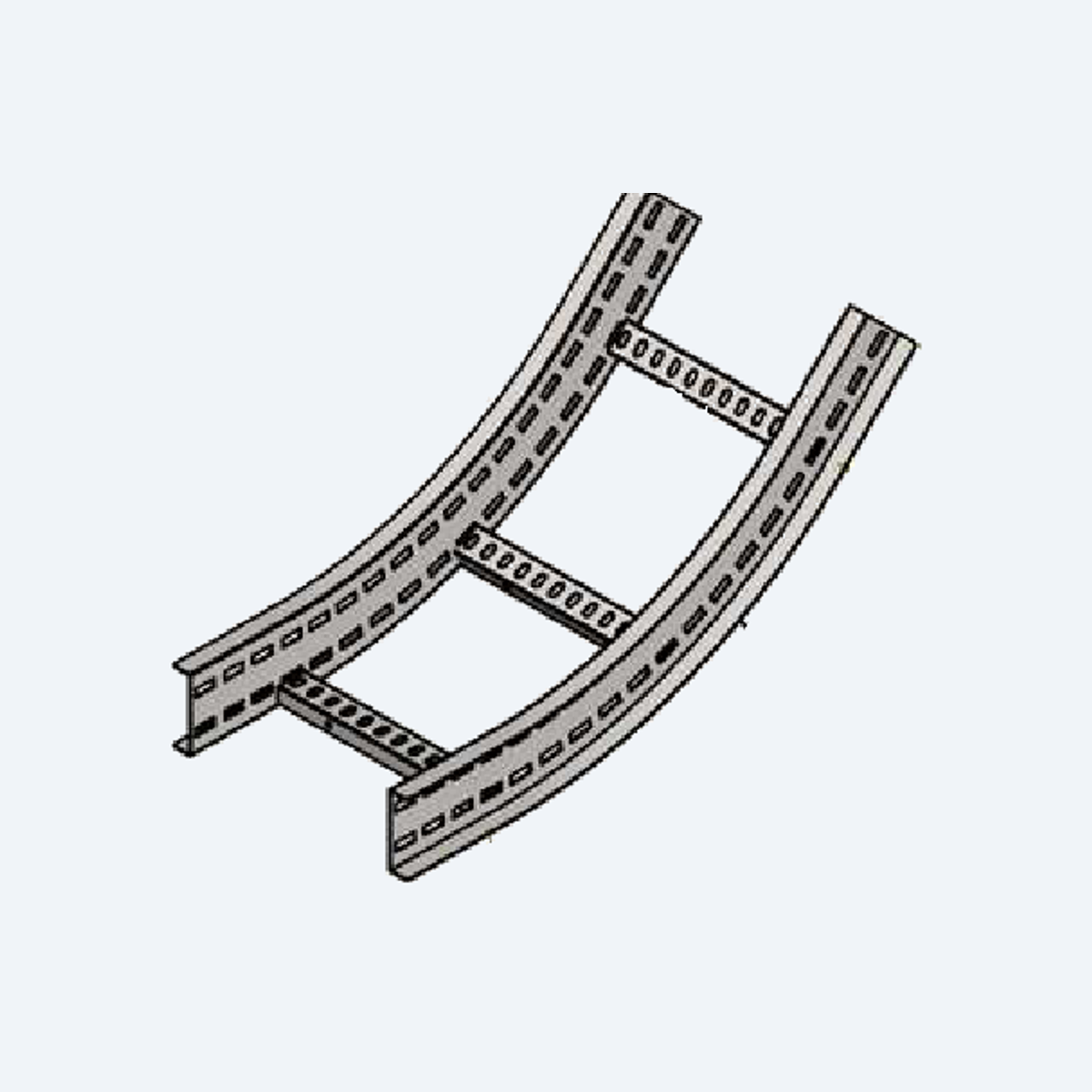

  6. 90° Inside RiserInside riser cover
  7. Right reducerOn requestRight reducer coverOn request
  8. Left reducerOn requestLeft reducer coverOn request
  9. Centre reducerOn requestCentre reducer coverOn request

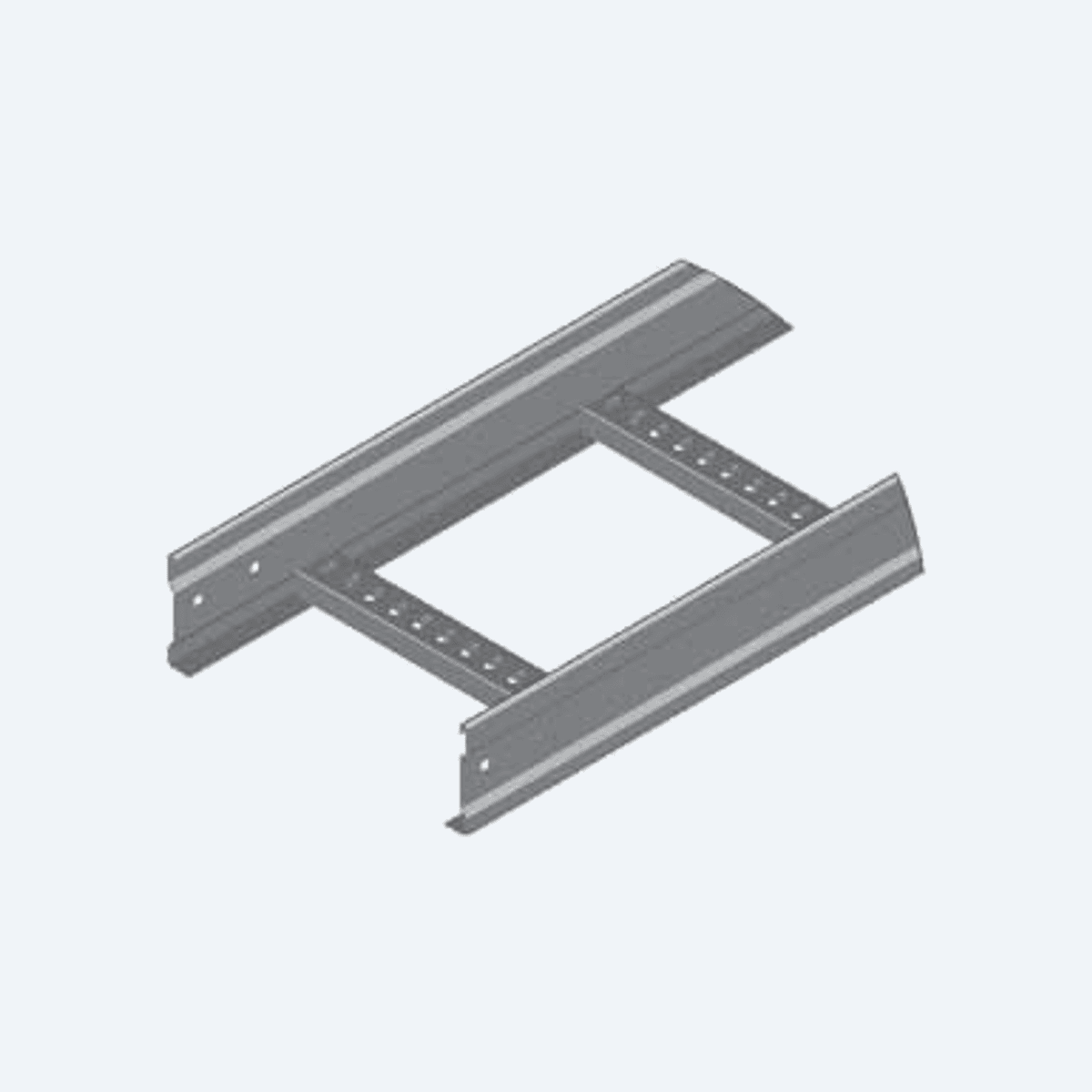

  10. Straight Splice Plate
  11. Vertical splice plate
  12. End plate
Standard components of the system. A filled number is the tray or fitting; the same number outlined is the cover that fits it. Hover a number or a name to pick it out. Zoom in and drag to look closer.

Data

Check a load case

Test method: NEMA VE1 · Material: Hot-Dip Galvanized (HDG) · Standard: SIRIM / NEMA VE1-2009 · Safety factor: ×1.5

ModelLoading depthThicknessSWL @ 3 m (kg/m)SWL @ 4.5 m (kg/m)SWL @ 6 m (kg/m)NEMA class
APO10075 mm1.5 / 2 mm1928548NEMA 20AA
APO125100 mm1.5 / 2 mm416185104NEMA 20A
APO150125 mm1.5 / 2 mm540240135NEMA 20B

SWL = Destructive load ÷ 1.5 (NEMA VE1-2009). Test certificate reference: SIRIM-NEMA VE1-2009. Available lengths: 3 m and 6 m. 3 m and 4.5 m figures are interpolated from the 6 m test.

Test method: IEC 61537:2006, Test Type 2 · Material: Hot-Dip Galvanized (HDG) · Standard: IEC 61537:2006 · Safety factor: ×1.7

ModelLoading depthThicknessSWL @ 3 m (kg/m)SWL @ 4.5 m (kg/m)SWL @ 6 m (kg/m)
APO10075 mm1.5 / 2 mm22810157
APO125100 mm1.5 / 2 mm408181102
APO150125 mm1.5 / 2 mm452201113

SWL = Breaking load ÷ 1.7 (IEC 61537:2006, Test Type 2). Available lengths: 3 m and 6 m. 3 m and 4.5 m figures are interpolated from the 6 m test.

Test reports & certification

  • Test report
    Cable Ladder MS IEC61537:2007 cover

    Cable Ladder MS IEC61537:2007

    2026-05

  • Test report
    DNV Verification - Cable Ladder & Tray cover

    DNV Verification - Cable Ladder & Tray

    2017-08

  • Test report
    SIRIM NEMA VE1 cover

    SIRIM NEMA VE1

    2017-08

Product test reports and certificates for this system. Company certifications are listed under Certifications & standards.
