APO · OR45-LC

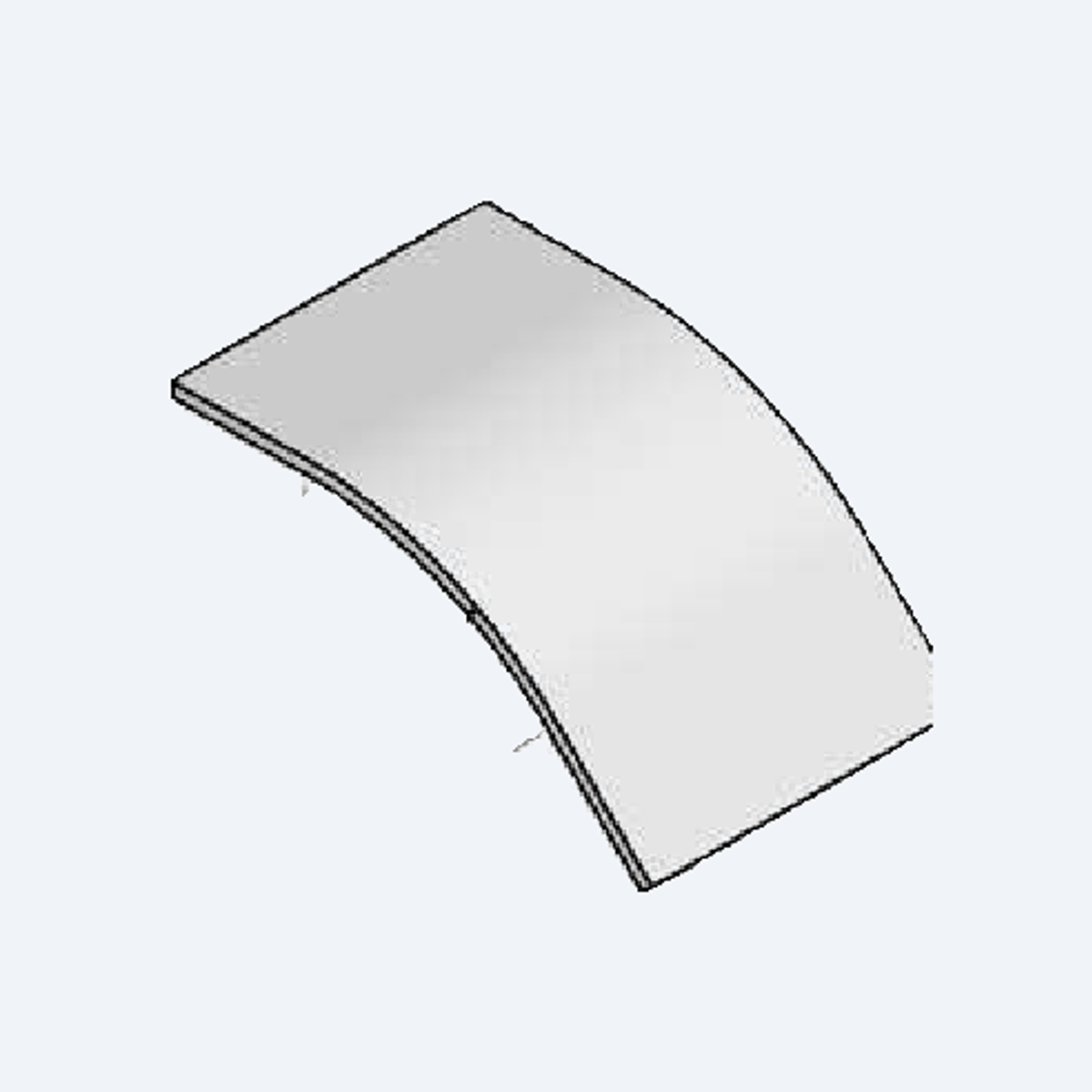

45° Outside Riser Cover
Lipped cover for the 45 degree outside riser.
Photos & drawings
Description
Lipped cover for the outside 45° riser, providing continuous enclosure over the change of elevation.
Installed directly over the corresponding riser fitting; specify one cover per riser within the same system and model.
Published item codes
| Part number | Height (mm) | Width (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|---|
| APO100-OR45-LC-100-1.5-R30-A4 | 100 | 100 | 1.5 | SS316L | 1.33 | |
| APO100-OR45-LC-100-1.5-R30-G | 100 | 100 | 1.5 | Hot-Dip Galvanized | 1.14 | |
| APO100-OR45-LC-100-2-R30-A4 | 100 | 100 | 2 | SS316L | 1.77 | |
| APO100-OR45-LC-100-2-R30-G | 100 | 100 | 2 | Hot-Dip Galvanized | 1.52 | |
| APO100-OR45-LC-125-1.5-R30-A4 | 100 | 125 | 1.5 | SS316L | 1.51 | |
| APO100-OR45-LC-125-1.5-R30-G | 100 | 125 | 1.5 | Hot-Dip Galvanized | 1.30 | |
| APO100-OR45-LC-125-2-R30-A4 | 100 | 125 | 2 | SS316L | 2.02 | |
| APO100-OR45-LC-125-2-R30-G | 100 | 125 | 2 | Hot-Dip Galvanized | 1.74 | |
| APO100-OR45-LC-150-1.5-R30-A4 | 100 | 150 | 1.5 | SS316L | 1.70 | |
| APO100-OR45-LC-150-1.5-R30-G | 100 | 150 | 1.5 | Hot-Dip Galvanized | 1.46 |
Not in the list?
Characteristics
| Model | APO100, APO125, APO150 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Radius | 300 mm |
| Material | Stainless Steel 316L, G |
| Finish | A4, G |
