APO · ST
Straight

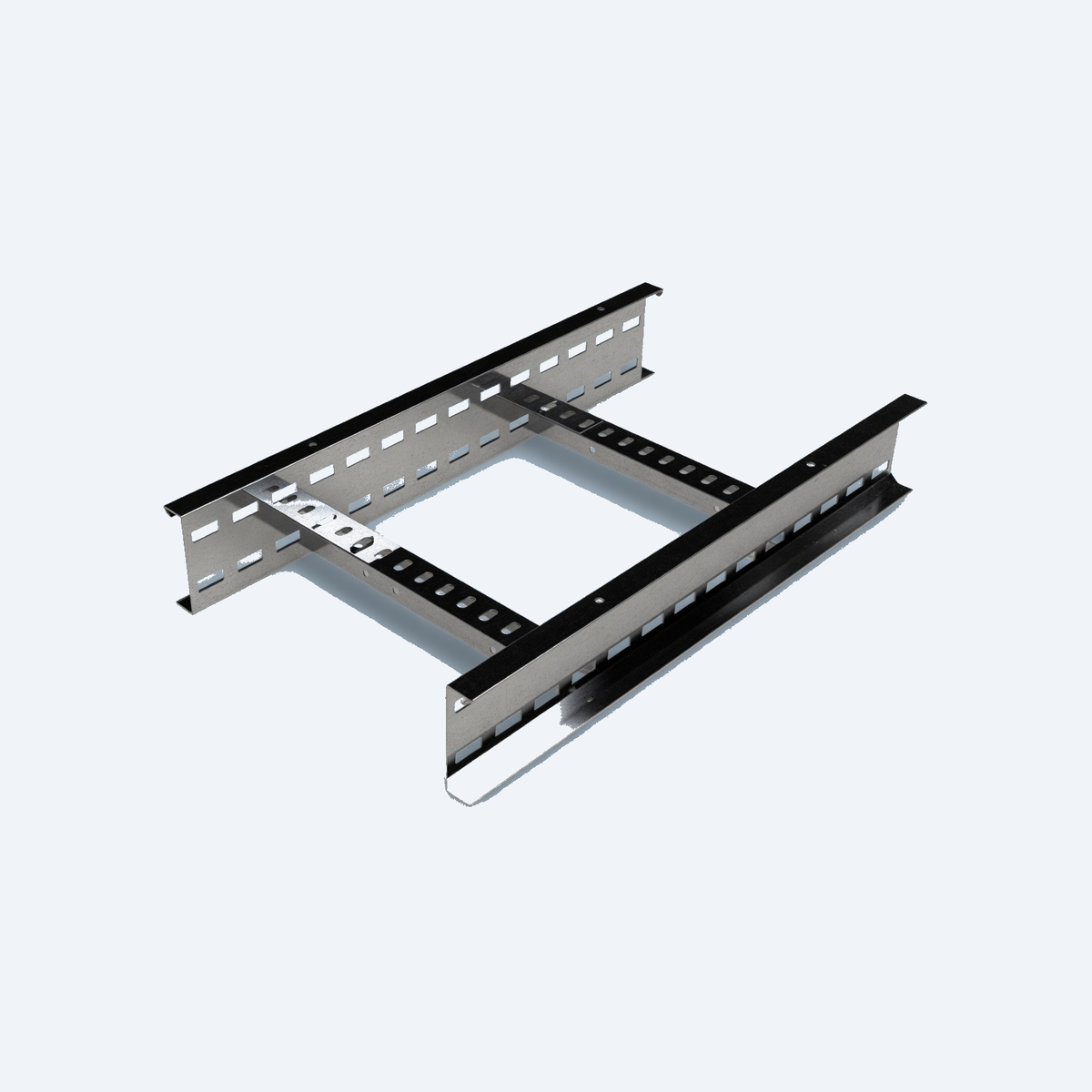

Straight ladder section for level or inclined cable runs.
Photos & drawings
Description
Straight APO ladder section for level or inclined runs. Every APO fitting and cover matches its height and width.
APO100System and height: APO system, 100 mm height
System letters, then the height in millimetres.
Published item codes
| Part number | Height (mm) | Width (mm) | Thickness (mm) | Length (m) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|---|---|
| APO100-ST-100-1.5-3-A4 | 100 | 100 | 1.5 | 3 | SS316L | 12.60 | |
| APO100-ST-100-1.5-3-G | 100 | 100 | 1.5 | 3 | Hot-Dip Galvanized | 12.32 | |
| APO100-ST-100-1.5-6-A4 | 100 | 100 | 1.5 | 6 | SS316L | 25.20 | |
| APO100-ST-100-2-3-A4 | 100 | 100 | 2 | 3 | SS316L | 16.80 | |
| APO100-ST-100-2-3-G | 100 | 100 | 2 | 3 | Hot-Dip Galvanized | 16.43 | |
| APO100-ST-100-2-6-A4 | 100 | 100 | 2 | 6 | SS316L | 33.60 | |
| APO100-ST-125-1.5-3-A4 | 100 | 125 | 1.5 | 3 | SS316L | 12.87 | |
| APO100-ST-125-1.5-3-G | 100 | 125 | 1.5 | 3 | Hot-Dip Galvanized | 12.56 | |
| APO100-ST-125-1.5-6-A4 | 100 | 125 | 1.5 | 6 | SS316L | 25.74 | |
| APO100-ST-125-2-3-A4 | 100 | 125 | 2 | 3 | SS316L | 17.16 |
Not in the list?
Characteristics
| Model | APO100, APO125, APO150 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Material | Stainless Steel 316L, Hot-Dip Galvanized |
| Finish | A4, G |
