90° Horizontal Elbow

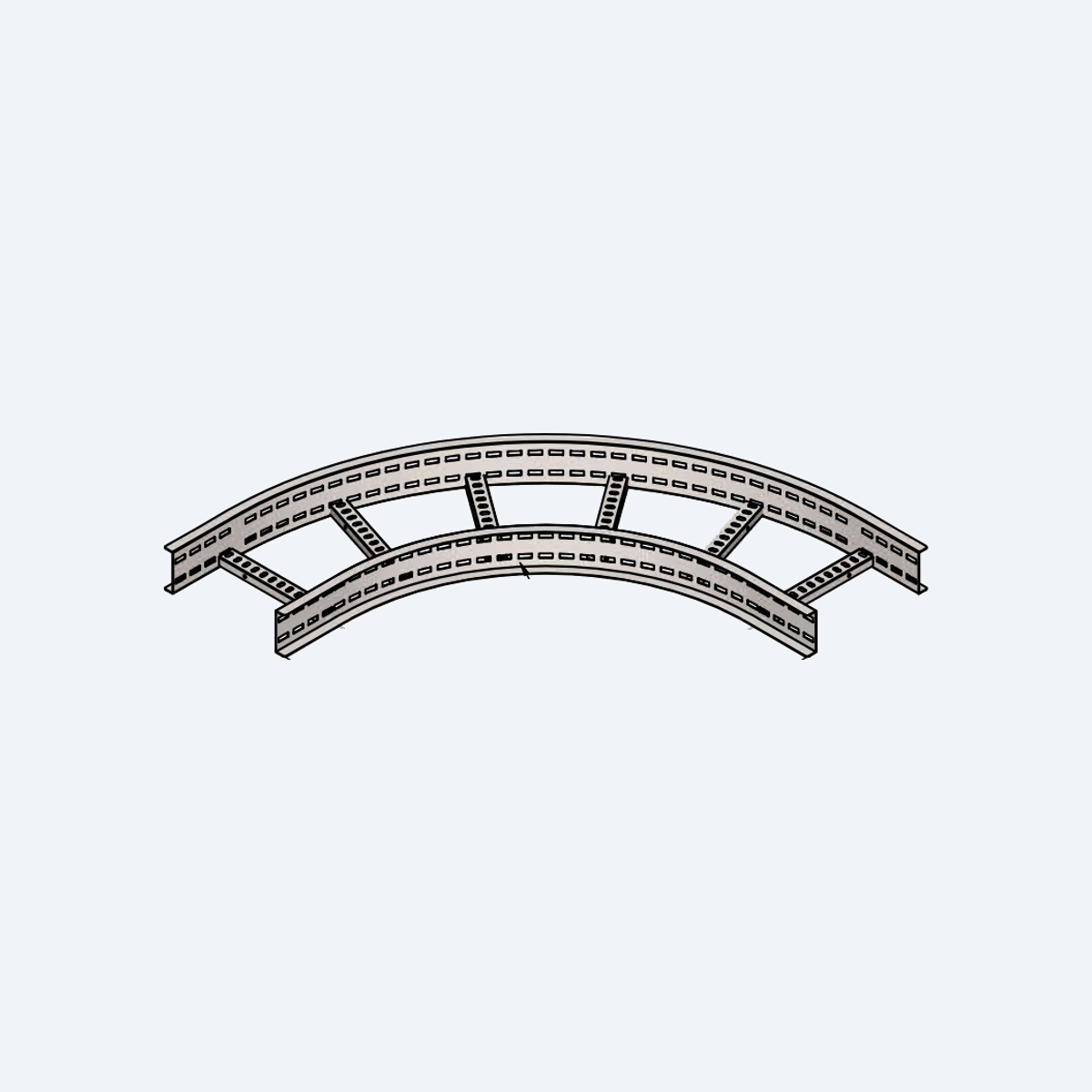

Horizontal elbow for a 90 degree change of direction.
Photos & drawings
Description
The 90° horizontal elbow accommodates a change of direction in a straight APO cable ladder run within the horizontal plane, maintaining the support width and fixing pattern of the adjoining straight sections to preserve continuity of cable support through the bend.
Specified together with matching straight sections, splice plates and, on enclosed runs, the corresponding cover, to maintain enclosure continuity through the change of direction.
Published item codes
| Part number | Height (mm) | Width (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|---|
| APO100-E90-100-1.5-R30-A4 | 100 | 100 | 1.5 | SS316L | 4.01 | |
| APO100-E90-100-1.5-R30-G | 100 | 100 | 1.5 | Hot-Dip Galvanized | 3.92 | |
| APO100-E90-100-2-R30-A4 | 100 | 100 | 2 | SS316L | 5.35 | |
| APO100-E90-100-2-R30-G | 100 | 100 | 2 | Hot-Dip Galvanized | 5.22 | |
| APO100-E90-125-1.5-R30-A4 | 100 | 125 | 1.5 | SS316L | 4.21 | |
| APO100-E90-125-1.5-R30-G | 100 | 125 | 1.5 | Hot-Dip Galvanized | 4.10 | |
| APO100-E90-125-2-R30-A4 | 100 | 125 | 2 | SS316L | 5.61 | |
| APO100-E90-125-2-R30-G | 100 | 125 | 2 | Hot-Dip Galvanized | 5.46 | |
| APO100-E90-150-1.5-R30-A4 | 100 | 150 | 1.5 | SS316L | 4.41 | |
| APO100-E90-150-1.5-R30-G | 100 | 150 | 1.5 | Hot-Dip Galvanized | 4.28 |
Not in the list?
Characteristics
| Model | APO100, APO125, APO150 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Radius | 300 mm |
| Material | Stainless Steel 316L, G |
| Finish | A4, G |
