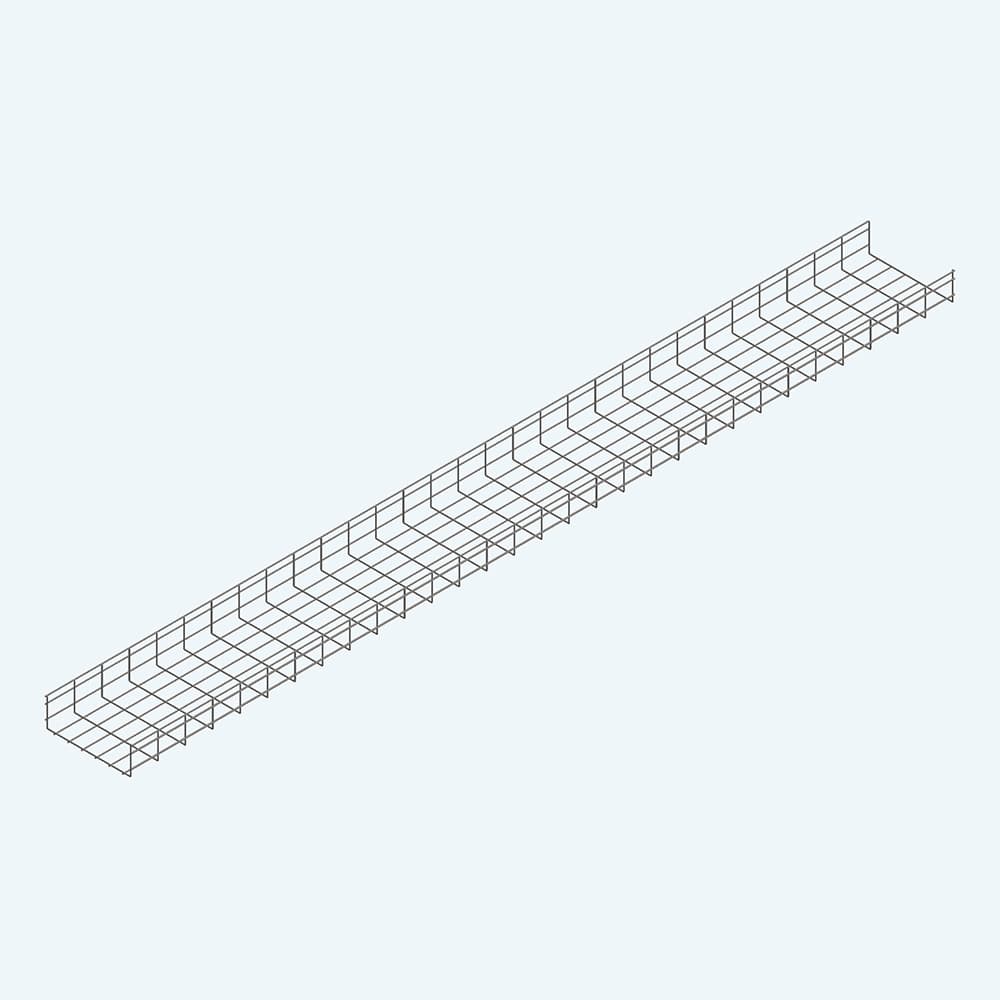

Straight
AWT-ST-…-…
AWT
AWT Wire Mesh Tray
Welded wire basket for rerouting and ventilated cable runs.
- Rail heights
- 25 / 50 / 75 / 100 / 150 / 300 mm
- Widths
- 50, 75, 100, 150, 200, 250, 300, 350… mm
- Thickness
- 3.9 / 4.5 / 4.9 / 5 / 5.9 mm
- Lengths
- 3000 mm
- Finish
- A2, G
- Published codes
- 523
Products
System overview
Welded wire basket for rerouting and ventilated cable runs.
Data
| Model | Loading depth | Thickness | SWL @ 1.5 m (kg/m) | SWL @ 2 m (kg/m) | SWL @ 3 m (kg/m) | NEMA class |
|---|---|---|---|---|---|---|
| AWT50 | 50 mm | 4.5 mm wire | 88 | 50 | 22 | NEMA 5A |
| AWT100 | 100 mm | 4.5 mm wire | 96 | 54 | 24 | NEMA 8AA |
| AWT100 | 100 mm | 5.9 mm wire | 248 | 140 | 62 | NEMA 10AA |
SWL = Destructive load ÷ 1.5 (NEMA VE1). AWT100 has separate ratings for 4.5 mm and 5.9 mm wire diameters.
Downloads
Test reports & certification
- Test report
SIRIM NEMA VE1
Product test reports and certificates for this system. Company certifications are listed under Certifications & standards.
