Vertical Splice Plate
Splice plate for vertical alignment adjustment between tray sections.
Photos & drawings
Description

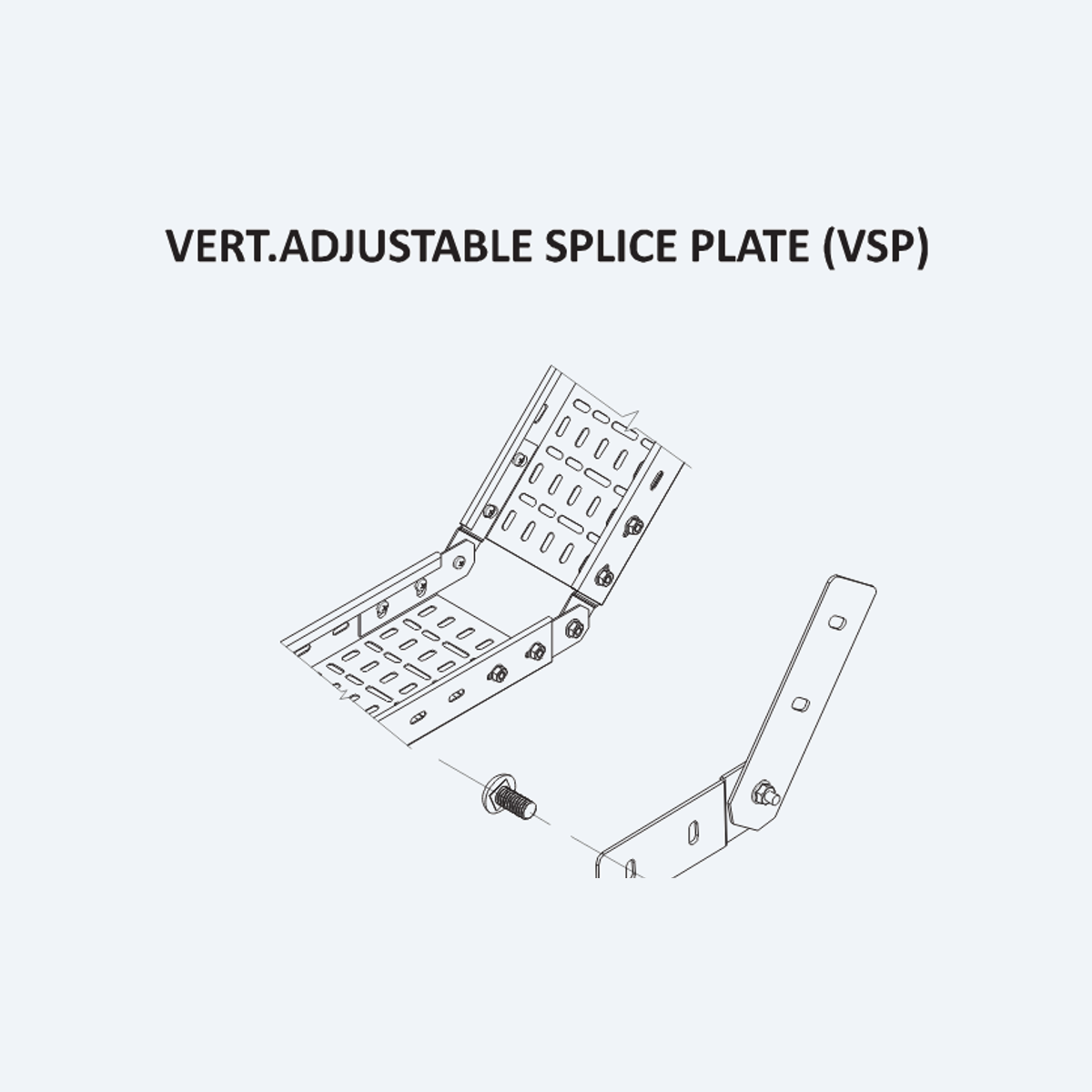

Splice plate joining two straight cable tray sections, incorporating slotted holes to permit vertical alignment adjustment where a run steps slightly between sections.
Specified at straight-to-straight or straight-to-fitting joints requiring vertical adjustment; a standard splice plate is specified where no adjustment is required.
Published item codes
| Part number | Height (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|
| ART50-VSP-1.5-A4 | 50 | 1.5 | SS316L | 0.31 | |
| ART50-VSP-1.5-G | 50 | 1.5 | Hot-Dip Galvanized | 0.30 | |
| ART50-VSP-2-A4 | 50 | 2 | SS316L | 0.41 | |
| ART50-VSP-2-G | 50 | 2 | Hot-Dip Galvanized | 0.40 | |
| ART75-VSP-1.5-A4 | 75 | 1.5 | SS316L | 0.42 | |
| ART75-VSP-1.5-G | 75 | 1.5 | Hot-Dip Galvanized | 0.42 | |
| ART75-VSP-2-A4 | 75 | 2 | SS316L | 0.56 | |
| ART75-VSP-2-G | 75 | 2 | Hot-Dip Galvanized | 0.56 |
Not in the list?
Characteristics
| Model | ART50, ART75 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Material | A4, Hot-Dip Galvanized |
| Finish | A4, G |
