ART · DI

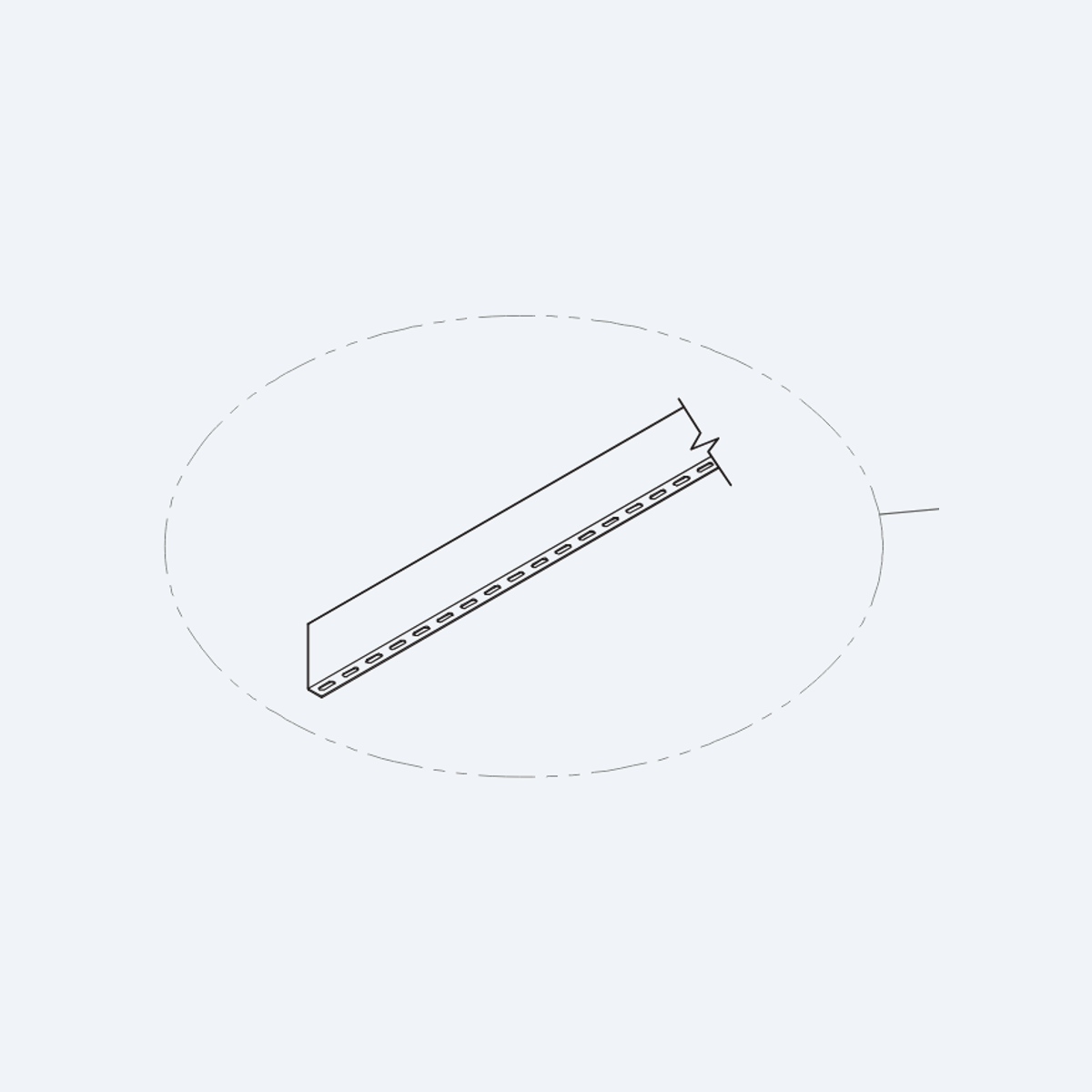

Straight Divider
Divider for segregating cables within a straight tray run.
Photos & drawings
Description
Straight divider segregating cables within a single tray run, maintaining separation between circuits — power and data, for example — that must not share a common open channel.
Spans the length of the straight section to which it is fitted; specify length for length with the tray it divides.
Published item codes
| Part number | Height (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|
| ART50-DI-1.5-3-A4 | 50 | 1.5 | SS316L | 3.78 | |
| ART50-DI-1.5-3-G | 50 | 1.5 | Hot-Dip Galvanized | 3.73 | |
| ART50-DI-2-3-A4 | 50 | 2 | SS316L | 5.04 | |
| ART50-DI-2-3-G | 50 | 2 | Hot-Dip Galvanized | 4.98 | |
| ART75-DI-1.5-3-A4 | 75 | 1.5 | SS316L | 4.68 | |
| ART75-DI-1.5-3-G | 75 | 1.5 | Hot-Dip Galvanized | 4.62 | |
| ART75-DI-2-3-A4 | 75 | 2 | SS316L | 6.24 | |
| ART75-DI-2-3-G | 75 | 2 | Hot-Dip Galvanized | 6.16 |
Not in the list?
Characteristics
| Model | ART50, ART75 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Material | A4, Hot-Dip Galvanized |
| Finish | A4, G |
