AMT · SP

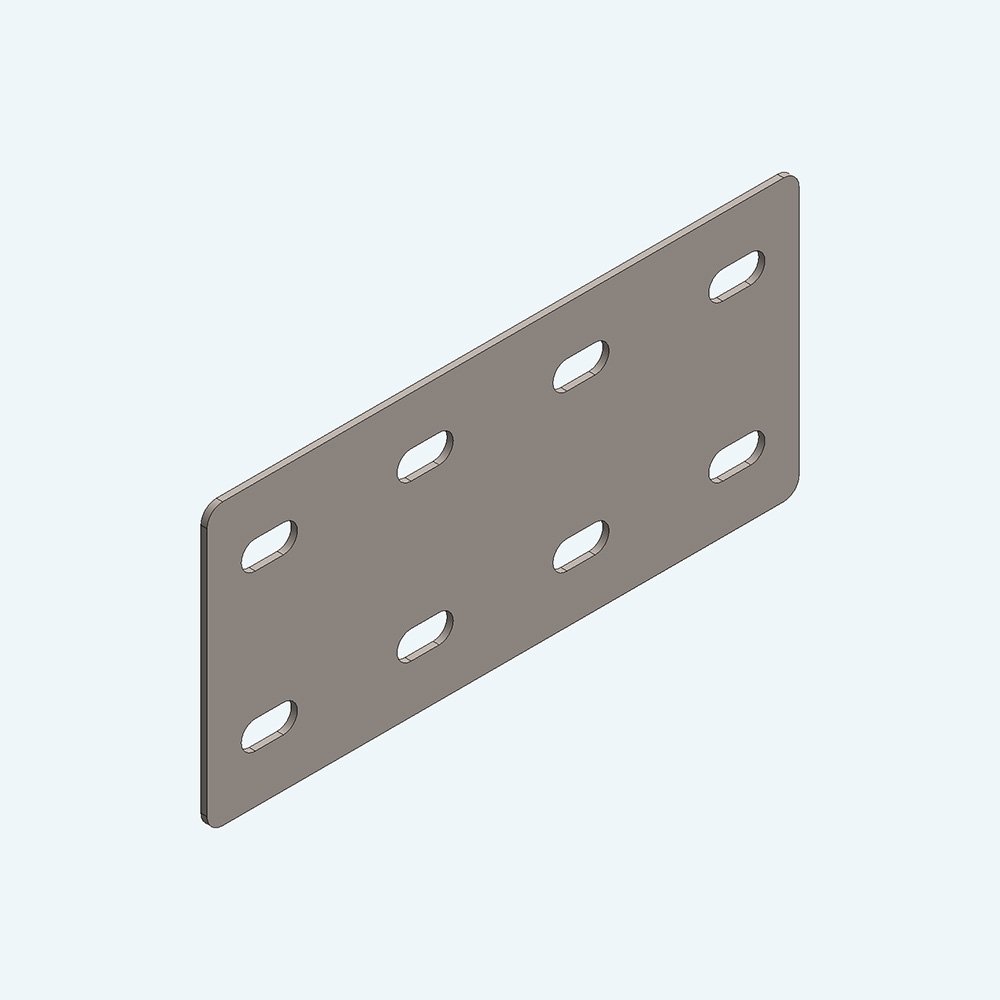

Splice Plate
Connecting plate for joining adjoining tray sections.
Photos & drawings
Description
Connecting plate joining two adjoining cable tray sections at a straight joint, maintaining alignment without the adjustment provided by the HSP or VSP variants.
Specified at straight-to-straight or straight-to-fitting joints that do not require horizontal or vertical adjustment.
Published item codes
| Part number | Height (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|
| AMT100-SP-1.5-A4 | 100 | 1.5 | SS316L | 0.26 | |
| AMT100-SP-1.5-G | 100 | 1.5 | Hot-Dip Galvanized | 0.30 | |
| AMT100-SP-2-A4 | 100 | 2 | SS316L | 0.35 | |
| AMT100-SP-2-G | 100 | 2 | Hot-Dip Galvanized | 0.41 | |
| AMT150-SP-1.5-A4 | 150 | 1.5 | SS316L | 0.38 | |
| AMT150-SP-1.5-G | 150 | 1.5 | Hot-Dip Galvanized | 0.42 | |
| AMT150-SP-2-A4 | 150 | 2 | SS316L | 0.50 | |
| AMT150-SP-2-G | 150 | 2 | Hot-Dip Galvanized | 0.56 | |
| AMT200-SP-1.5-G | 200 | 1.5 | Hot-Dip Galvanized | 0.53 | |
| AMT200-SP-2-G | 200 | 2 | Hot-Dip Galvanized | 0.71 |
Not in the list?
Characteristics
| Model | AMT100, AMT150, AMT200 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Material | A4, Hot-Dip Galvanized |
| Finish | A4, G |
