AMT Cable Tray

Medium-duty cable tray in AMT100, AMT150 and AMT200 for heavier fills than ART, hot-dip galvanized or stainless 316L.

Rail heights: 100 / 150 / 200 mm
Widths: 100, 125, 150, 200, 250, 300, 400, 450… mm
Thickness: 1.5 / 2 mm
Lengths: 3000 mm
Finish: A4, G
Published codes: 2,020

Products

Displaying 1–16 of 26 products · All AMT part number options →

E30

Cover Clamp Type C

AMT-CCC-…-…

Thickness 2 mm

View item

CP-LC

System overview

AMT is Array Metal's medium-duty cable tray, in three heights, AMT100, AMT150 and AMT200, for heavier cable fills than ART. It uses the same fitting types as ART and is published in hot-dip galvanized and stainless 316L.

Materials

Hot-Dip Galvanized

Certification

NEMA VE1BS EN ISO 1461

AssembledExploded

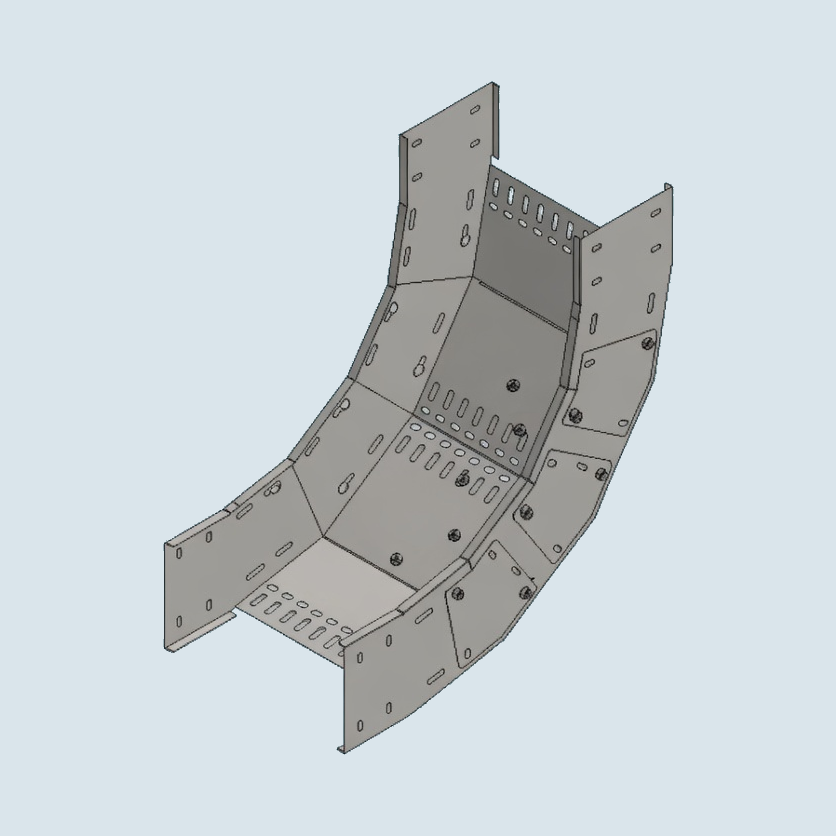

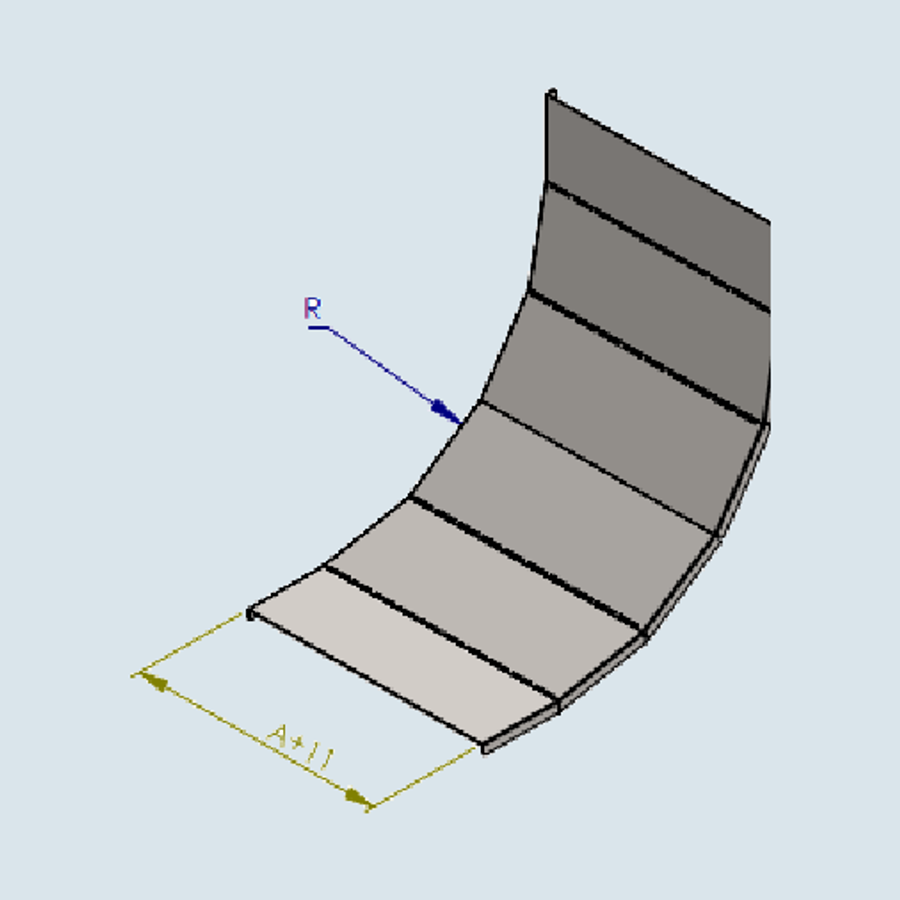

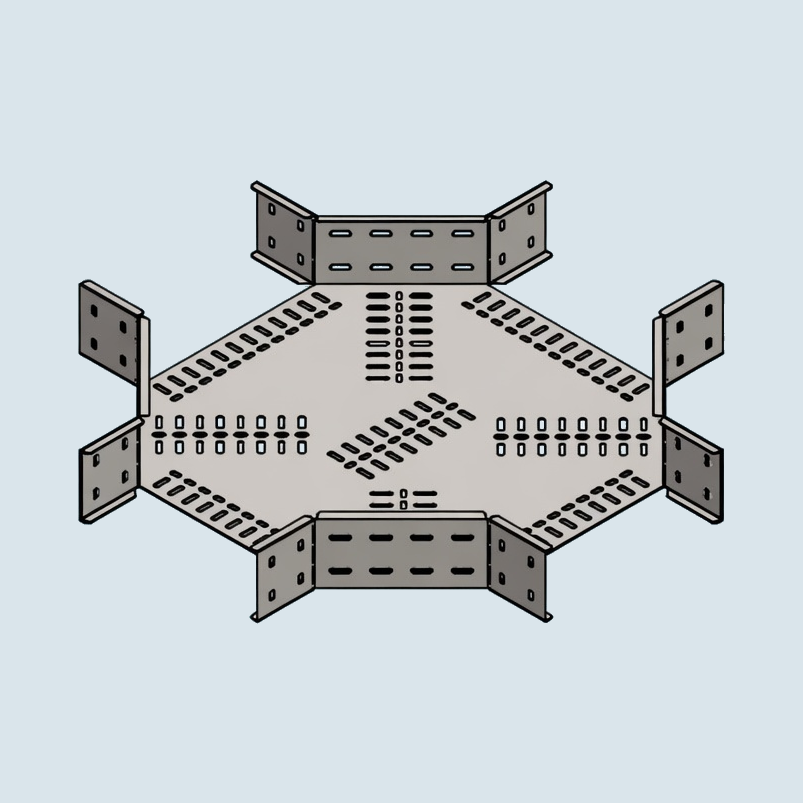

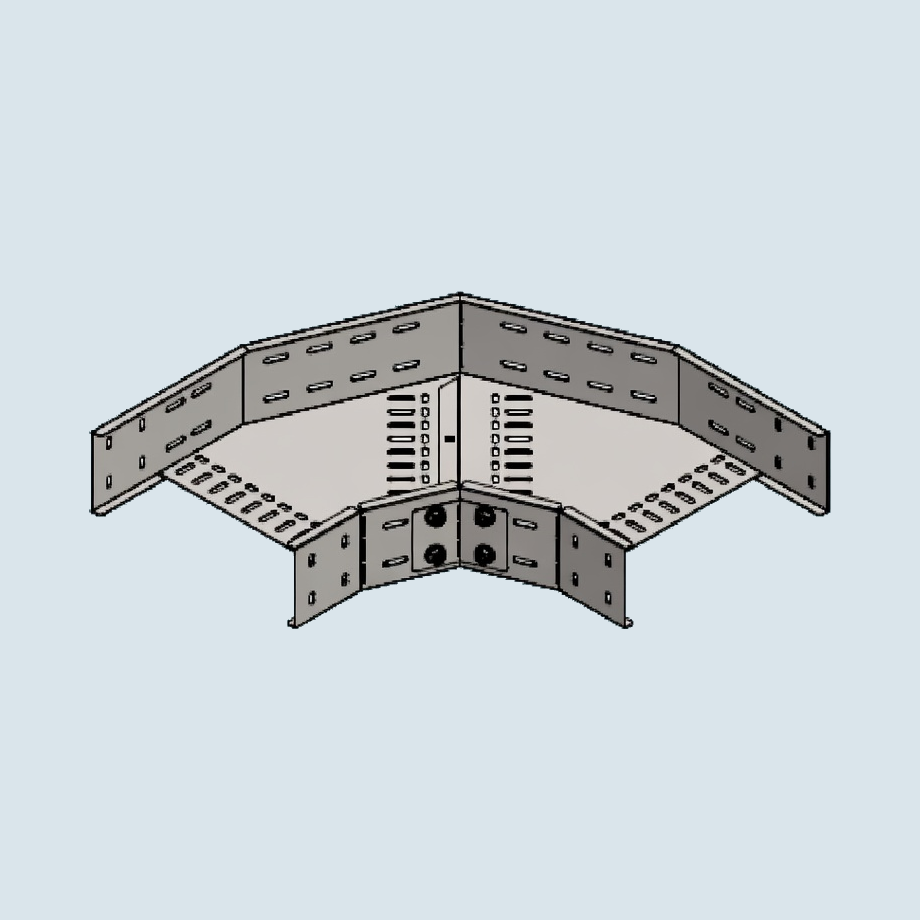

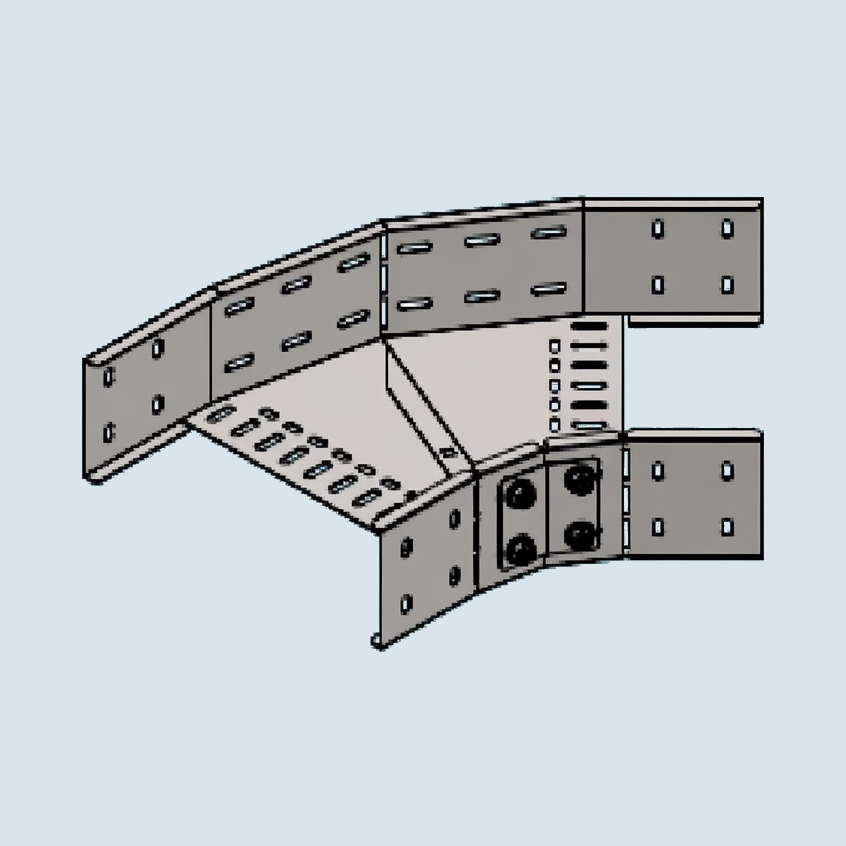

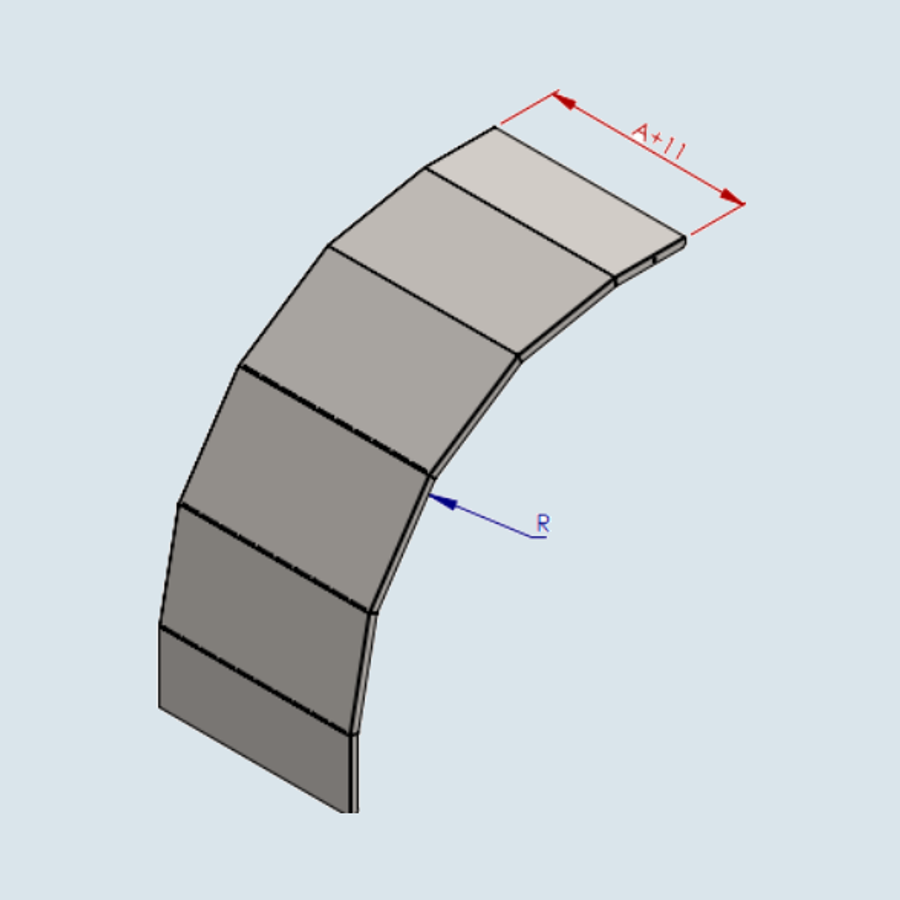

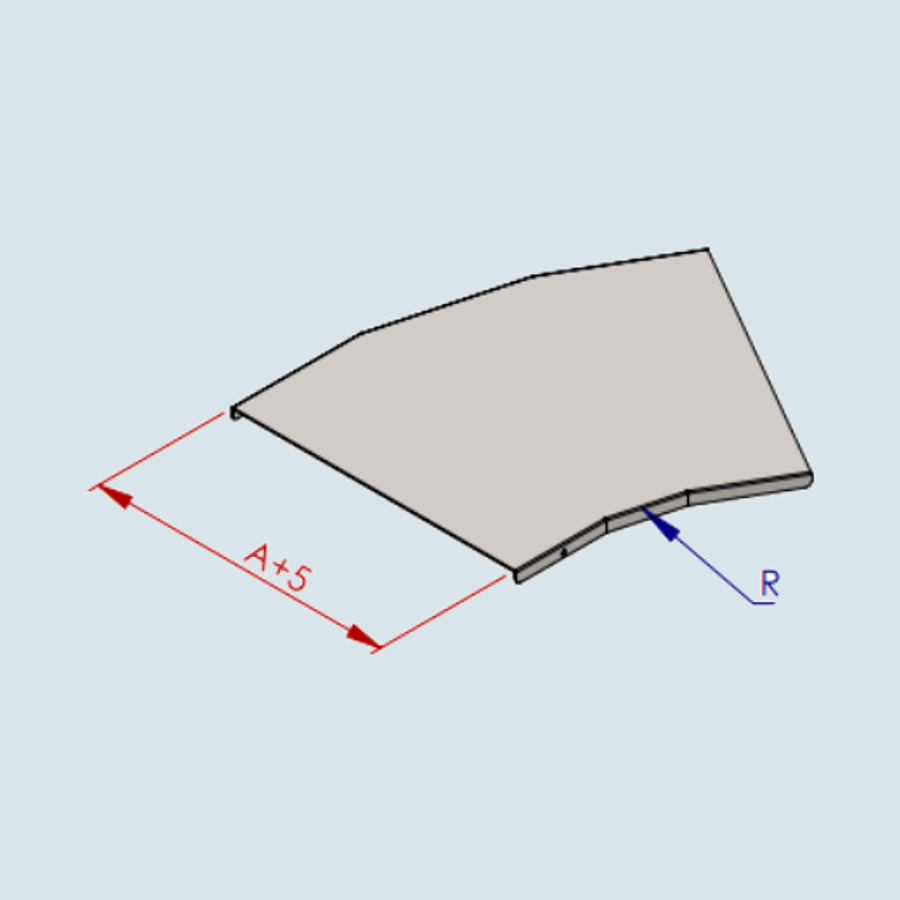

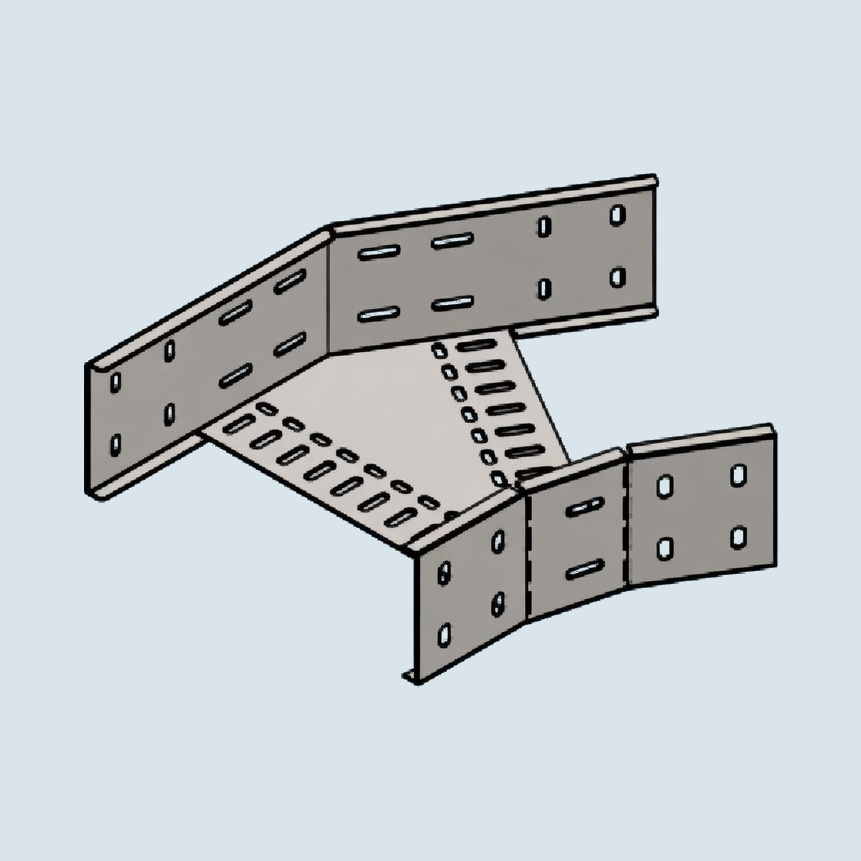

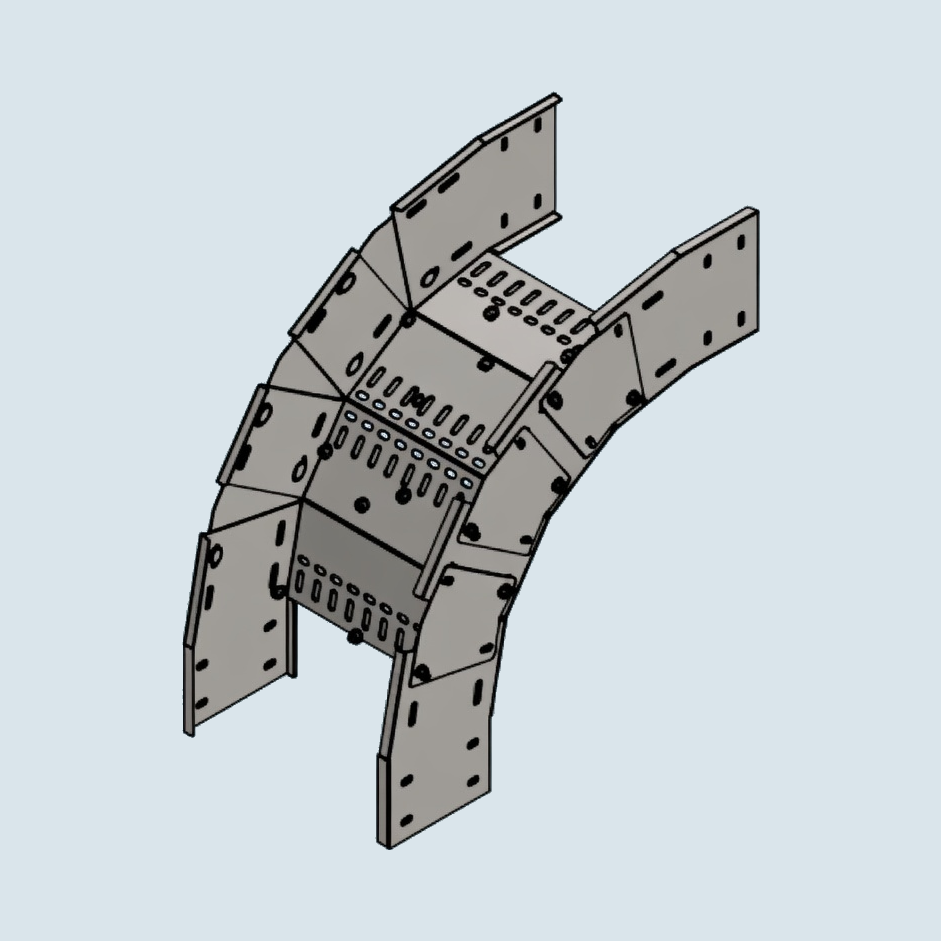

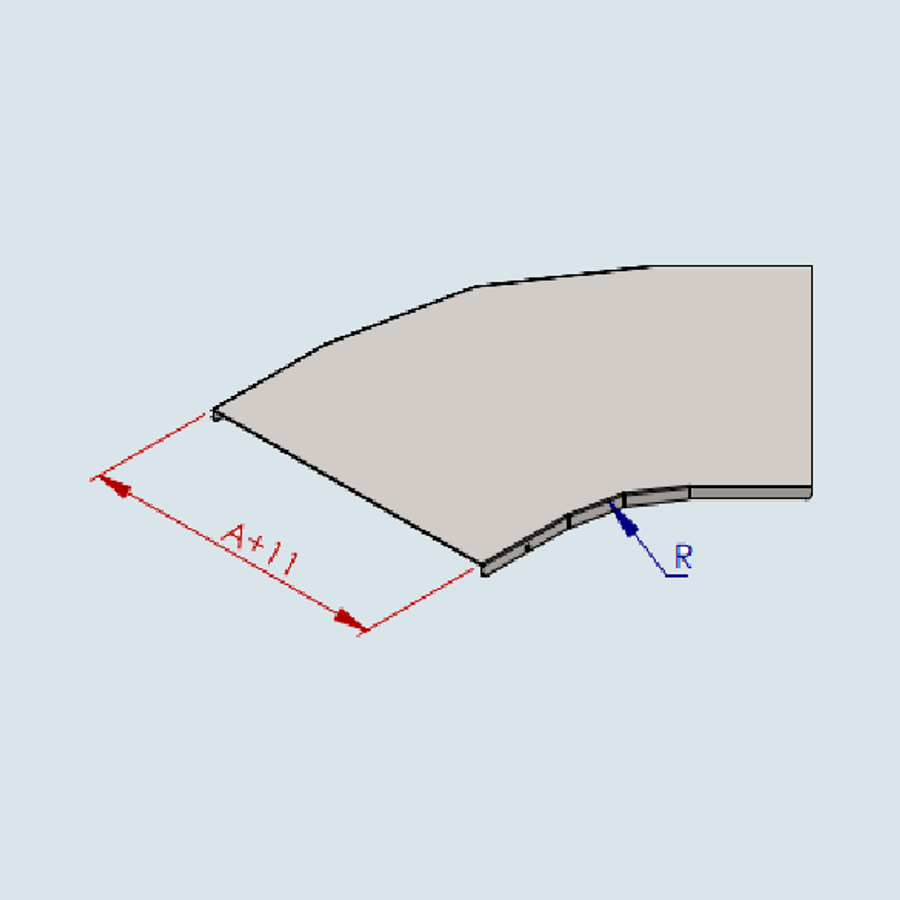

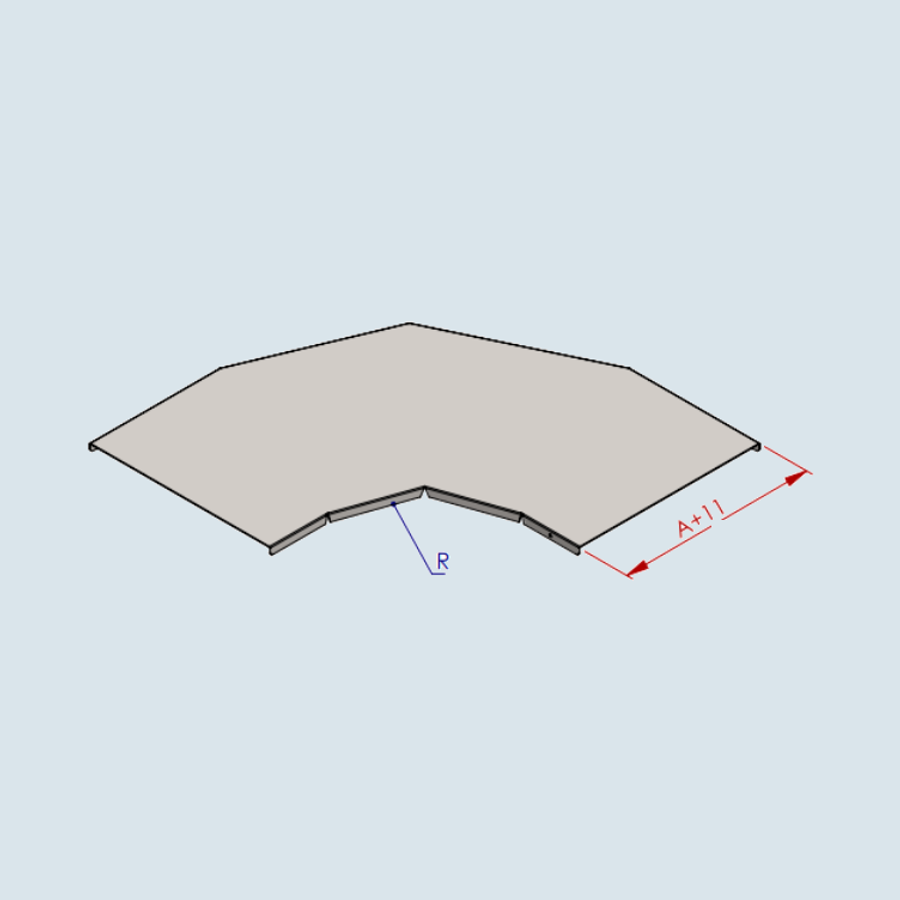

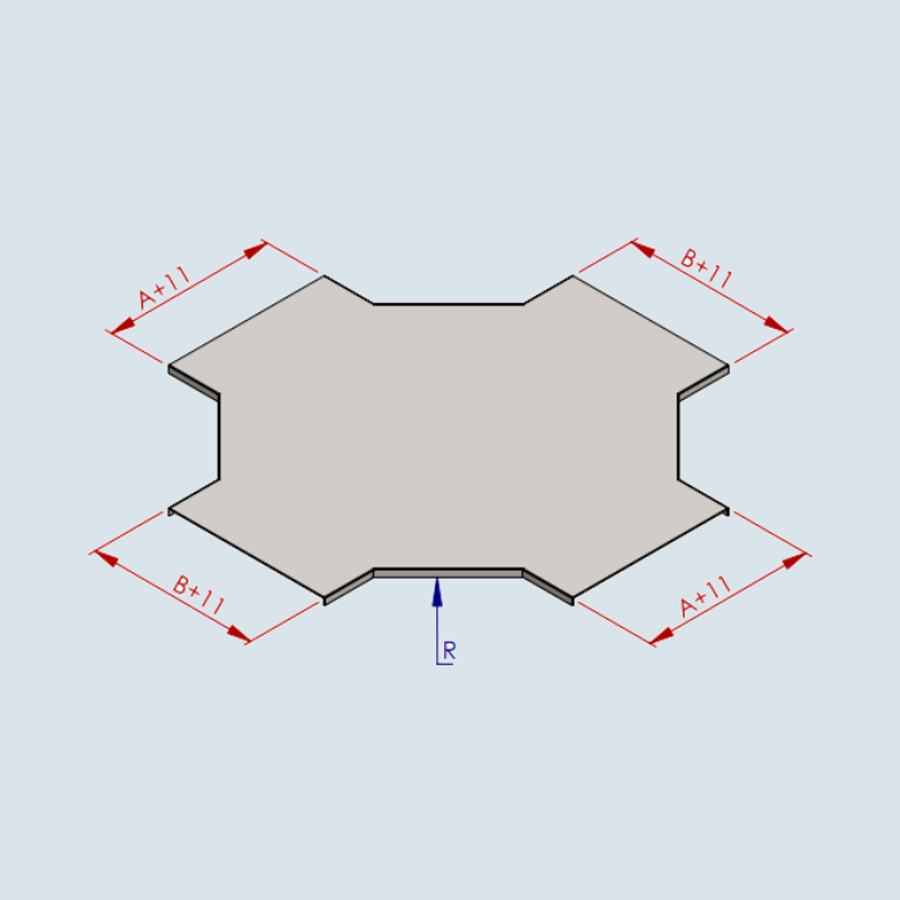

Isometric cable tray run — straights, elbows, tees, crosses, reducers, risers and splice plates, with the covers that fit them. — Standard components of the system. A filled number is the tray or fitting; the same number outlined is the cover that fits it. Hover a number or a name to pick it out. Zoom in and drag to look closer.

Data

Check a load case

Test method: NEMA VE1 · Material: Hot-Dip Galvanized (HDG) · Standard: NEMA VE1-2009 · Safety factor: ×1.5

Model	Loading depth	Thickness	SWL @ 1.5 m (kg/m)	SWL @ 2 m (kg/m)	SWL @ 3 m (kg/m)	NEMA class
ART50	50 mm	1.5 / 2 mm	484	272	121	NEMA 20AA
AMT100	100 mm	1.5 / 2 mm	716	403	179	NEMA 20B

SWL = Destructive load ÷ 1.5 (NEMA VE1-2009). Available lengths: 3 m and 6 m. Deflection limit: L/100 at SWL. 1.5 m and 2 m figures are interpolated from the 3 m test.

Test method: IEC 61537:2006, Test Type 2 · Material: Hot-Dip Galvanized (HDG) · Standard: IEC 61537:2006 · Safety factor: ×1.7

Model	Loading depth	Thickness	SWL @ 1.5 m (kg/m)	SWL @ 2 m (kg/m)	SWL @ 3 m (kg/m)
ART50	50 mm	1.5 / 2 mm	392	221	98
AMT100	100 mm	1.5 / 2 mm	1076	605	269

SWL = Breaking load ÷ 1.7 (IEC 61537:2006, Test Type 2). Available lengths: 3 m and 6 m. 1.5 m and 2 m figures are interpolated from the 3 m test.

Design details

Three tray profiles

ALT is a shallow flanged tray for light indoor runs. ART adds taller sides finished with a rolled top edge that stiffens the side and keeps cable sheaths off a cut edge. AMT is the deep return-flange profile for heavier fills.

In-built splice plates
Bends, tees and crosses carry their splice built into the side walls, so a fitting laps over the tray and bolts up with no separate splice plates. Straight lengths are joined with standard splice plates.

Test reports & certification

Test report
Cable Tray MS IEC61537:2007
2026-05
Test report
DNV Verification - Cable Ladder & Tray
2017-08
Test report
SIRIM NEMA VE1
2017-08

Product test reports and certificates for this system. Company certifications are listed under Certifications & standards.
