AMT · DI

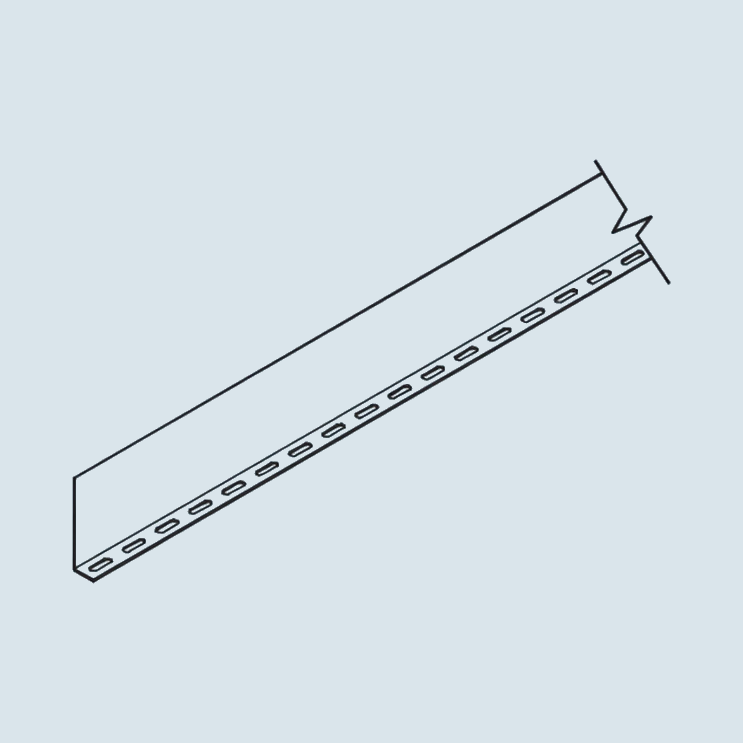

Straight Divider
Divider for segregating cables within a straight tray run.
Photos & drawings
Description
Straight divider segregating cables within a single tray run, maintaining separation between circuits — power and data, for example — that must not share a common open channel.
Spans the length of the straight section to which it is fitted; specify length for length with the tray it divides.
Published item codes
| Part number | Height (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|
| AMT100-DI-1.5-3-A4 | 100 | 1.5 | SS316L | 5.58 | |
| AMT100-DI-1.5-3-G | 100 | 1.5 | Hot-Dip Galvanized | 5.51 | |
| AMT100-DI-2-3-A4 | 100 | 2 | SS316L | 7.44 | |
| AMT100-DI-2-3-G | 100 | 2 | Hot-Dip Galvanized | 7.35 | |
| AMT150-DI-1.5-3-A4 | 150 | 1.5 | SS316L | 7.38 | |
| AMT150-DI-1.5-3-G | 150 | 1.5 | Hot-Dip Galvanized | 7.29 | |
| AMT150-DI-2-3-A4 | 150 | 2 | SS316L | 9.84 | |
| AMT150-DI-2-3-G | 150 | 2 | Hot-Dip Galvanized | 9.72 | |
| AMT200-DI-1.5-3-G | 200 | 1.5 | Hot-Dip Galvanized | 9.07 | |
| AMT200-DI-2-3-G | 200 | 2 | Hot-Dip Galvanized | 12.09 |
Not in the list?
Characteristics
| Model | AMT100, AMT150, AMT200 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Material | A4, Hot-Dip Galvanized |
| Finish | A4, G |
