AMT · EP
End Plate
End plate for closing off tray run ends.
Photos & drawings
Description

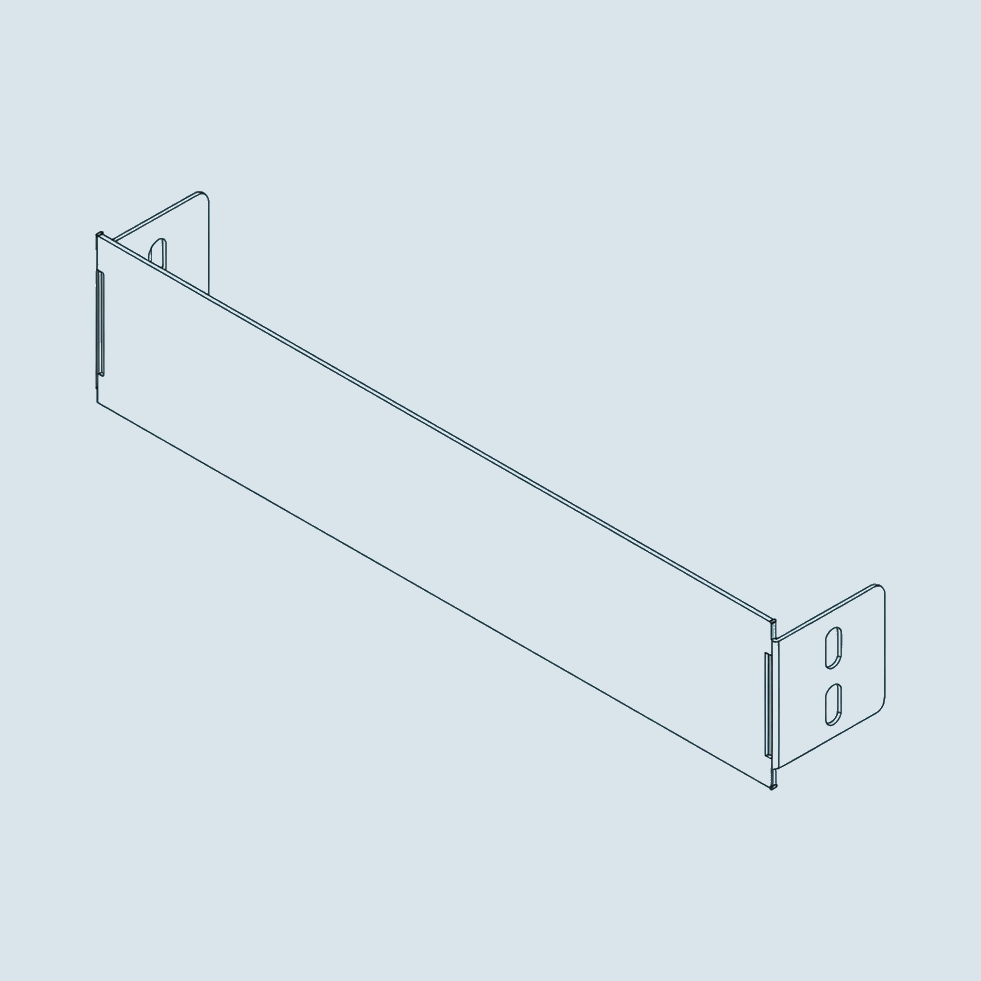

End plate closing the open end of a cable tray run, enclosing exposed cable ends and the tray profile at the termination of a route.
Specified at every dead end of a run; not required where the run continues into a fitting or an additional straight section.
Published item codes
| Part number | Height (mm) | Width (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|---|
| AMT100-EP-100-1.5-A4 | 100 | 100 | 1.5 | SS316L | 0.34 | |
| AMT100-EP-100-1.5-G | 100 | 100 | 1.5 | Hot-Dip Galvanized | 0.34 | |
| AMT100-EP-100-2-A4 | 100 | 100 | 2 | SS316L | 0.45 | |
| AMT100-EP-100-2-G | 100 | 100 | 2 | Hot-Dip Galvanized | 0.45 | |
| AMT100-EP-125-1.5-A4 | 100 | 125 | 1.5 | SS316L | 0.40 | |
| AMT100-EP-125-1.5-G | 100 | 125 | 1.5 | Hot-Dip Galvanized | 0.39 | |
| AMT100-EP-125-2-A4 | 100 | 125 | 2 | SS316L | 0.53 | |
| AMT100-EP-125-2-G | 100 | 125 | 2 | Hot-Dip Galvanized | 0.53 | |
| AMT100-EP-150-1.5-A4 | 100 | 150 | 1.5 | SS316L | 0.46 | |
| AMT100-EP-150-1.5-G | 100 | 150 | 1.5 | Hot-Dip Galvanized | 0.45 |
Not in the list?
Characteristics
| Model | AMT100, AMT150, AMT200 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Material | A4, Hot-Dip Galvanized |
| Finish | A4, G |
