AZL · OR90

90° Outside Riser

Name: AZL 90° Outside Riser
Brand: Array Metal
SKU: AZL100-OR90-100-1.5-R30-G

Vertical riser for a 90 degree outside change of elevation.

Photos & drawings

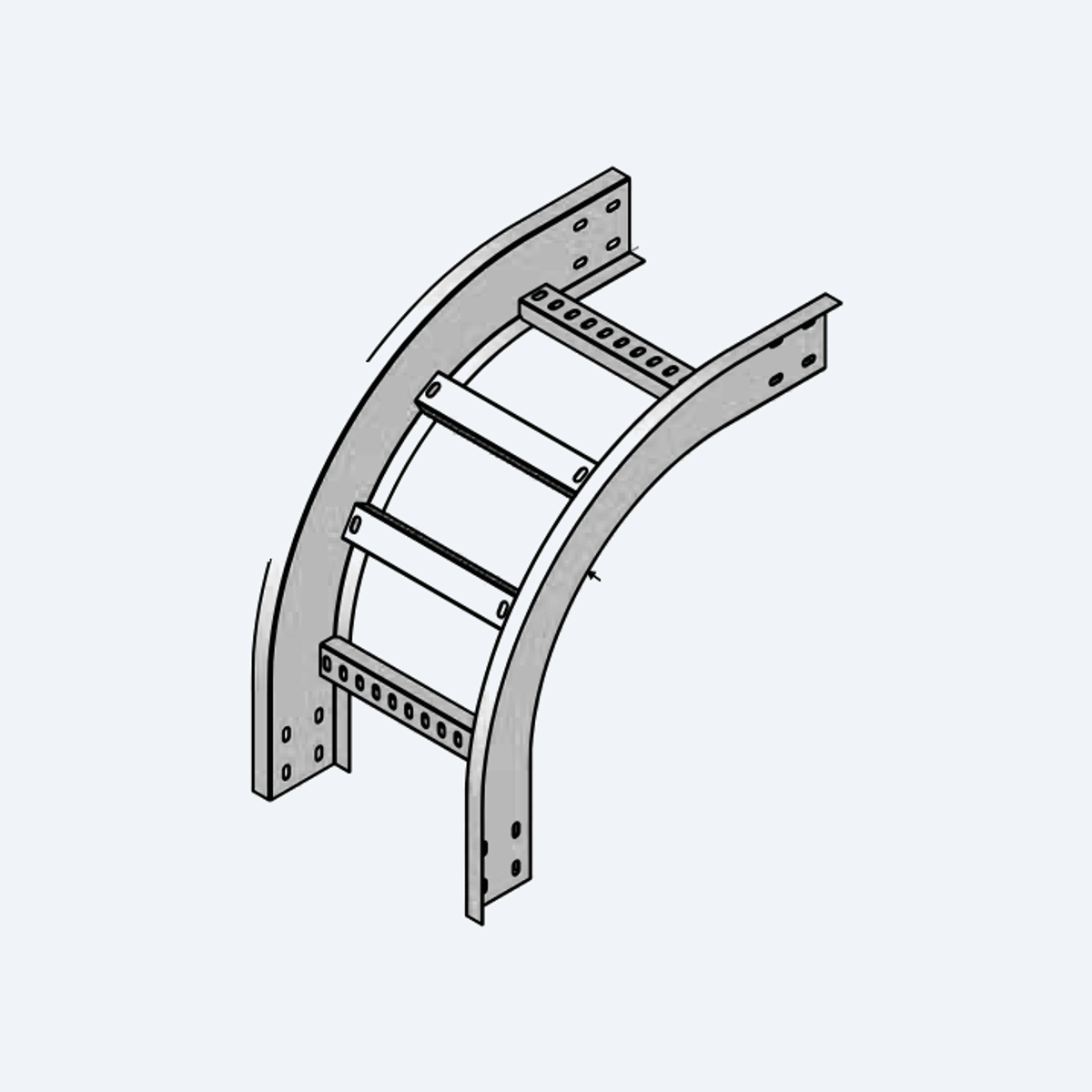

Outside riser: bends an AZL ladder run 90° in the vertical plane, with the cable side on the outside of the bend.

Rail height and width match the AZL straights, and it joins them with standard splice plates.

ExampleAZL100-OR90-100-1.5-R30-GLook up this code →

AZL100System and height: AZL system, 100 mm height

System letters, then the height in millimetres.

Published in 3 options. Select one to change the code.

72 shown

Displaying 1–10 of 72 item codes

Per page

Part number	Height (mm)	Width (mm)	Thickness (mm)	Finish	Weight (kg)
AZL100-OR90-100-1.5-R30-G	100	100	1.5	Hot-Dip Galvanized	3.65
AZL100-OR90-100-2-R30-G	100	100	2	Hot-Dip Galvanized	4.86
AZL100-OR90-125-1.5-R30-G	100	125	1.5	Hot-Dip Galvanized	3.74
AZL100-OR90-125-2-R30-G	100	125	2	Hot-Dip Galvanized	4.98
AZL100-OR90-150-1.5-R30-G	100	150	1.5	Hot-Dip Galvanized	3.83
AZL100-OR90-150-2-R30-G	100	150	2	Hot-Dip Galvanized	5.11
AZL100-OR90-200-1.5-R30-G	100	200	1.5	Hot-Dip Galvanized	4.01
AZL100-OR90-200-2-R30-G	100	200	2	Hot-Dip Galvanized	5.35
AZL100-OR90-300-1.5-R30-G	100	300	1.5	Hot-Dip Galvanized	4.38
AZL100-OR90-300-2-R30-G	100	300	2	Hot-Dip Galvanized	5.84

Not in the list?
