AZL · OR90-LC

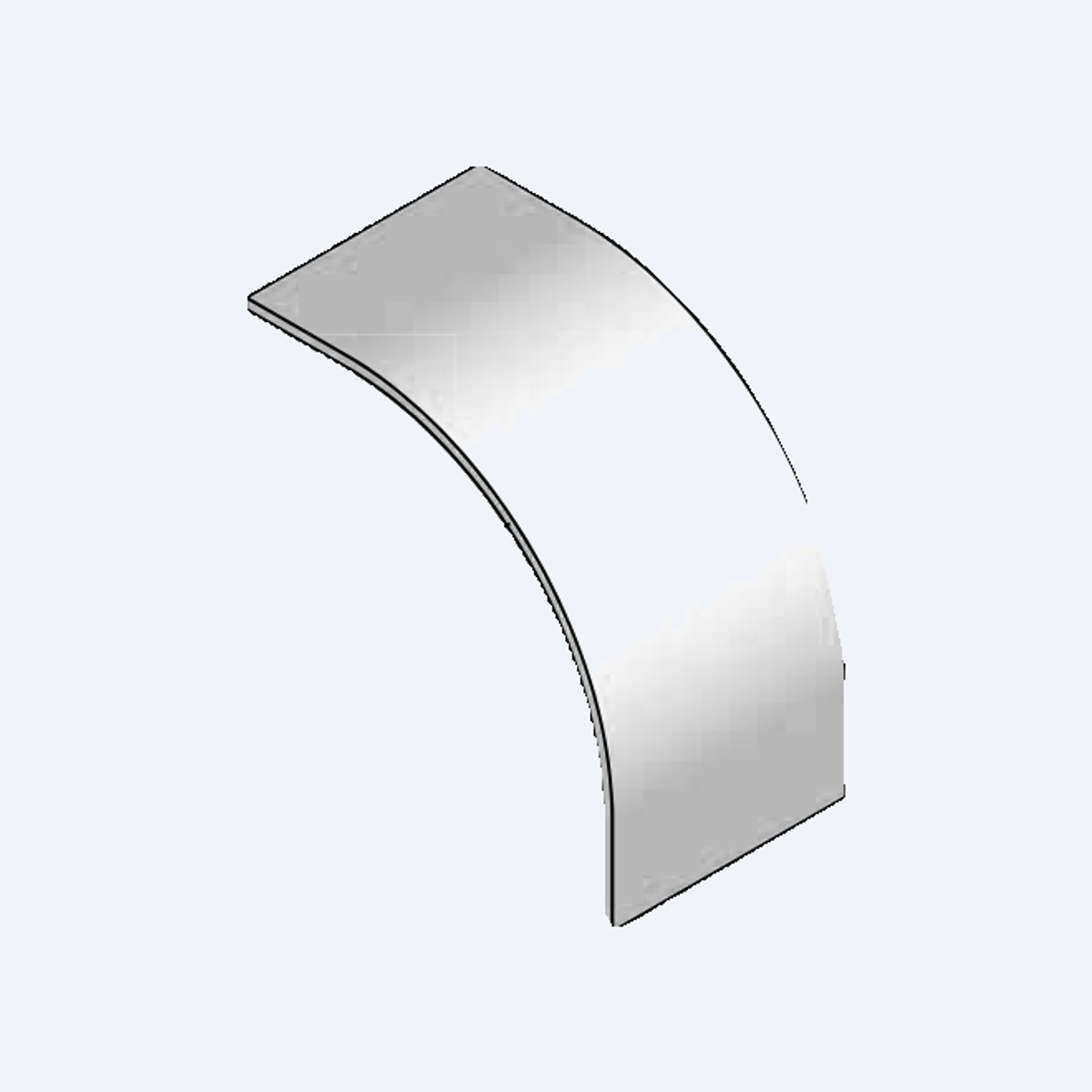

90° Outside Riser Lipped Cover
Lipped cover for an AZL 90 degree outside riser.
Photos & drawings
Published item codes
| Part number | Height (mm) | Width (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|---|
| AZL100-OR90-LC-100-1.5-R30-G | 100 | 100 | 1.5 | Hot-Dip Galvanized | 1.65 | |
| AZL100-OR90-LC-100-2-R30-G | 100 | 100 | 2 | Hot-Dip Galvanized | 2.19 | |
| AZL100-OR90-LC-125-1.5-R30-G | 100 | 125 | 1.5 | Hot-Dip Galvanized | 1.87 | |
| AZL100-OR90-LC-125-2-R30-G | 100 | 125 | 2 | Hot-Dip Galvanized | 2.50 | |
| AZL100-OR90-LC-150-1.5-R30-G | 100 | 150 | 1.5 | Hot-Dip Galvanized | 2.10 | |
| AZL100-OR90-LC-150-2-R30-G | 100 | 150 | 2 | Hot-Dip Galvanized | 2.80 | |
| AZL100-OR90-LC-200-1.5-R30-G | 100 | 200 | 1.5 | Hot-Dip Galvanized | 2.56 | |
| AZL100-OR90-LC-200-2-R30-G | 100 | 200 | 2 | Hot-Dip Galvanized | 3.41 | |
| AZL100-OR90-LC-300-1.5-R30-G | 100 | 300 | 1.5 | Hot-Dip Galvanized | 3.47 | |
| AZL100-OR90-LC-300-2-R30-G | 100 | 300 | 2 | Hot-Dip Galvanized | 4.63 |
Not in the list?
Characteristics
| Model | AZL100, AZL125, AZL150 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Radius | 300 mm |
| Material | G |
| Finish | G |
