Horizontal Splice Plate
Splice plate for horizontal alignment adjustment between ladder sections.
Photos & drawings
Description

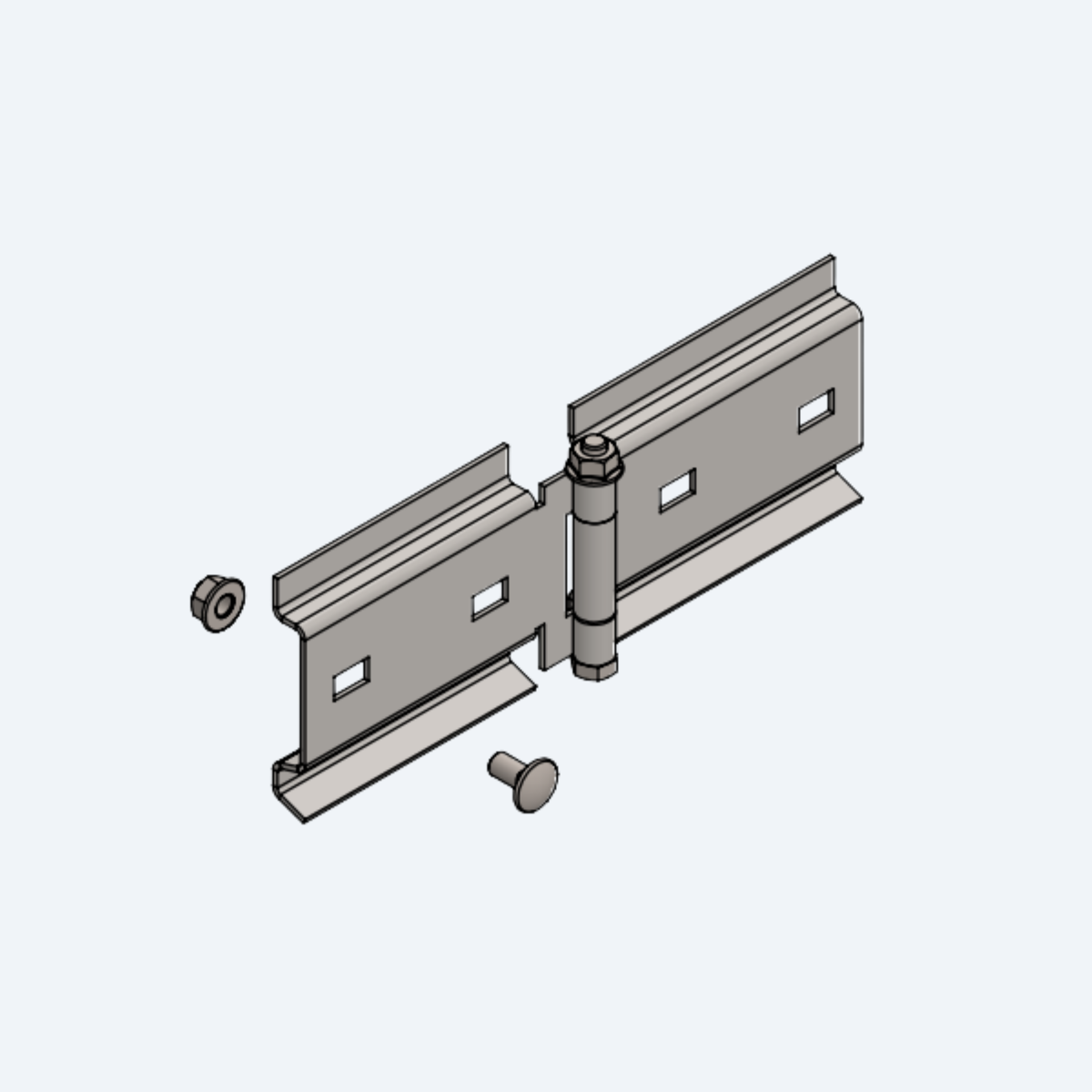

Splice plate joining two straight cable ladder sections, incorporating slotted holes to permit horizontal alignment adjustment where a run departs slightly from true.
Specified at straight-to-straight or straight-to-fitting joints requiring lateral adjustment; a standard splice plate is specified where no adjustment is required.
Published item codes
| Part number | Height (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|
| AML100-HSP-1.5-G | 100 | 1.5 | Hot-Dip Galvanized | 0.45 | |
| AML100-HSP-2-G | 100 | 2 | Hot-Dip Galvanized | 0.60 | |
| AML125-HSP-1.5-G | 125 | 1.5 | Hot-Dip Galvanized | 0.53 | |
| AML125-HSP-2-G | 125 | 2 | Hot-Dip Galvanized | 0.70 | |
| AML150-HSP-1.5-G | 150 | 1.5 | Hot-Dip Galvanized | 0.61 | |
| AML150-HSP-2-G | 150 | 2 | Hot-Dip Galvanized | 0.81 |
Not in the list?
Characteristics
| Model | AML100, AML125, AML150 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Material | Hot-Dip Galvanized |
| Finish | G |
