AML · HDCB
Hold-Down Clamp B
Clamp fitting for securing the ladder to its support structure, type B.

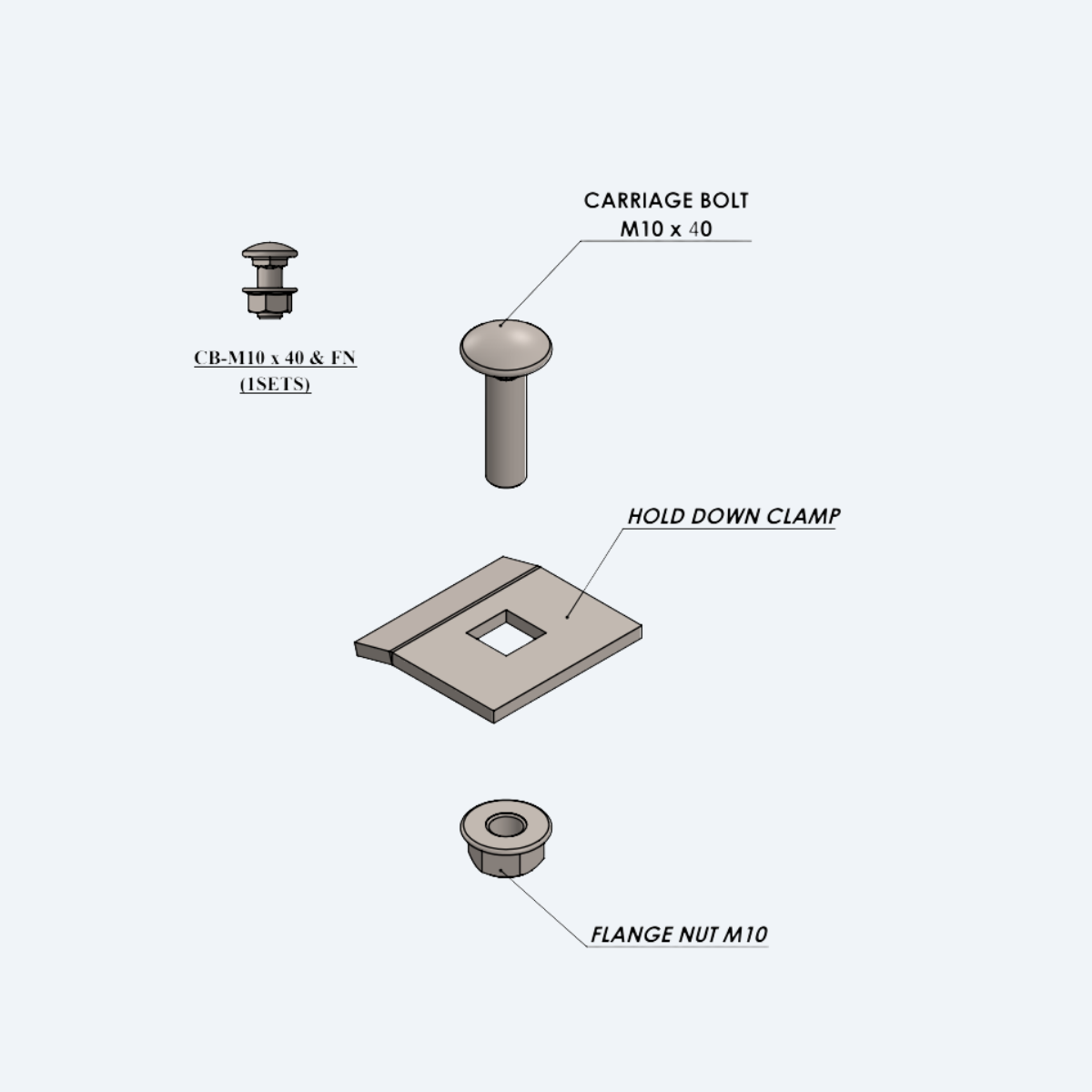

Photos & drawings
Description
Clamp fitting securing a cable ladder section to its supporting structure — bracket, cantilever arm or trapeze — restraining the run against uplift and lateral displacement.
Type B corresponds to a specific support-arm profile; confirm the correct match against the system's parts diagram or drawing prior to specification.
Published item codes
| Part number | Height (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|
| AML100-HDCB-1.5-G | 100 | 1.5 | Hot-Dip Galvanized | 0.02 | |
| AML100-HDCB-2-G | 100 | 2 | Hot-Dip Galvanized | 0.03 | |
| AML125-HDCB-1.5-G | 125 | 1.5 | Hot-Dip Galvanized | 0.02 | |
| AML125-HDCB-2-G | 125 | 2 | Hot-Dip Galvanized | 0.03 | |
| AML150-HDCB-1.5-G | 150 | 1.5 | Hot-Dip Galvanized | 0.02 | |
| AML150-HDCB-2-G | 150 | 2 | Hot-Dip Galvanized | 0.03 |
Not in the list?
Characteristics
| Model | AML100, AML125, AML150 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Material | Hot-Dip Galvanized |
| Finish | G |
