AWB · ST
Straight

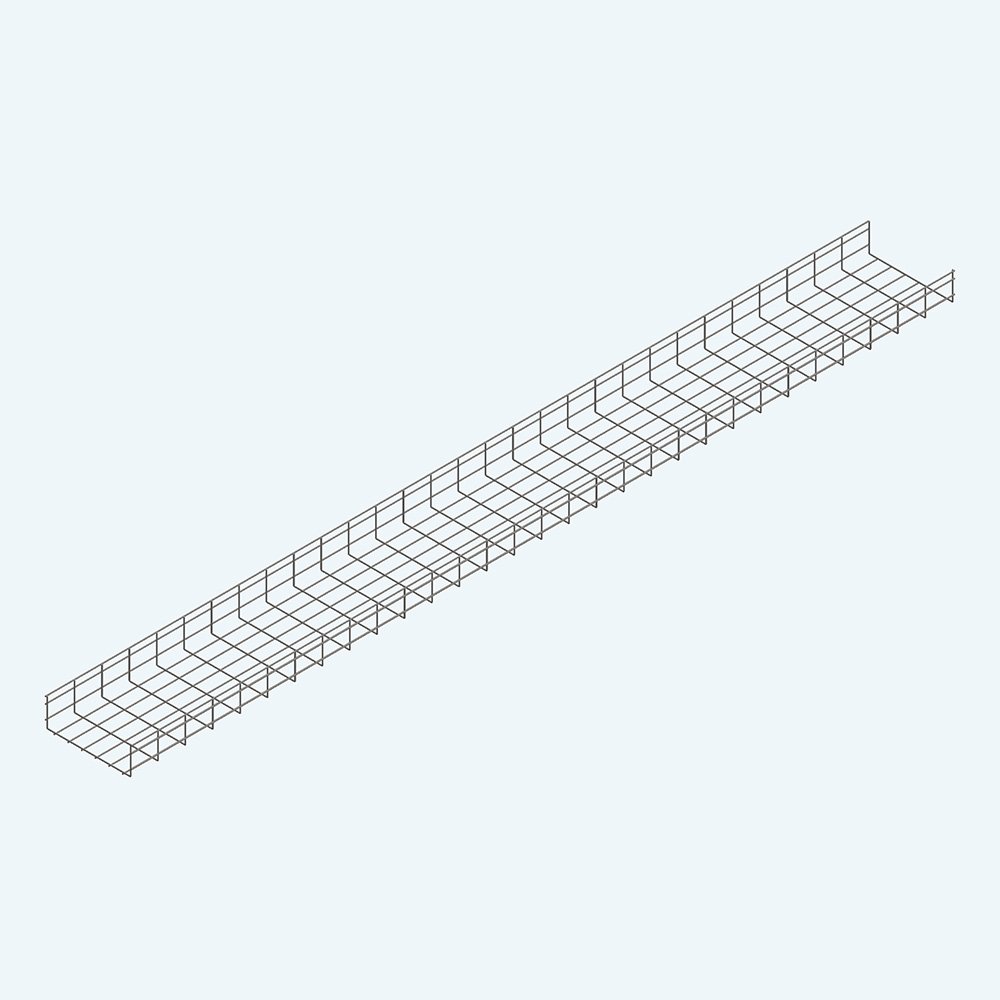

Safety-edge wire tray straight — returned edges on the basket so cable can be pulled without catching on a cut wire end.
Photos & drawings
Description
AWB straight sections are welded wire basket with returned safety edges along the longitudinal wires. Specify height, width and wire diameter from the published item-code table. Hot-dip galvanized. Fittings are configure-to-order.
Published item codes
| Part number | Height (mm) | Width (mm) | Wire Ø (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|---|
| AWB100-ST-50-3.9-3-10P-G | 100 | 50 | 3.9 | Hot-Dip Galvanized | 2.73 | |
| AWB100-ST-50-4.5-3-10P-G | 100 | 50 | 4.5 | Hot-Dip Galvanized | 3.67 | |
| AWB100-ST-50-4.9-3-10P-G | 100 | 50 | 4.9 | Hot-Dip Galvanized | 4.35 | |
| AWB100-ST-50-5-3-10P-G | 100 | 50 | 5 | Hot-Dip Galvanized | 4.55 | |
| AWB100-ST-50-5.9-3-10P-G | 100 | 50 | 5.9 | Hot-Dip Galvanized | 6.31 | |
| AWB100-ST-75-3.9-3-10P-G | 100 | 75 | 3.9 | Hot-Dip Galvanized | 2.94 | |
| AWB100-ST-75-4.5-3-10P-G | 100 | 75 | 4.5 | Hot-Dip Galvanized | 3.96 | |
| AWB100-ST-75-4.9-3-10P-G | 100 | 75 | 4.9 | Hot-Dip Galvanized | 4.68 | |
| AWB100-ST-75-5-3-10P-G | 100 | 75 | 5 | Hot-Dip Galvanized | 4.90 | |
| AWB100-ST-75-5.9-3-10P-G | 100 | 75 | 5.9 | Hot-Dip Galvanized | 6.80 |
Not in the list?
Characteristics
| Model | AWB25, AWB50, AWB75, AWB100, AWB150 |
|---|---|
| Material | G |
| Finish | G |
