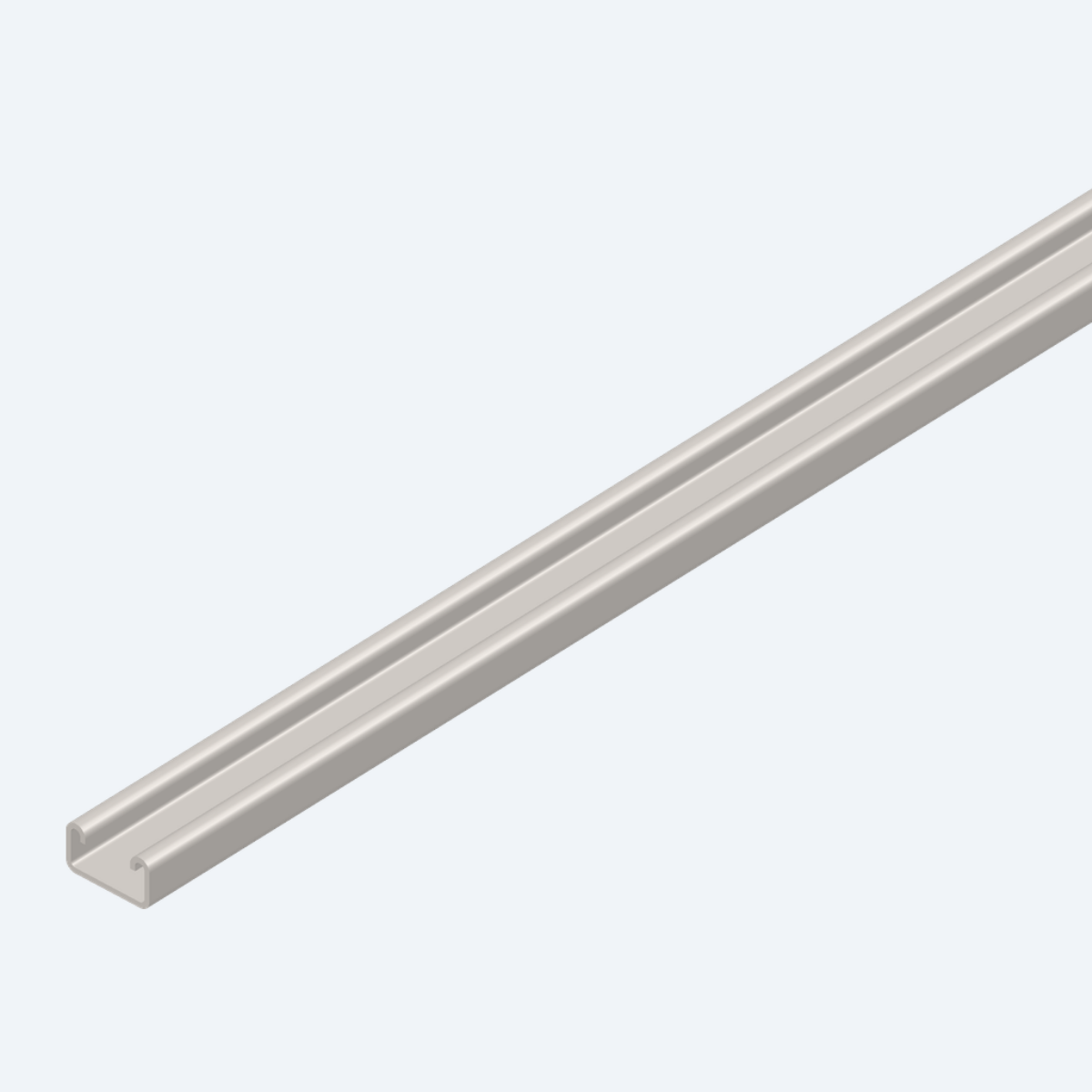

Flexistrut Single - Type 300
Single-channel strut, deeper 300-series profile, 2.5mm gauge.
Photos & drawings
Description
Single-channel Flexistrut section in the deeper 300-series profile, specified where a support run requires greater stiffness than the standard 100-series channel without a back-to-back arrangement.
Shares the fixing and accessory range of the 100-series, permitting profiles to be combined along a single support run.
Published item codes
| Part number | Thickness (mm) | Length (m) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|
| AS300-3000-A2 | 2.5 | 3 | SS304 | 6.00 | |
| AS300-3000-E | 2.5 | 3 | Epoxy on Mild Steel | 5.92 | |
| AS300-3000-G | 2.5 | 3 | Hot-Dip Galvanized | 5.92 | |
| AS300-6000-A2 | 2.5 | 6 | SS304 | 12.00 | |
| AS300-6000-E | 2.5 | 6 | Epoxy on Mild Steel | 11.85 | |
| AS300-6000-G | 2.5 | 6 | Hot-Dip Galvanized | 11.85 |
Not in the list?
Characteristics
| Model | AS300 |
|---|---|
| Height | 22 mm |
| Width | 41 mm |
| Thickness | 2.5 mm |
| Material | A2, E, G |
| Finish | A2, E, G |
GA drawings & documents
| Document | Type | Applies to | Revision | Download |
|---|---|---|---|---|
| AS Flexistrut Single - Type 300 — GA Drawing | General arrangement (GA) | AS/AS300 | — |
GA drawings and spec sheets are published per component and cover every width and length in the range. Project-specific GA sheets for a particular item code are issued against an enquiry reference.
