AS · AS100
Flexistrut Single - Type 100

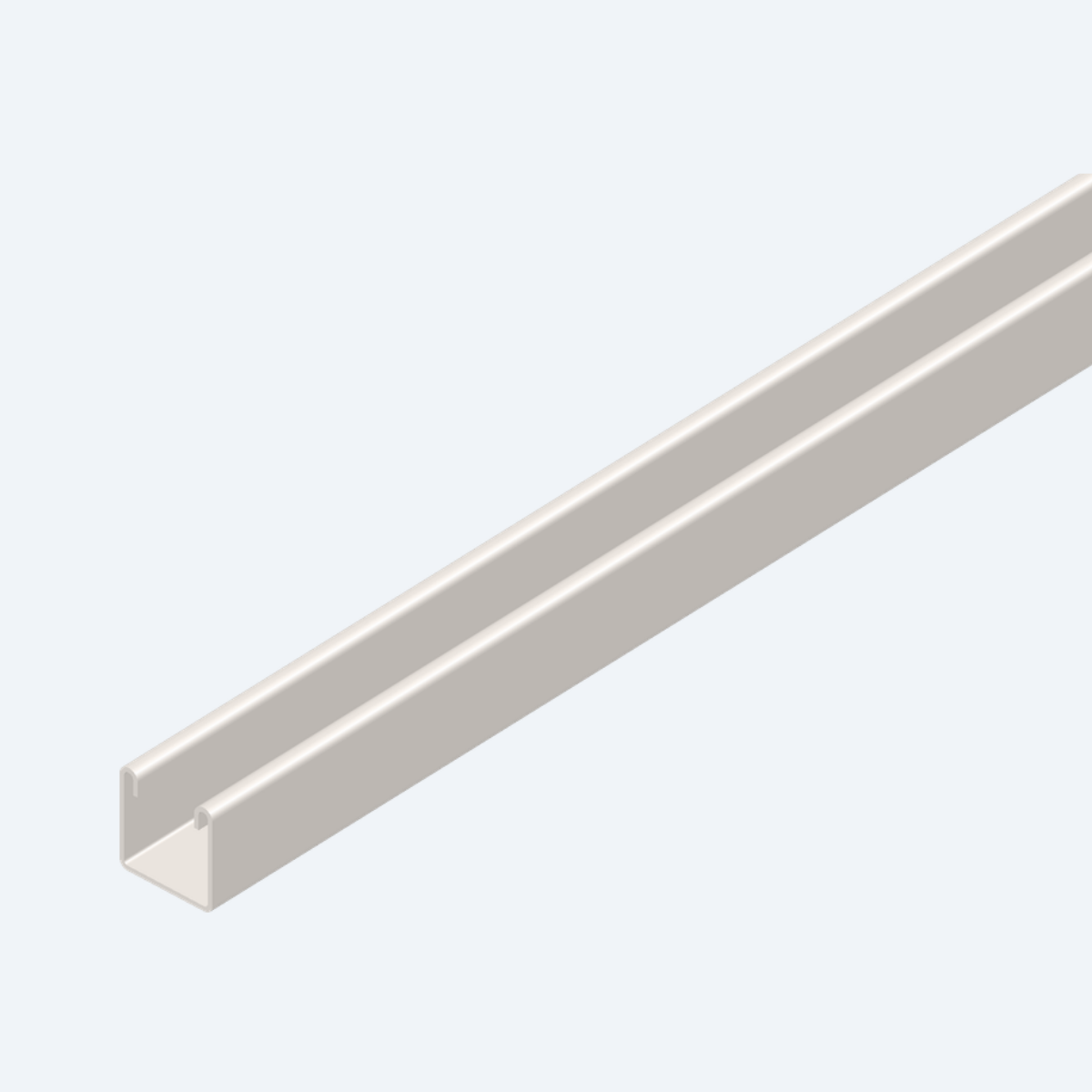

Single-channel Flexistrut — the standard AS section.
Photos & drawings
Description
Single-channel Flexistrut section forming the structural backbone of a framed support — trapeze, wall bracket or floor-standing frame — for cable ladder, tray or basket installations.
Supplied with a plain-punched profile; specify the slotted T1 or T3 variant where fixings are required at points along the channel other than fixed centres.
AS100Channel: Flexistrut Single - Type 100
Which item it is.
Published item codes
| Part number | Thickness (mm) | Length (m) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|
| AS100-3000-A2 | 2.5 | 3 | SS304 | 8.28 | |
| AS100-3000-E | 2.5 | 3 | Epoxy on Mild Steel | 8.35 | |
| AS100-3000-G | 2.5 | 3 | Hot-Dip Galvanized | 8.35 | |
| AS100-6000-A2 | 2.5 | 6 | SS304 | 16.56 | |
| AS100-6000-E | 2.5 | 6 | Epoxy on Mild Steel | 16.71 | |
| AS100-6000-G | 2.5 | 6 | Hot-Dip Galvanized | 16.71 |
Not in the list?
Characteristics
| Model | AS100 |
|---|---|
| Height | 41 mm |
| Width | 41 mm |
| Thickness | 2.5 mm |
| Material | Stainless Steel 304, Epoxy on Mild Steel, Hot-Dip Galvanized |
| Finish | A2, E, G |
GA drawings & documents
| Document | Type | Applies to | Revision | Download |
|---|---|---|---|---|
| AS Flexistrut Single - Type 100 — GA Drawing | General arrangement (GA) | AS/AS100 | — |
GA drawings and spec sheets are published per component and cover every width and length in the range. Project-specific GA sheets for a particular item code are issued against an enquiry reference.
