AS · AS321
Flexistrut Double - Type AS321

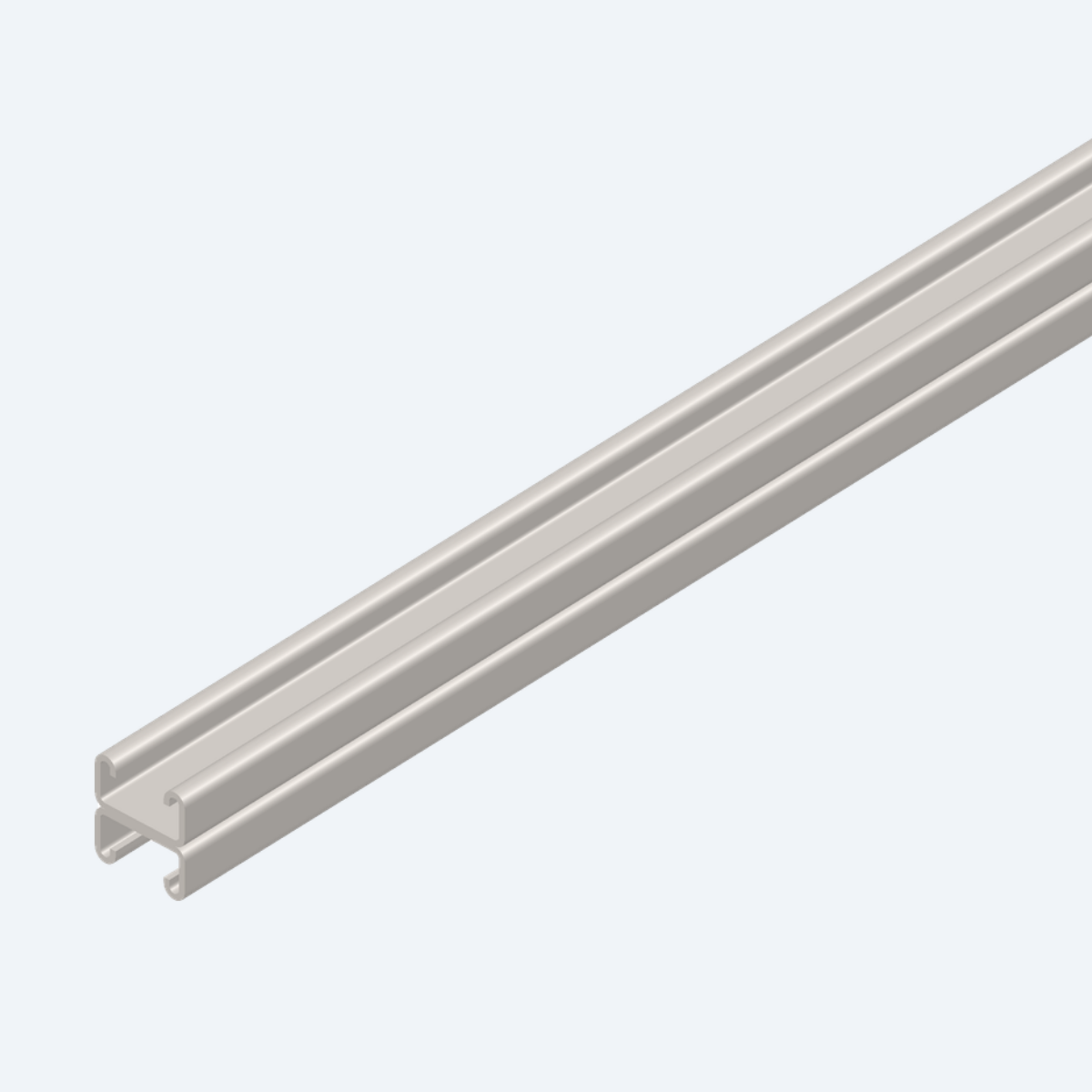

Back-to-back double Flexistrut channel — Type 321.
Photos & drawings
Published item codes
| Part number | Thickness (mm) | Length (m) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|
| AS321-3000-A2 | 2 | 3 | SS304 | 9.60 | |
| AS321-3000-E | 2 | 3 | Epoxy on Mild Steel | 9.48 | |
| AS321-3000-G | 2 | 3 | Hot-Dip Galvanized | 9.48 | |
| AS321-6000-A2 | 2 | 6 | SS304 | 19.20 | |
| AS321-6000-E | 2 | 6 | Epoxy on Mild Steel | 18.96 | |
| AS321-6000-G | 2 | 6 | Hot-Dip Galvanized | 18.96 |
Not in the list?
Characteristics
| Model | AS321 |
|---|---|
| Height | 44 mm |
| Width | 41 mm |
| Thickness | 2 mm |
| Material | A2, E, G |
| Finish | A2, E, G |
GA drawings & documents
| Document | Type | Applies to | Revision | Download |
|---|---|---|---|---|
| AS Flexistrut Double - Type AS321 — GA Drawing | General arrangement (GA) | AS/AS321 | — |
GA drawings and spec sheets are published per component and cover every width and length in the range. Project-specific GA sheets for a particular item code are issued against an enquiry reference.
