AS · AS120

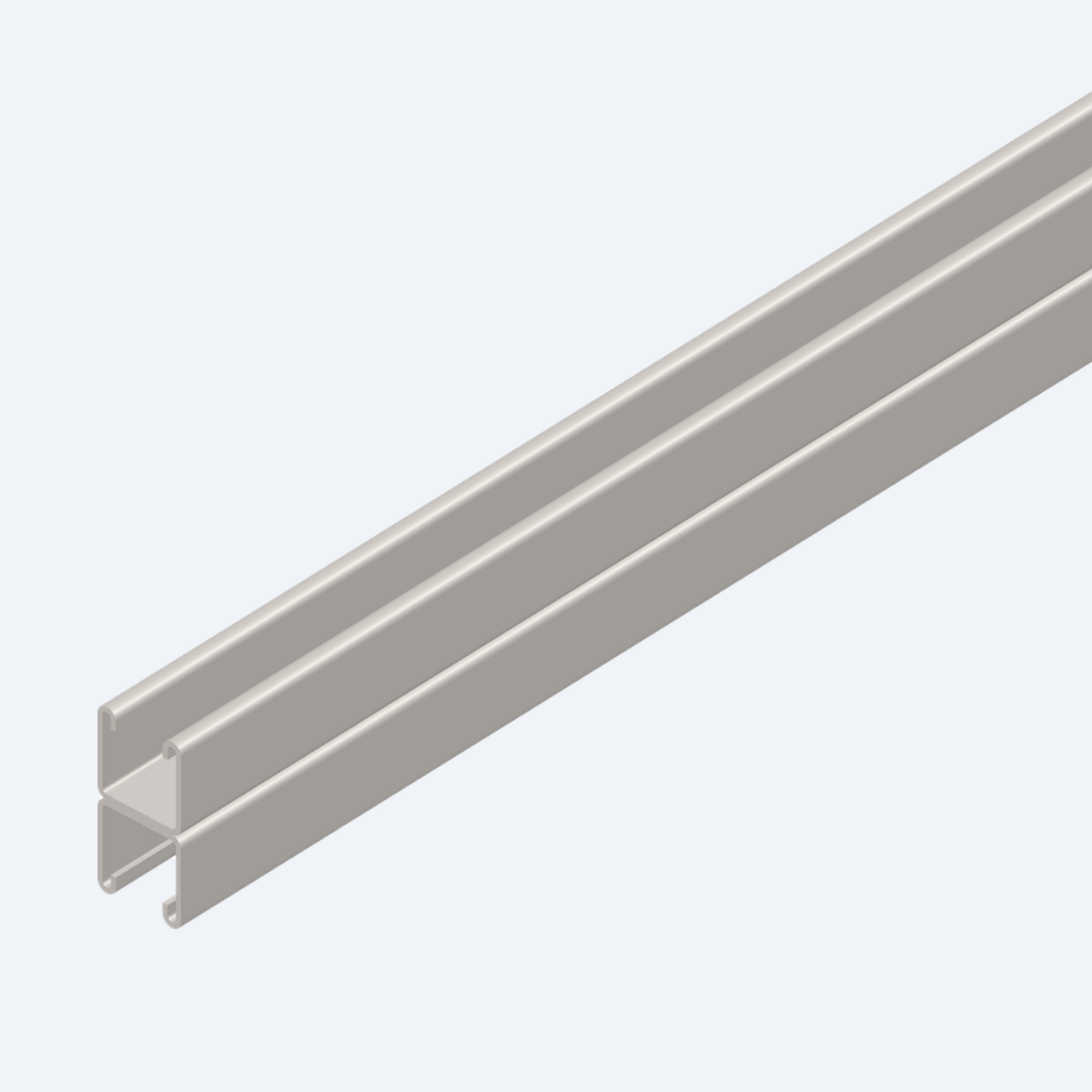

Flexistrut Double - Type AS120
Back-to-back double channel, 41mm profile, 2.5mm gauge — for heavier trapeze loads than a single AS100.
Photos & drawings
Description
Back-to-back double Flexistrut channel, combining two single sections to provide increased stiffness where a trapeze or bracket run exceeds the rated capacity of a single AS100 channel.
Specified at the base of heavier-duty trapeze and cantilever supports within the same range.
Published item codes
| Part number | Thickness (mm) | Length (m) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|
| AS120-3000-A2 | 2.5 | 3 | SS304 | 16.56 | |
| AS120-3000-E | 2.5 | 3 | Epoxy on Mild Steel | 16.71 | |
| AS120-3000-G | 2.5 | 3 | Hot-Dip Galvanized | 16.71 | |
| AS120-6000-A2 | 2.5 | 6 | SS304 | 33.12 | |
| AS120-6000-E | 2.5 | 6 | Epoxy on Mild Steel | 33.42 | |
| AS120-6000-G | 2.5 | 6 | Hot-Dip Galvanized | 33.42 |
Not in the list?
Characteristics
| Model | AS120 |
|---|---|
| Height | 82 mm |
| Width | 41 mm |
| Thickness | 2.5 mm |
| Material | A2, E, G |
| Finish | A2, E, G |
GA drawings & documents
| Document | Type | Applies to | Revision | Download |
|---|---|---|---|---|
| AS Flexistrut Double - Type AS120 — GA Drawing | General arrangement (GA) | AS/AS120 | — |
GA drawings and spec sheets are published per component and cover every width and length in the range. Project-specific GA sheets for a particular item code are issued against an enquiry reference.
